One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out.

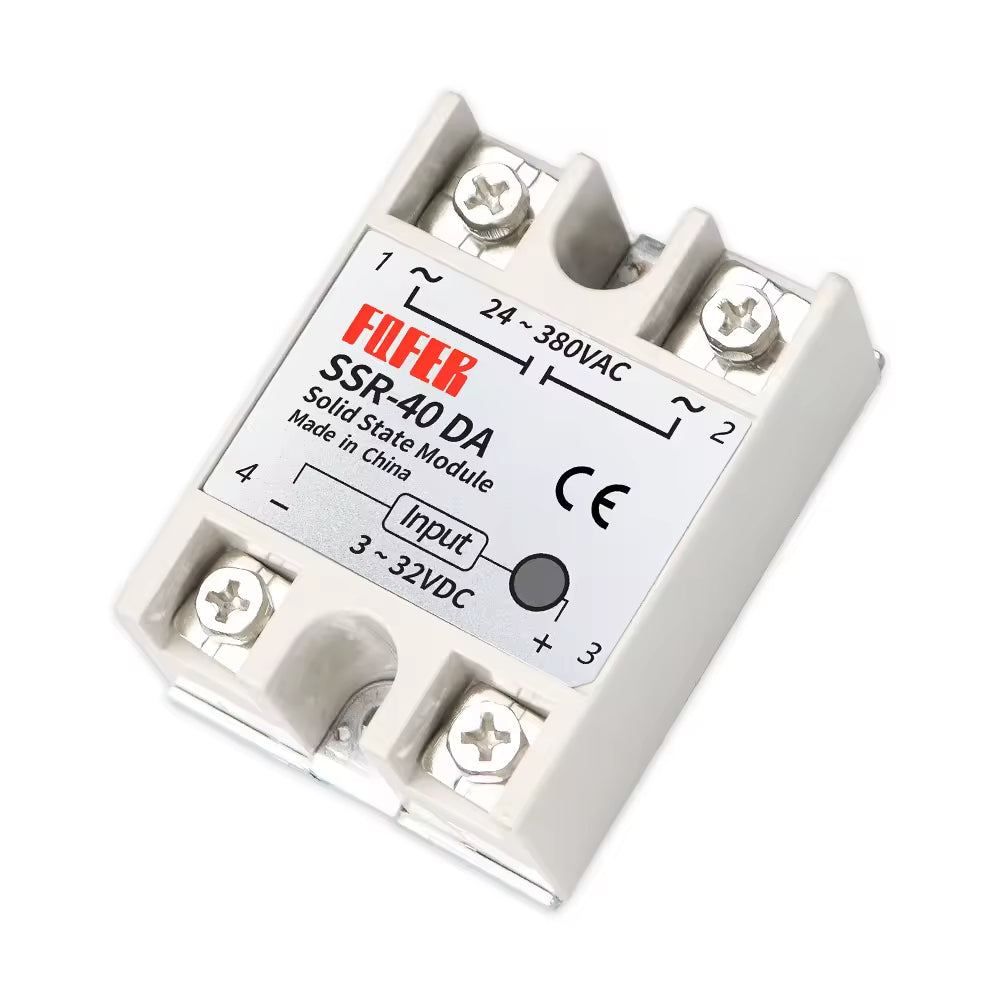

This particular SSR can switch current loads of up to 40A with a 3-32V DC input and a zero cross -trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.
-36%
SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC 40A
Available:In Stock
- Product SKU: KG618
₹ 384
₹ 609
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC 40A
This is SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC 40A. A solid -state relay (SSR) allows you to control high-current AC loads from lower -voltage DC control circuitry. Solid-state relays have several advantages over mechanical relays.One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out.

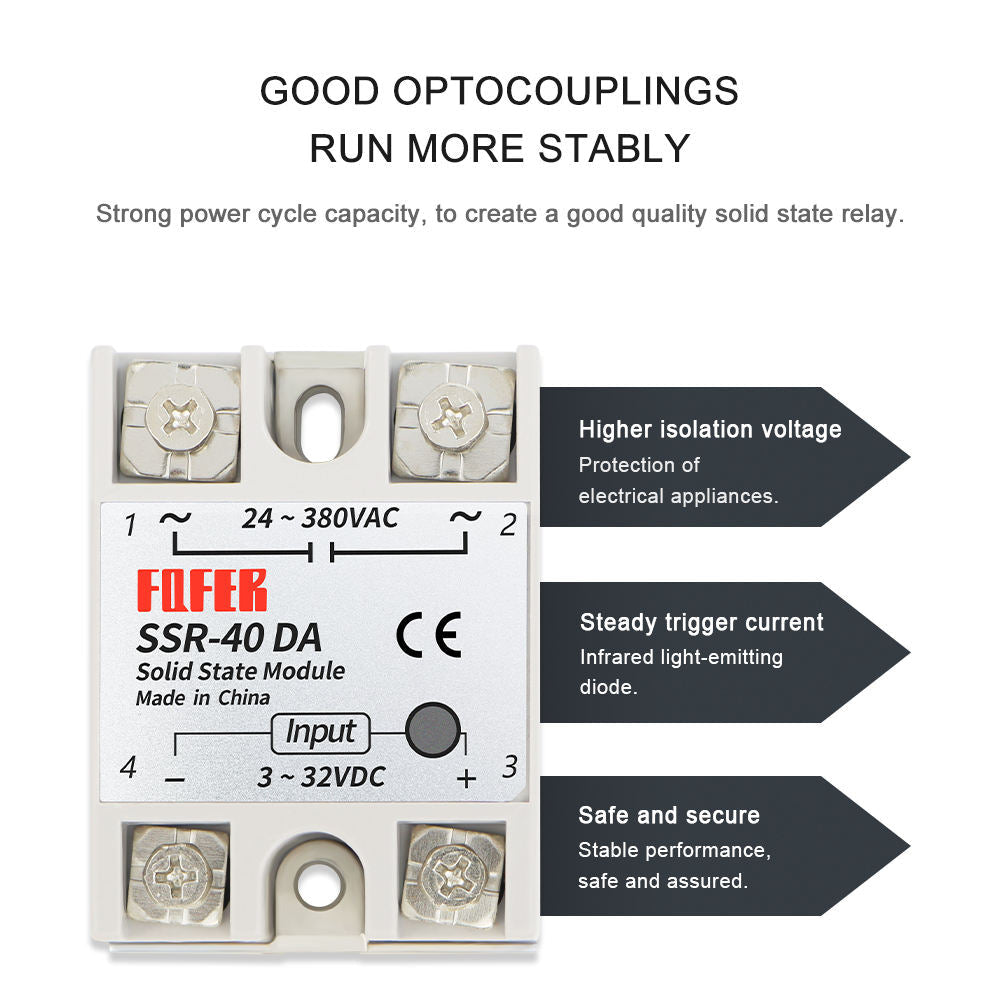

This particular SSR can switch current loads of up to 40A with a 3-32V DC input and a zero cross -trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.
Technical Details of Solid State Relay
- Model: Solid State Relay
- Dielectric Strength: >2.5kVA/1 min
- Trigger Voltage: 3-32V DC
- Switching Voltage: 24-380V AC @40A
- Operating Temperature: -20 to 85°C
- Material: ABS
- Dimensions: 45.5 × 62.5 × 24mm
- Weight: 95g
Features of solid-state relay
- Long service life and high reliability
- Reduced electromagnetic interference
- Highly reliable, compact size designed to offer users maximum simplicity.
Applications :
- Industrial automation systems
- Temperature control equipment
- Motor speed control
- HVAC systems
- Lighting control
- Home appliances
- Power distribution systems
Connections
Physical Attributes
- Dimensions: 45.5 × 62.5 × 24mm
- Weight: 95g
Package Include
- 1 x SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC 40A
