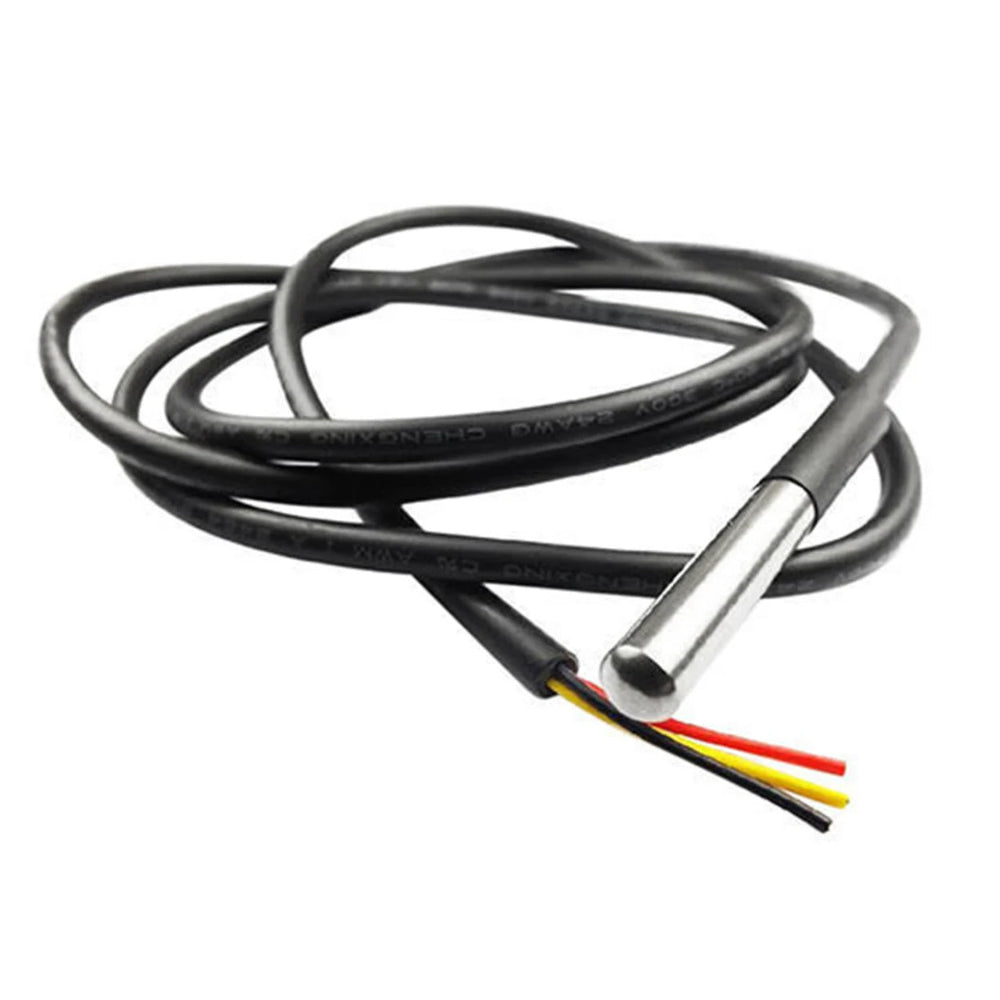

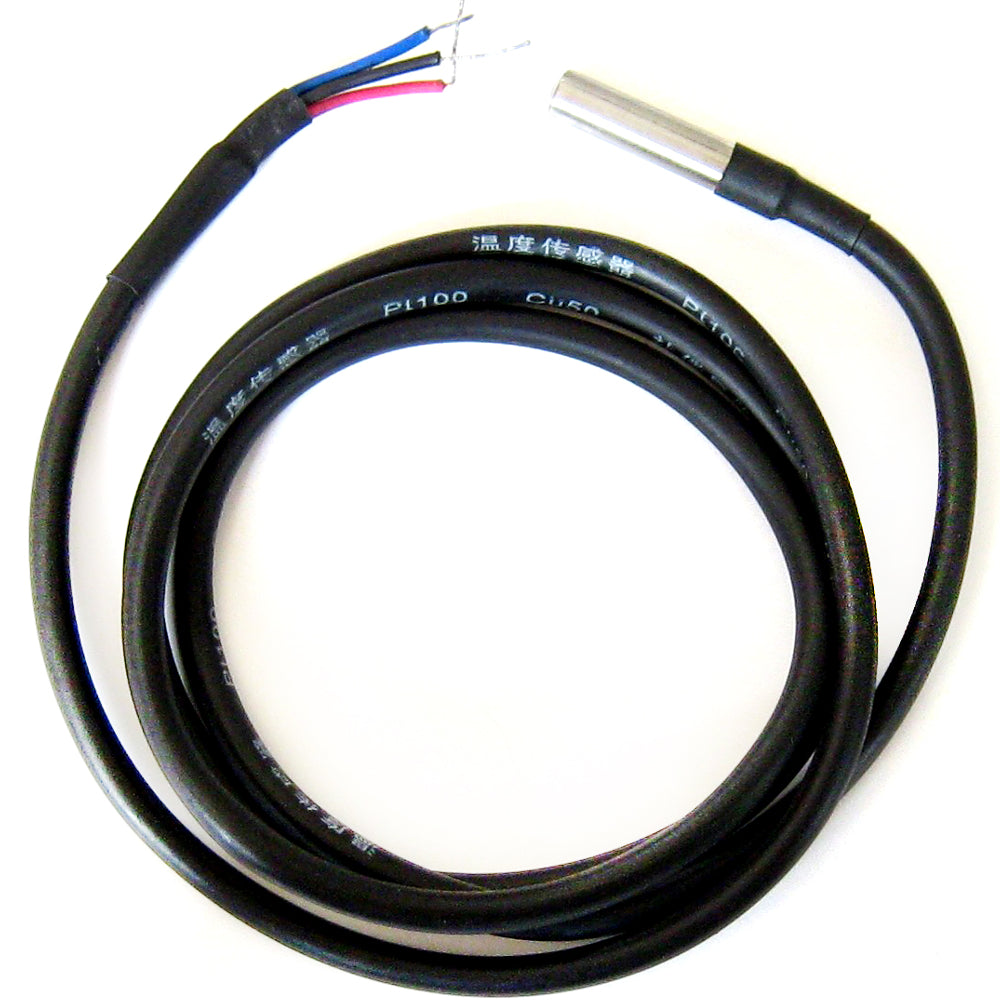

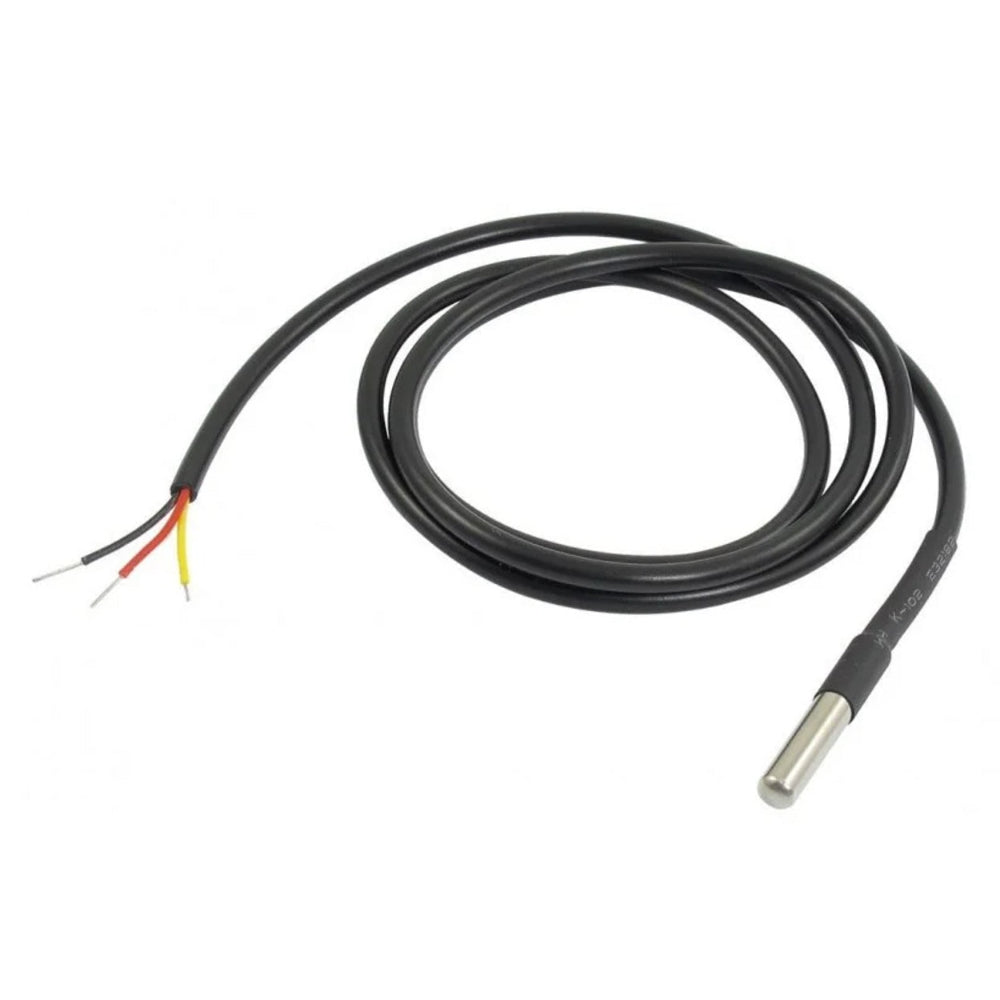

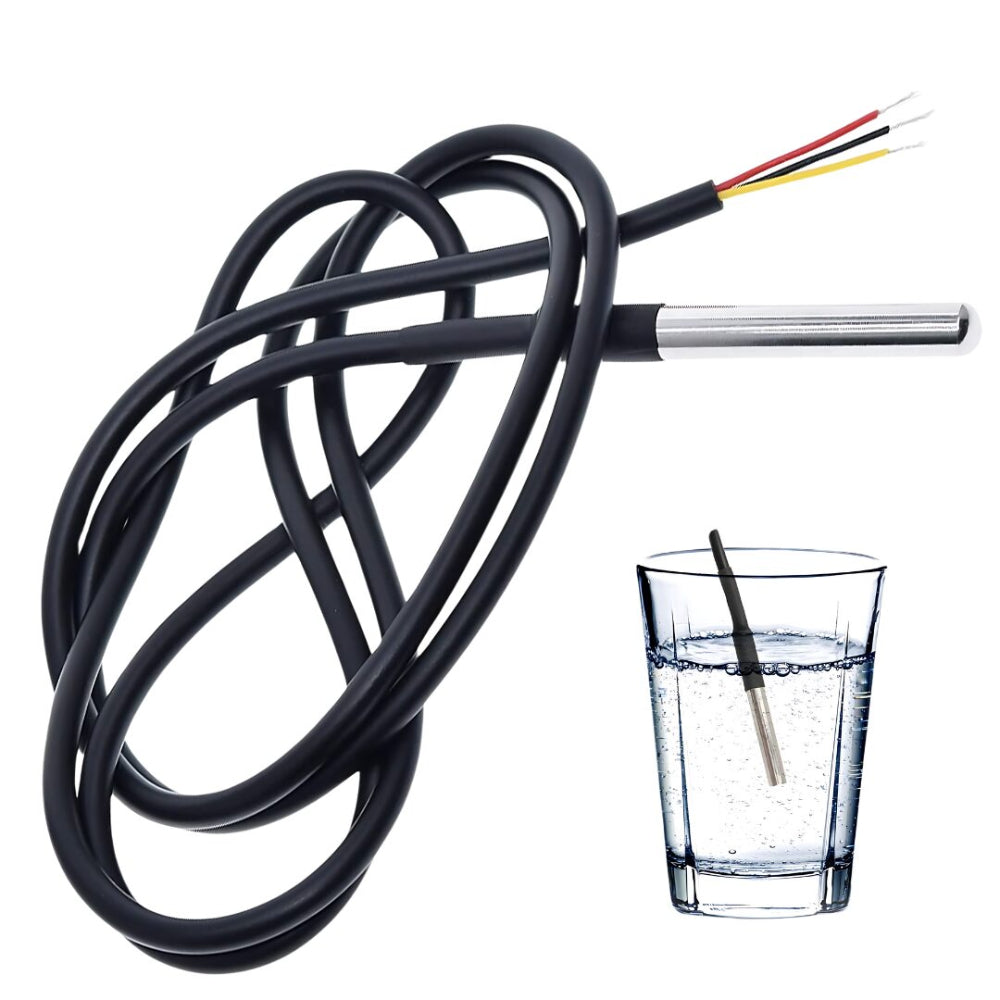

DS18B20 Waterproof Digital Temperature Sensor Thermal Probe Sensor (1m)
- Product SKU: KG006
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Specification
Description
DS18B20 Waterproof Digital Temperature Sensor
This ds18b20 waterproof temperature sensor is designed for accurate digital readings in both wet and remote environments. As one of the reliable ds18b20 temperature sensor options available, it supports long-distance communication without signal loss. Because it aligns well with various temperature probe types, it becomes suitable for projects requiring dependable thermal measurements.These 1-Wire digital temperature sensors provide high accuracy (±0.5°C) and deliver up to 12-bit resolution using the internal ADC. Moreover, they work efficiently with any microcontroller by using just one digital pin. Multiple sensors can be chained together thanks to their factory-assigned 64-bit unique ID.
Compatible with 3.0–5.0V systems, the sensor requires a 4.7kΩ pull-up resistor from the DATA pin to VCC. This feature further strengthens its usability across several temperature probe types.
Technical Details
- Model: DS18B20
- Item Type: Probe
- Model Type: Waterproof Temperature Probe
- Rated Voltage: 3V to 5.5V
- Temperature Range: -55°C to +125°C
- Probe Diameter: 6mm
- Probe Length: 50mm
- Resolution: 9 ~ 12 bit
- Query Time: 750ms
- Cable Length: 1m
Features
- Heat-Shrinkable Tube on Each Pin to Prevent Short Circuits
- Internal Sealing Glue for Waterproof and Moisture-Proof Protection
- Stainless Steel Tube Encapsulation for Rust Prevention
- Probe Dimensions: 6mm Diameter, 30mm Length
- Equipped with Original DS18B20 Temperature Sensor Chip
- Stainless Steel Shell (6 x 45mm), Lead Length 100cm (Shielding Wire)
- No External Components Required, Unique Single Bus
Pin Description:
- Red: VCC/VDD
- Yellow/White: DATA
- Black: GND
Applications :
- Aquarium Temperature Monitoring: Ideal for fish tanks.
- Weather Stations: Reads outdoor temperature data.
- Home Automation: Integrates easily for temperature control.
- Industrial Applications: Monitors pipes, machinery, and equipment.
- Agriculture: Suitable for soil and greenhouse temperature checks.
- HVAC Systems: Helps regulate heating and cooling.
- Automotive: Reads engine or battery temperature.
- Food and Beverage: Works for cold storage and ovens.
- Laboratories: Suitable for controlled experiments.
- IoT Projects: Popular for remote thermal sensing.
Integration with Arduino of temp sensor DS18B20
Sample Code
Integration with Raspberry Pi
Sample Code
Physical Attributes of temp sensor ds18b20
- Cable length (cm): 100
- Connector diameter (mm): 6
- Weight (gm): 21
Package Includes
- 1 x DS18B20 Waterproof Digital Temperature Sensor Thermal Probe Sensor (1m)
Customer Reviews
This is a nice little temperature sensor. It's been working well as a solar powered pool thermometer. 5 sensors, each 3 feet in length. The wire are appropriately colored (red and black, and data is yellow). So far it's been just fine in the water (a few days now) so the waterproofing seems good.
I bought these to put down our geothermal wells and hot springs. You can parallel them in great quantity, for very simple wiring when using multiple sensors.Every one of these has a unique serial number that allows them all to "talk" on the same wire to the microcontroller. And there's no analog sensor extra components nonsense to deal with on long wires. I can have a bunch of these down our deep well, and the maximum temperature rating will allow them to get a true picture of temperature gradient down the WWII-era tungsten ore-processing plant hot well.I've waited a LONG time to get these via eBay- here's where to get them in a hurry.
I will only buy the "Waterproof" DS18B20 sensors now. I use to buy the cheaper ones with the 3 pins that you would have to solder on your own cable, but I always had issued with the cables going bad on them. Since switching to these I no longer have any problems.TIP: Black lead goes to ground. Red lead goes to 3.3vdc and yellow is your data line.
These probes are easy to wire and there's tons of options for Arduino based platforms to get readings for them. I'm using at least one of them for sous vide monitoring over mqtt with an esp8266, and the logging has been accurate and stable so far. No resistors or any other external components are needed to interface with it. They also seem to be sealed really well, so no worries about water ingress when used as a immersed temperature probe.
Sensors all work and are within the DS18B20 tolerance of plus or minus .5 degrees C. I'm not sure about the waterproofing yet. Would give them 5 stars if the ends of the leads were soldered or had pins on them.
I previously purchased from another seller, and all 5 sensors did not work.
These worked out great for my Arduino. I had no issues. I would get these again if needed.
This is an accurate and easy temperature probe for 1-Wire systems.
These are great little sensors, and well calibrated. Mine were within 0.1C absolute, and very consistent. Easy to get running on a raspberry pi, even without a pullup resistor. I'll be buying lots of these.
I have them connected up to a Arduino to monitor temperatures in an aquarium.Works great and appears to be more accurate than the aquarium thermometers you buy in the stores.
