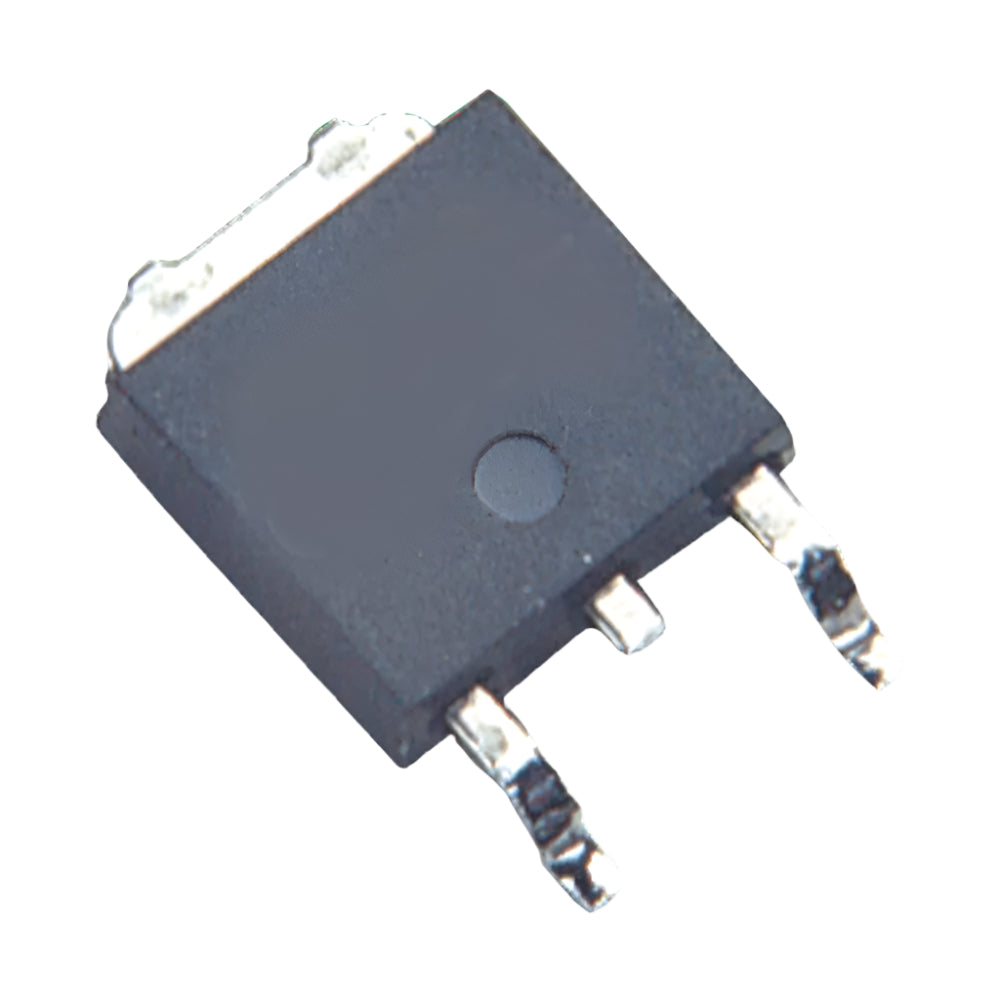

MJD122G-ONSEMI-Darlington Transistor-1

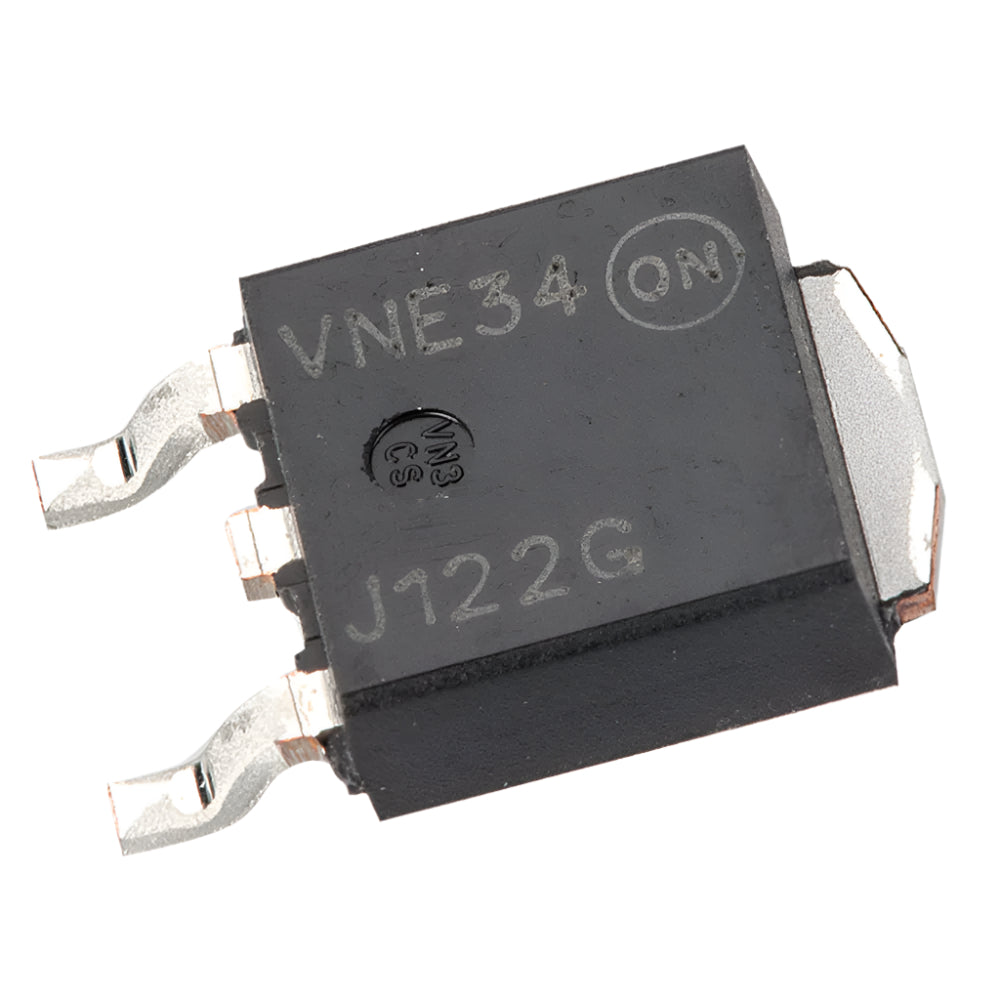

MJD122G-ONSEMI-Darlington Transistor-2

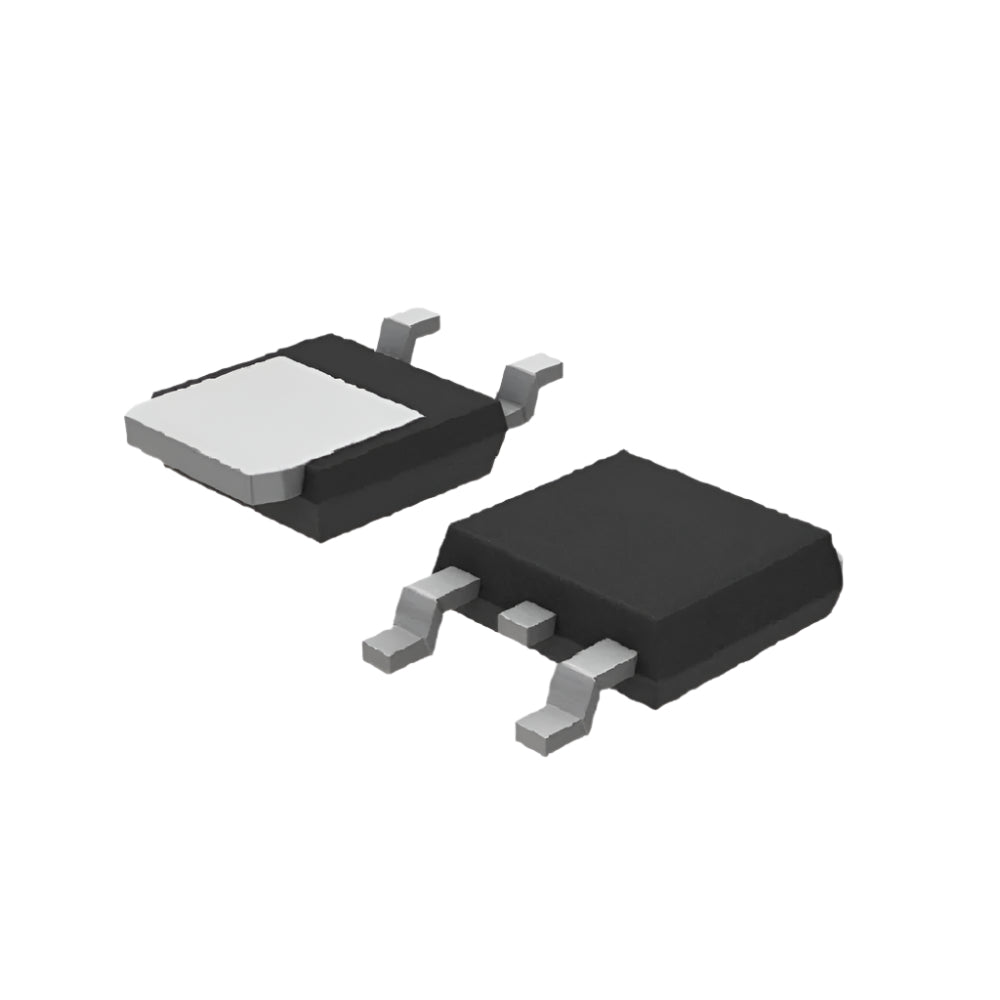

MJD122G-ONSEMI-Darlington Transistor-3
MJD122G-ONSEMI-Darlington Transistor-1
MJD122G-ONSEMI-Darlington Transistor-2
MJD122G-ONSEMI-Darlington Transistor-3

MJD122G-ONSEMI-Darlington Transistor, NPN, 100 V, 1.75 W, 8 A, TO-252 (DPAK), 3 Pins

Available:In Stock
  • Product SKU: INTEG175
Wishlist
₹ 10 ₹ 19
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • NPN Darlington
  • 100V, 8A
  • 1.75W power
  • TO-252 (DPAK) package
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   36H-161C

Secure

Specification

Description

MJD122G-ONSEMI-Darlington Transistor, NPN, 100 V, 1.75 W, 8 A, TO-252 (DPAK), 3 Pins

The MJD122G from ON Semiconductor is a high-performance NPN Darlington transistor designed for switching and amplification tasks. Featuring a maximum voltage rating of 100V, a continuous collector current of up to 8A, and a power dissipation of 1.75W, it offers reliable operation in demanding applications. Packaged in a compact TO-252 (DPAK) 3-pin surface-mount case, the MJD122G is ideal for power management, motor control, and audio amplification circuits.

Note:
Product Images are shown for illustrative purposes only and may differ from the actual product.

Technical Details

  • Transistor Polarity: NPN
  • Power Dissipation Pd: 1.75W
  • Transistor Case Style: TO-252 (DPAK)
  • No. of Pins: 3 Pins
  • Transistor Mounting: Surface Mount
  • Product Range: –
  • SVHC: Lead (27-Jun-2024)
  • Collector Emitter Voltage Vbrceo: 100V
  • DC Collector Current: 8A
  • RF Transistor Case: TO-252 (DPAK)
  • DC Current Gain hFE: 12 hFE
  • Operating Temperature Max: 150°C
  • Qualification: AEC-Q101

Features

  • NPN Darlington transistor
  • Collector-Emitter Voltage: 100 V
  • Continuous Collector Current: 8 A
  • Power Dissipation: 1.75 W
  • DC Current Gain (hFE): 12
  • Operating Temperature up to 150°C
  • Surface mount TO-252 (DPAK) package

Applications :

  • Switching applications
  • Motor control circuits
  • Power management systems
  • Audio amplifier circuits
  • Load drivers

Physical Attributes

  • Weight (g): 2
  • Length: 2.92mm
  • Width: 1.3mm
  • Height: 1.1mm

Package Includes

  • 1 x MJD122G-ONSEMI-Darlington Transistor, NPN, 100 V, 1.75 W, 8 A, TO-252 (DPAK), 3 Pins
