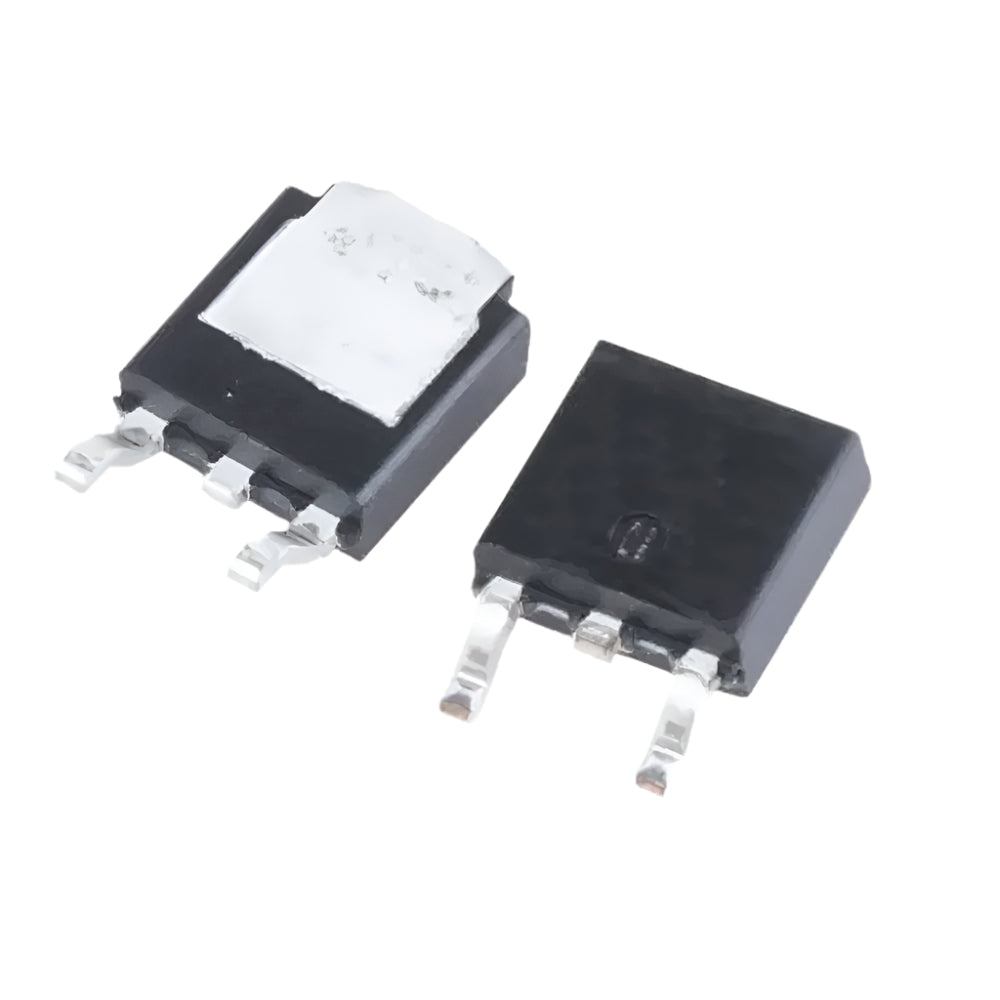

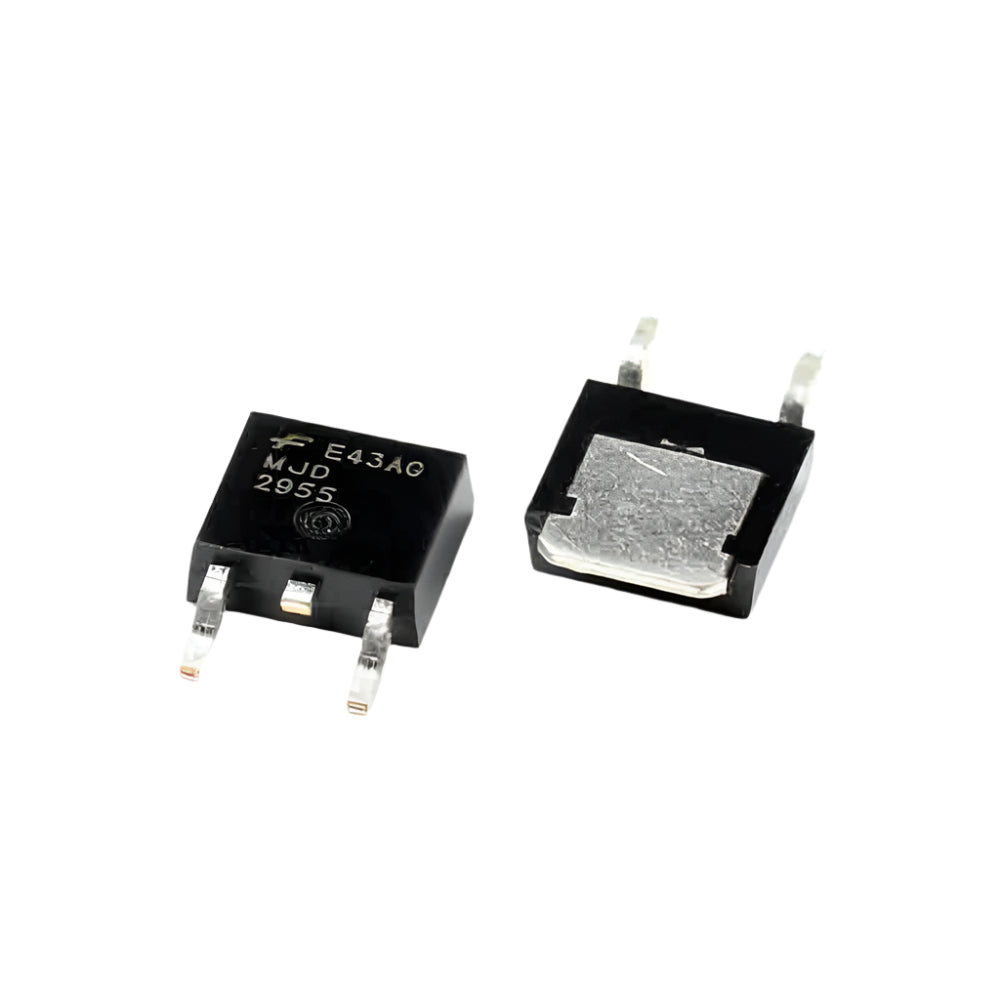

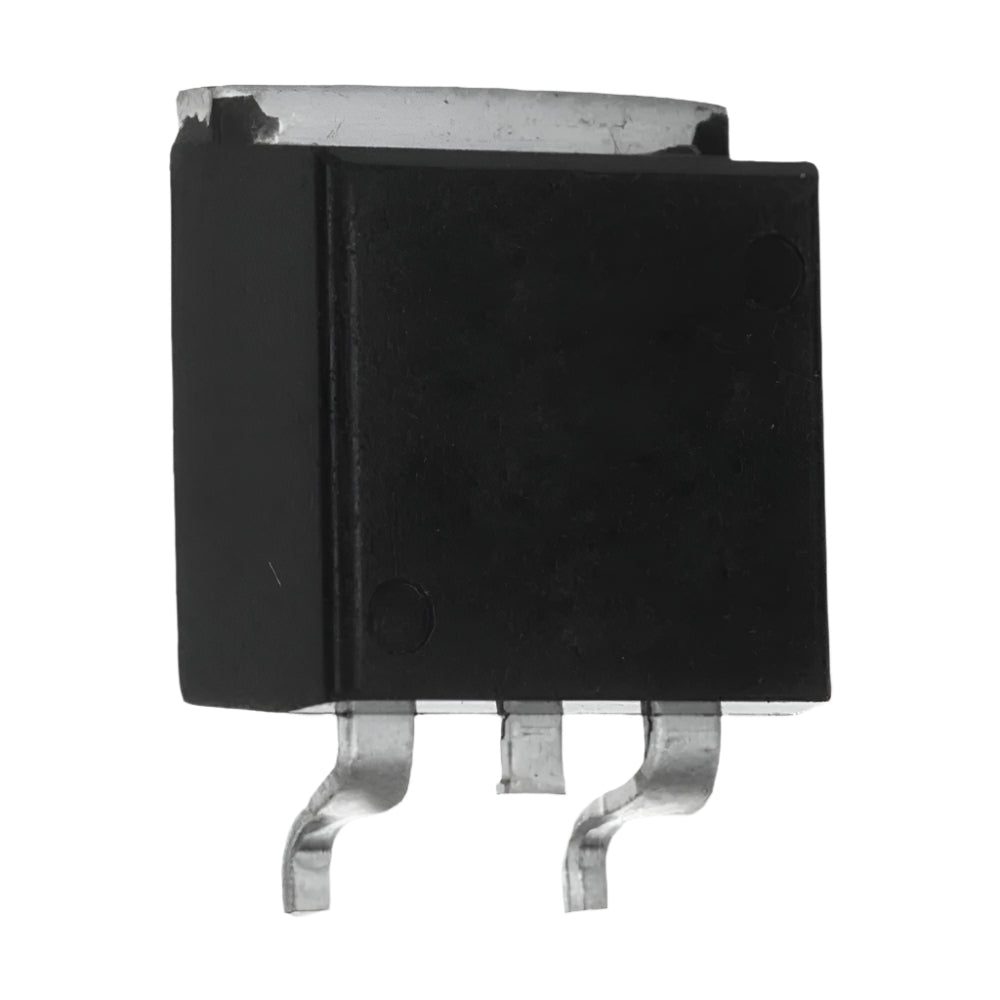

MJD2955G Large Chip PNP Transistor – 10A 60V High Power TO-252 Surface Mount

The MJD2955G is a high-power PNP bipolar junction transistor designed for general-purpose power amplification and switching applications. Housed in a compact TO-252 surface-mount package, this transistor is ideal for space-constrained designs that require robust current handling.

Note:
Product Images are shown for illustrative purposes only and may differ from the actual product.

Technical Details

  • Transistor Type: PNP
  • Package Type: TO-252 (DPAK), Surface Mount
  • Collector-Emitter Voltage (VCEO): -60V
  • Collector-Base Voltage (VCBO): -70V
  • Emitter-Base Voltage (VEBO): -5V
  • Continuous Collector Current (IC): -10A
  • Base Current (IB): -6A
  • Power Dissipation: 75W (with proper heat sinking)
  • DC Current Gain (hFE): 20–70 @ IC = -4A, VCE = -4V
  • Saturation Voltage (VCE(sat)): -2V max @ IC = -4A
  • Transition Frequency (fT): 2 MHz (typical)
  • Junction Temperature Range: -65°C to +150°C
  • Thermal Resistance (Junction to Case): 1.67°C/W
  • Complementary Pair: MJD3055G (NPN)
  • Compliance: RoHS Compliant, Halogen-Free

Features

  • High current handling up to 10A
  • Collector-Emitter voltage rated at 60V
  • Low saturation voltage for efficient switching
  • Surface-mount TO-252 (DPAK) package for compact designs
  • High power dissipation up to 75W with proper heatsinking
  • Ideal for audio amplification and power switching applications
  • Complementary to MJD3055G NPN transistor
  • RoHS compliant and halogen-free

Applications :

  • Audio power amplifiers
  • Switching regulators and converters
  • DC motor drivers and controllers
  • Relay and solenoid drivers
  • Battery-powered equipment

Physical Attributes

  • Weight (g): 2
  • Length: 2.92mm
  • Width: 1.3mm
  • Height: 1.1mm

Package Includes

  • 1 x MJD2955G Large Chip PNP Transistor – 10A 60V High Power TO-252 Surface Mount
