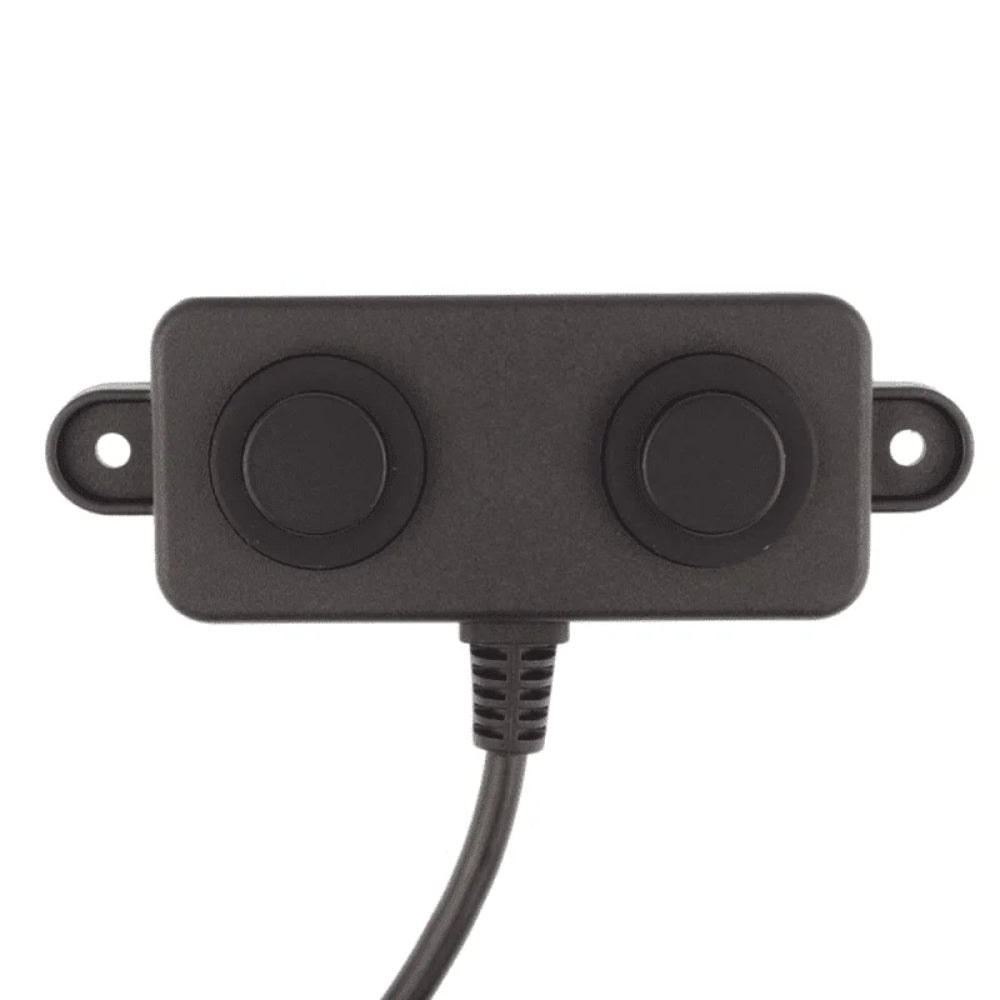

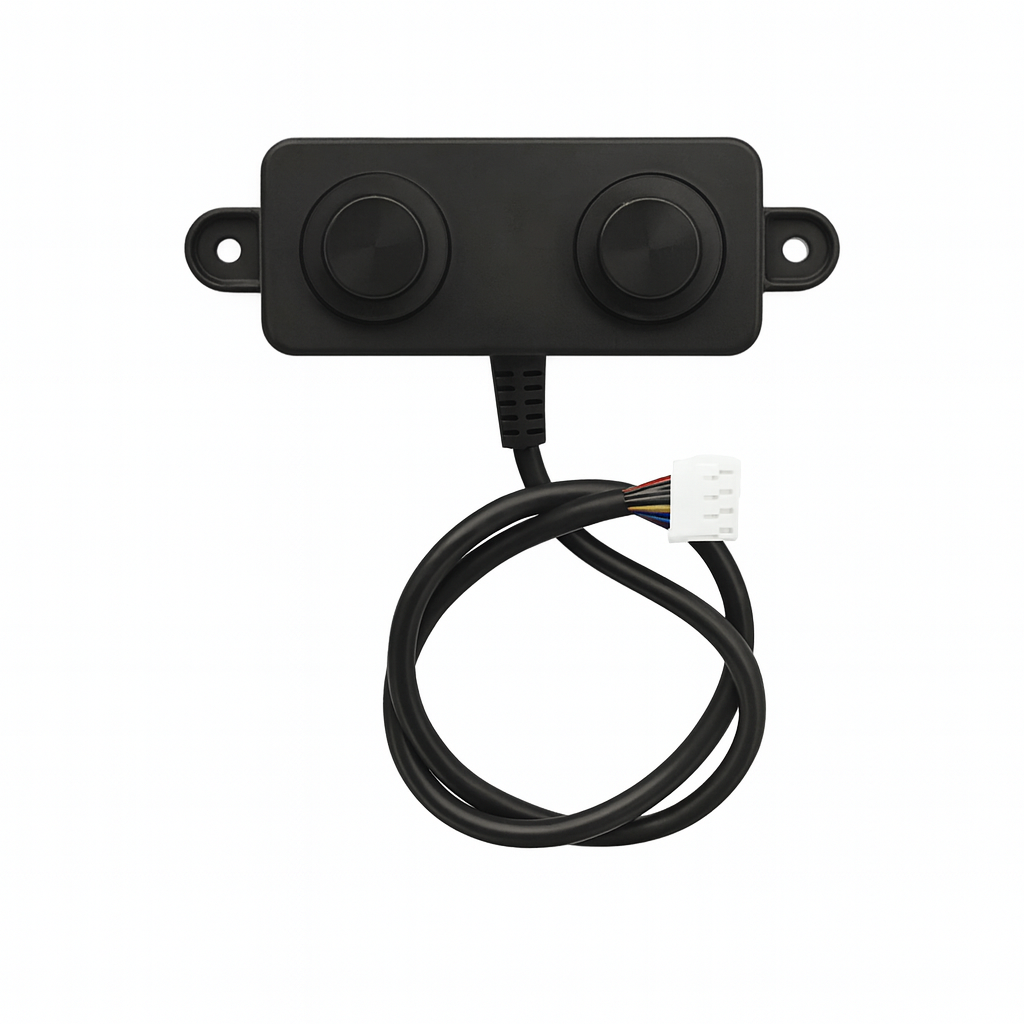

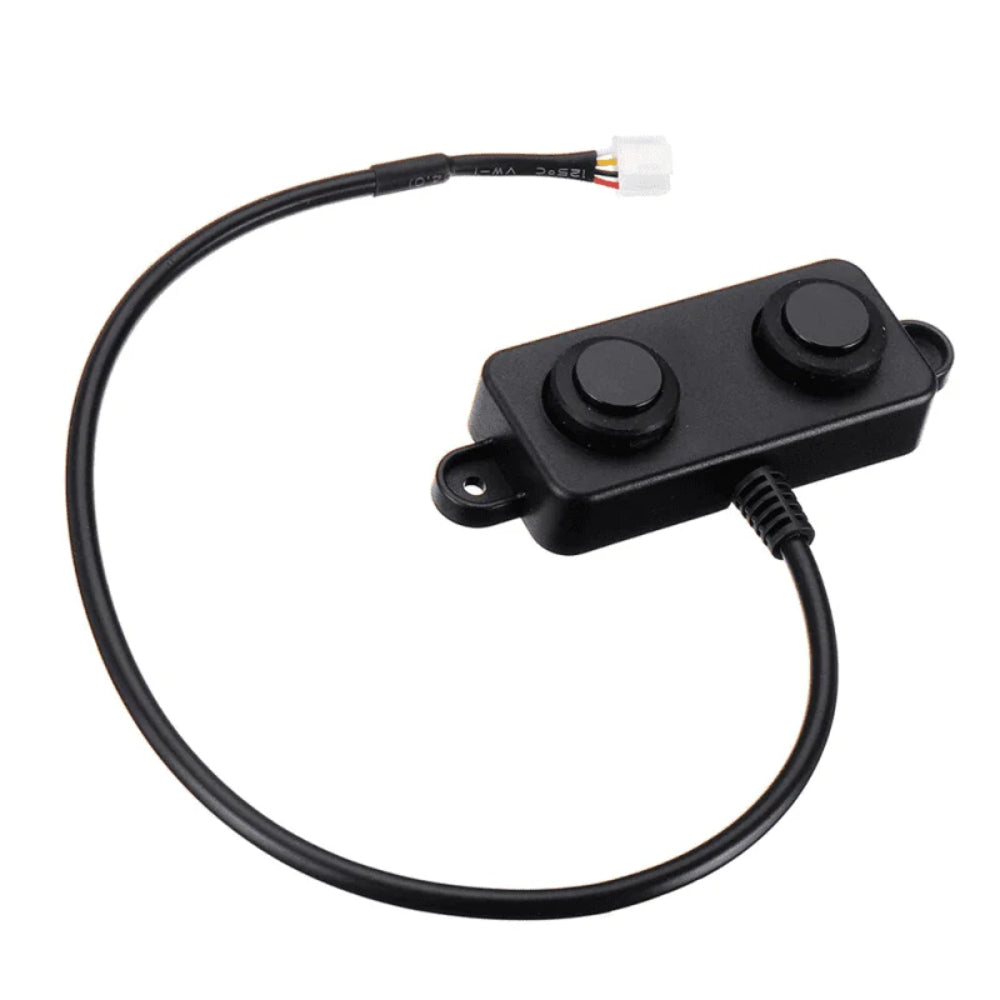

DYP-A02YY4W-V2.0 RS485 Ultrasonic Distance Sensor 3–450cm
![DYP-A02YY4W-V2.0 RS485 Ultrasonic Distance Sensor 3–450cm]()
![DYP-A02YY4W-V2.0 RS485 Ultrasonic Distance Sensor 3–450cm]()
![DYP-A02YY4W-V2.0 RS485 Ultrasonic Distance Sensor 3–450cm]()
![DYP-A02YY4W-V2.0 RS485 Ultrasonic Distance Sensor 3–450cm]()
![DYP-A02YY4W-V2.0 RS485 Ultrasonic Distance Sensor 3–450cm]()
![DYP-A02YY4W-V2.0 RS485 Ultrasonic Distance Sensor 3–450cm]()
Built using a compact and sturdy PVC housing, this module meets the IP67 waterproof standard, ensuring reliable performance in harsh and outdoor environments. With high-output sound power, continuously variable gain, real-time background calibration, and advanced noise-suppression algorithms, the sensor delivers stable and nearly noise-free distance readings.
Additionally, firmware filtering enhances noise tolerance and clutter rejection. The A02YY version is shell-less, allowing integration into custom-designed housings tailored to specific project requirements.
-16%
DYP-A02YY4W-V2.0 RS485 Ultrasonic Distance Sensor 3–450cm
Available:Out of Stock
- Product SKU: KG1290
₹ 1,665
₹ 1,999
Specification
Description
DYP-A02YY4W-V2.0 RS485 Ultrasonic Distance Sensor 3–450cm
The DYP-A02YY4W-V2.0 Ultrasonic Distance Sensor is a high-precision module offering millimeter-level resolution and a measurement range of 3 cm to 450 cm. It supports multiple output interfaces, including PWM pulse-width output, UART controlled output, UART automatic output, switching output, and RS485 output, making it suitable for diverse industrial and automation applications.Built using a compact and sturdy PVC housing, this module meets the IP67 waterproof standard, ensuring reliable performance in harsh and outdoor environments. With high-output sound power, continuously variable gain, real-time background calibration, and advanced noise-suppression algorithms, the sensor delivers stable and nearly noise-free distance readings.
Additionally, firmware filtering enhances noise tolerance and clutter rejection. The A02YY version is shell-less, allowing integration into custom-designed housings tailored to specific project requirements.
Features
- 40 kHz ultrasonic sensor with up to 450 cm measurement capability
- RoHS compliant for environmental safety
- Multiple communication outputs: UART (auto & controlled), PWM, Switch, RS485
- Working Voltage: 3.3–5.0V (standard), 5.0–24.0V (RS485)
- Low power consumption: ≤8 mA (standard), ≤15 mA (RS485)
- Standby current as low as ≤5 µA
- High measurement accuracy: ±(1 + S * 0.3%) cm
- Compact and lightweight for easy embedding
- Operating temperature: -15°C to +60°C
- Advanced noise suppression and real-time auto calibration
Technical Details
- Item Type: Ultrasonic Sensor Module
- Model No.: DYP-A02YY4W-V2.0
- Working Voltage: 3.3–5.0V (standard), 5.0–24.0V (RS485)
- Operating Temperature: -15°C to +60°C
- Range: 3 cm to 450 cm (3 cm dead band)
- Resolution: Millimeter-level (with temperature compensation)
- Outputs: UART (controlled & automatic), PWM, Switch, RS485
- Accuracy: ±(1 + S * 0.3%) cm
- Power Consumption: ≤8 mA (standard), ≤15 mA (RS485), standby ≤5 µA
Applications
- Industrial automation and equipment monitoring
- Robotics for obstacle detection and navigation
- Smart parking & vehicle detection systems
- Water level and tank monitoring
- Smart agriculture and environmental sensing
- IoT-based distance measurement systems
Physical Attributes
- Dimensions: 45 mm × 25 mm × 20 mm (approx.)
- Weight: 47 g
Package Includes
- 1 × DYP-A02YY4W-V2.0 Ultrasonic Sensor (RS485 Output)
