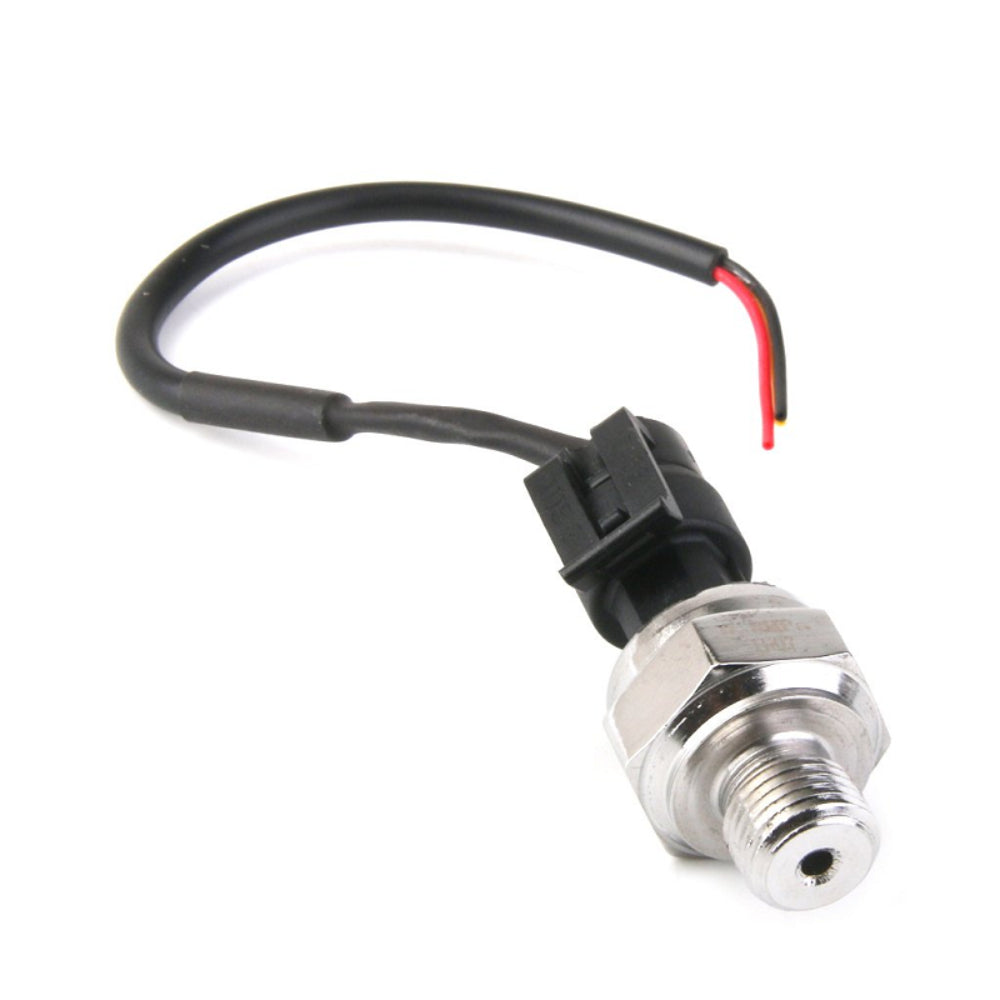

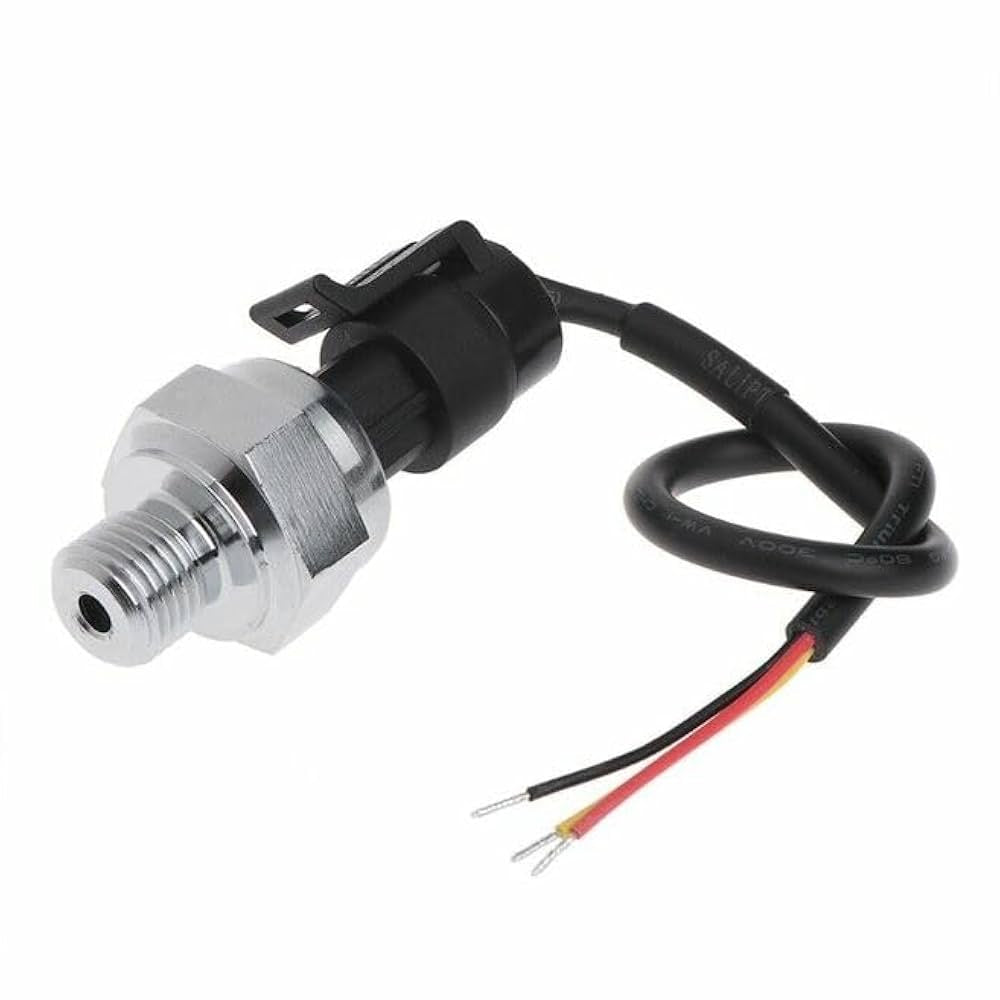

High-Precision Stainless Steel Pressure Sensor

This High-Precision Stainless Steel Pressure Sensor is designed for applications requiring accuracy, durability, and easy installation. Built with precision compensation technology and sensitive components, it ensures stable and reliable performance in different environments. With a compact design, it is lightweight, user-friendly, and suitable for various industrial and laboratory applications.

The sensor delivers a 0.1% FS small output error, covering nonlinearity, hysteresis error, and repeatability. Its stainless steel body provides long-lasting durability and features a complete surge voltage protection function, making it a robust choice for high-demand scenarios.

Features

  • Adopt precision compensation technology and sensitive components, stable and reliable
  • 0.1% FS small output error, including nonlinearity, hysteresis error, and repeatability
  • Light weight and small volume, easy to install and operate
  • Stainless steel body with surge voltage protection

Technical Details

  • Model Type: Pressure Sensor
  • Operating Voltage (VDC): 5
  • Sensor Type: Analog Pressure Sensor
  • Material: Stainless Steel
  • Thread Size (Inch): G 1/4"
  • Pressure Range (MPa): 0 – 1.2
  • Accuracy: 1% FS
  • Length (mm): 50
  • Width (mm): 20
  • Height (mm): 20
  • Weight (g): 54

Applications

  • Industrial automation and process control
  • Hydraulic and pneumatic systems
  • Water and air pressure monitoring
  • Laboratory and research equipment

Physical Attributes

  • Length: 50 mm
  • Width: 20 mm
  • Height: 20 mm
  • Weight: 54 g

Package Includes

  • 1 x Stainless Steel Pressure Sensor (0–1.2 MPa, G 1/4")
