P25 Small Float Level Control Switch Plastic Float Switch
P25 Small Float Level Control Switch Plastic Float Switch
P25 Small Float Level Control Switch Plastic Float Switch
P25 Small Float Level Control Switch Plastic Float Switch
P25 Small Float Level Control Switch Plastic Float Switch
P25 Small Float Level Control Switch Plastic Float Switch

P25 Small Float Level Control Switch Plastic Float Switch

Available:Out of Stock
  • Product SKU: KG1366
Wishlist
₹ 119 ₹ 149
Pre-order
Successful pre-order.Thanks for contacting us!
Secure

Specification

Description

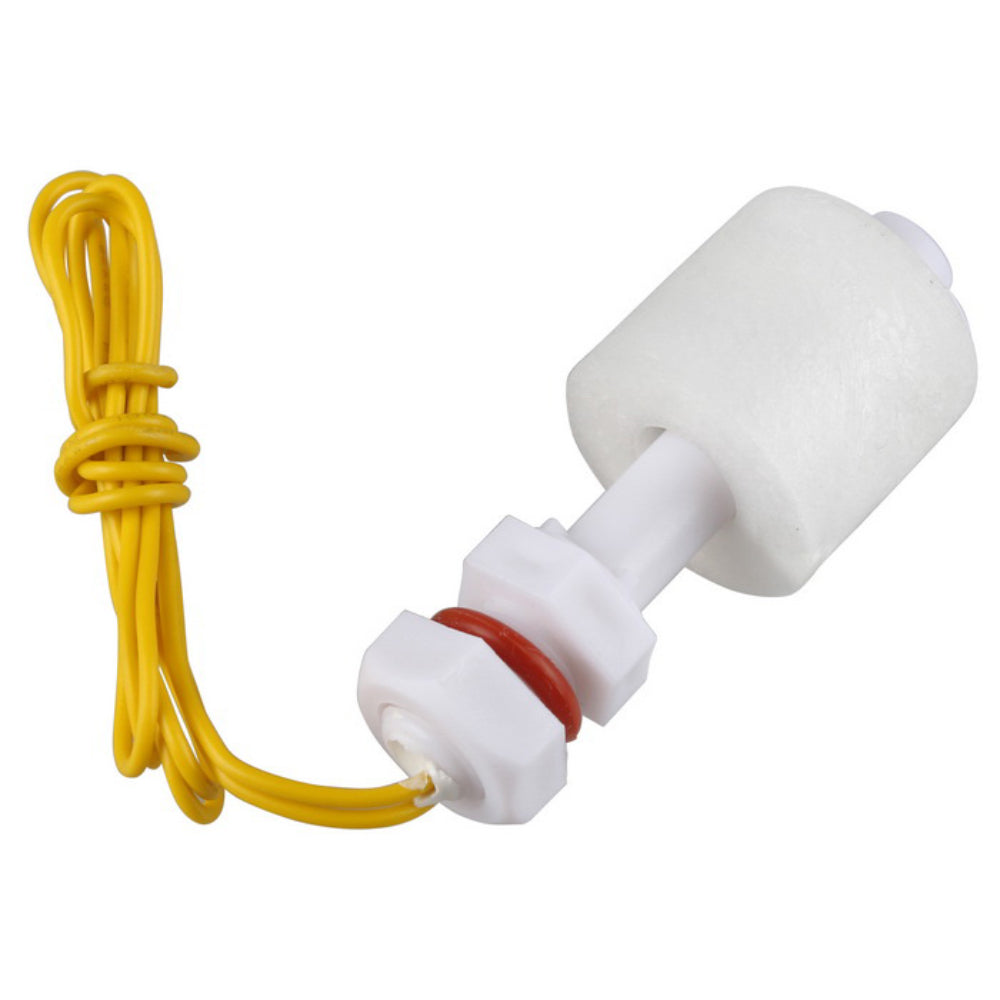

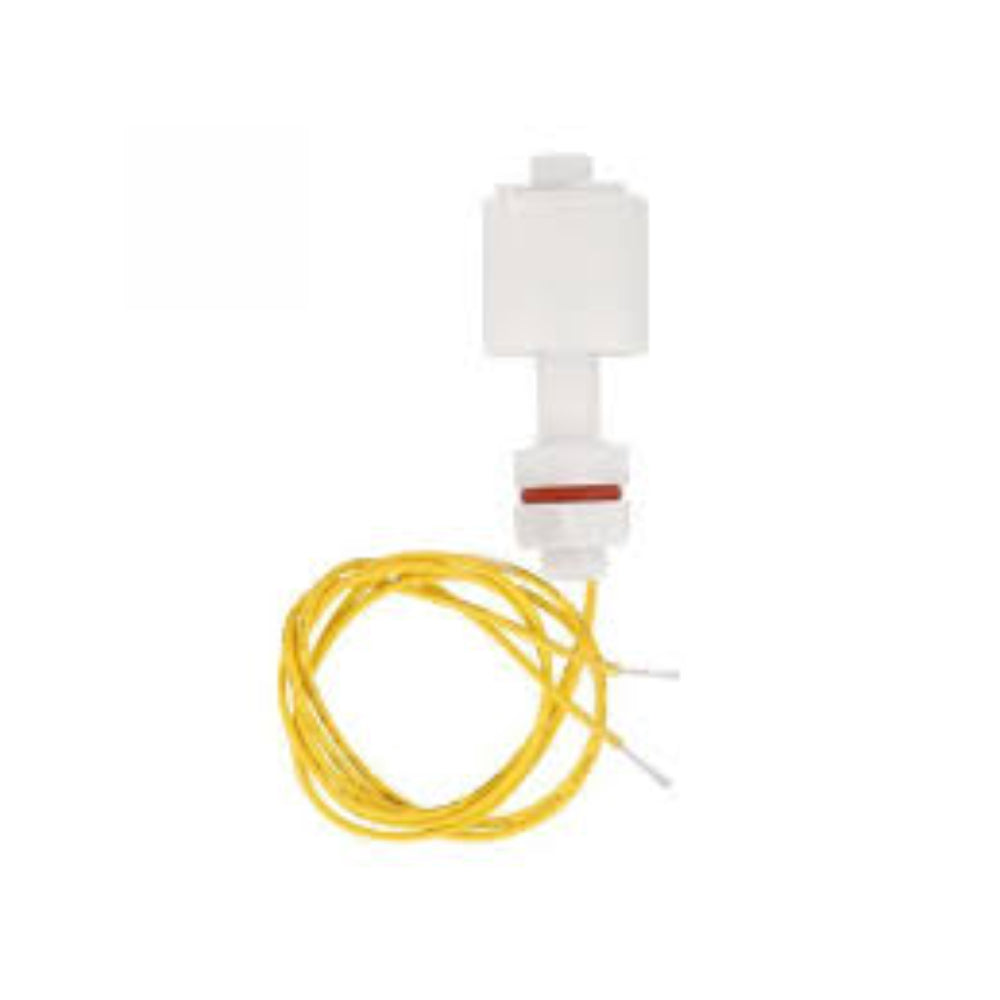

P25 Small Float Level Control Switch Plastic Float Switch

The P25 Small Float Level Control Switch Plastic Float Switch is a compact and reliable liquid level sensing device designed to detect the level of liquids inside tanks and containers. It operates using a simple mechanical switching mechanism, making it easy to use and highly dependable without requiring any external power supply or complex circuitry.

Built with a sturdy plastic float structure, this level control switch offers long service life and stable performance. When used with liquids of suitable material compatibility, it can effectively control pumps, alarms, or indicators. Due to its simple design and durability, it is widely used in industrial, commercial, and water management applications.

Technical details

  • Model: Float Switch
  • Contact Rating: 10 W
  • Maximum Switching Voltage: 220 V
  • Maximum Switching Current: 0.5 A
  • Carry Current: 1 A
  • Breakdown Voltage: 220 V DC
  • Contact Resistance: 100 mΩ
  • Material: P.P. (Polypropylene)

Features

  • Simple mechanical float switch design
  • Long-lasting and reliable operation
  • Easy to install and use
  • Compact size suitable for small tanks
  • No external power supply required
  • Stable switching performance

Applications

  • Water tank level control
  • Water treatment equipment
  • Shipbuilding industry
  • Petrochemical and food processing industries
  • Dyeing and finishing industry
  • Hydraulic machinery and generating equipment

Physical attributes

  • Body Material: Polypropylene (P.P.)
  • Length: 46 mm
  • Cable Length: 37 cm
  • Weight: 9g

Package includes

  • 1 × P25 Small Float Level Control Switch Plastic Float Switch
