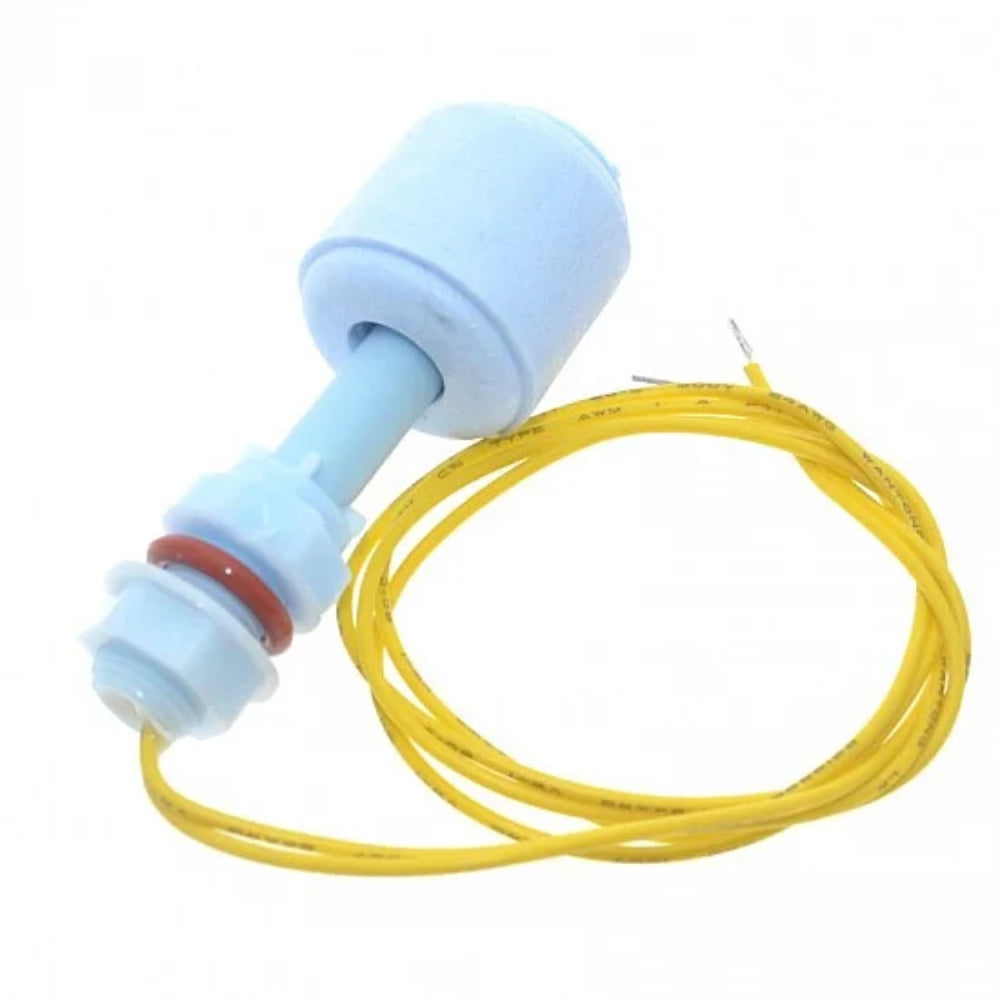

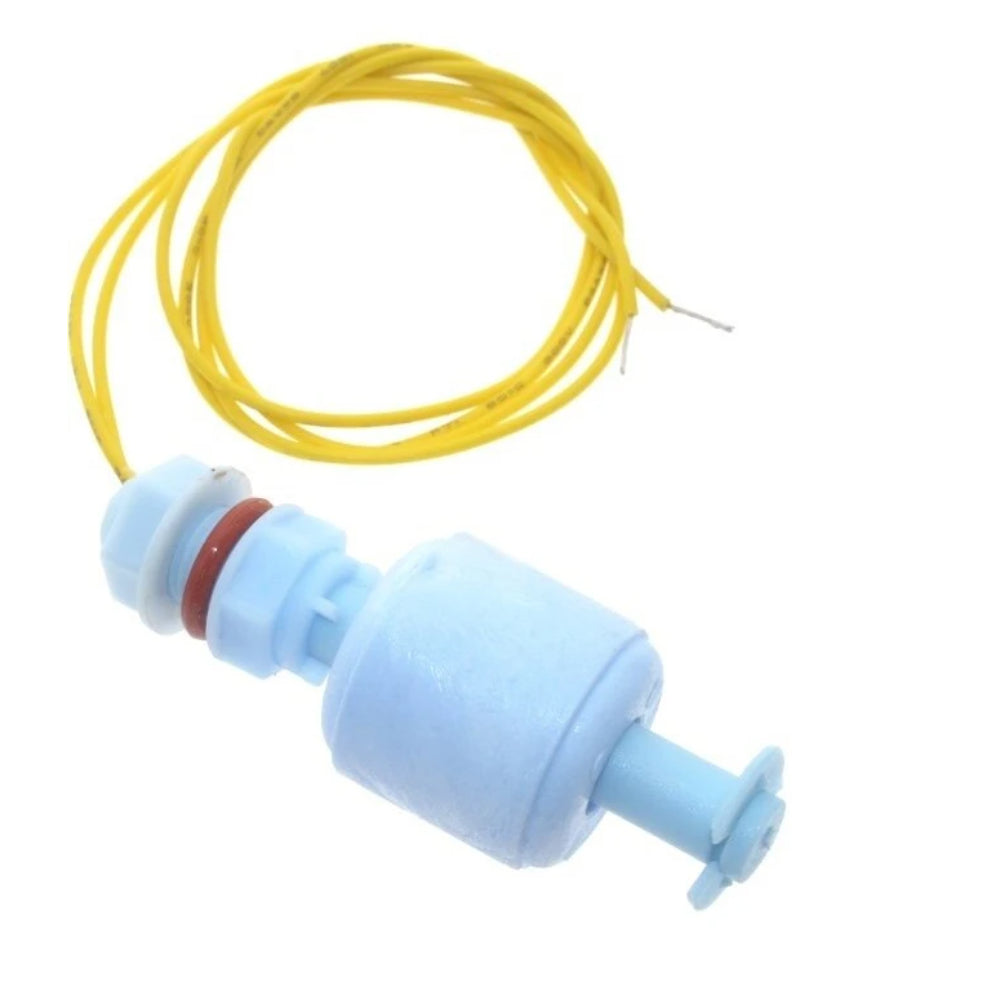

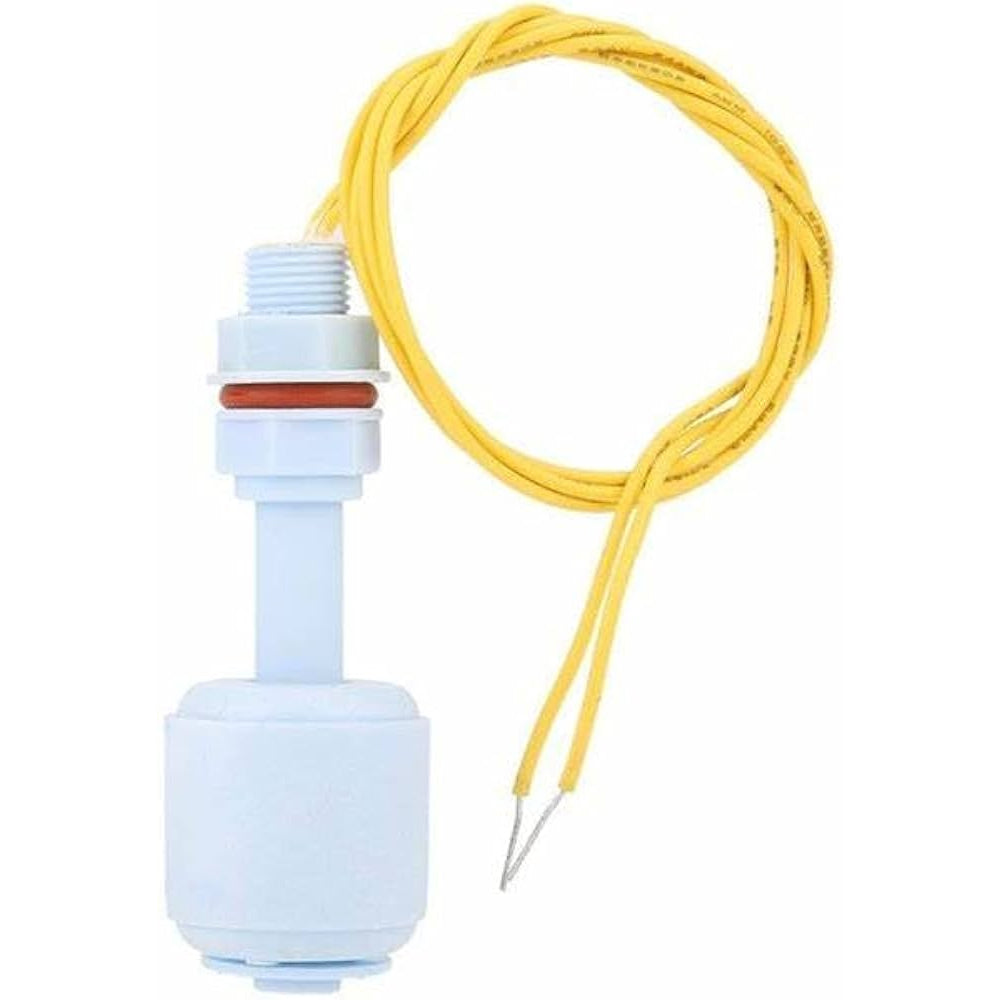

P35 Water Level Float Switch Sensor
![P35 Water Level Float Switch Sensor]()
![P35 Water Level Float Switch Sensor]()
![P35 Water Level Float Switch Sensor]()
![P35 Water Level Float Switch Sensor]()
![P35 Water Level Float Switch Sensor]()
![P35 Water Level Float Switch Sensor]()
This float switch features a lightweight and durable construction with high sensitivity for accurate level detection. With a 36 cm pre-attached cable and easy mounting, it is ideal for a wide range of applications, from industrial water treatment to home automation and agricultural systems.
-18%
Specification
Description
P35 Small Float Level Control Switch Plastic Float Switch
The P35 Small Float Level Control Switch is a compact and efficient liquid level detection solution designed for tanks and containers. Manufactured using high-quality polypropylene (PP), it offers excellent resistance to acids and alkalis, making it suitable for use in harsh and industrial environments. Its simple mechanical design ensures reliable operation without the need for complex circuitry or an external power supply.This float switch features a lightweight and durable construction with high sensitivity for accurate level detection. With a 36 cm pre-attached cable and easy mounting, it is ideal for a wide range of applications, from industrial water treatment to home automation and agricultural systems.
Technical details
- Max. Contact Rating: 10 W
- Max. Switching Voltage: 220 V
- Max. Switching Current: 0.5 A
- Max. Breakdown Voltage: 220 V DC
- Max. Carry Current: 1 A
- Max. Contact Resistance: 100 mΩ
- Operating Temperature: -10°C to 60°C
- Thread Diameter: M8
Features
- Compact, lightweight, and easy to install
- High sensitivity with reliable mechanical operation
- Corrosion-resistant polypropylene (PP) construction
- No external power supply required
- Long-lasting mechanical durability
- Pre-attached 37 cm cable for flexible mounting
- Suitable for harsh and industrial environments
Applications
- Water level detection in tanks and containers
- Industrial water treatment systems
- Agricultural irrigation control
- Home and building automation
- Shipbuilding industry
- Petrochemical, food processing, and dyeing industries
Physical attributes
- Float Body Material: Polypropylene (PP)
- Float Ball Material: Polypropylene (PP)
- Total Length: 67 mm
- Cable Length: 37 cm
- Weight: 14 g
Package includes
- 1 × P35 Small Float Level Control Switch
