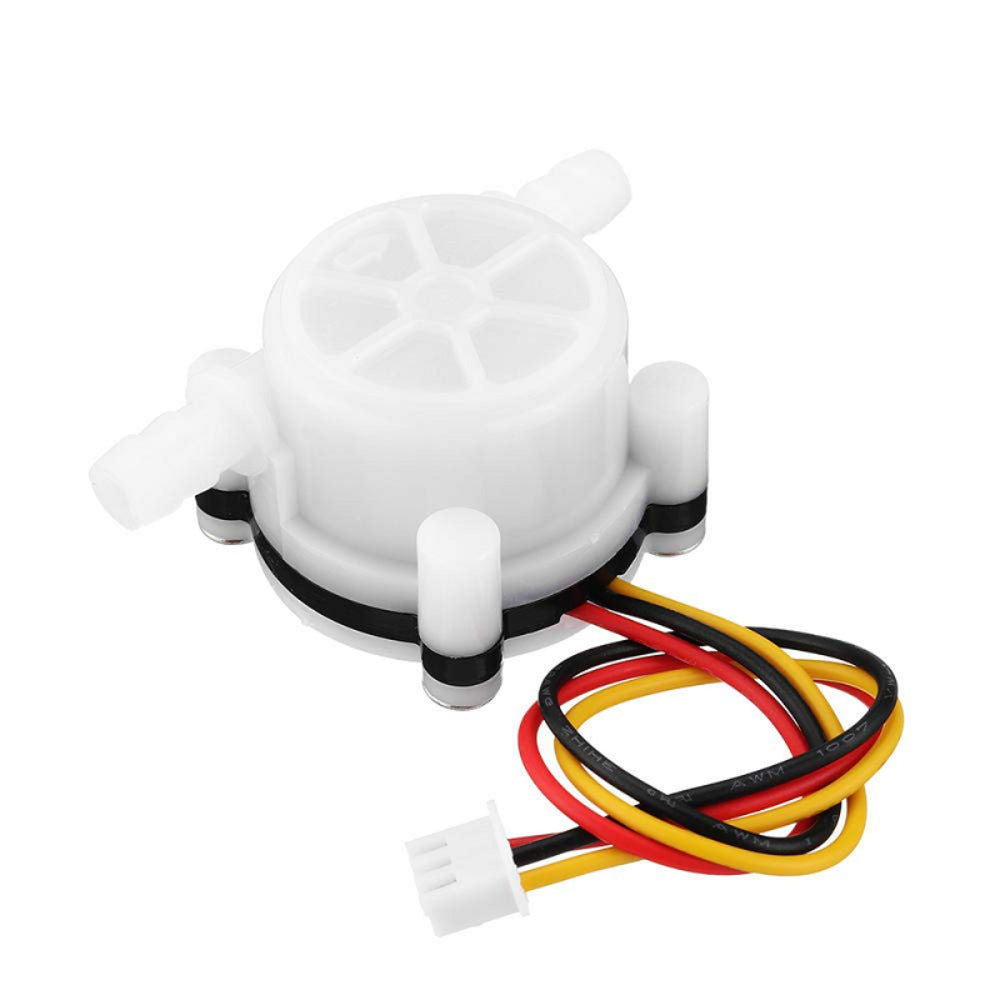

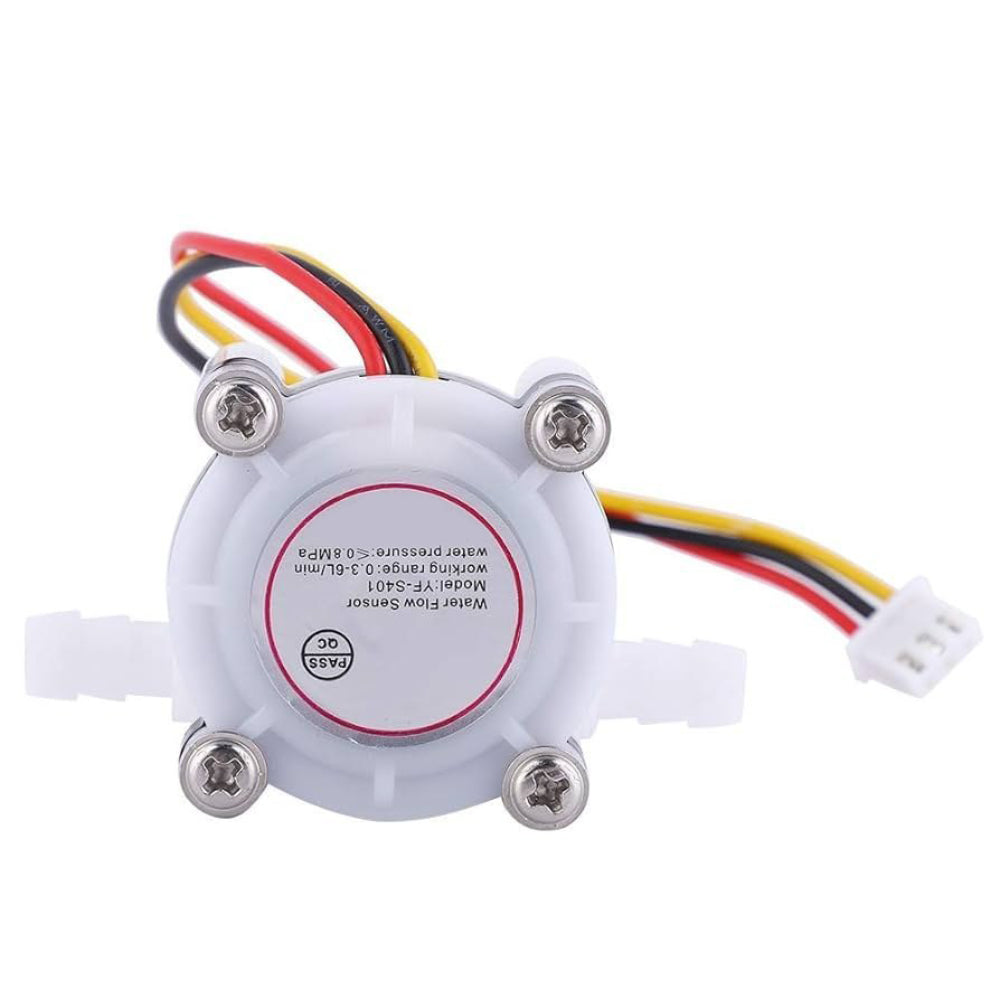

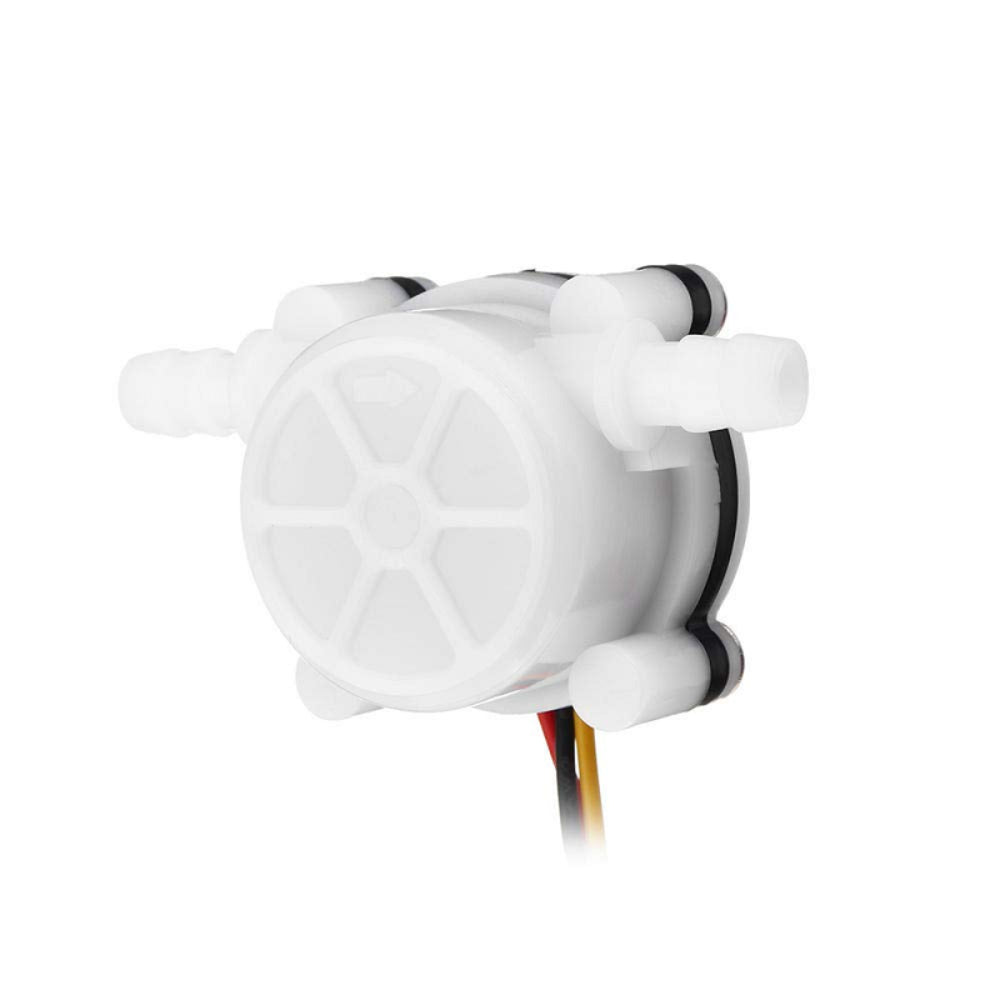

YF-S401 Water Flow Sensor

The YF-S401 Water Flow Sensor measures the rate of liquid flowing through it. It consists of a plastic valve body, flow rotor, and hall effect sensor. Typically used at the inlet end, it detects the amount of flow by rotating a magnetic rotor as liquid passes through. The hall effect sensor outputs a pulse width signal corresponding to the flow rate, which can be monitored by connecting it to a microcontroller. This allows control of devices like coffee makers, sprinklers, or other water systems based on flow rate.

Note: Brand Name may vary on the actual product.

Features

  • Analog sensor for water flow measurement
  • Accuracy up to 5%
  • Waterproof design
  • Standard 1/8″ nozzle size
  • Maximum supported water flow: 6 L/min

Technical Details

  • Model Type: Water Flow Sensor
  • Max Water Flow (L/min): 0.3 to 6
  • Operating Voltage (VDC): 3.5 to 24
  • Operating Current (A): 0.015
  • Insulation Resistance (MΩ): >100
  • Length (mm): 58
  • Width (mm): 35
  • Height (mm): 26
  • Weight (g): 30

Package Includes

  • 1 × Water Flow Sensor YF-S401 Flowmeter (0.3–6 L/min, 3.5mm White)
