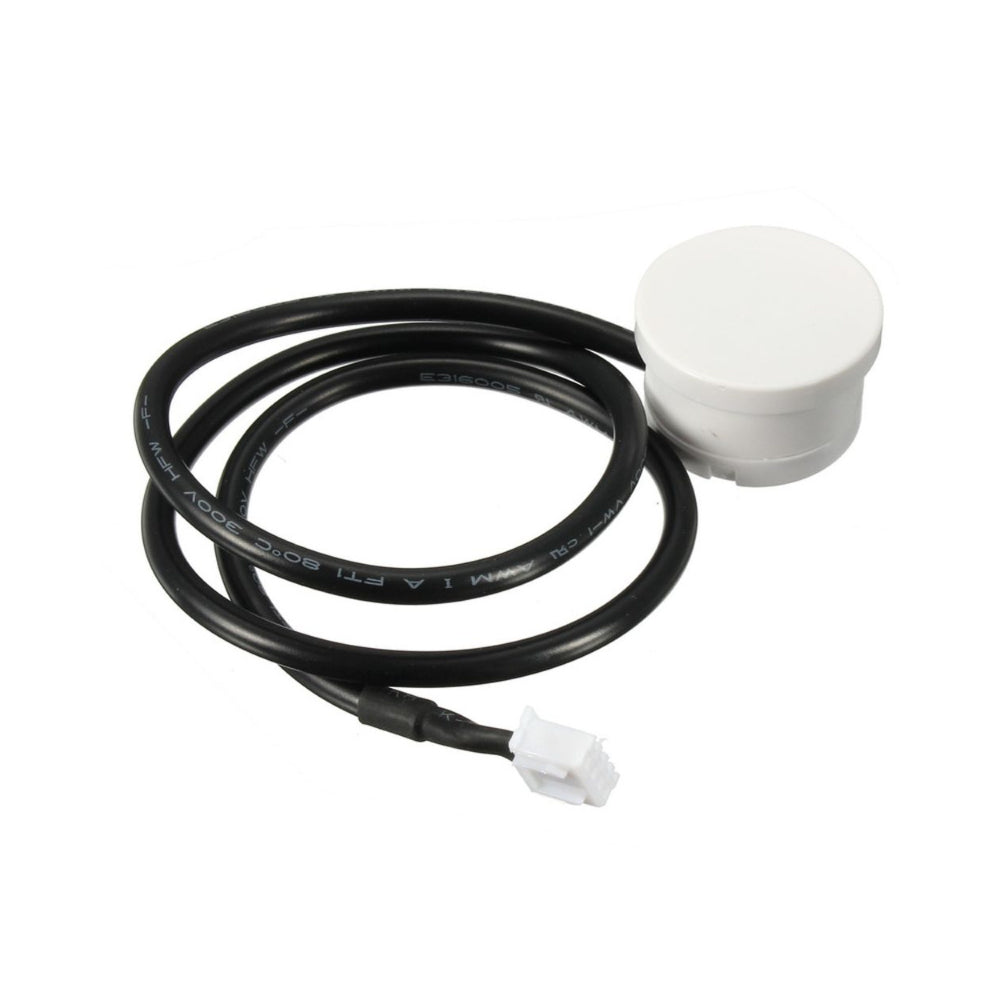

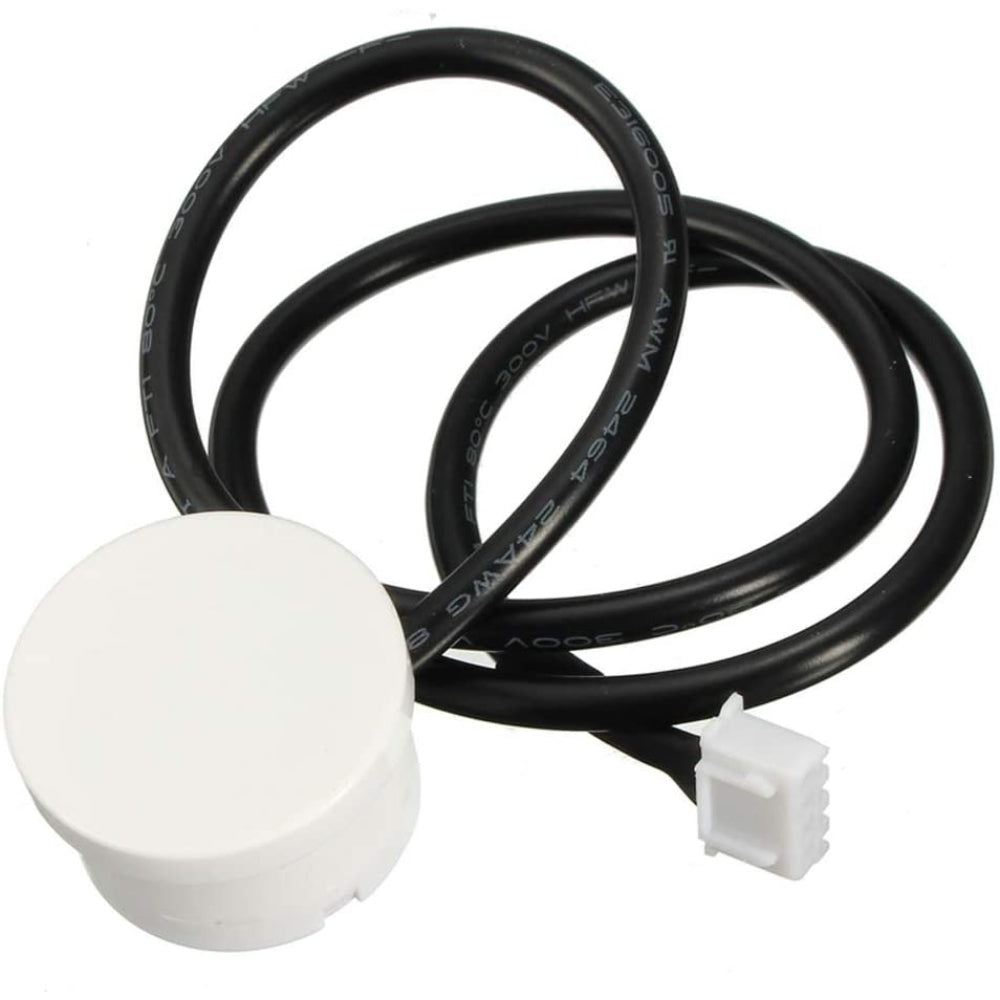

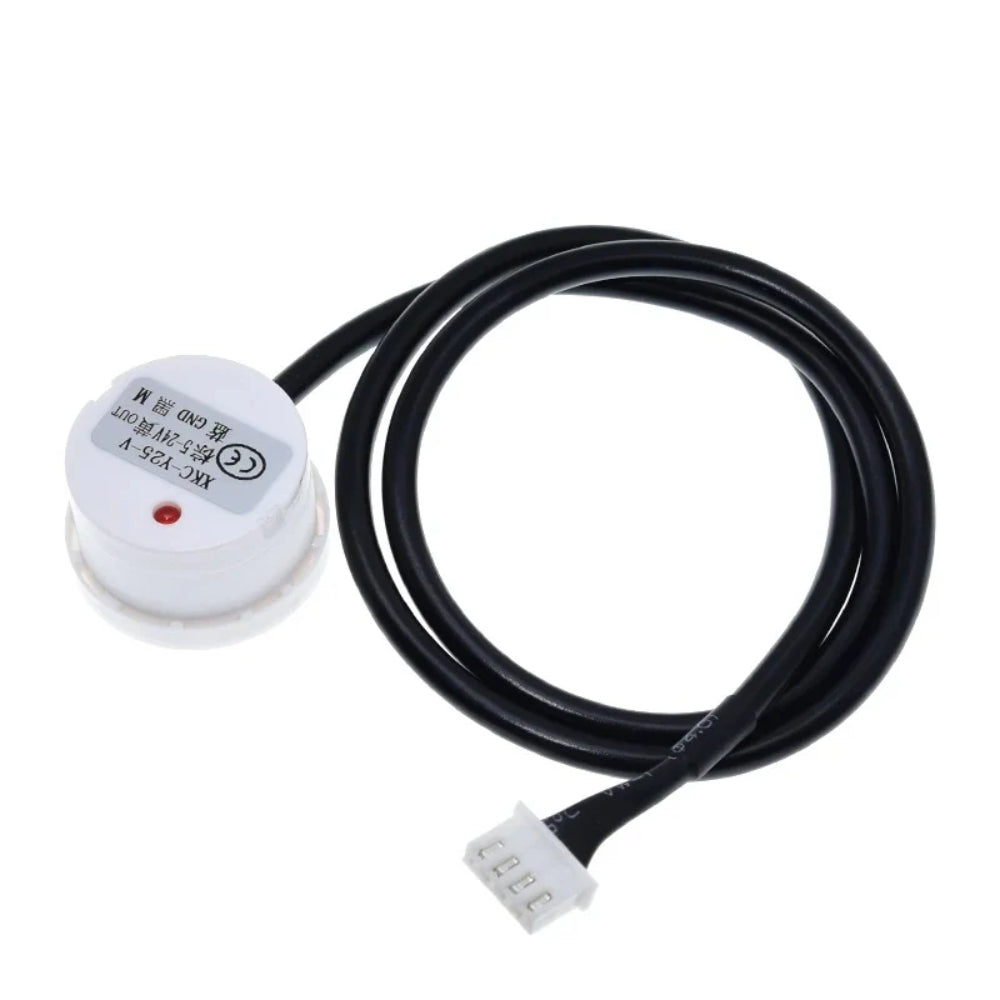

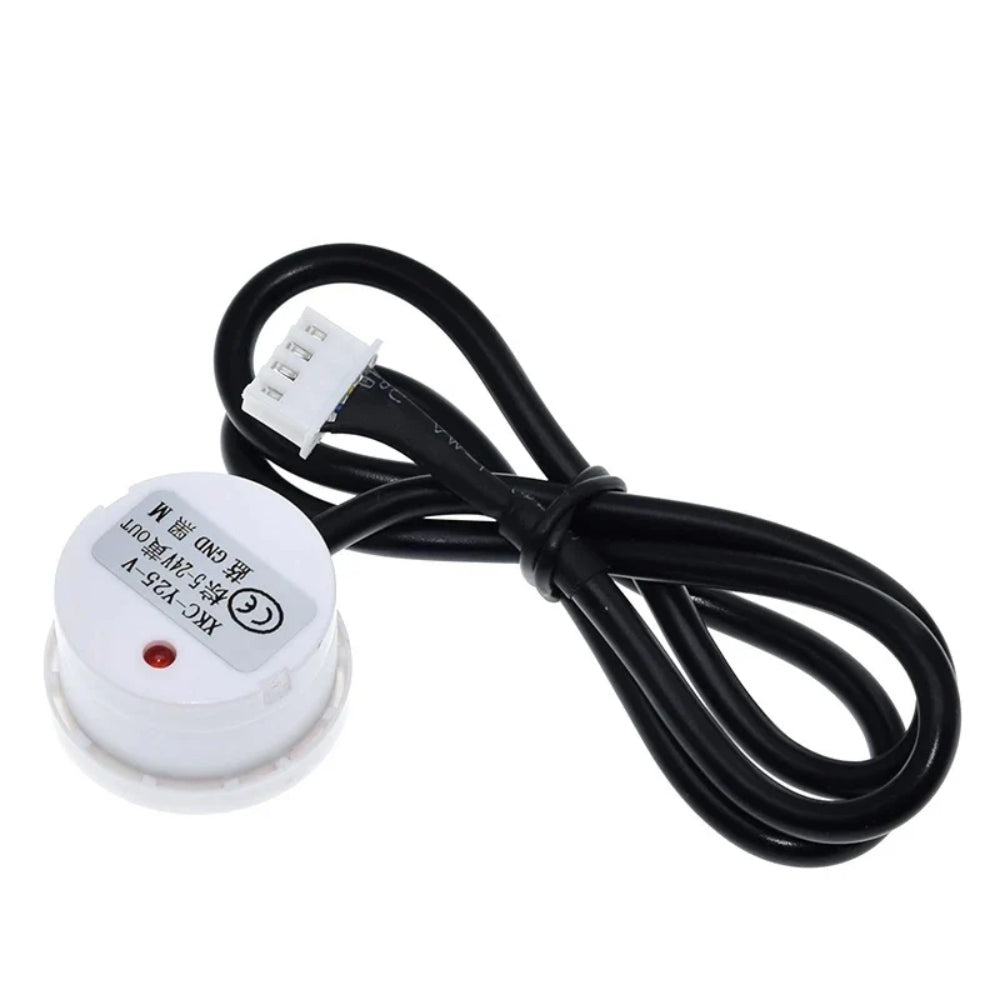

XKC-Y25-V Intelligent Non-Contact Liquid Water Level Sensor

The XKC-Y25-V Intelligent Non-Contact Liquid Level Sensor uses advanced signal processing technology and a high-speed signal processing chip, ensuring that detection is unaffected by container wall thickness. It is installed beneath the container (high level and low level) without the need to bore a non-metallic container, making installation simple and convenient. This sensor can detect liquid levels of various toxic substances, acids, alkalis, and other liquids in high-pressure airtight containers. It has no special requirement for the liquid medium or container material.

Features

  • Non-contact detection for non-metallic containers
  • Not affected by scale, impurities, or container wall thickness
  • High stability, high sensitivity, and strong anti-interference against electromagnetic fields
  • Compatible with most 5 ~ 12V power adapters
  • Induction thickness (Sensitivity) Range: 0 ~ 20 mm
  • Fast response time: 500 mS
  • Wide application for various liquids in airtight containers

Applications

  • Water towers
  • Sewage treatment systems
  • Drone irrigation systems
  • Medical equipment
  • Aquariums
  • Smart appliances and automation projects

Technical Details

  • Model Type: Water Level Sensor
  • Operating Voltage (VDC): 5 to 24
  • Material: ABS
  • Current Consumption (mA): 5
  • Output Current (mA): 1 to 100
  • Operating Temperature (°C): 0 to 85
  • Communication Mode: RS485
  • Humidity Range: 5% to 100%
  • Waterproof Level: IP67

Physical Attributes

  • Induction Thickness (Sensitivity) Range: 0 ~ 20 mm
  • Response Time: 500 mS
  • Material: ABS
  • Waterproof Level: IP67

Package Includes

  • 1 × XKC-Y25 NPN Intelligent Non-Contact Liquid Water Level Sensor
