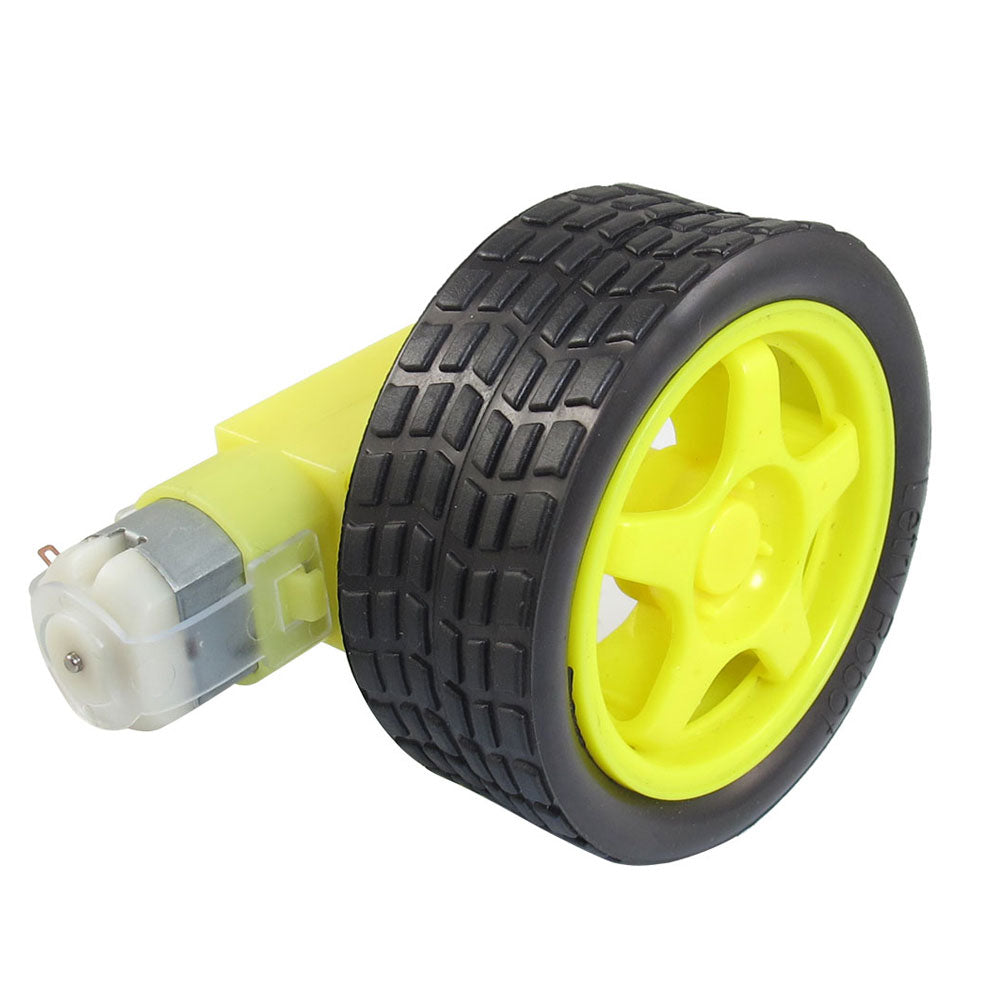

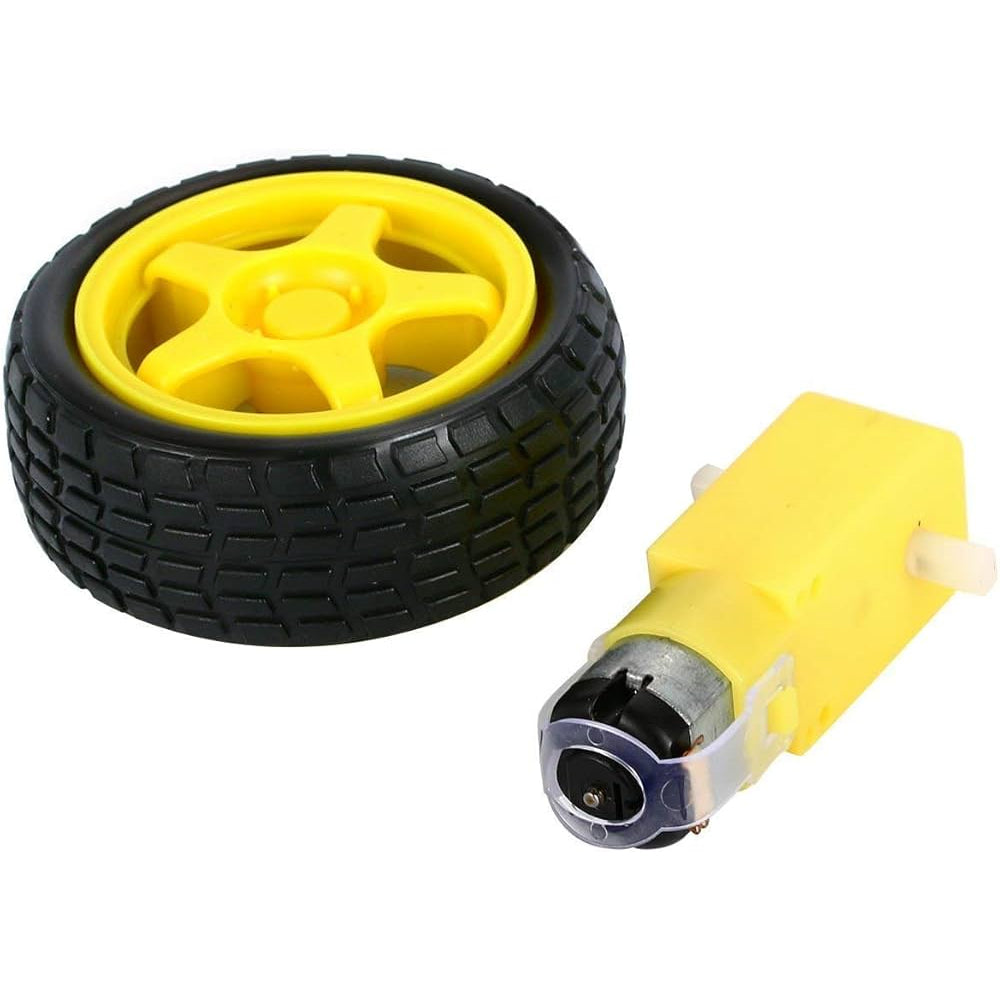

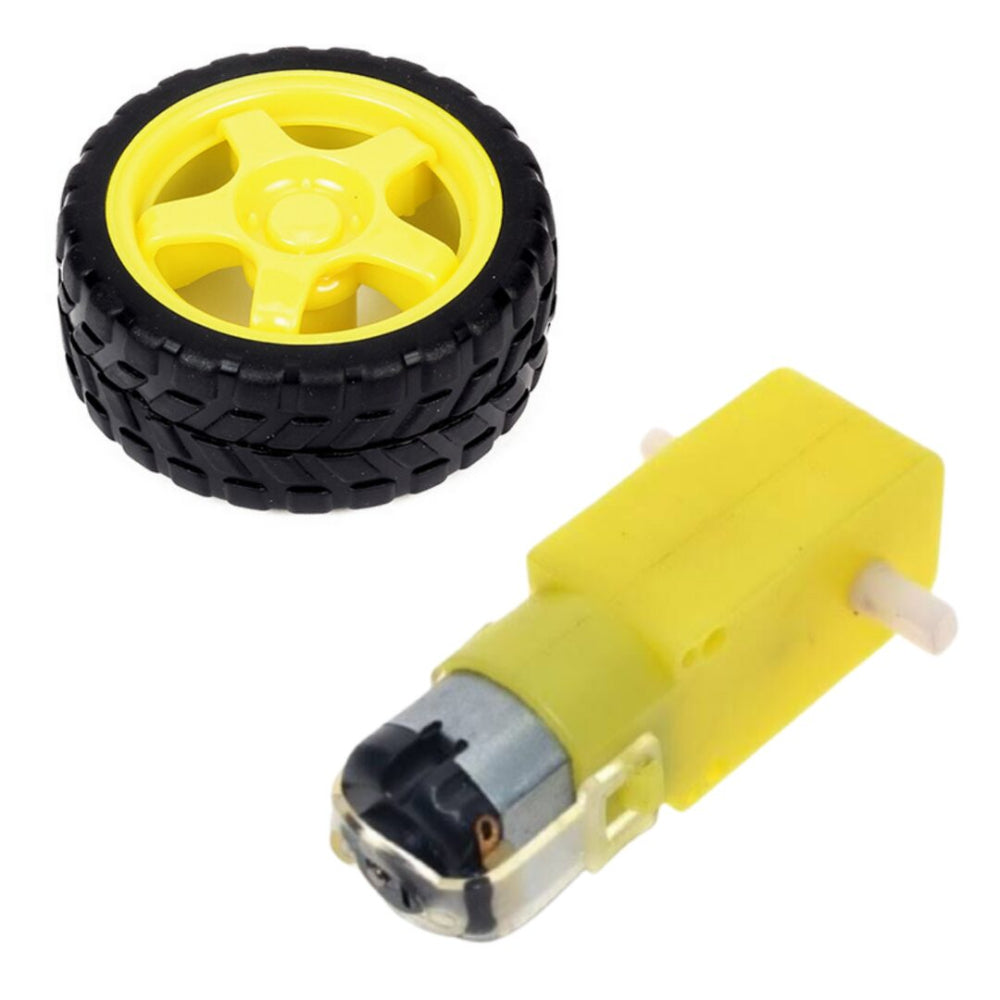

BO Gear Motor and Wheel Assembly Dual Shaft Motor For DIY Robots

BO Gear Motor and Wheel Assembly – Dual Shaft Motor for DIY Robots

The BO Gear Motor and Wheel Assembly is a compact and reliable drive solution for small robotic applications. This setup includes a dual-shaft BO motor coupled with a 65mm high-traction rubber wheel, making it perfect for beginner robotics and educational projects.

Designed to operate between 3V–12V DC, this motor provides stable torque and smooth motion, ideal for building line-followers, obstacle-avoiding robots, and simple AGV (Automated Guided Vehicle) prototypes. The dual-shaft design allows easy attachment of encoders or other mechanisms for feedback control.

Its lightweight body and durable wheel construction make this combo both efficient and long-lasting — an essential component for any DIY robotics kit.

Key Features

• Pre-assembled motor and wheel for plug-and-play use
• Dual-shaft motor allows encoder or additional accessory mounting
• High-traction rubber wheel for smooth movement on various surfaces
• Operates efficiently on low voltage (3V–12V DC)
• Ideal for beginners and educational robotic platforms
• Lightweight, compact, and easy to integrate with chassis

Applications

• DIY robotic vehicles and smart cars
• Line-follower and obstacle-avoider robots
• STEM education and classroom robotics
• Mini AGV and prototype automation models
• Motor control and speed measurement experiments

Technical Details

• Motor Type: BO DC Gear Motor (Dual Shaft)
• Operating Voltage: 3V–12V DC (typical 6V)
• Rated Speed: ~100 RPM @ 6V
• Stall Torque: ~1.2–1.5 kg·cm @ 6V
• No-Load Current: ~60 mA
• Stall Current: ~250–300 mA
• Gear Ratio: 1:48
• Output Shaft: D-type, fits 6mm hub
• Motor Body Type: Dual Shaft (front + rear)

Physical Attributes

• Motor Dimensions (L × W × H): 70 × 22 × 37 mm
• Wheel Diameter: 65 mm
• Wheel Width: 26 mm
• Weight: 80 g (with wheel)
• Wheel Material: Rubber tyre with plastic rim
• Motor Body Color: Yellow
• Wheel Color: Yellow rim with black tyre

Package Includes

• 1 × BO Dual Shaft Gear Motor
• 1 × 65mm Wheel Assembly
