Designed for ultra-low power operation, the JDY-08 supports wireless serial (UART) communication with Android, iPhone, Arduino, and other platforms. Using simple AT commands, it can be configured in Central, Peripheral, Master, Slave, or Master-Slave modes. Please note that this is a BLE 4.0 module and does not support classic Bluetooth protocols. The module can also be upgraded with HM-10 firmware if required, which is a common practice within the maker community.
![KITS GURU IC2262/2272 Wireless 4]()
![1set Ic 2262/2272 4]()
-25%
JDY-08 CC2541 Bluetooth 4.0 BLE Serial Module
Available:In Stock
- Product SKU: KG1349
₹ 185
₹ 249
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
JDY-08 CC2541 Bluetooth 4.0 BLE Serial Module – Description

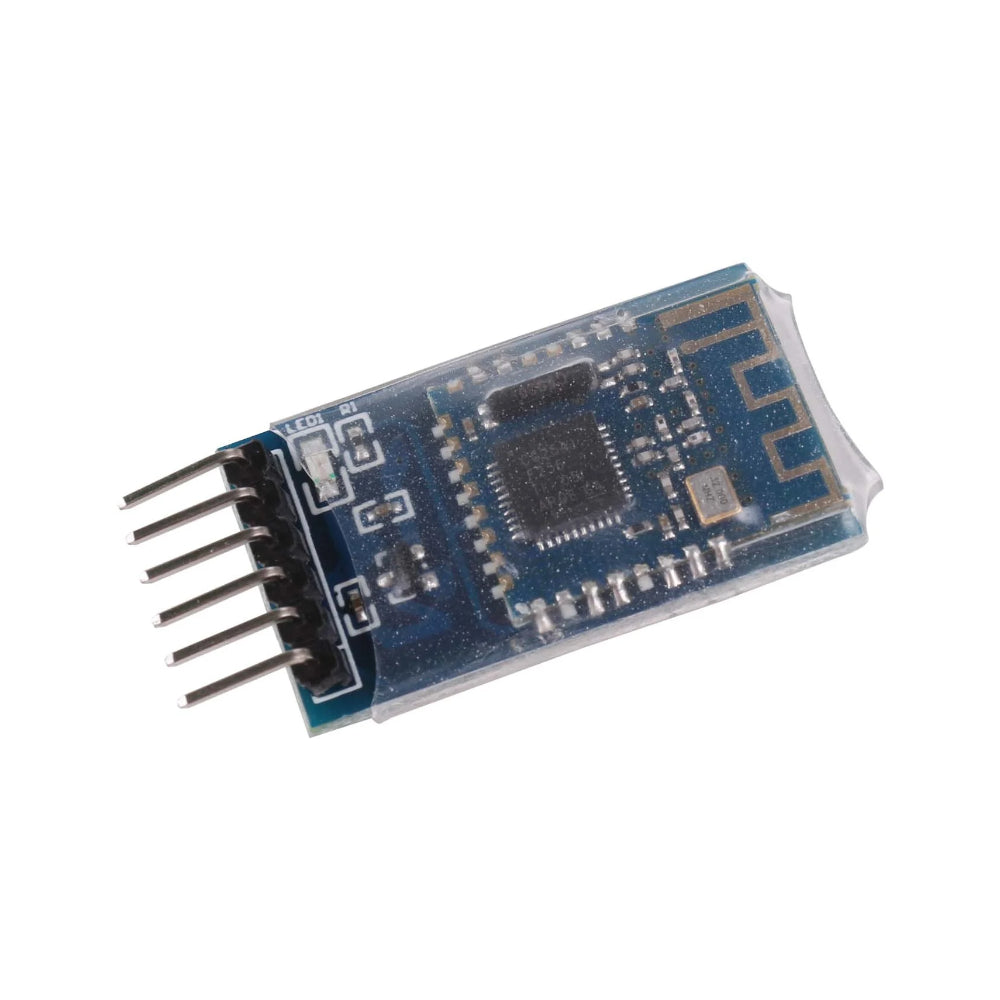

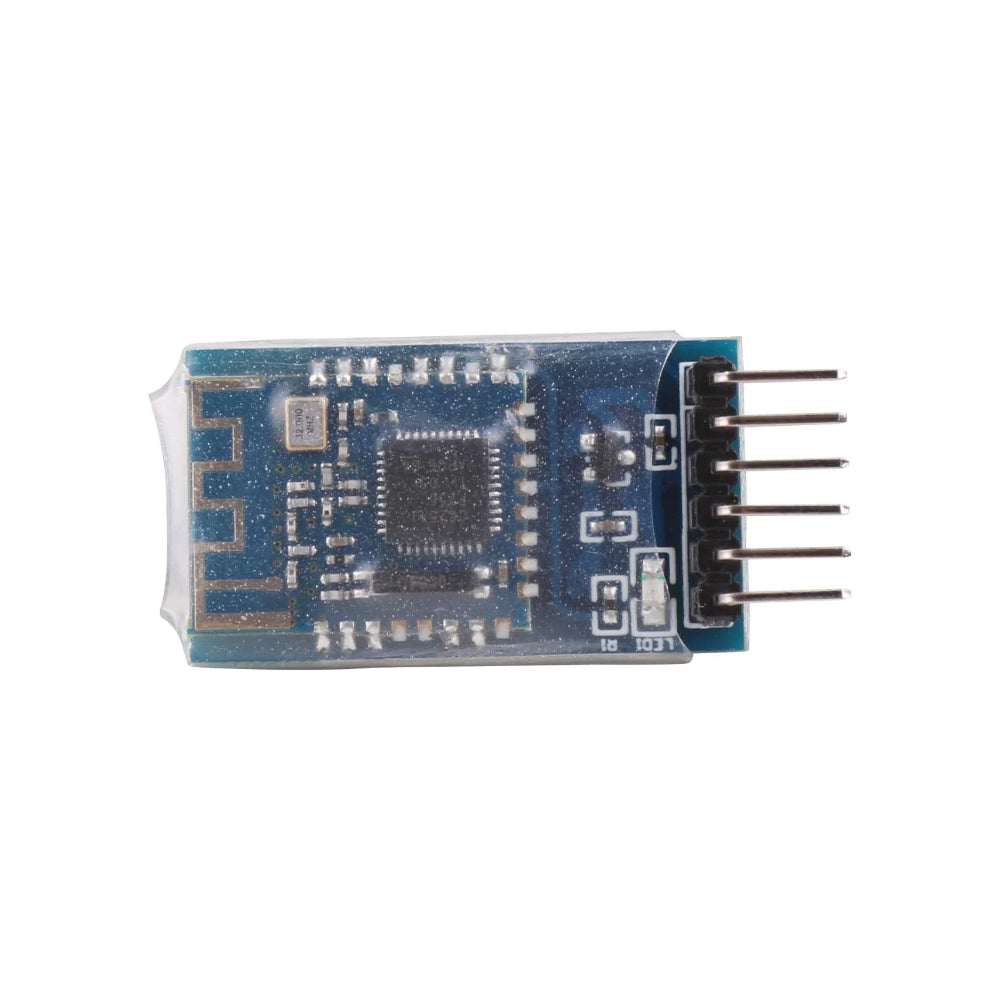

The JDY-08 CC2541 Bluetooth 4.0 BLE Serial Module is a compact, low-cost, and highly capable wireless communication module based on the popular Texas Instruments CC2541 chipset. Despite its small size, it delivers reliable Bluetooth Low Energy (BLE 4.0) performance and has benefited from years of refinement. The module is mounted on a breakout base plate that accepts an input voltage range of 3.3V to 6V and regulates it down to a stable 3V supply, making it easy to use with common microcontrollers without external regulators.Designed for ultra-low power operation, the JDY-08 supports wireless serial (UART) communication with Android, iPhone, Arduino, and other platforms. Using simple AT commands, it can be configured in Central, Peripheral, Master, Slave, or Master-Slave modes. Please note that this is a BLE 4.0 module and does not support classic Bluetooth protocols. The module can also be upgraded with HM-10 firmware if required, which is a common practice within the maker community.
Technical Specifications (JDY-08 Module)
- Baud Rate: 115200
- Working Frequency: 2.4 GHz ISM Band
- Modulation Method: GFSK (Gaussian Frequency Shift Keying)
- RF Power: ≤ 4 dBm (Class 2)
- Sensitivity: ≤ -84 dBm @ 0.1% BER
- Bluetooth Protocol: BLE 4.0
- Transfer Rate: Synchronous 6 kbps / Asynchronous 6 kbps
- Flash Memory: 256 KB
- Supported Services: Central & Peripheral (UUID / FFE0 / FFE1)
- Input Voltage: 3.3V – 6V DC
- Power Consumption: 9 mA (TX), 90 µA – 190 µA (Deep Sleep)
- Bluetooth Certification: ROHS, REACH
Technical Specifications (Breakout Board)
- Communication Rate: 3 KB per second
- Serial Port Write Support: 1024 Bytes
- Effective Communication Distance: 15 – 30 meters
- IO Port Control Disconnect: Supported
- PWRC Pin Control Sleep: Supported

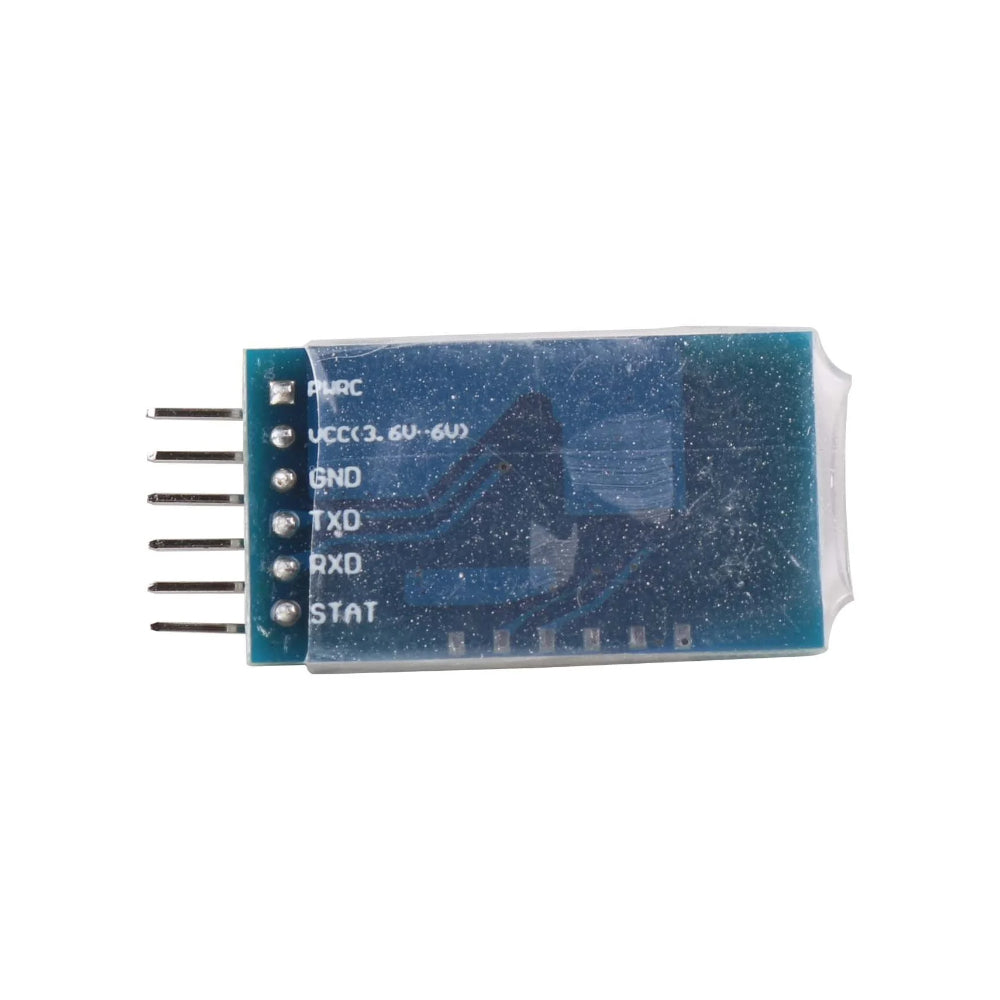

Pin Functions (Breakout Board)
- PWRC: Wake-up control pin (default state: sleep)
- VCC: Power supply input (3.6V – 6V DC)
- GND: Ground connection
- TXD: Serial data output
- RXD: Serial data input
- STAT: Bluetooth disconnect control (default high, pull low to disconnect)
Physical Attributes
- Mounting Type: Through-hole pin header
- PCB Color: Blue
- Antenna Type: On-board PCB antenna
- Weight: 5g
Applications
- Wireless UART communication
- Low-power IoT devices
- Key locators and tracking devices
- Home and basic automation systems
- Weather monitoring devices
- Battery-powered BLE projects
- Arduino and microcontroller-based applications
Package Includes
- 1 × JDY-08 CC2541 Bluetooth 4.0 BLE Serial Module (with Breakout Board)
