JDY-23 Bluetooth 5.0 BLE Module Without Board

Available:In Stock

Product SKU: KG1347

Wishlist

₹ 99 ~~₹ 149~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
Bluetooth 5.0
BLE Module
UART Transmission
Low Power
PCB Antenna
Compact Size

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

How Fast We Ship

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

🏠 Warehouse Details:

15 H - 164 Q

Specification

Description

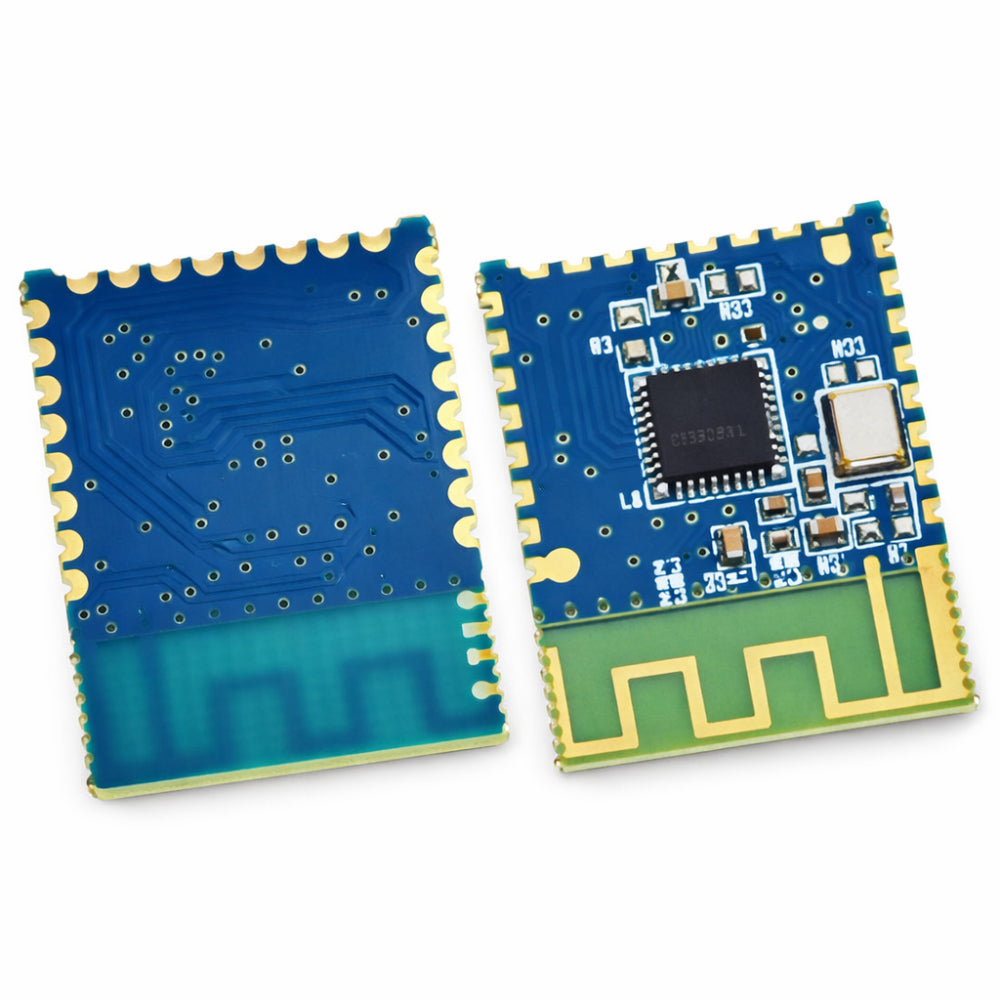

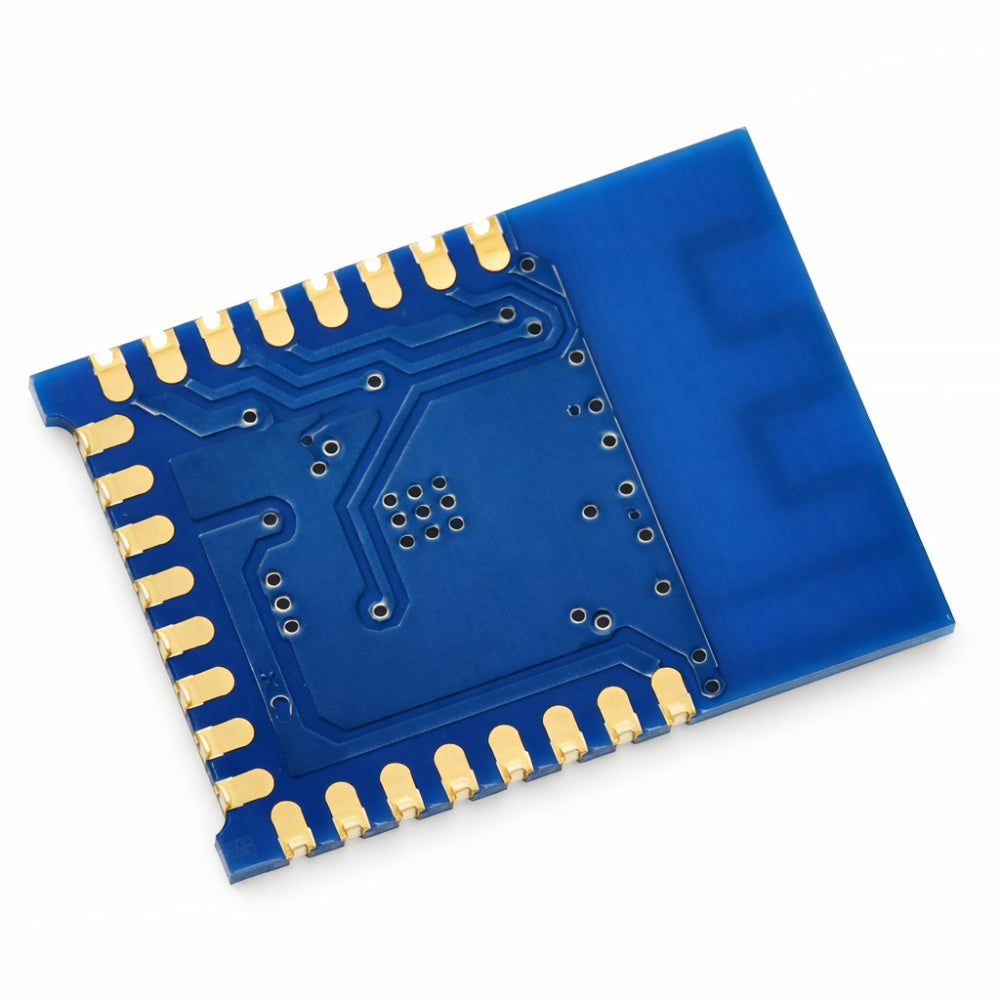

JDY-23 Bluetooth 5.0 Transparent Transmission Module

The JDY-23 Bluetooth Module is a compact, low-power wireless communication module based on the Bluetooth Low Energy (BLE) 5.0 protocol. It operates in the 2.4 GHz ISM band and supports transparent UART data transmission, making it ideal for IoT devices, wireless data links, and embedded applications. With simple AT command configuration, users can quickly modify parameters such as device name and baud rate for fast deployment.

Overview

The JDY-23 module supports BLE 5.0 and is backward compatible with BLE 4.0 and BLE 4.2 devices. It features a built-in PCB antenna, GFSK modulation, and stable wireless performance with a transmission range of up to 60 meters in open environments. The module supports UART communication and operates reliably on low supply voltages, making it suitable for battery-powered designs.

Features

Bluetooth version: BLE 5.0 (compatible with BLE 4.0 / 4.2)
Transparent UART data transmission
Built-in PCB antenna
Operating frequency band: 2.4 GHz ISM band
Modulation mode: GFSK
Maximum transmission power: 4 dBm
Transmission distance up to 60 meters (open area)
Supports AT command configuration
Low power consumption for IoT applications
Supports slave mode operation

Technical Specifications

Model: JDY-23
Bluetooth Protocol: Bluetooth Low Energy (BLE) 5.0
Working Voltage: 1.8 V – 3.6 V
Communication Interface: UART (Serial)
Operating Frequency: 2.4 GHz
Modulation: GFSK
Maximum Transmission Power: 4 dBm
Operating Mode: Slave

Working Principle

The JDY-23 Bluetooth module works by converting UART serial data from a microcontroller into Bluetooth Low Energy wireless signals using the BLE 5.0 protocol. Data transmitted via the TX pin is wirelessly sent over the 2.4 GHz band and received by a paired BLE device, where it is output transparently through UART. Configuration parameters such as baud rate, device name, and connection behavior can be adjusted using AT commands, enabling flexible and quick integration into wireless embedded systems.
