JDY-31 Bluetooth BLE Module 6-Pin Version
![31BluetoothBLEModule]()
![31BluetoothBLEModule 2]()
![31BluetoothBLEModule 3]()
![31BluetoothBLEModule]()
![31BluetoothBLEModule 2]()
![31BluetoothBLEModule 3]()
Operating in the 2.4 GHz ISM band with GFSK modulation, the JDY-31 offers a maximum transmission power of 8 dB and a communication range of up to 30 meters. Users can easily configure parameters such as device name, baud rate, and connection settings using AT commands, making the module flexible and developer-friendly for serial Bluetooth applications.
![KITS GURU IC2262/2272 Wireless 4]()
![1set Ic 2262/2272 4]()
-30%
JDY-31 Bluetooth BLE Module 6-Pin Version
Available:In Stock
- Product SKU: KG1355
₹ 139
₹ 199
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description

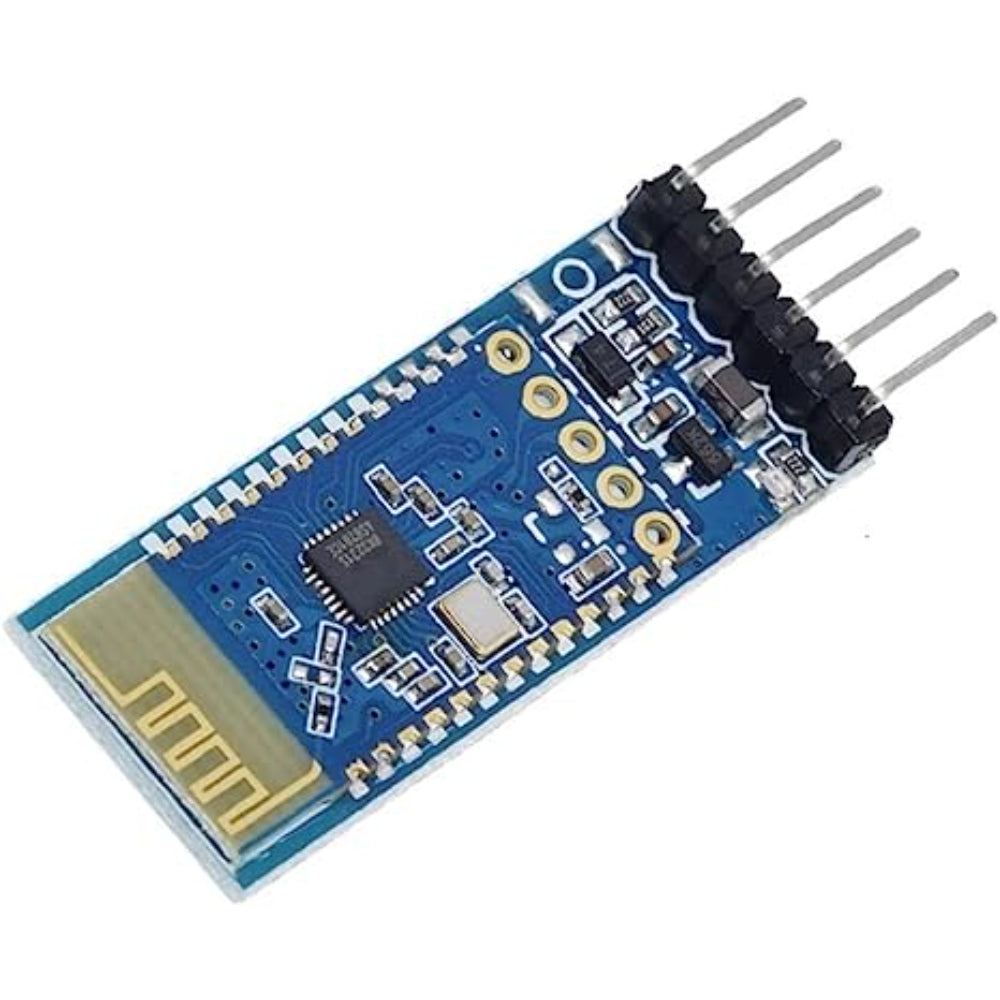

JDY-31 Bluetooth 3.0 SPP Module – 6-Pin Version (HC-06 Compatible)
The JDY-31 Bluetooth Module (6-Pin Version) is a classic Bluetooth serial communication module designed as a pin-compatible replacement for the HC-06. It is simpler to use, cost-effective, and widely adopted in embedded and DIY projects requiring reliable wireless UART communication. The module is based on Bluetooth 3.0 SPP (Serial Port Profile) and supports transparent data transmission with Windows, Linux, and Android devices.Operating in the 2.4 GHz ISM band with GFSK modulation, the JDY-31 offers a maximum transmission power of 8 dB and a communication range of up to 30 meters. Users can easily configure parameters such as device name, baud rate, and connection settings using AT commands, making the module flexible and developer-friendly for serial Bluetooth applications.
Key Features
- Bluetooth Version: Classic Bluetooth 3.0 (SPP)
- Pin-compatible replacement for HC-06
- Transparent UART data transmission
- Working Frequency: 2.4 GHz ISM band
- Modulation Mode: GFSK
- Maximum Transmission Power: 8 dB
- Transmission Distance: Up to 30 meters
- AT command support for configuration

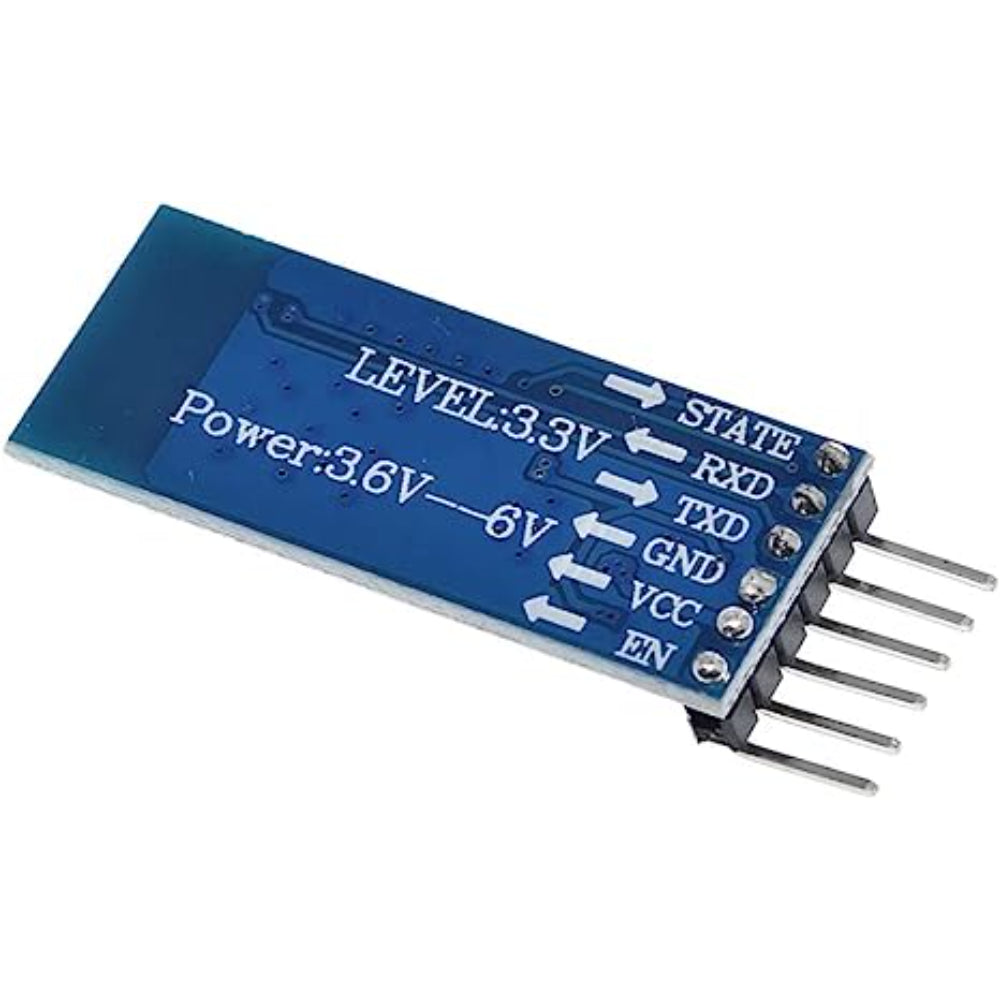

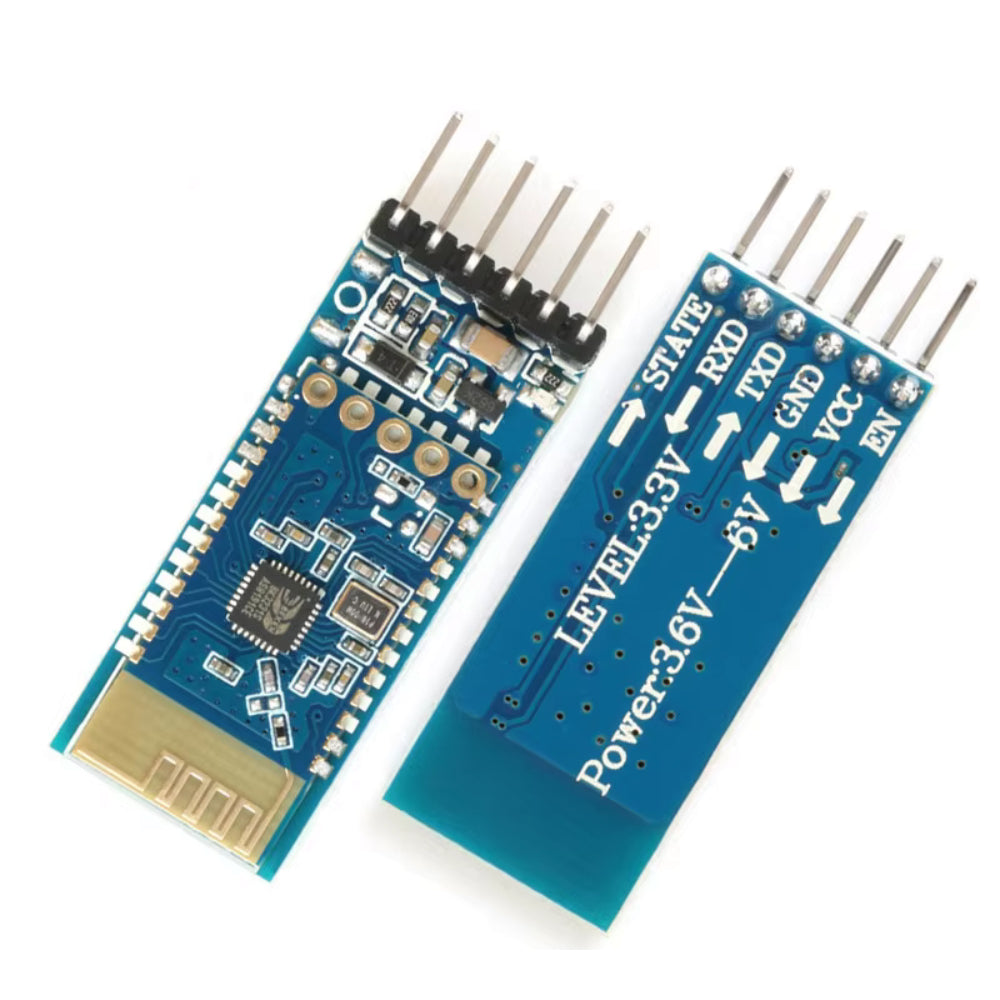

Pin Configuration (6-Pin)
- 1 – STATE: Connection status output (low = not connected, high = connected)
- 2 – RXD: Serial receive pin (connect to TX of MCU)
- 3 – TXD: Serial transmit pin (connect to RX of MCU)
- 4 – GND: Ground
- 5 – VCC: Power supply (1.8–3.6 V, 3.3 V recommended)
- 6 – EN: Enable pin (high = enabled, low = disabled)
Usage Notes
- Basic operation requires only VCC, GND, RXD, and TXD connections
- To actively disconnect while connected, use the AT+DISC command
- EN pin allows software or hardware control of module enable/disable
AT Command Set (Common)
- AT+VERSION – Query version (Default: JDY-31-V1.2)
- AT+RESET – Soft reset
- AT+DISC – Disconnect (valid when connected)
- AT+LADDR – Query MAC address
- AT+PIN – Set/query pairing password (Default: 1234)
- AT+BAUD – Set/query baud rate (Default: 9600)
- AT+NAME – Set/query device name (Default: JDY-31-SPP)
- AT+DEFAULT – Restore factory settings
- AT+ENLOG – Serial port status output (Default: 1)
Physical Attributes
- Pin Count: 6-pin header
- Antenna Type: Built-in PCB antenna
- PCB Color: Blue
- Form Factor: Compact Bluetooth module
- Mounting Type: Through-hole pins
Applications
- HC-06 replacement in Arduino projects
- Windows & Android Bluetooth serial communication
- Wireless UART links
- Smart home and automation systems
- Bluetooth-enabled control and monitoring devices
- Educational and DIY electronics projects
Package Includes
- 1 × JDY-31 Bluetooth 3.0 SPP Module (6-Pin Version)
