0.96 Inch I2C/IIC 4-Pin OLED Display Module Blue & Yellow
![0.96 Inch I2C/IIC 4-Pin OLED Display Module Blue & Yellow]()
![0.96 Inch I2C/IIC 4-Pin OLED Display Module Blue & Yellow_1]()
![0.96 Inch I2C/IIC 4-Pin OLED Display Module Blue & Yellow_3]()
![0.96 Inch I2C/IIC 4-Pin OLED Display Module Blue & Yellow_4]()
![0.96 Inch I2C/IIC 4-Pin OLED Display Module Blue & Yellow]()
![0.96 Inch I2C/IIC 4-Pin OLED Display Module Blue & Yellow_1]()
![0.96 Inch I2C/IIC 4-Pin OLED Display Module Blue & Yellow_3]()
![0.96 Inch I2C/IIC 4-Pin OLED Display Module Blue & Yellow_4]()
Super High Contrast (Adjustable): High contrast for clear and sharp text and images, with adjustable settings for better customization.
Embedded Driver/Controller: Includes a built-in driver/controller for easy integration and operation, reducing the need for additional hardware.
Display Size: Compact 0.96-inch screen, ideal for small-scale displays and portable projects.
Resolution: 128 x 64 resolution, ensuring crisp, clear visuals for text and graphics.
Interface Modes: Supports I2C/IIC interface modes for easy communication with microcontrollers.
Working Voltage: Operates at a low voltage of 3.3V, making it power-efficient for battery-operated devices.
Control Chip: Powered by the SSD1306 control chip, known for its reliability and excellent performance in OLED displays.

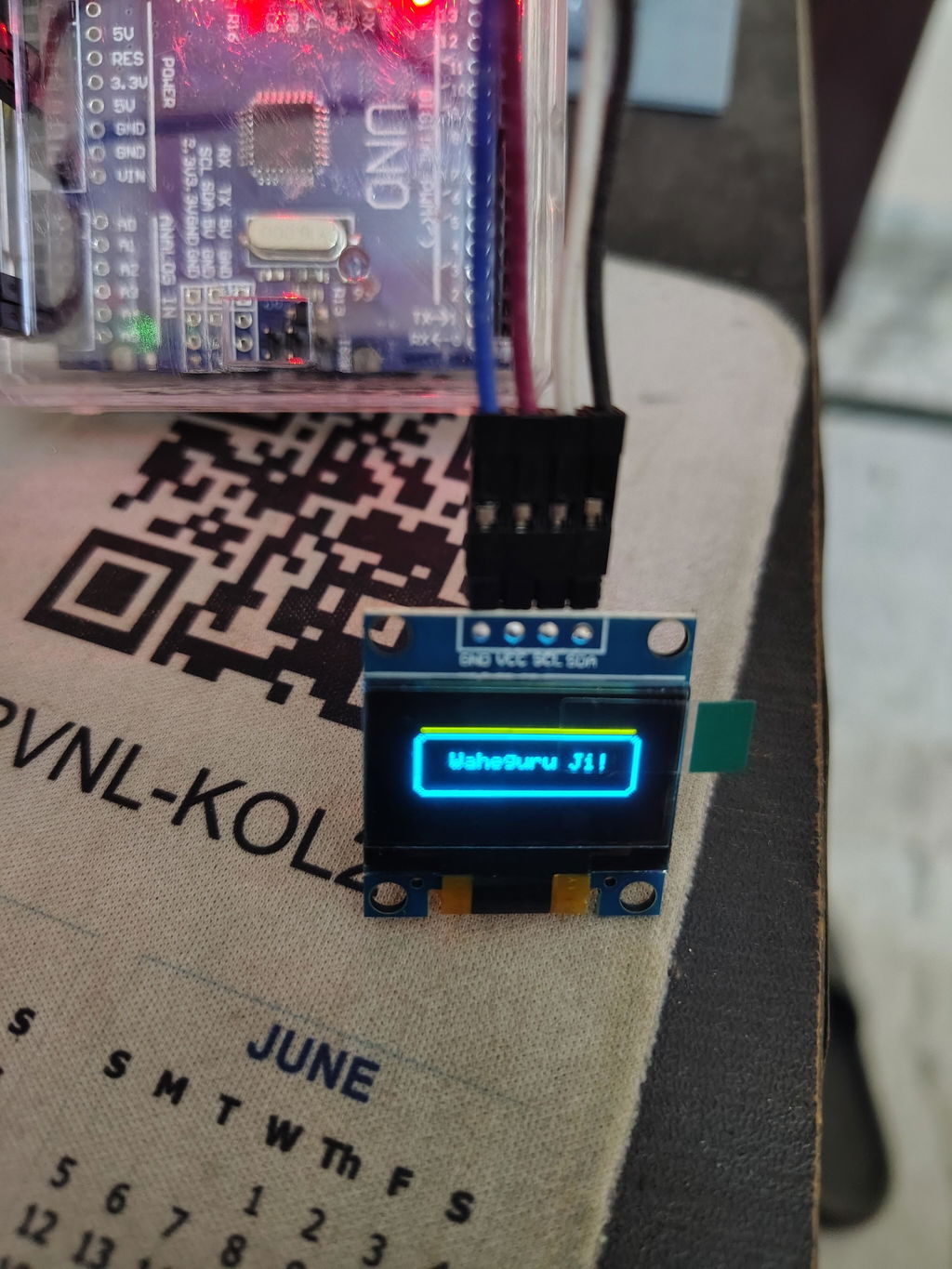

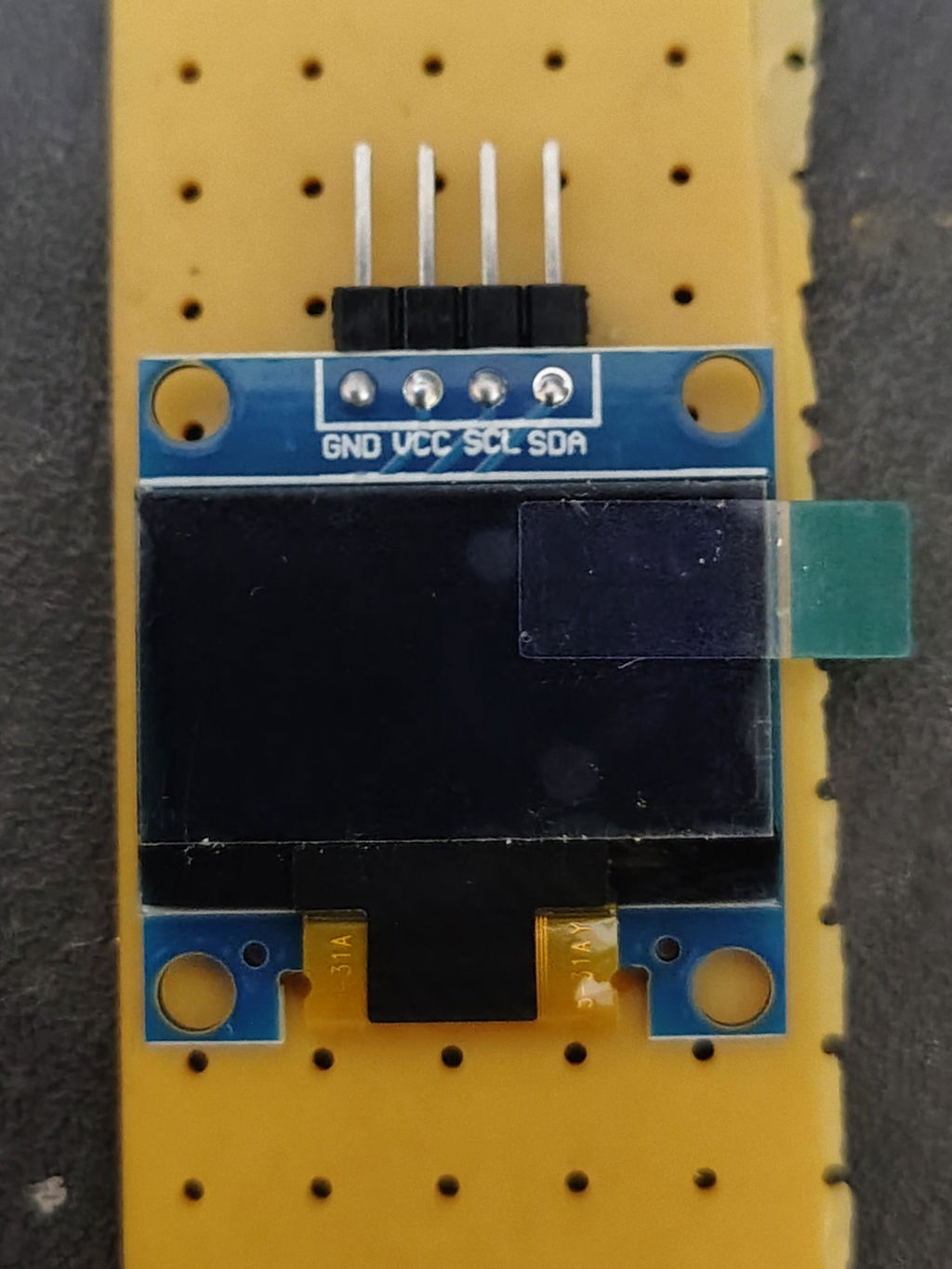

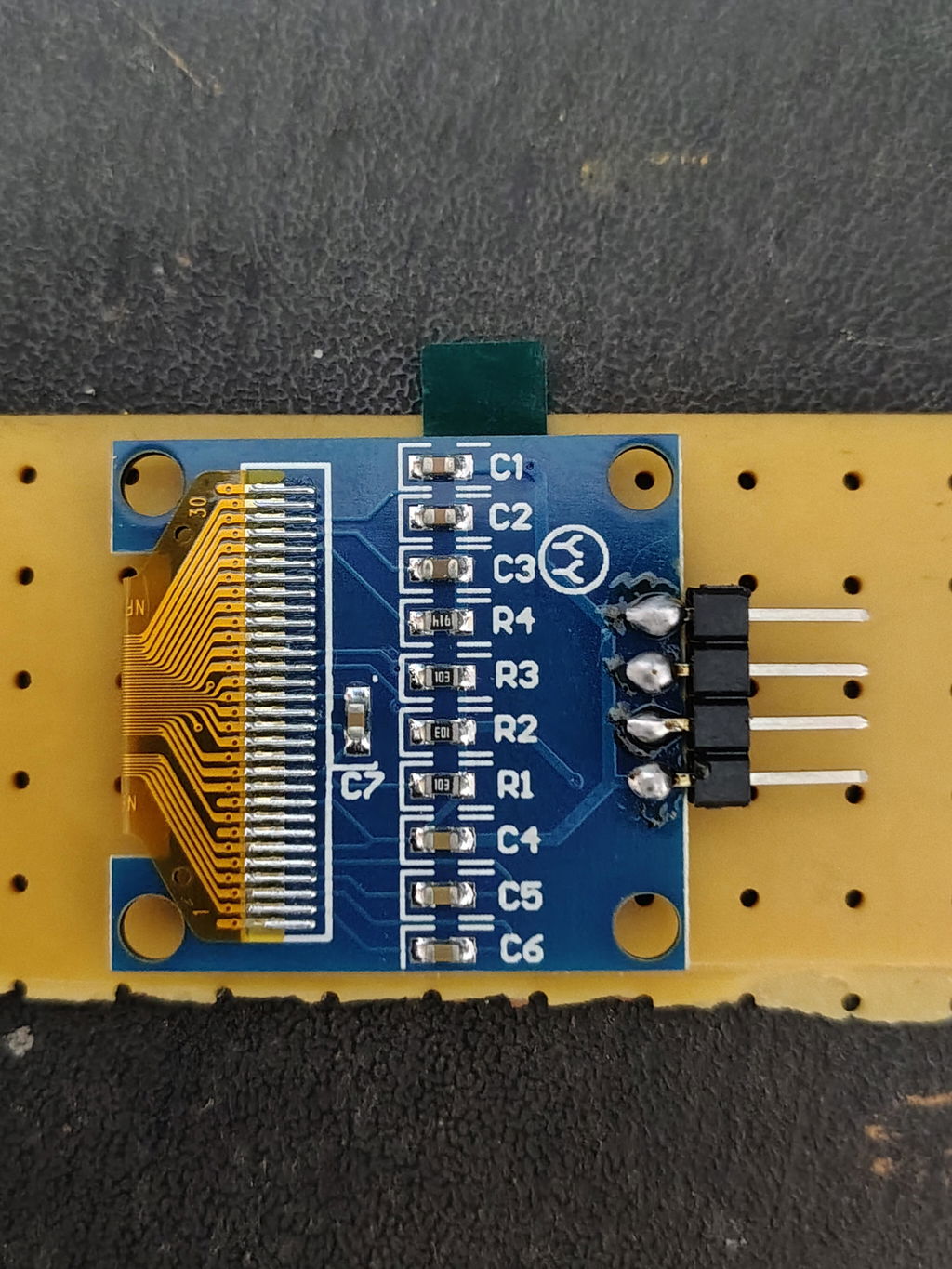

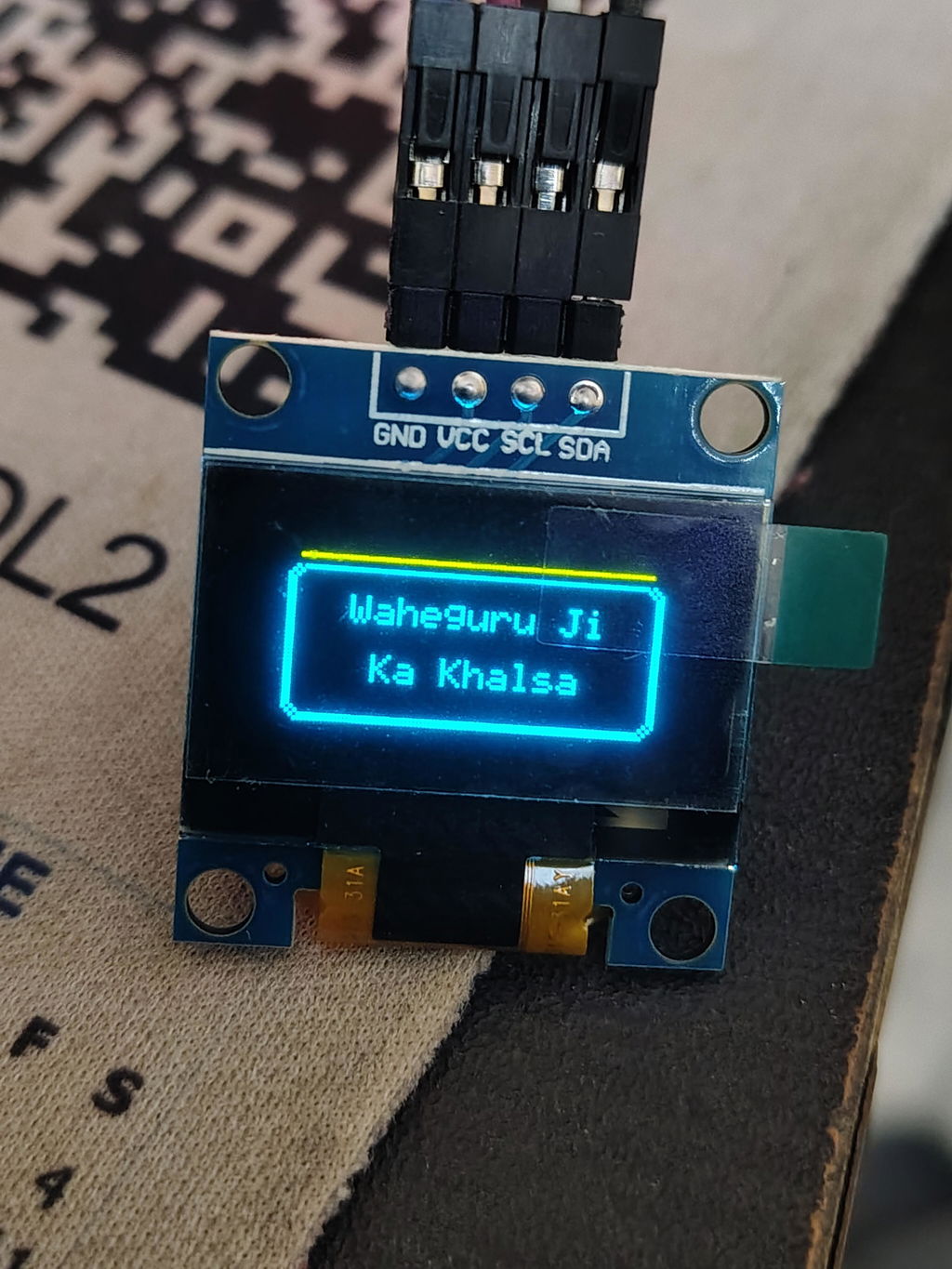

Very good and useful product ![User picture]()
![User picture]()
![User picture]()
![User picture]()
![User picture]()
Very Nice and Useful Product Amazing
-32%
0.96 Inch I2C/IIC 4-Pin OLED Display Module Blue & Yellow
Available:In Stock
- Product SKU: KLCD052
₹ 169
₹ 249
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
The 0.96-inch I2C/IIC OLED Display Module is a high-performance, monochrome 128×64 dot matrix display that utilizes OLED (Organic Light-Emitting Diode) technology. Unlike traditional LCDs, OLED displays are self-light-emitting, eliminating the need for a backlight, which results in a thinner profile, higher contrast ratio, and lower power consumption. This display module operates using I2C or SPI communication protocols, making it compatible with a wide range of microcontrollers. It offers excellent brightness, a wide viewing angle, and a wide operating temperature range, making it suitable for various applications. The module is pre-soldered with a 4-pin male header for easy interfacing, and its slim design makes it ideal for space-constrained projects.
Features:
Super High Brightness (Adjustable): Provides exceptionally bright visuals, with adjustable brightness to suit different environments.Super High Contrast (Adjustable): High contrast for clear and sharp text and images, with adjustable settings for better customization.
Embedded Driver/Controller: Includes a built-in driver/controller for easy integration and operation, reducing the need for additional hardware.
Display Size: Compact 0.96-inch screen, ideal for small-scale displays and portable projects.
Resolution: 128 x 64 resolution, ensuring crisp, clear visuals for text and graphics.
Interface Modes: Supports I2C/IIC interface modes for easy communication with microcontrollers.
Working Voltage: Operates at a low voltage of 3.3V, making it power-efficient for battery-operated devices.
Control Chip: Powered by the SSD1306 control chip, known for its reliability and excellent performance in OLED displays.
Technical Details
- Model Type: OLED Display Module
- Display Size (Inch): 0.96
- Display Resolution: 128 × 64
- Color: Blue & Yellow
- Display Area: 21.74 x 10.86 mm
- Operating Voltage (V): 3.3-5V
- Operating Temperature (°C): -40º ~ 70º Celsius
- Interface: I2C IIC
- Length (mm): 27.5
- Width (mm): 25
- Height (mm): 11
- Weight (g): 2
Applications:
- Compact displays for small embedded systems
- Real-time data visualization in IoT projects
- Low-power, portable electronics like handheld devices
- Displaying sensor data in Arduino-based projects
- Graphical interfaces for home automation systems
- Small-scale gaming consoles or interactive devices
- Wearable technology for fitness or health monitoring
- Battery-operated projects requiring low energy consumption
- Digital clocks or timers in compact devices
- Portable diagnostic tools or equipment displays
Interface pin
- VCC: 3.3 volts – 5 Volts
- GND: Ground
- SCL: Serial Clock
- SDA: Serial Data
Physical Attributes of oled display module
- Display Area: 21.74 x 10.86 mm
- Length (mm): 27.5
- Width (mm): 25
- Height (mm): 11
- Weight (g): 2
Outline Drawing
Package Includes
- 1 x 0.96 Inch I2C/IIC 4-Pin OLED Display Module Blue & Yellow
Customer Reviews
Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
K
It's a very good and useful product. It's also very attractively priced. Another advantage of buying from Kits Guru is the amount of product details and specifications that they've painstakingly inputted. Good work.
J
It's a very nice and good product also very attractively priced. Another advantage of buying from Kits Guru is the amount of product details and specifications that they've painstakingly inputted. Very very helpful indeed. Thanks and keep it up.
P
Totally working fine
