1.8" inch 128x160 TFT LCD Shield Module SPI serial interface
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great

1.8" inch 128x160 TFT LCD Shield Module SPI serial interface

Available:In Stock
  • Product SKU: KG076
Wishlist
₹ 429 ₹ 699
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   11K-188

Secure

Specification

Description

The 1.8-inch TFT LCD Display is brand new and high quality.
This lovely little TFT LCD Display breakout is the best way to add a small, colorful, and bright to any project. Since the TFT Screen uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!

The 1.8″ TFT LCD Display has 128×160 color pixels. Unlike the low-cost “Nokia 6110” and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this TFT Screen is a true TFT! The TFT driver (ST7735R) can display full 18-bit color (262,144 shades!). And the display will always come with the same driver chip so there are no worries that your code will not work from one to the other. The breakout has the TFT Screen soldered on as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic.

Display Specifications of TFT LCD Display:

Screen Size: 1.8 inches diagonal measurement.

Resolution: 128x160 pixels, providing a moderately detailed visual output.

Display Technology: Thin-Film Transistor Liquid Crystal Display for vibrant colors, fast refresh rates, and improved image quality compared to traditional TFT Screen.

Color Depth: Capable of displaying a wide range of colors for enhanced visual representation.

Applications of TFT LCD Display:

Prototyping: Rapidly prototype user interfaces and visual feedback systems for various electronics projects.

Information Display: Show essential data, messages, or graphics in a compact format.

Gaming: Create simple games with graphical elements suited for the  resolution and size.

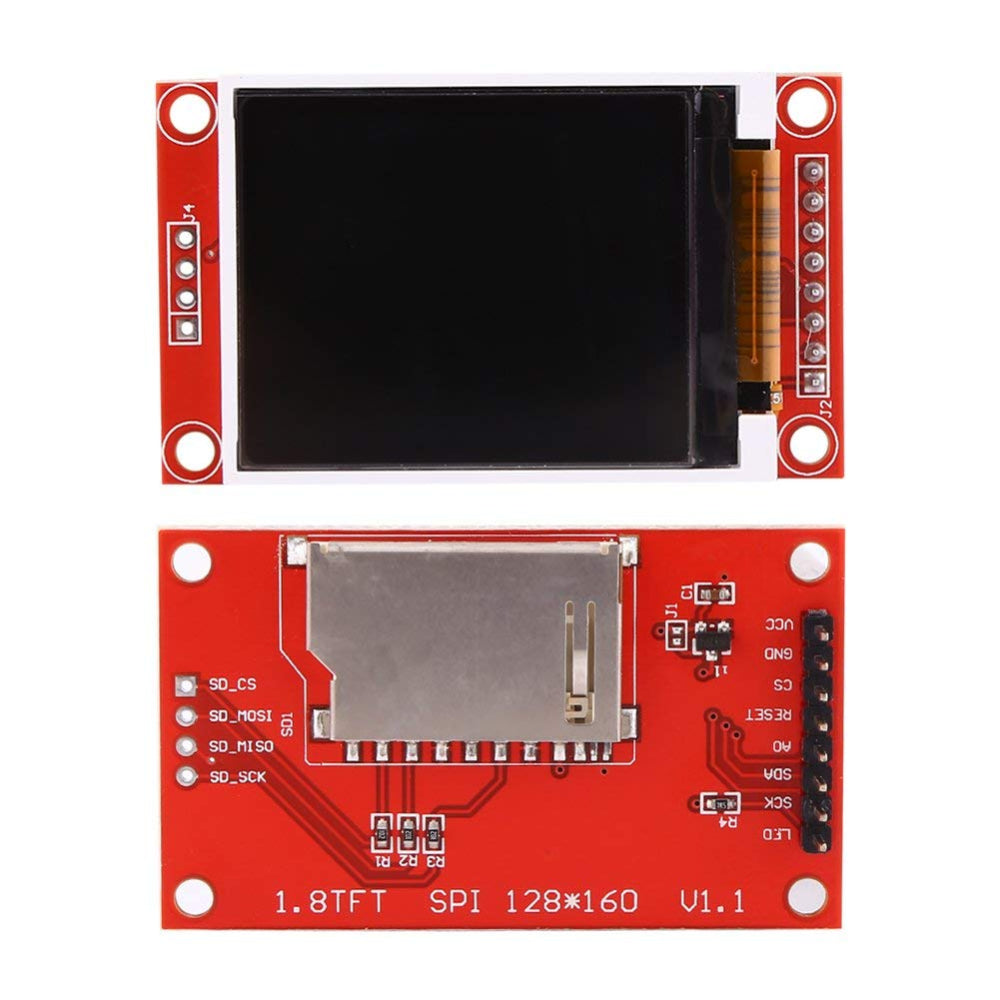

  • Durable hard PCB board and SD card socket, ideal for 5110 interface
  • 1.8 inch TFT LCD shield without touch panel, fast to operate
  • Support Serial SPI Mode, Interface 4-Wire SPI, Need 4 IOs from your MCU only
  • Support a variety of microcontroller IO connections, professional and practical
  • 5V compatible, use with 3.3V or 5V logic

Physical Attributes of TFT LCD Display

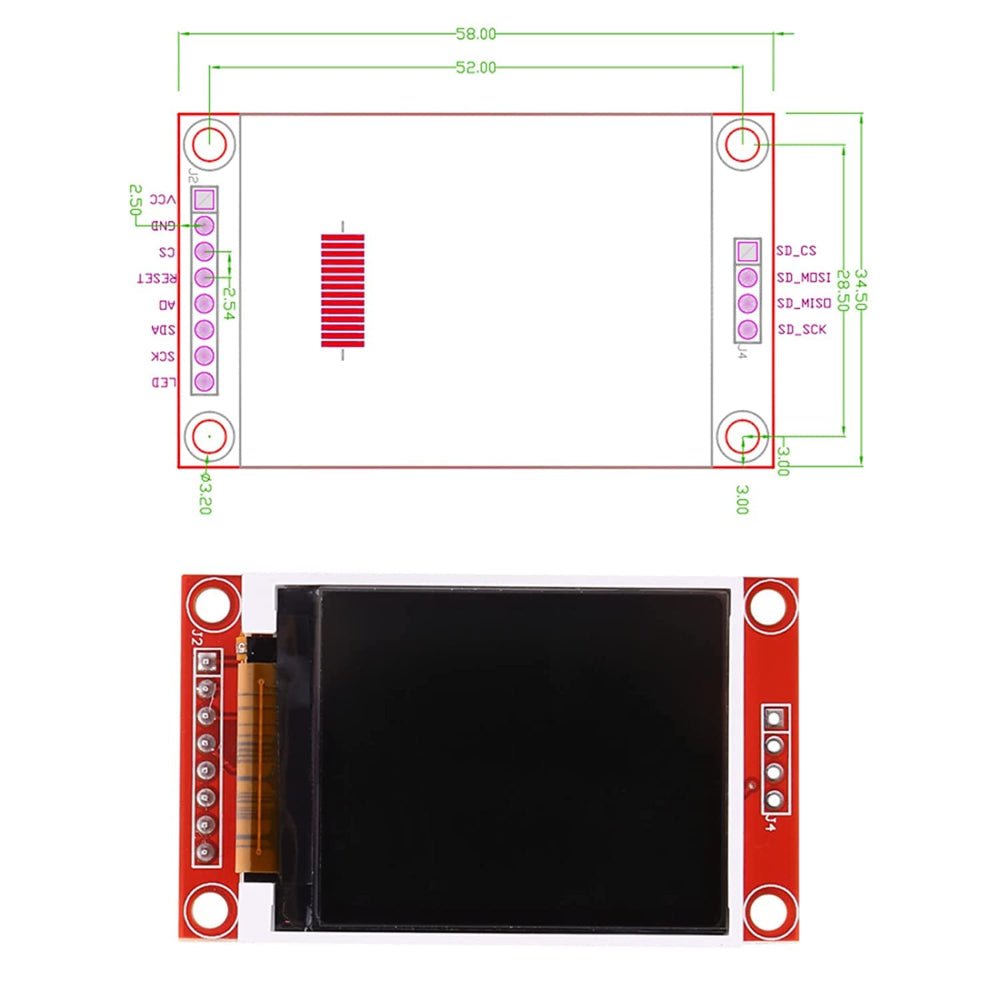

  • PCB Size ( L x W ) mm : 58 x 35
  • Weight(gm):16

Technical Details of TFT LCD Display

  • Driver IC: ST7735
  • Display Size (inch): 1.8
  • Input Voltage (V): 3.3 to 5
  • Pixel Resolution: 128 x 160
  • Interface Type: SPI

Integration with Arduino

TFT LCD Display

Sample Code


Additional Details

  • 1.8-inch serial SPI color display module
  • Support analog SPI and hardware SPI
  • The LCD has a wide viewing angle, the contrast is also very suitable.
  • Good quality display.

Product Video


Documentation

Package Includes

  • 1 x 1.8" inch 128x160 TFT LCD Shield Module SPI serial interface

Customer Reviews

Based on 14 reviews
86%
(12)
14%
(2)
0%
(0)
0%
(0)
0%
(0)
s
sarbjeet @ ronak
3/3 worked.

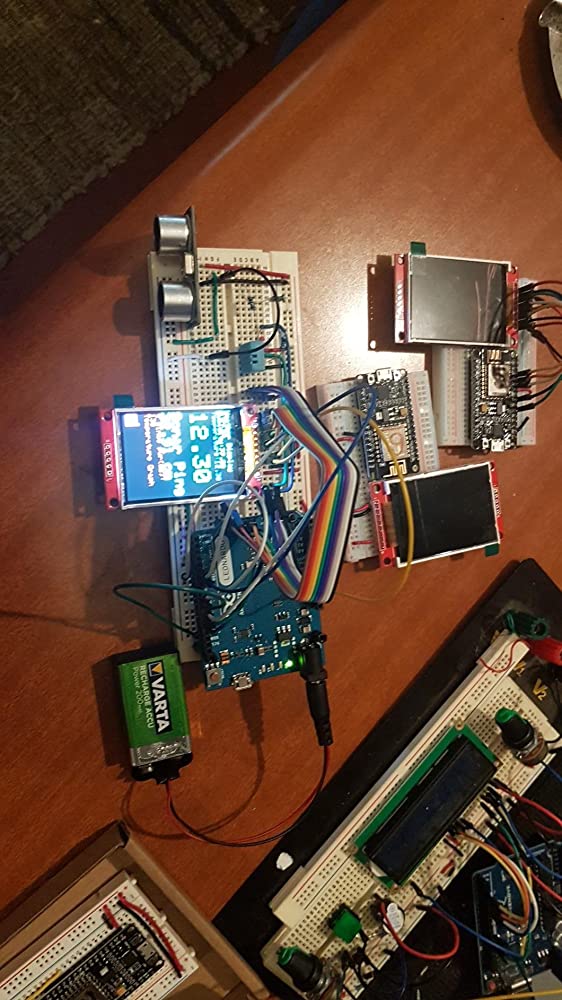

Got three of them all working(1 with Arduino Leonardo and 2 with NodeMCU ESP8266).arduino will need a solution to the 5v out 3.3v in(10s solder job) NodeMCU is directly compatible.i used adafruits code.Very happy. getting more. also hiletgo products have all been functional so far. becoming a fan.Update: switched to TFT_eSPI.h library. Wow. Orders of magnitude faster display now. A bit trickier to setup but well worth it.

L
Long Beach Native
the display was dead on arrival and only the back-light ...

the display was dead on arrival and only the back-light would turn on. I tried multiple testing programs in the Arduino IDE and double checked the wiring.edit: their customer service was quick and they agreed to send another unit. I will update when it arrives.

v
virender
Perfect

Works perfect with Adafruit library. And super fast delivery.

p
parnav kumar
ILI9340 compatible, Fast SPI ~30Mhz SCLK

Works great with ILI9340 driver library for PIC32. No problems running SPI bus at 30Mhz, but glitches past 34Mhz to no response at 40Mhz for those wondering about max transfer speed for drawing. Very responsive at 20Mhz+ Hardware SPI clock.

v
vivek
Works well on STM32 Blue Pill board

These little displays are bright, easy to use, and for their resolution and size, have a pleasing output. Use the eTFT libraries and you'll have a blast using these displays. Enjoy :)

a
aashik
As expected

Would have liked a little documentation, but worked it out pretty easily. Controller info is on the box. Works fine. Protection film over the screen.

a
abhay
Good price. Bright display.

Bright display. Easy to program with Arduino environment and Adafruit GFX and ILI9341 libraries. Runs well with 3.3V. Can run 5V by shorting out J1 on back with a solder blob, but it supposedly shortens the display life. SPI interface is fairly slow, even with an ESP32, but it works for my application. Has an SD card interface, but I haven't tried it yet.

s
sanjay
Five Stars

Great product!

m
monu kumar
Quality of make is good.

Purchased this product twice. Works well with RaspberryPi. Quality of make is good.

m
mohd. amir
Great seller. Fast delivery.

Awesome product. Screen worked perfectly.
