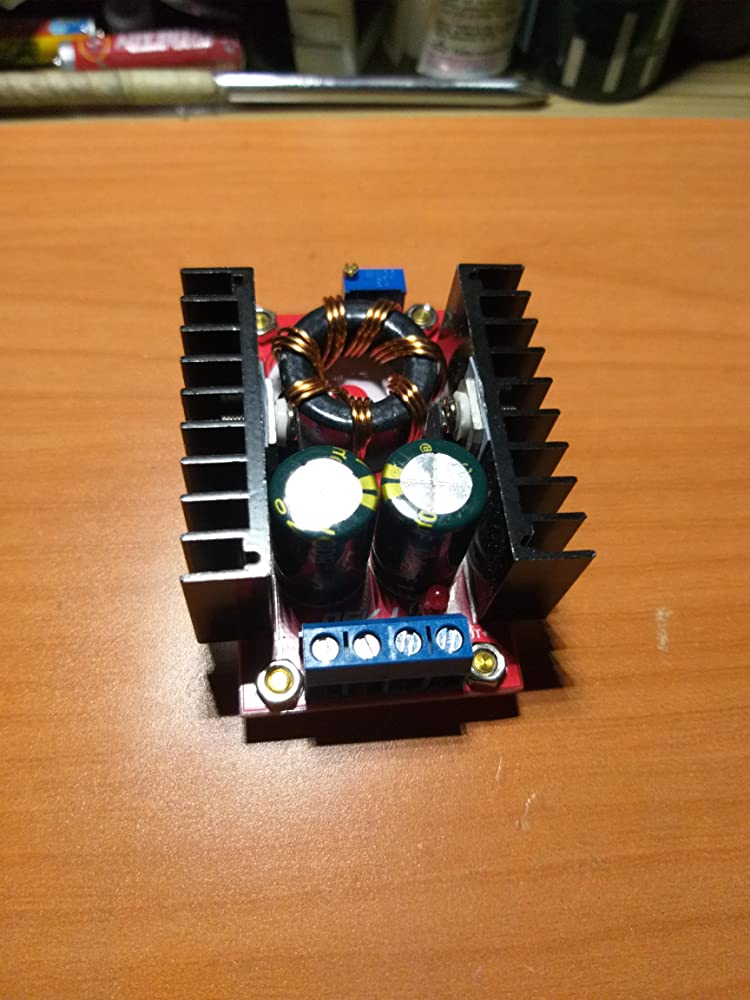

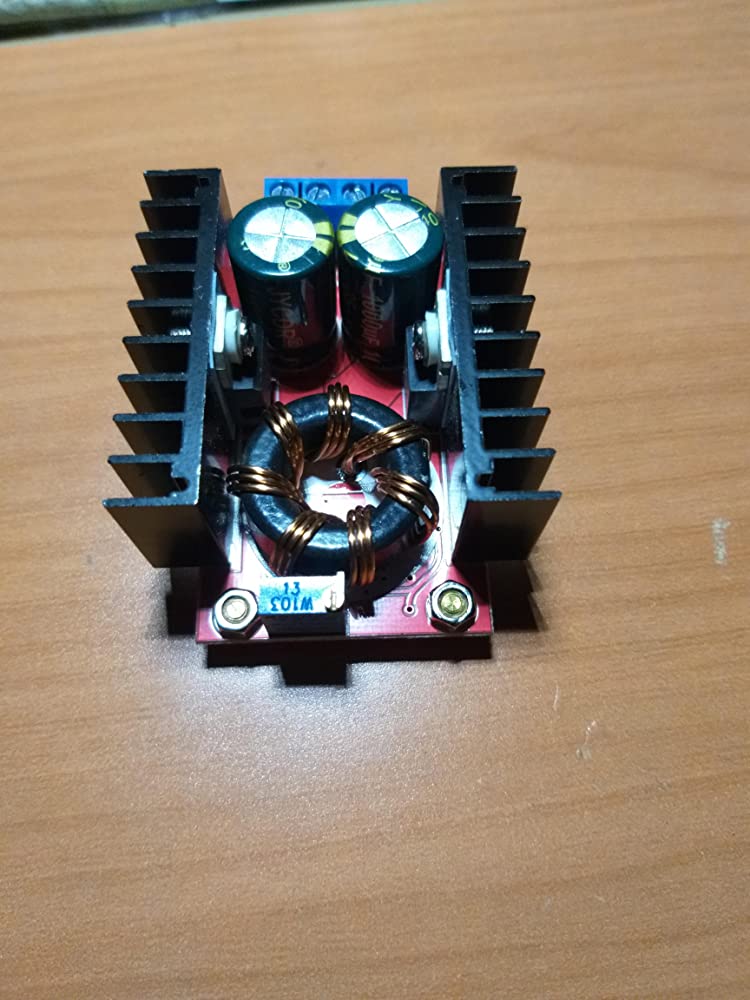

Boost converter with toroidal inductor and heatsinks

Adjustable boost module with potentiometer and LED

150W DC-DC Boost Converter 10-32V to 12-35V 6A Step-Up Adjustable Power Supply

Available:In Stock

Product SKU: KG107

Wishlist

₹ 145 ~~₹ 169~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
150W Boost
10–32V Input
12–35V Adjustable
Up to 6A
94% Efficient
Dual Heatsinks

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

How Fast We Ship

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

🏠 Warehouse Details:

12 I - 173

Specification

Description

150W DC-DC Boost Converter 10-32V to 12-35V 6A Step-Up Adjustable Power Supply

This 150W DC-DC Boost Converter Module is a heavy-duty, non-isolated step-up power supply designed to boost an input voltage of 10V to 32V up to an adjustable output of 12V to 35V. It supports up to 150W output power (application-dependent) and is built with a large toroidal inductor and dual heatsinks for improved thermal performance.

It is ideal for automotive and DIY power applications—such as boosting a 12V battery to 19V for laptop power, or to 18V / 24V for devices requiring higher voltages.

Technical Details

Module Type: DC-DC Boost (Step-Up), Non-Isolated
Input Voltage: 10V – 32V DC
Output Voltage: 12V – 35V DC (Adjustable)
Max Output Power: Up to 150W (depends on input/output and cooling)
Rated Output Power: 100W
Max Output Current: 6A (typical rating)
Peak Output Current: 10A (MAX)
Max Input Current: 16A (MAX)
Recommended Input Current: ≤10A (enhance heatsinking above 10A)
Conversion Efficiency: Up to 94%
No-Load Current: 25mA
Operating Temperature: -40°C to 90°C

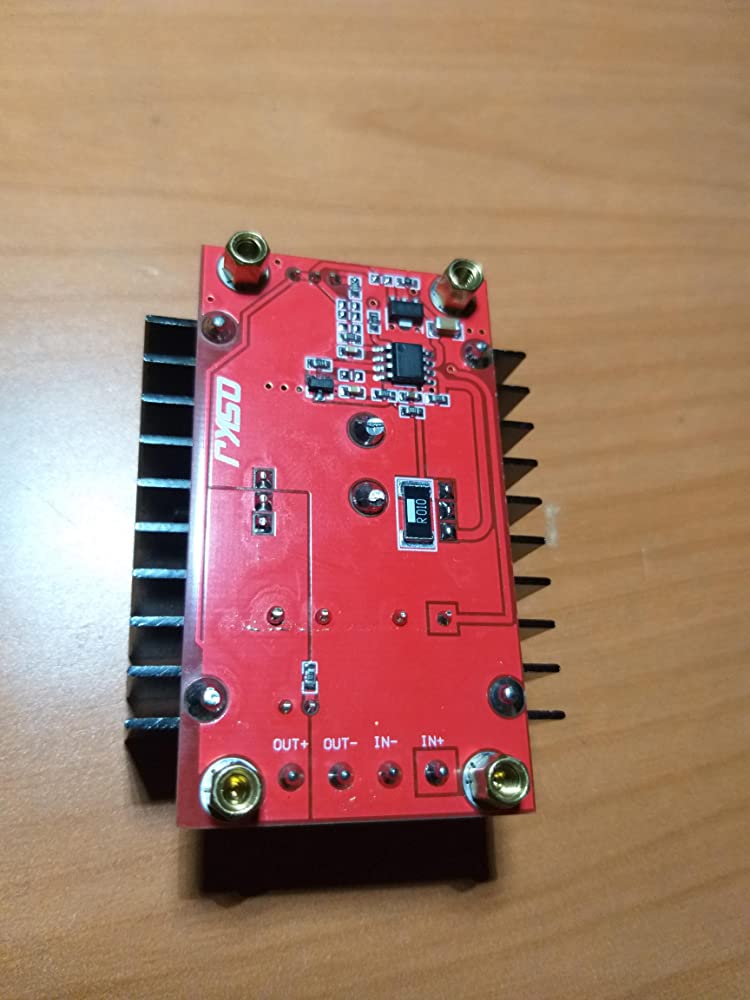

Output Terminals: OUT+ / OUT- Screw Terminals
Adjustment: Multi-turn Potentiometer
LED Indicator: Power ON indicator LED
Protection: No short-circuit protection
Reverse Polarity Protection: None

Important Notes

Set the output voltage using a voltmeter before connecting your equipment/load.
Output voltage must always be higher than the input voltage (boost converter behavior).
No reverse polarity protection—use a series diode on the input if needed and ensure correct polarity.
No short-circuit/overcurrent protection—use an external fuse or current limiter for safety.
For high loads, provide proper cooling (heatsink/airflow) to avoid overheating.

Features

Non-isolated DC-DC step-up (boost) conversion module
Adjustable output voltage via multi-turn potentiometer
Power ON LED indicator
Dual heatsinks and large toroidal inductor for heavy-duty performance
Suitable for powering 65W / 90W laptops (with correct voltage setting and adequate cooling)
OUT+ and OUT- screw terminals for convenient wiring

Applications

DIY adjustable vehicle power supply (12V input boosted to 14V–35V output)
Universal car laptop power supply (boost 12V to 19V)
Boost charger (convert 12V to 18V / 24V charging systems)
Power supply for electronics requiring higher DC voltage (within current rating)

Physical Attributes

Length: 65mm
Width: 48mm
Height: 23mm
Weight: 59g

Package Includes

1 × 150W DC-DC Boost Converter Module (10–32V to 12–35V, Adjustable)
