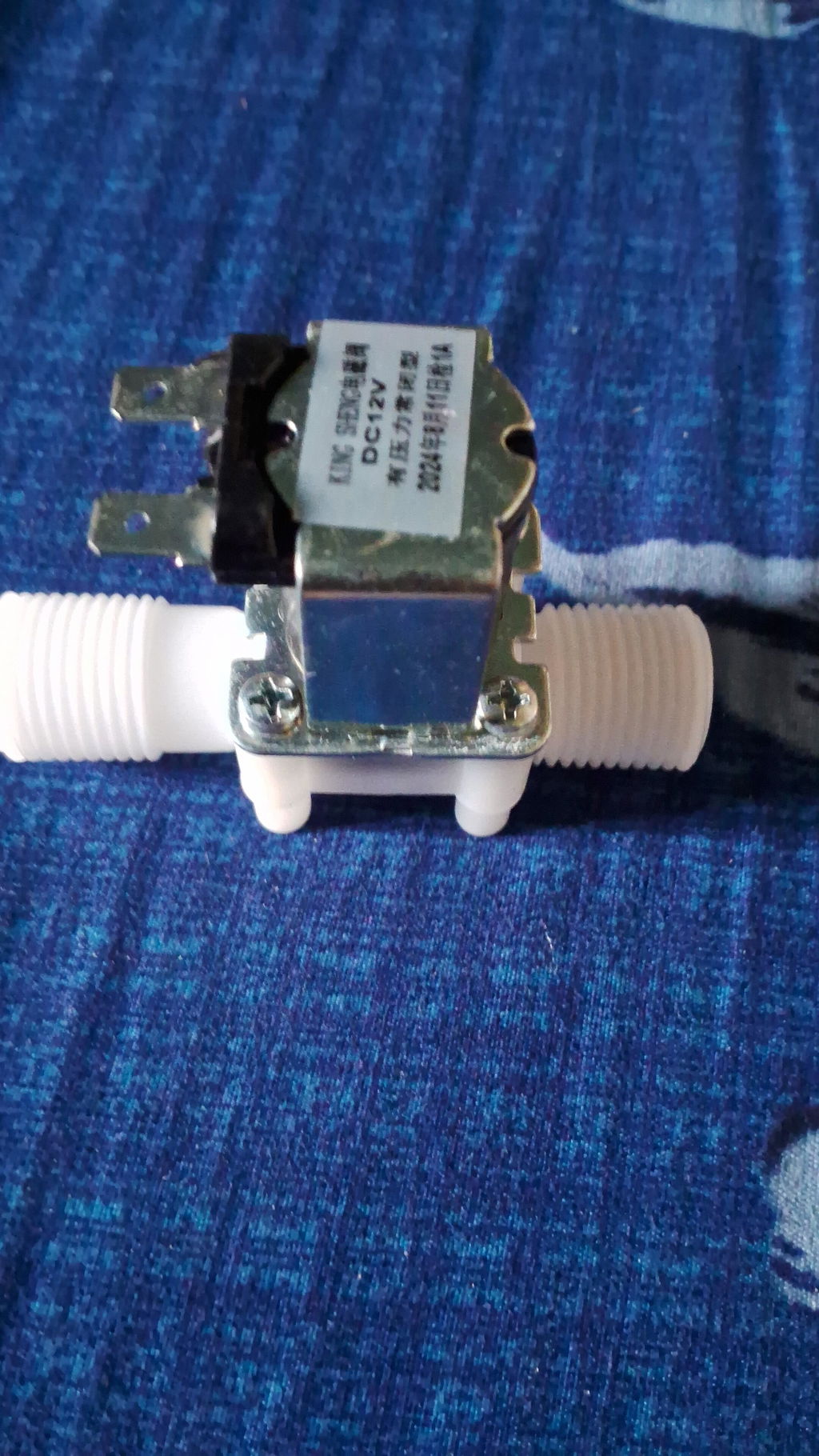

12V DC 1/2 inch Electric Solenoid Water Air Valve Switch (Normally Closed)
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

12V DC 1/2 inch Electric Solenoid Water Air Valve Switch (Normally Closed)

Available:In Stock
  • Product SKU: KG725
Wishlist
₹ 319 ₹ 387
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs59.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us.

Tc
Special Bulk Discounts

for colleges, Schools, Companies and resellers

Tc
Cash on Delivery

Available above Rs 999

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

  • Order within
Secure

Specification

Description

12V DC Solenoid Water Air Valve Switch (Normally Closed) 1/2 controls the flow of fluid (liquid or air) and acts as a valve between high-pressure fluid! This liquid valve would make a great addition to your robotic gardening project. There are two (Nominal NPT) outlets. Normally, the valve is closed. When a 12V DC supply is applied to the two terminals, the valve opens and water can push through.

The valve works with the solenoid coil which operates electronically with DC 12 volt supply. As it is a normally closed assembly, it opens the flow of fluids as soon as it is powered ON and stops/blocks the flow when the supply voltage removed.

Note: While Connecting Valve in Flow pipeline, you need to mind the Input and Output direction of the valve. It will work only if you connect it in the right direction. (Hint: Inside the value, at one side you will find the filter this is the input side of the value). It is not suitable for use with Gravity fed systems.

Technical Details

  • Model : 12V DC 1/2" Solenoid Valve
  • Rated Operating Voltage (VDC) : 12
  • Rated Current (mA) : 600
  • Operation Mode : Normally Closed
  • Power Consumption (Watt) : 8
  • Pressure : 0.02- 0.8Mpa
  • Energized forms : Intermittent
  • Inlet and outlet Diameter : Hose barbs for 1/2" (outer diameter) hose
  • Max fluid temperature : 100C

Features

  • Compact and convenient.
  • Easily installed and serviced
  • Precise and reliable.
  • The installation direction can be arbitrary Angle
  • Pressure-regulating valve (steady flow valve) function similar to the water flow switch
  • Not only can it provide a steady flow, but it also prevents the dry burning.
  • Suitable for fluids like water, oil, air.

Physical Attributes

  • Body L x W (mm): 84 x 57
  • Coil W x H (mm): 34 x 23
  • Weight (gm) : 100
