13 DOF DIY Biped Robot, Leg Robot Servo Motor Metal Bracket (NO Servo)

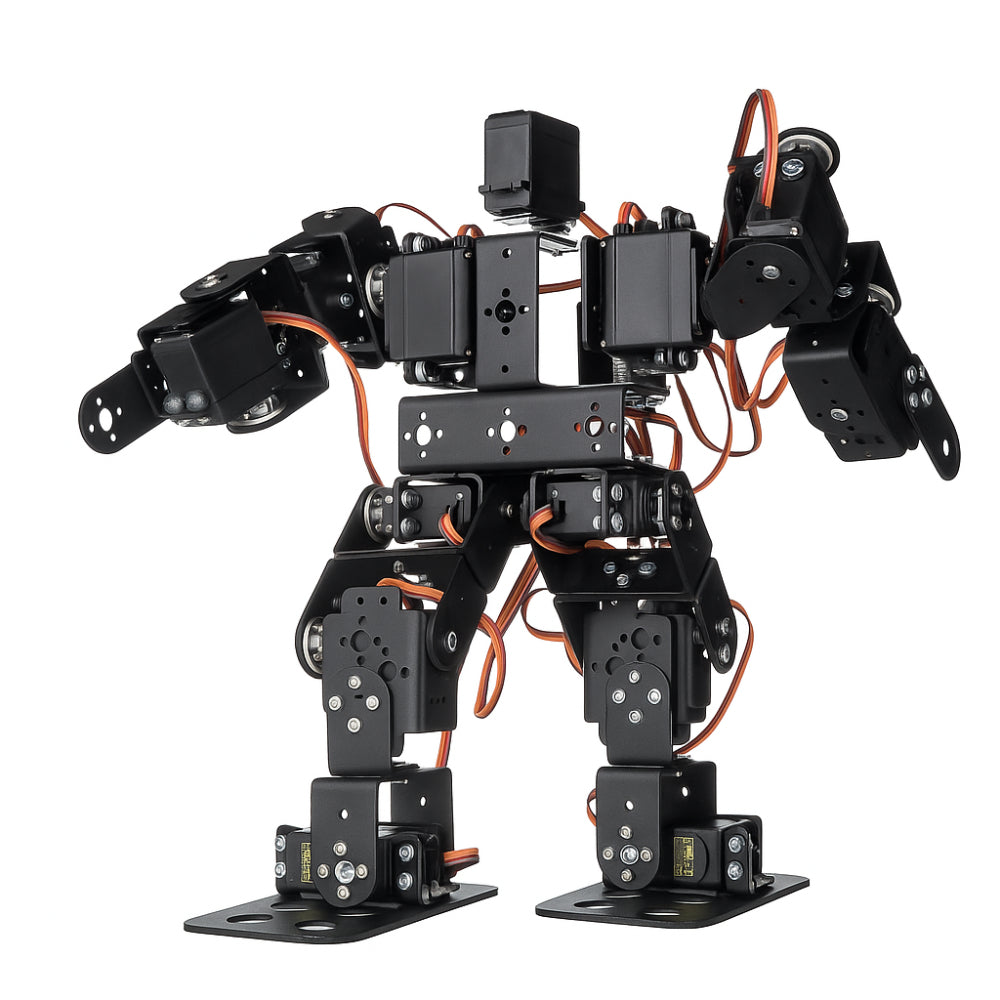

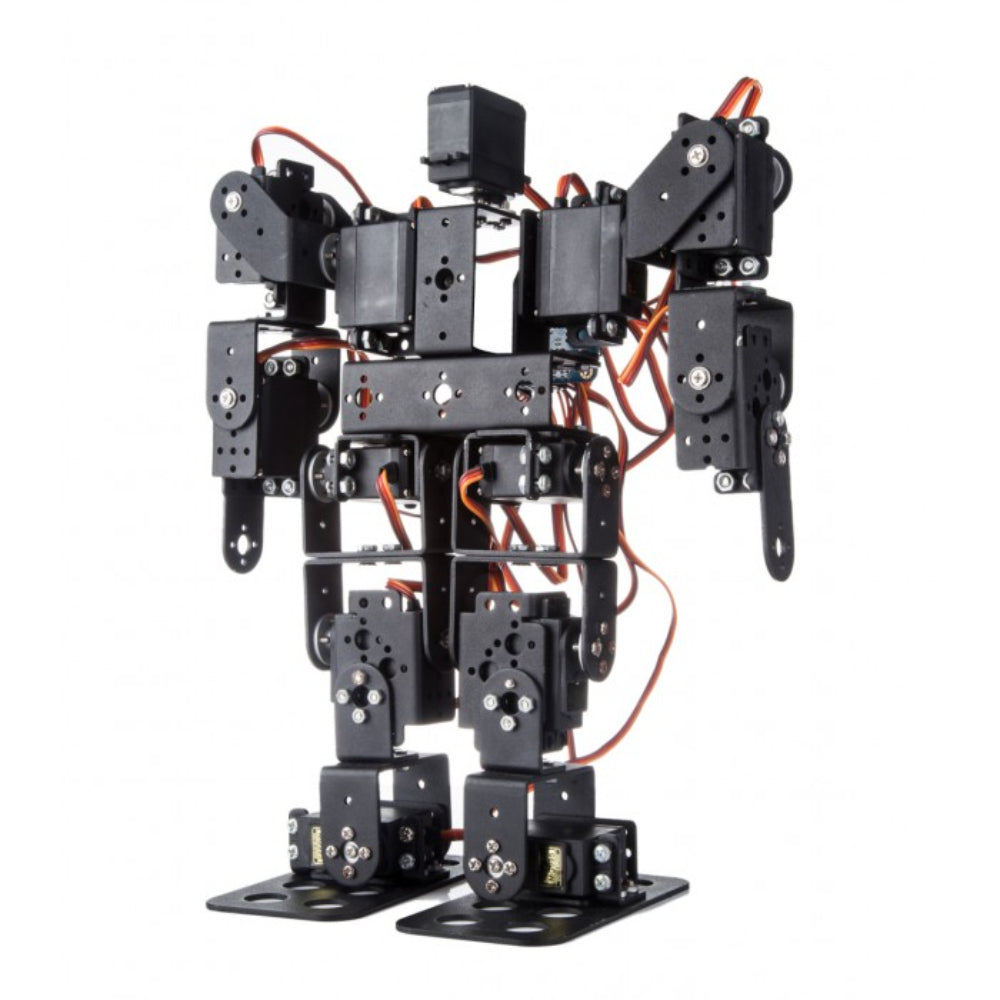

13 DOF Biped Humanoid Robot Frame (No Servo)

The 13 DOF Biped Humanoid Robot Frame is a premium mechanical structure designed for creators exploring robotics and humanoids. With its durable alloy body and adaptable mounting system, this frame supports precision motion experiments, making it ideal for designing a humanoid model or testing the movement patterns of a biped walking robot. Because of its stable build and modularity, it is widely used in engineering institutes, STEM labs, and personal prototyping.

Built from high-quality aluminum alloy, the kit offers an excellent strength-to-weight ratio. The 13 degrees of freedom allow users to simulate complex arm, leg, head, and balance movements common in robotics and humanoids development. It includes U-brackets, foot plates, and pre-drilled components that make it suitable for servo positioning, posture control, and articulated walking research.

Thanks to its flexible layout, this frame can be customized to act as a fully programmable biped walking robot or serve as a study model for motion algorithms used in robotics and humanoids.

Note: Servos, battery, and control board are not included.

Specifications

• Model Number: 13 Degree of Freedom (DOF)
• Material: Aluminum Alloy
• Color: Black / Silver (as per availability)
• Dimensions: 40 cm (Height) × 23 cm (Width)
• Type: DIY Biped Humanoid Robot Frame

Features

• Supports 13 degrees of freedom for advanced robotics and humanoids research
• Strong and light aluminum structure for smooth motion
• Perfect for biped walking robot simulations and humanoid development
• Pre-drilled servo mounting holes for easy assembly
• Laser-cut parts ensure accuracy and stable alignment
• Ideal for humanoid locomotion and balance studies

13 Degrees of Freedom Configuration

• 1 DOF – Head movement
• 4 DOF – Arm articulation
• 2 DOF – Shoulder joints
• 2 DOF – Hip movement
• 2 DOF – Leg rotation
• 2 DOF – Foot balance and tilt

Remarks

• Battery not included
• Servo motors not included
• Servo controller not included
• Ships as an unassembled DIY mechanical kit

Physical Attributes

• Dimensions (L × W): 40 × 23 cm
• Material: Anodized Aluminum
• Weight: 841 g (approx.)
• Color: Black / Silver
• Finish: Smooth corrosion-resistant coating

Notes

• Color may vary depending on stock.
• Compatible with MG995 / MG996R / DS3218 servo motors.
• Basic tools needed for assembly.

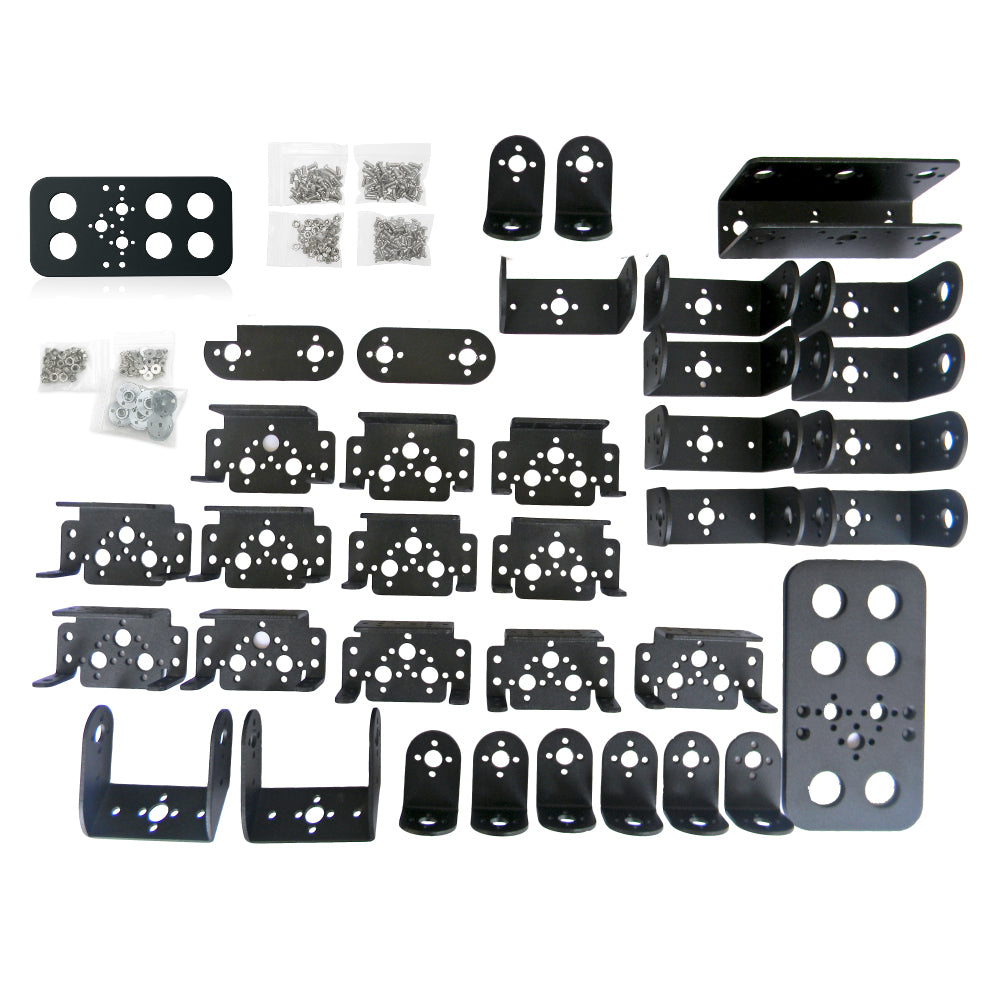

Package Includes

• 12 × Multifunctional Brackets
• 6 × Long U-shaped Brackets
• 3 × Short U-shaped Brackets
• 2 × Inclined U-shaped Brackets
• 8 × L-shaped Brackets
• 1 × U Beam Support
• 2 × Robot Bigfoot Plates
• 2 × One-servo Brackets
• 10 × Bearings
• 1 × Screw Set
