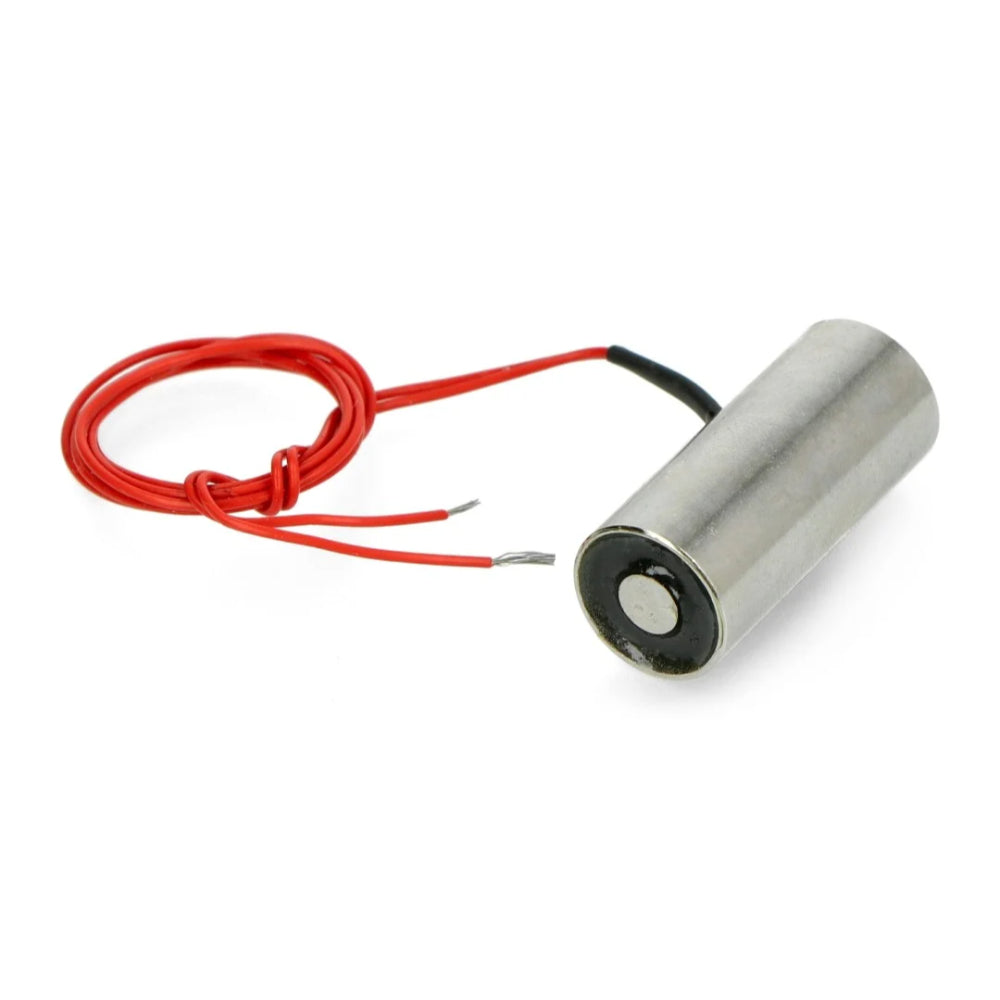

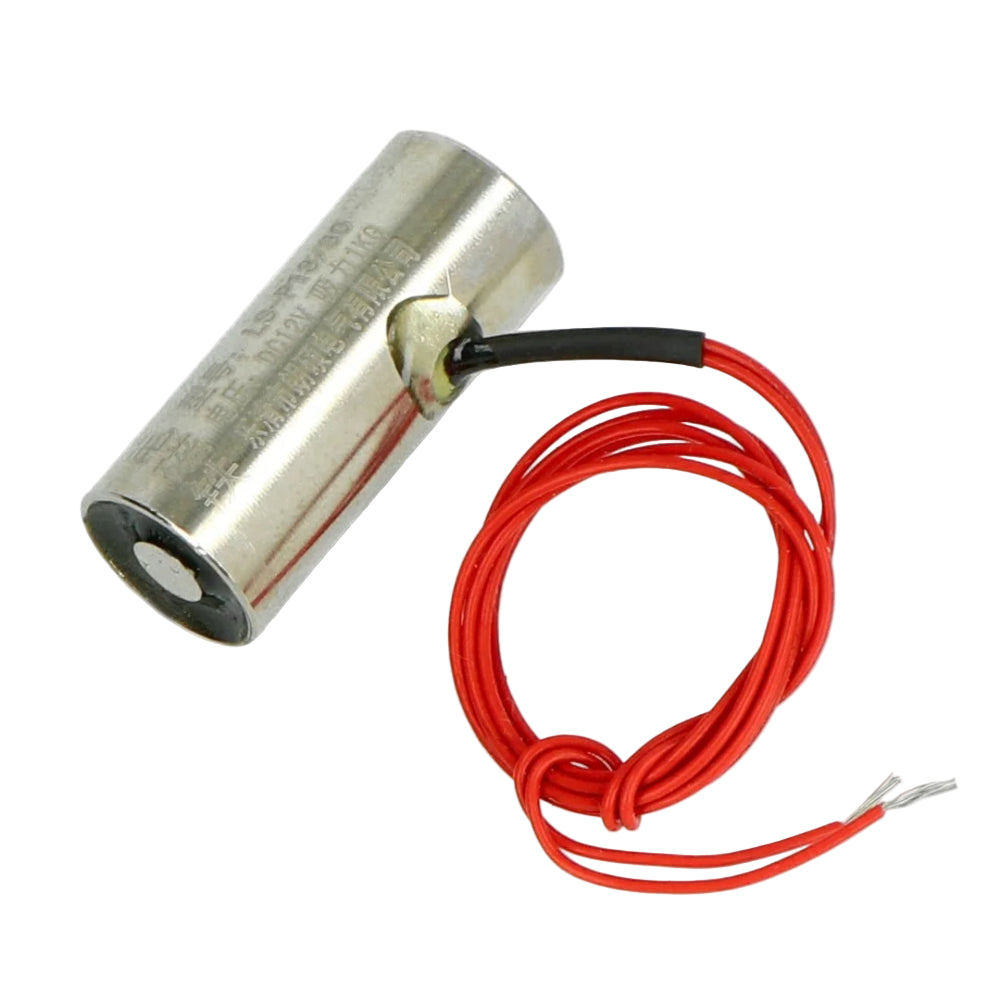

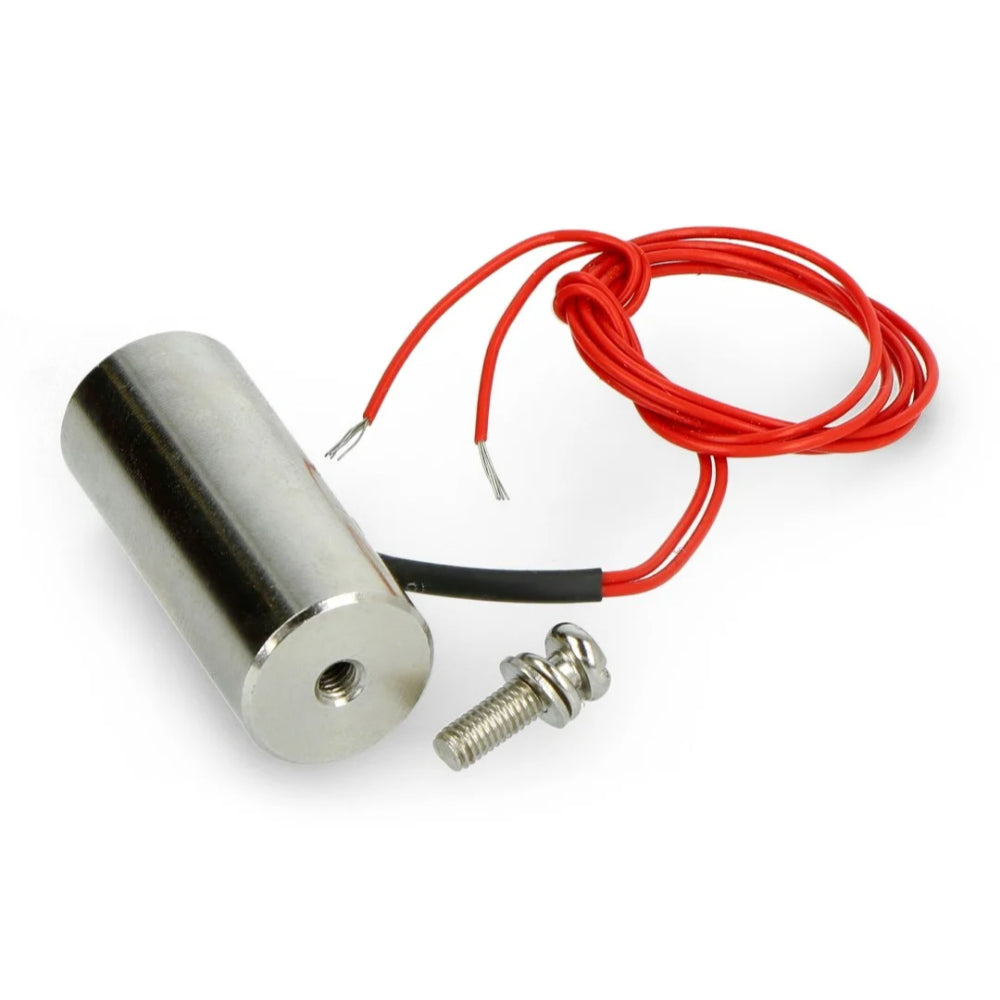

13x30mm 12V Lift 1Kg 1.2W Holding Lifting Magnet Electromagnet Solenoid
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-36%
13x30mm 12V Holding Lifting Magnet Electromagnet Lift 1Kg Solenoid 1.2W
13x30mm 12V Holding Lifting Magnet Electromagnet Lift 1Kg Solenoid 1.2W_1
13x30mm 12V Holding Lifting Magnet Electromagnet Lift 1Kg Solenoid 1.2W_2

13x30mm 12V Lift 1Kg 1.2W Holding Lifting Magnet Electromagnet Solenoid

Available:In Stock
  • Product SKU: LGSO019
Wishlist
₹ 699 ₹ 1,099
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • Diameter: 13mm
  • Height: 30mm
  • Rated Voltage: 12V DC
  • Holding Force: 1kg
  • Power Consumption: 1.2W
  • Wire Length: 285mm
  • Material: Metal
  • Color: Chrome
  • Shape: Round
  • Current: 100mA
  • Mounting: 1*M3 screw hole
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   29F-141

Secure

Specification

Description

This 12V DC electromagnet is designed for applications where a compact yet effective holding or lifting solution is needed. With a diameter of 13mm and a height of 30mm, it is slightly taller than similar models, offering a holding force of up to 1kg. It operates efficiently with a power consumption of 1.2W and a current of 100mA. The metal construction with a chrome finish provides both durability and aesthetic appeal. The solenoid includes a 1*M3 screw hole for secure mounting and has a wire length of 285mm for flexible installation.

Features:

Compact Dimensions: Diameter of 13mm and height of 30mm, fitting well into small spaces.

Strong Holding Force: Capable of lifting to 1kg.

Low Power Consumption: Operates at 1.2W, which is energy efficient.

Durable Material: Metal construction with a chrome finish for increased durability.

Round Shape: Allows for versatile integration into various designs.

Flexible Installation: Includes a 285mm wire length and a 1*M3 screw hole for easy mounting.

Applications:

Small Automation Projects: Suitable for holding or lifting components in compact automation systems.

Robotics: Ideal for small robotic systems requiring precise actuation.

Model Engineering: Useful in model trains and other miniature models.

DIY Projects: Perfect for hobbyist applications and custom-built projects.

Advantages:

Compact and Lightweight: Easy to integrate into tight spaces without adding significant weight.

Energy Efficient: Operates on only 1.2W, making it suitable for low-power applications.

Effective Lifting Capability: Can lift to 1kg, making it versatile for various small-scale tasks.

Durable and Aesthetic: The chrome finish enhances durability and visual appeal.

Secure Mounting: 1*M3 screw hole ensures a stable attachment.

Disadvantages:

Limited Holding Force: Maximum lift capacity of 1kg may not be sufficient for heavier applications.

Voltage Specific: Designed specifically for 12V DC; not suitable for other voltage levels.

Small Size: Limited for applications requiring larger magnets or greater lifting power.

Drawing

Physical Attributes

  • Diameter: 13mm
  • Height: 30mm
  • Wire Length: 285mm
  • Material: Metal
  • Color: Chrome
  • Shape: Round
  • Weight (gm): 21

Package Includes

  • 13x30mm 12V Lift 1Kg 1.2W Holding Lifting Magnet Electromagnet Solenoid
