15 DOF DIY Biped Robot, Leg Robot Servo Motor Metal Bracket (NO Servo)

15 DOF Biped Robot – Leg Robot Servo Motor Metal Bracket (No Servo)

Specifications

• Model Number: 15 Degree of Freedom (DOF)
• Material: Aluminum Alloy
• Color: Black / Silver (as per stock availability)
• Dimensions: 45 cm (Height) × 25 cm (Width)
• Frame Type: Humanoid Biped Robot Mechanical Kit
• Weight: ~890 g (approx.)

Features

• Provides 15 degrees of freedom for complex humanoid movement
• Made from high-strength aluminum alloy with matte finish
• Perfect for humanoid robotics research, competitions, and education
• Laser-cut precision for accurate servo alignment
• Supports flexible configuration of joints and sensors
• Lightweight yet durable — optimized for servo balance
• Easy to assemble modular structure with screw-type connections

15 Degrees of Freedom Configuration

• 1 DOF – Head rotation
• 4 DOF – Arm movement (2 per arm)
• 2 DOF – Shoulder joints
• 2 DOF – Hip motion
• 4 DOF – Leg articulation (2 per leg)
• 2 DOF – Foot balancing and tilt

Remarks

• This is an unassembled mechanical DIY kit.
• Servo motors and controller board are not included.
• Battery pack and wiring accessories not included.

Physical Attributes

• Material: Anodized Aluminum Alloy
• Height: 45 cm
• Width: 25 cm
• Weight: 890 g
• Color: Black or Silver (subject to stock availability)
• Finish: Matte, corrosion-resistant coating

Notes

• Color may vary depending on stock (black or silver).
• Compatible with MG995, MG996R, or DS3218 servo motors.
• Assembly requires basic tools such as screwdrivers and pliers.

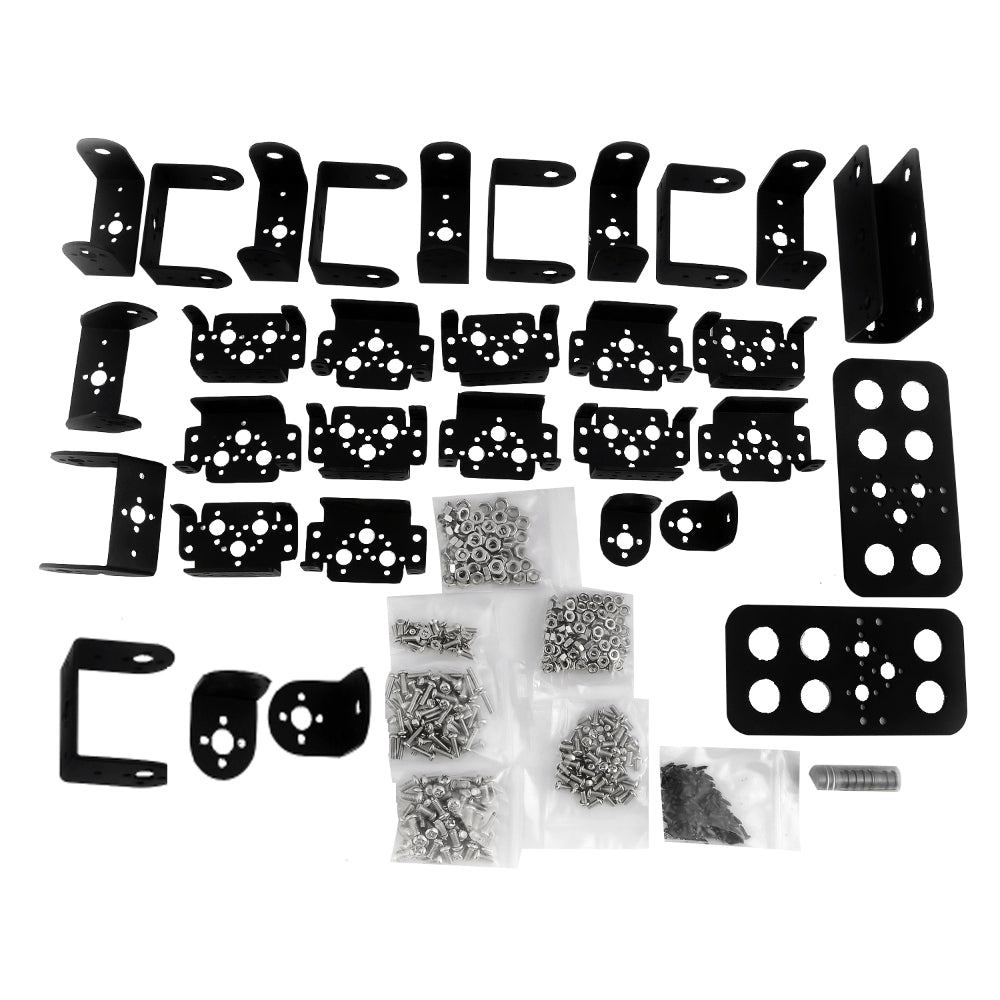

Package Includes

• 14 × Multifunctional Brackets
• 6 × Long U-Shaped Brackets
• 3 × Short U-Shaped Brackets
• 2 × Inclined U-Shaped Brackets
• 8 × L-Shaped Brackets
• 2 × One-Servo Brackets
• 1 × U Beam Support
• 2 × Robot Bigfoot Plates
• 12 × Bearings
• 1 × Screw Set
