152K 1.5nF 50V ±20% Monolithic Ceramic Capacitor 5.08mm Lead Pitch
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-33%
CAPAC354 152K 1.5nF 50V ±20% Ceramic Capacitor 5.08mm Lead Pitch

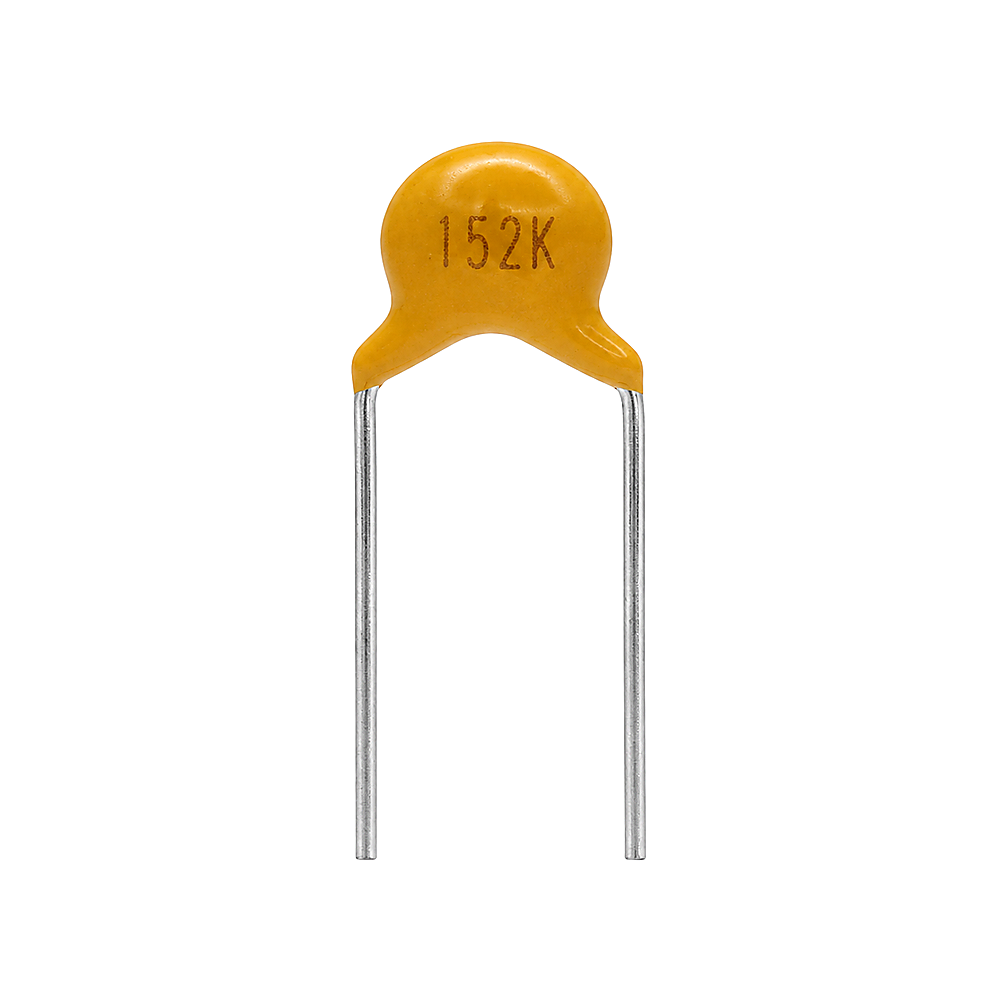

CAPAC354 capacitor front view

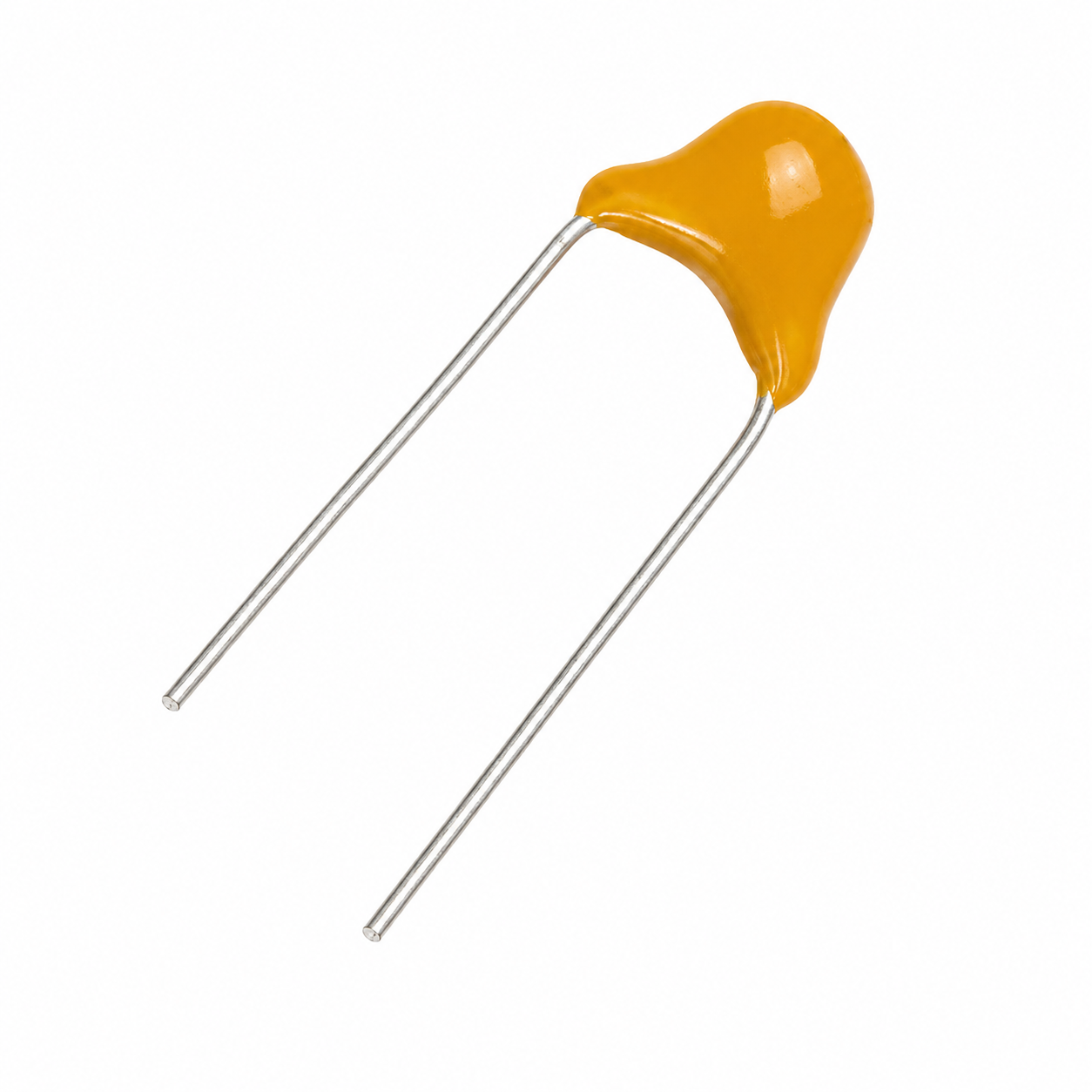

CAPAC354 capacitor back view
CAPAC354 152K 1.5nF 50V ±20% Ceramic Capacitor 5.08mm Lead Pitch
CAPAC354 capacitor front view
CAPAC354 capacitor back view

152K 1.5nF 50V ±20% Monolithic Ceramic Capacitor 5.08mm Lead Pitch

Available:In Stock
  • Product SKU: CAPAC354
Wishlist
₹ 6 ₹ 9
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • 1.5nF capacitance value
  • Rated for 50V operation
  • ±10% capacitance tolerance
  • 5.08mm radial lead pitch
  • Compact monolithic ceramic design
  • Suitable for electronic circuits
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
How Fast We Ship
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

🏠 Warehouse Details:
23 F - 146 C
Secure

Specification

Description

152K 1.5nF 50V ±10% Monolithic Ceramic Capacitor 5.08mm Lead Pitch

The 152K Monolithic Ceramic Capacitor is a fixed capacitor with a capacitance of 1.5nF, also equal to 1500pF or 0.0015µF. The K tolerance marking indicates ±10%, making it suitable for general-purpose filtering, coupling, and timing applications.

Its monolithic ceramic construction provides a compact and durable form factor for through-hole PCB use. With a 50V rating and 5.08mm lead pitch, it is a useful choice for signal circuits, repair work, educational electronics, and product prototyping.

Technical Details

  • Product Type: Monolithic Ceramic Capacitor
  • Capacitor Code: 152K
  • Capacitance: 1.5nF
  • Equivalent Value: 1500pF / 0.0015µF
  • Voltage Rating: 50V
  • Tolerance: ±10%
  • Lead Pitch: 5.08mm
  • Lead Type: Radial Lead
  • Mounting Type: Through-Hole
  • Polarity: Non-Polar

Features

  • 1.5nF capacitance value
  • 1500pF equivalent rating
  • 50V voltage capacity
  • ±10% tolerance marking
  • Compact ceramic construction
  • Non-polarized design
  • 5.08mm radial pitch

Applications

  • Signal filtering
  • Coupling circuits
  • Decoupling circuits
  • Timing networks
  • Audio circuits
  • Embedded electronics
  • General PCB repair

Physical Attributes

  • Body Type: Monolithic Ceramic
  • Lead Style: Radial
  • Lead Pitch: 5.08mm
  • Mounting Type: Through-Hole PCB Mount

Package Includes

  • 1 x 152K 1.5nF 50V ±10% Monolithic Ceramic Capacitor 5.08mm Lead Pitch
