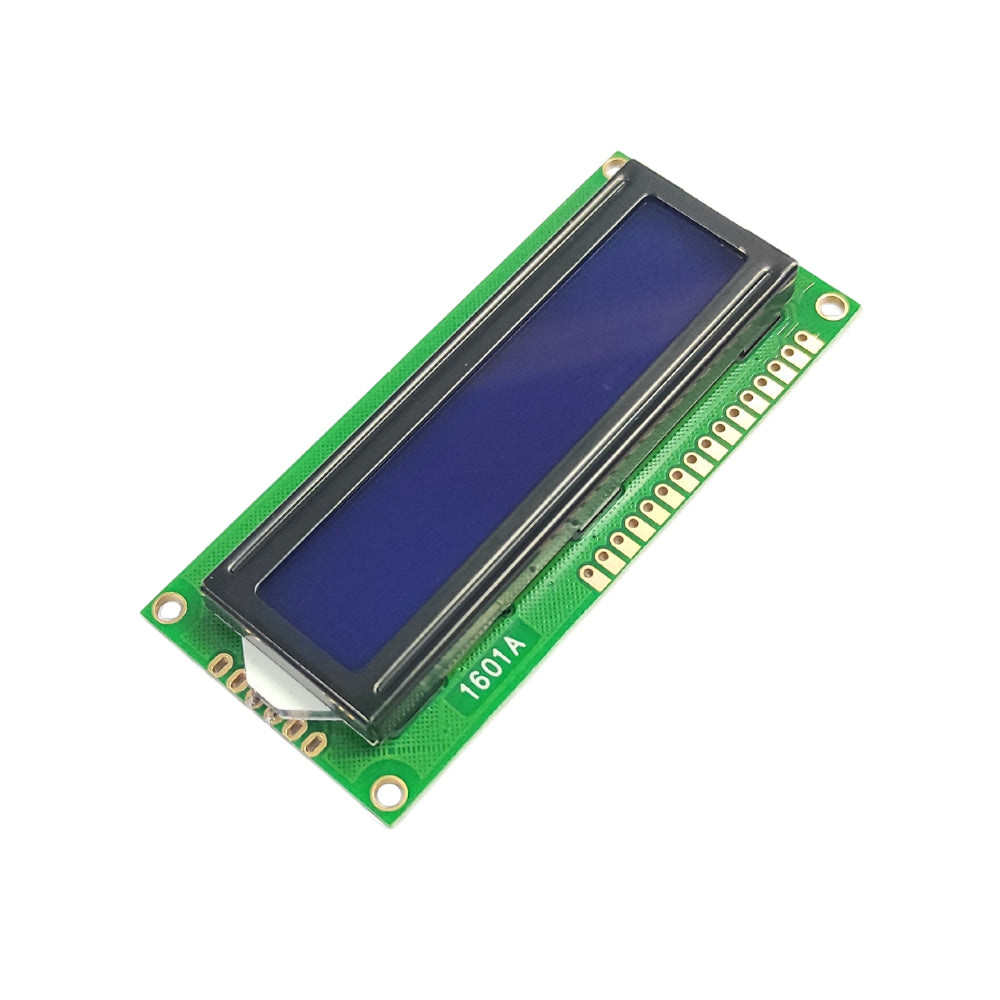

16x1 1601 Character LCD Display
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020

16x1 1601 Character LCD Display

Available:In Stock
  • Product SKU: KLCD030
₹ 179 ₹ 299
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 999

  • Original, High Quality
  • KitsGuru Warranty
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
  • 16x1 1601 Character LCD With Blue Back-light
  • With White Text
  • 16 characters wide, 1 rows
  • 16x1 1601 Character LCD With Green Back-light
  • With Black Text
  • 16 characters wide, 1 rows

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   21G-157 21G-157

  • Order within



If you want to add some visual output to your Arduino projects, you’ll need a small lcd display. If you need only a little to Display, the 16x1 lcd display is a quite good solution.

Here are some details about the 16x1 lcd display :

This is an 16×1 Parallel Display that provides a simple and cost-effective solution for adding a White on RGB Liquid Crystal to your project. The display is 16 characters by a 1-line display that has a very clear and high-contrast black text upon a blue background/backlight.

This is the great Blue backlight display. It is fantastic for Arduino-based projects. This Display with Blue Backlight is very easy to interface with Arduino or Other Microcontrollers.

The values shown on the display can be either simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles that the Arduino is performing.

Enhance readability in tight spaces with our product - the ultimate small LCD display solution

16x1 lcd display Features:

16 characters wide, 1 row.
White text on the Blue background.
The single LED backlight included can be dimmed easily with a resistor or PWM.
It can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used).

Technical Details of 16x1 lcd display

  • Model: 16x1 1601 A
  • Product Type: Character LCD Module
  • Display Format: 16*01 Characters
  • Interface: 6800 4-bit Parallel, 6800 8-bit Parallel
  • IC or Equivalent: AIP31066, HD44780, KS0066, SPLC780D
  • Visual Area: 64.50x14.50mm
  • Active Area: 59.45x6.35mm
  • Viewing Direction: 6:00
  • IC Package: COB
  • Power Supply (Type): 5.0V
16x1 1601 Character LCD Display

Physical Attribute

  • Outline Dimension: 80.00(W)x36.00(H)x11.00(T)mm
  • Weight (gm): 15

External Drawing

16x1 1601 Character LCD Display

Product Video

Package Includes

  • 16x1 1601 Character LCD Display With Blue/ Green Backlight
