17DOF DIY Biped Robot, Leg Robot Servo Motor Metal Bracket (NO Servo)
![17DOF DIY Biped Robot, Leg Robot Servo Motor Metal Bracket (NO Servo)]()
![17DOF DIY Biped Robot, Leg Robot Servo Motor Metal Bracket (NO Servo)_1]()
![17DOF DIY Biped Robot, Leg Robot Servo Motor Metal Bracket (NO Servo)_3]()
![17DOF DIY Biped Robot, Leg Robot Servo Motor Metal Bracket (NO Servo)]()
![17DOF DIY Biped Robot, Leg Robot Servo Motor Metal Bracket (NO Servo)_1]()
![17DOF DIY Biped Robot, Leg Robot Servo Motor Metal Bracket (NO Servo)_3]()
Made from strong yet lightweight aluminum, this frame offers excellent strength, stability, and corrosion resistance. The modular design allows you to easily attach standard servos, sensors, and controllers for complete customization. The structure supports the construction of dynamic walking robots, robotic limbs, or other motion-controlled humanoid systems.
Note: Servo motors, servo controller, and battery are not included and must be purchased separately according to project requirements.
-19%
17DOF DIY Biped Robot, Leg Robot Servo Motor Metal Bracket (NO Servo)
Available:In Stock
- Product SKU: KG354
₹ 6,459
₹ 7,999
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
17 DOF Biped Humanoid Robot Frame (No Servo)
The 17 DOF Biped Humanoid Robot Frame is a high-precision aluminum alloy mechanical structure designed for building advanced humanoid robots. With 17 degrees of freedom, this frame enables highly flexible movement, including realistic head, arm, leg, and foot motion. It’s ideal for robotics research, STEM education, competitions, and humanoid development projects that require precise servo control and motion simulation.Made from strong yet lightweight aluminum, this frame offers excellent strength, stability, and corrosion resistance. The modular design allows you to easily attach standard servos, sensors, and controllers for complete customization. The structure supports the construction of dynamic walking robots, robotic limbs, or other motion-controlled humanoid systems.
Note: Servo motors, servo controller, and battery are not included and must be purchased separately according to project requirements.
Specifications
- Model Number: 17 Degree of Freedom (DOF)
- Material: Aluminum Alloy
- Color: Black / Silver (as per stock availability)
- Dimensions: 40 cm (Height) × 23 cm (Width)
- Type: DIY Biped Humanoid Robot Frame
Features
- Supports 17 Degrees of Freedom for realistic humanoid motion
- Made from durable, lightweight aluminum alloy
- Ideal for humanoid robotics, mechatronics, and automation studies
- Precision laser-cut parts for high accuracy and easy assembly
- Multiple mounting holes for servo, sensor, and controller placement
- Perfect for educational, research, and competitive robotics
17 Degrees of Freedom Configuration
- 1 DOF – Head movement
- 4 DOF – Arm articulation
- 2 DOF – Shoulder joints
- 2 DOF – Hip motion
- 6 DOF – Leg movement
- 2 DOF – Foot tilt and balance
Remarks
- Battery not included in the kit
- Servo motors not included (sold separately)
- Servo controller not included
- This is an unassembled DIY mechanical kit
Physical Attributes
- Dimensions (L × W): 40 × 23 cm
- Material: Anodized Aluminum Alloy
- Weight: 1016g
- Color: Black / Silver (based on availability)
- Finish: Smooth, corrosion-resistant coating
Notes
- Color may vary depending on stock availability (black or silver).
- Compatible with MG995 / MG996R / DS3218-type servo motors.
- Assembly requires standard tools such as screwdrivers and pliers.

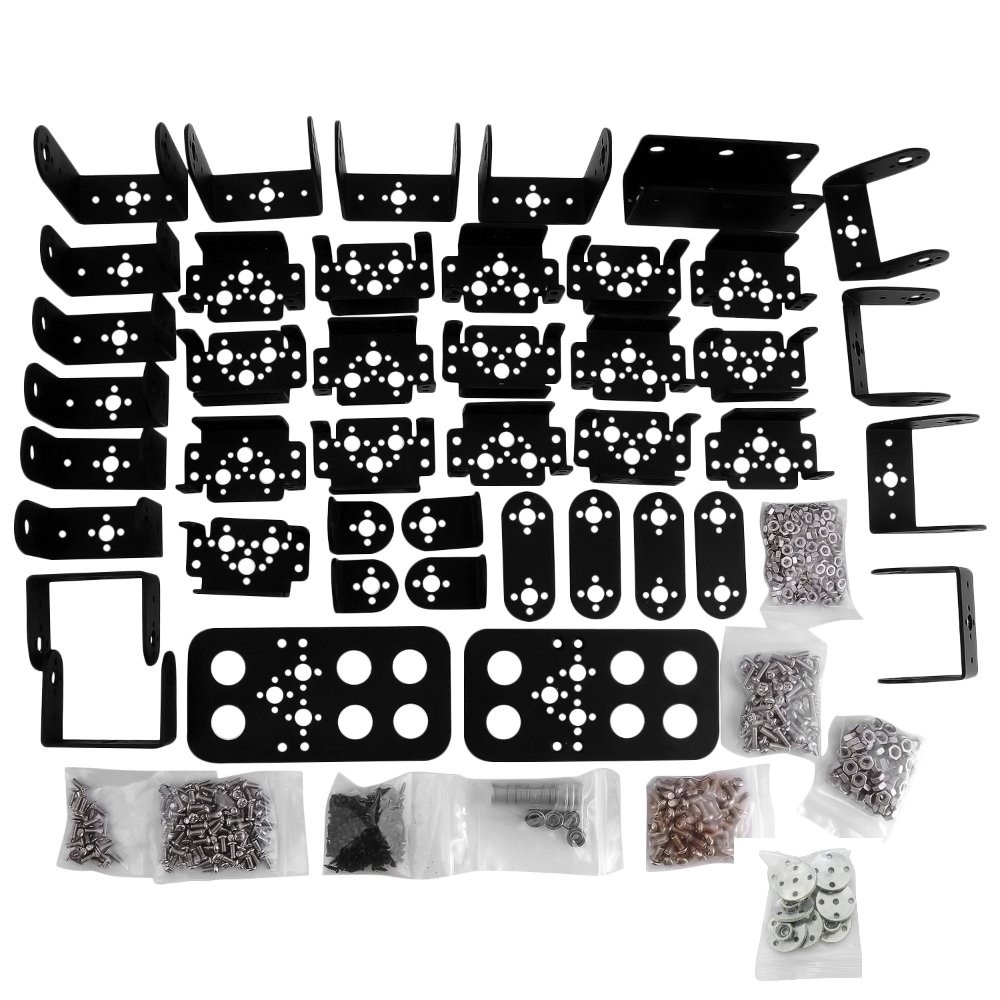

Package Includes
- 16 × Multifunctional Brackets
- 4 × Long U-shaped Brackets
- 7 × Short U-shaped Brackets
- 4 × Inclined U-shaped Brackets
- 4 × L-shaped Brackets
- 1 × U Beam Support
- 2 × Robot Bigfoot Plates
- 4 × Straight Brackets
- 14 × Bearings
- 17 × Aluminum Round-Type Servo Horns
- 1 × Screw Set
