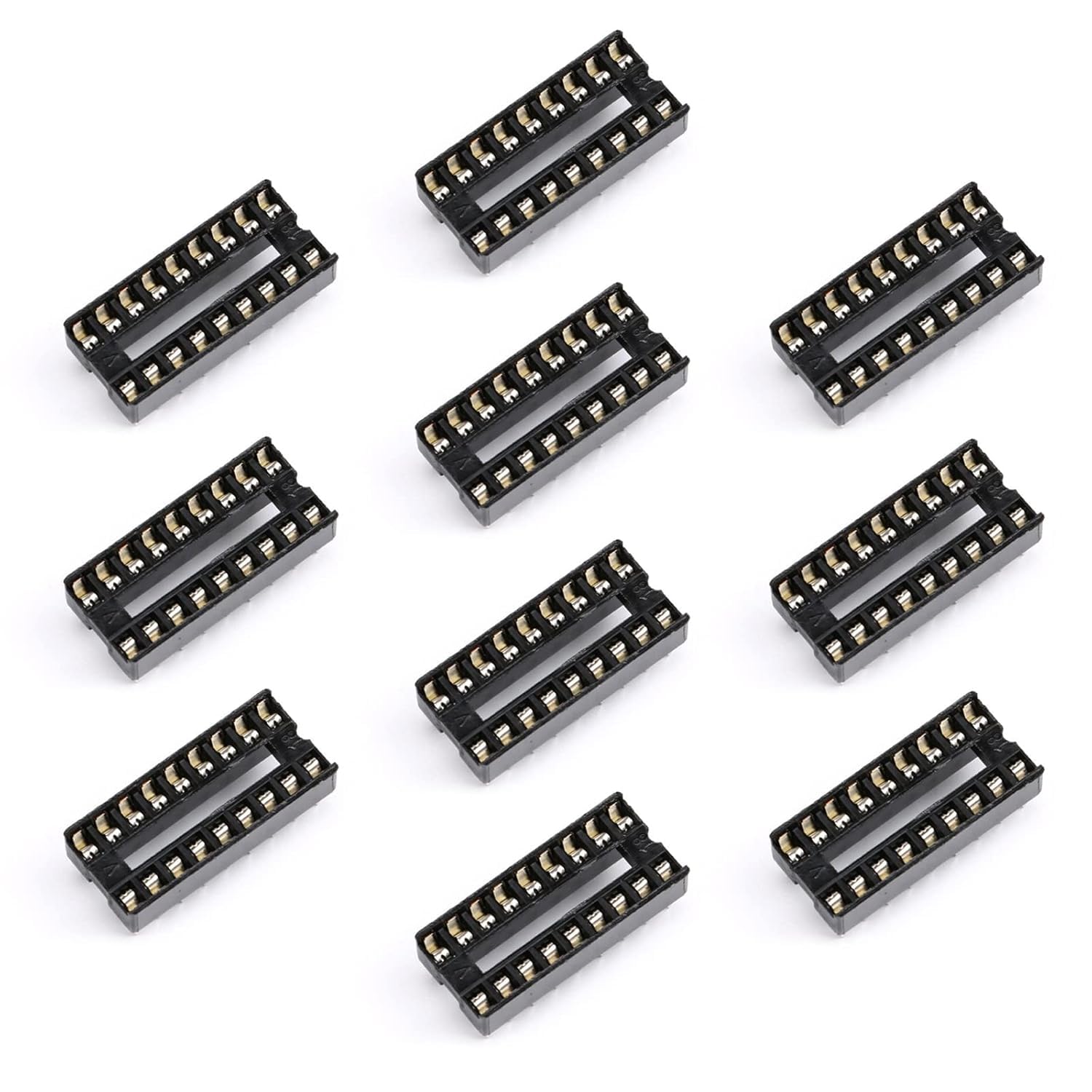

18 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 100Pcs
![18 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 100Pcs-1]()
![18 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm -2]()
![18 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm -2]()
![18 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 100Pcs-1]()
![18 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm -2]()
![18 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm -2]()
Thermal Protection: Helps protect ICs from heat damage during soldering by providing a heat-resistant interface.
Reusability: Allows multiple insertions and removals, making it a cost-effective solution for various projects.
Production Designs: Used in products where future IC replacement or upgrades may be required, facilitating easier maintenance.
Educational Kits: Commonly found in educational kits and breadboard setups due to their versatility and ease of use.
-37%
18 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 100Pcs
Available:In Stock
- Product SKU: BASE007_100
₹ 500
₹ 800
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
An 18-pin Dual In-line Package (DIP) IC base with a pitch width of 7.62 mm and pins spaced at 2.54 mm is a standardized component used for mounting integrated circuits (ICs) onto printed circuit boards (PCBs). The 18 Pin IC Base securely holds and connects 18-pin ICs to a PCB. It facilitates easy insertion and removal of ICs, making it suitable for various applications including prototyping, testing, and production.
Features:
User-Friendly Design: Simplifies mounting and replacing ICs, which is particularly beneficial during prototyping and troubleshooting.Thermal Protection: Helps protect ICs from heat damage during soldering by providing a heat-resistant interface.
Reusability: Allows multiple insertions and removals, making it a cost-effective solution for various projects.
Applications OF 18 Pin IC Base:
Prototyping and Development: Suitable for environments where ICs need to be frequently swapped for testing and development purposes.Production Designs: Used in products where future IC replacement or upgrades may be required, facilitating easier maintenance.
Educational Kits: Commonly found in educational kits and breadboard setups due to their versatility and ease of use.
Technical Details
- Number of Pins: 18
- Pitch Width: 7.62 mm (0.3 inches)
- Pin Spacing (Pitch): 2.54 mm (0.1 inch)
- Current Handling Capacity: 1A
- Contact Material: Phosphor Bronze
- Contact Plating: Tin
- Operating Temperature Range: -25 to 85°C
- Color: Black
- Voltage Rating: 50V AC
- Orientation: Vertical
- Mounting Type: Through Hole
- Frame Type: Open Frame
- Termination Method: Solder
- Depth: 5.1mm
Features OF 18 Pin IC Base
- Pins: 18 Pin
- Molded notch for proper orientation.
- Easy to insert and remove ICs.
- Maximum reliability
- It has tapered entry for ease of insertion
- Available in different sizes and shapes according to ic
Dimensions
Product Video
Documentation
Package Includes
- 1 x 18 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 100Pcs
