18 Pin Integrated Universal ZIF Socket For IC locking seat
![18 Pin Universal Locking Seat ZIF Socket lever open]()
![Close‑up of 18‑Pin ZIF Socket with IC clamped]()
![18‑Pin ZIF Socket mounted on PCB for IC programming]()
![18 Pin Universal Locking Seat ZIF Socket lever open]()
![Close‑up of 18‑Pin ZIF Socket with IC clamped]()
![18‑Pin ZIF Socket mounted on PCB for IC programming]()
Universal Compatibility: This Universal Locking Seat fits a wide range of 18-pin ICs, offering flexibility across various testing, prototyping, and programming tasks.
Durable Construction: Made from high-quality materials, it is built to endure thousands of insertion cycles, making it ideal for lab and production use.
Ease of Use: The ergonomic lever design ensures quick IC replacement, saving time and minimizing manual effort during repeated operations.
-34%
18 Pin Integrated Universal ZIF Socket For IC locking seat
Available:In Stock
- Product SKU: BASE034
₹ 59
₹ 90
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description

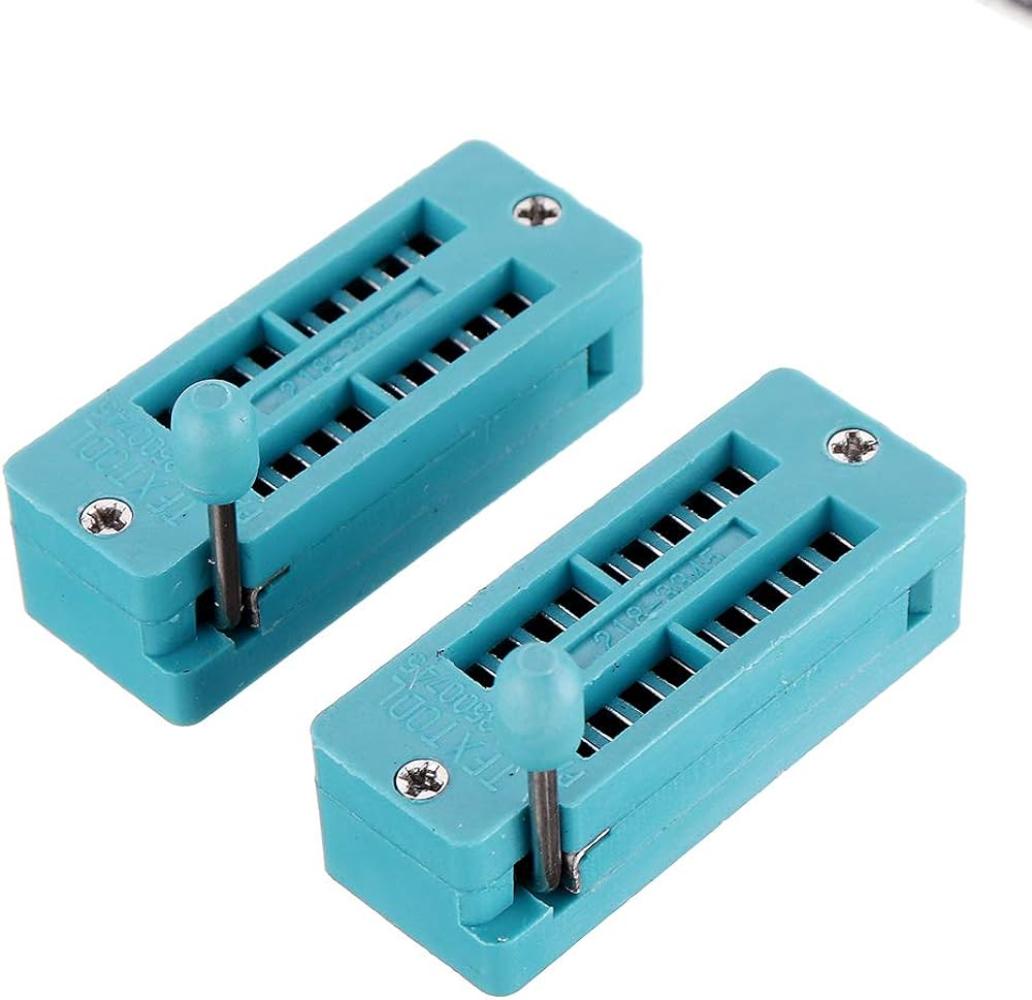

The 18 Pin Integrated Universal Locking Seat is a high-performance ZIF Socket designed to hold and test 18-pin ICs securely, without applying pressure that could damage sensitive pins. With its Zero Insertion Force mechanism, this socket ensures reliable connectivity and effortless IC handling in any technical environment.Key Features:
Zero Insertion Force (ZIF): The lever-based mechanism allows ICs to be inserted and removed without pressure, significantly reducing the risk of pin damage.Universal Compatibility: This Universal Locking Seat fits a wide range of 18-pin ICs, offering flexibility across various testing, prototyping, and programming tasks.
Durable Construction: Made from high-quality materials, it is built to endure thousands of insertion cycles, making it ideal for lab and production use.
Ease of Use: The ergonomic lever design ensures quick IC replacement, saving time and minimizing manual effort during repeated operations.
Applications:
Perfect for electronic prototyping, IC testing, and programming environments where ICs are inserted and removed frequently. This ZIF Socket offers a convenient and efficient way to test and program ICs without soldering or risking component damage.Features
- Compact mechanical construction ensures long-term durability.
- Zero insertion and extraction pressure prevents pin damage.
- Standard 0.100" (2.54mm) IC pitch for easy PCB integration.
- UL 94V-0 grade fire-retardant plastic housing for safety.
- Gold-plated contacts for low resistance and extended lifespan.
Electrical
- Rating: 50VDC, 100mA
- Contact Resistance: 50mΩ Max
- Initial Resistance: 100mΩ Min
- Dielectric Withstanding Voltage: 500V DC for 60 seconds
- The capacitance between adjacent contacts maintained
Mechanical and Environmental
- Operating Temperature: -25℃ to +70℃
- Storage Temperature: -40℃ to +85℃
- Operating Life: 50,000 cycles (without load)
- Humidity Resistance: up to 95% coverage
- Soldering Heat Tolerance: 260±5℃ for 5±1 seconds
Package Includes
- 1 x 18 Pin Integrated Universal ZIF Socket For IC locking seat
