2000W 220V Thyristor, High-Power Electronic Regulator Speed Controller SCR Voltage Regulator
- Product SKU: KG213
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
2000W 220V Thyristor, High-Power Electronic Regulator Speed Controller SCR Voltage Regulator
This is a 2000W Thyristor SCR Voltage Regulator Temperature Dimmer for Speed / Light (AC 220V). 2000W Thyristor SCR Voltage Regulator is an SCR Dimmer that can be used to control 220V Appliances. It can be used as a light dimmer, fan speed controller, and stove temperature controller. It is easy and simple to use and can control appliances up to 2000W!Just give AC input to the module and connect the appliance to the output of the module, then use the onboard potentiometer knob to adjust and set the required power output from your 220V Device.
Technical Details
- Model Type: Electronic Regulator
- Frequency (Hz): 50Hz ~ 60Hz
- Length (mm): 58
- Width (mm): 47
- Weight (g): 40
- Height (mm): 27
Features
- 2000W power capacity.
- 220V voltage regulation.
- SCR (Thyristor) technology.
- Motor and fan speed control.
- Frequency range: 50Hz ~ 60Hz.
- Compact size: 58mm x 47mm x 27mm.
- Reliable high-power performance.
- Ideal for various electronic devices.
Applications :
- Suitable for electric furnaces, water heaters, lamps, small motors, electric irons, and more.
- Uses new two-way high-power thyristor with a current capacity of up to 40A.
- Solves over-current issues caused by small heaating wire resistance in cooling conditions.
- Adjustable output voltage from 0 to 220V for various electrical appliances.
- Ideal for controlling furnaces, water heaters, heat transfer, light dimming, motor speed, and electric iron thermostats.
- Achieves dimming, thermostat, and pressure effects.
- Suitable for electrical power under 2000W, perfect for home appliances and small factories.
- Inductive or capacitive load power should be reduced.
- Equipped with a two-way high-power thyristor and convenient potentiometer with nuts. No additional components are needed.
How to Use : Connect the AC supply at the input of the module and the appliance at the output of the module, then rotate the knob for dimming, speed, voltage, and temperature control.
Physical Attributes
- Length × Width × Height(mm) : 58 × 47 × 27
- Weight (gm): 40
Package Includes
- 1 x 2000W 220V Thyristor, High-Power Electronic Regulator Speed Controller SCR Voltage Regulator
Customer Reviews

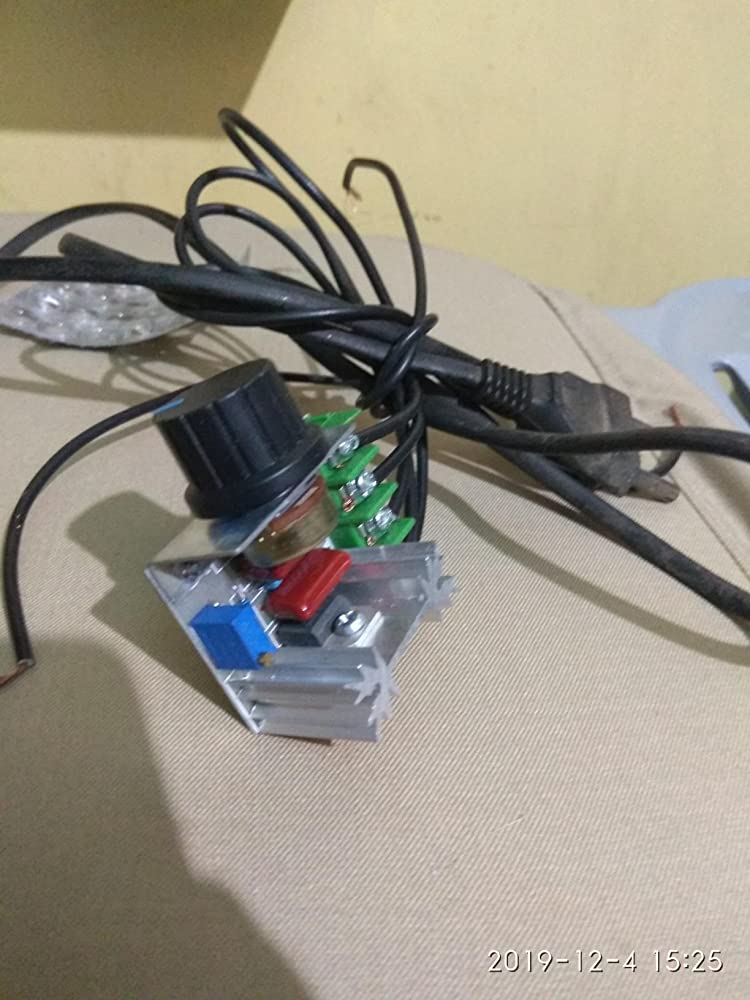

This received without dely , working very good , speed of black and decker ankle grinder is controlled , from flying to walking,say speed reduced from 12000 RPM to 1000 RPM or similar
Works well on angle grinder , marble cutter and many other below 2000 watt just doubt how long it will last but happy with it
Very good
nice product work with ag4 well
It's voltage regulation range is 202v to 230v with an input of 250vAC even after tinkering with both the regulators.
Thank you guru... Good product
It's a good product, with best price.
Working well, I am satisfied.
Good working price little high
Product is working 100%
