26MHz 2-Pin DIP Crystal Oscillator
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great

26MHz 2-Pin DIP Crystal Oscillator

Available:In Stock
  • Product SKU: CRYST013
Wishlist
₹ 10 ₹ 15
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • 26MHz stable frequency
  • 2-pin DIP package
  • ±20ppm tolerance
  • Through-hole mounting
  • Great for RF & MCU circuits
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   36G-147A

Secure

Specification

Description

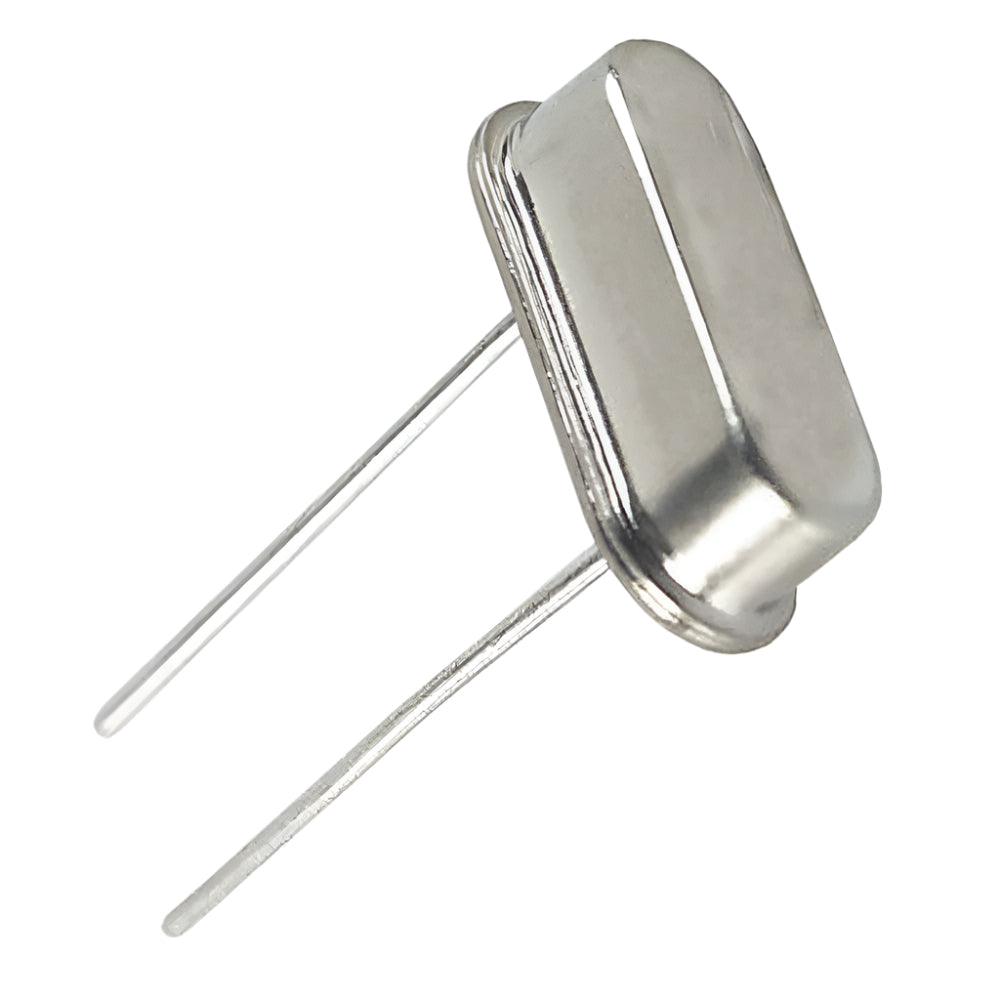

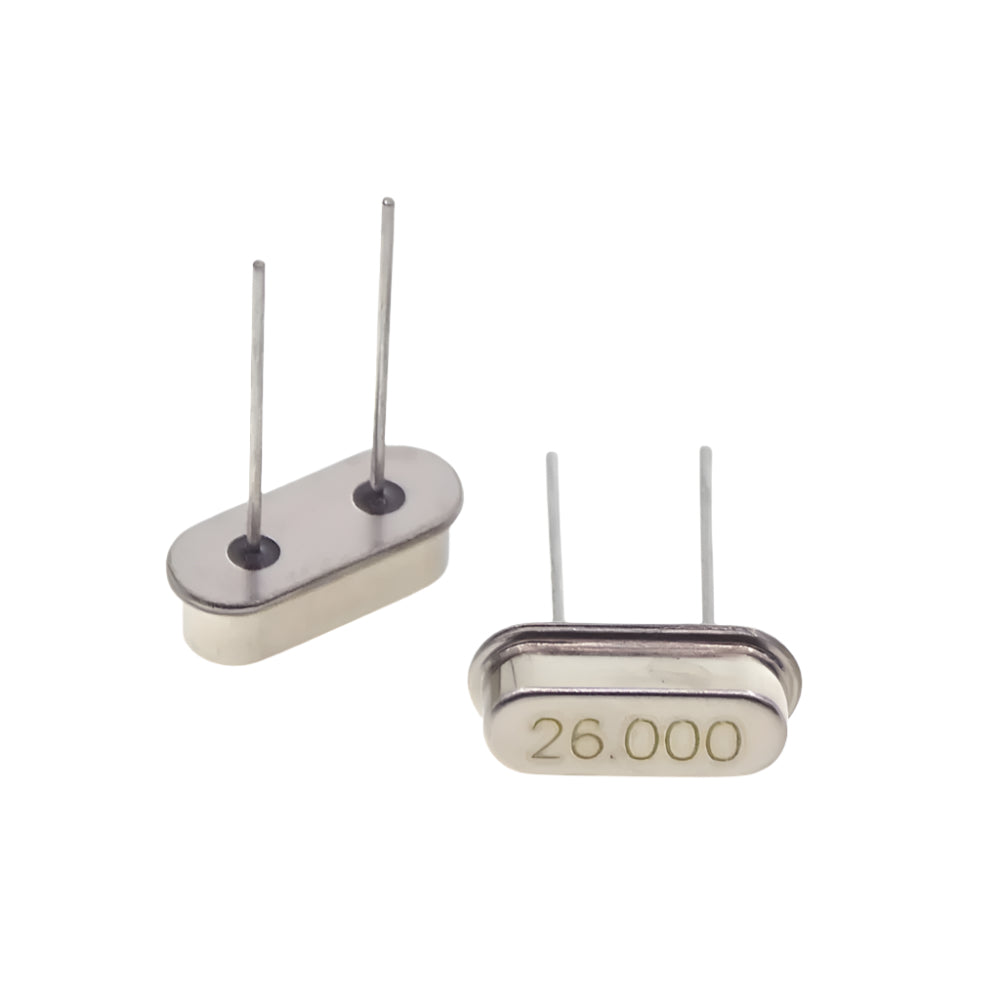

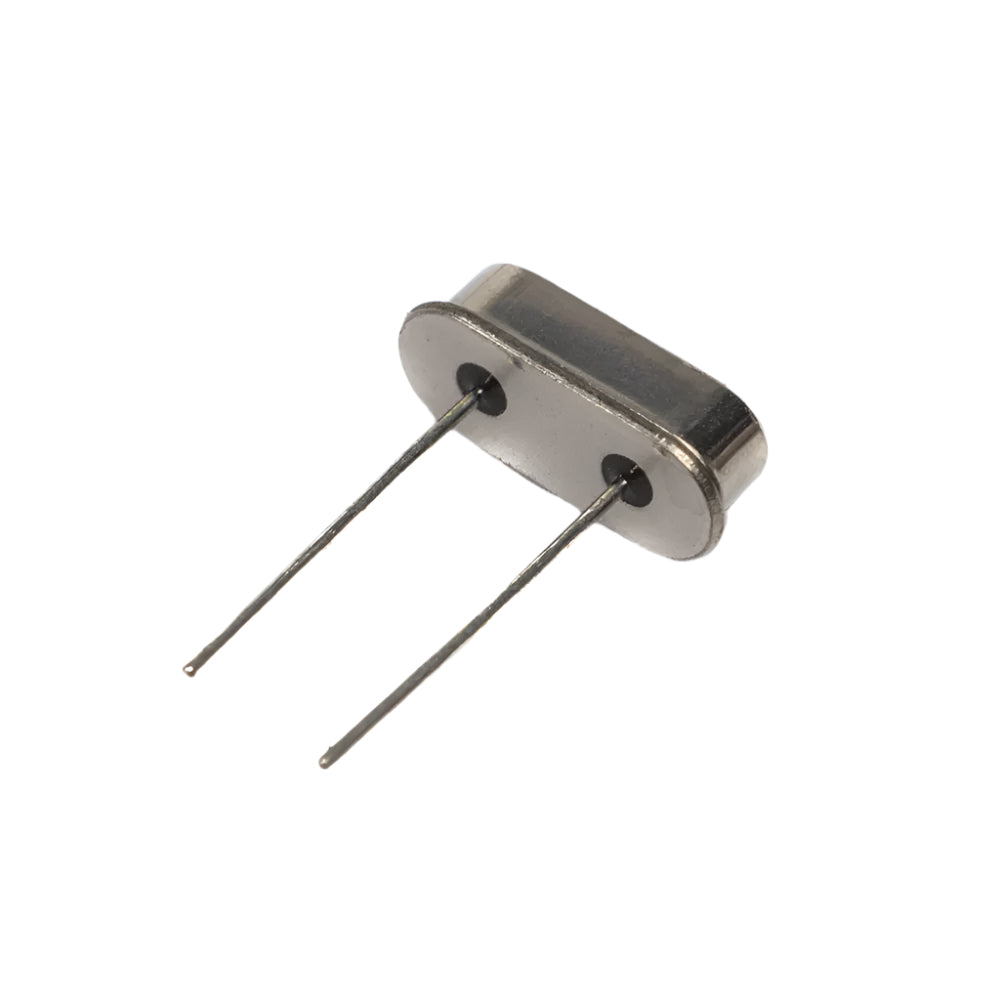

26MHz 2-Pin DIP Crystal Oscillator

The 26MHz 2-Pin DIP Crystal Oscillator is a compact and reliable timing component designed for high-frequency stability in electronic circuits. Housed in a standard DIP package, it offers consistent performance in a wide range of applications including microcontroller timing, RF circuits, communication devices, and embedded systems. With a frequency of 26MHz and a 2-pin configuration, it is easy to integrate into both prototyping and production environments.

Technical Details

  • Product Name: Crystal Oscillator
  • Frequency: 26MHz
  • Frequency Tolerance: ±20 ppm
  • Load Capacitance: 20PF
  • Mounting Type: DIP
  • No. of Pins: 2 Pin

Features

  • Material: Quartz
  • Color: Silver Tone
  • Frequency: 26MHz
  • Number of pins: 2
  • Mounting style: Through-hole (DIP)
  • Frequency tolerance: ±20ppm
  • Load capacitance: 20pF

Applications :

  • Used as a stable clock source in microcontroller-based circuits
  • Essential for RF modules such as GSM, GPS, Wi-Fi, and Bluetooth devices
  • Provides precise timing in digital communication systems
  • Integrated into embedded systems for frequency control and synchronization
  • Ideal for timing in consumer electronics, IoT devices, and test equipment

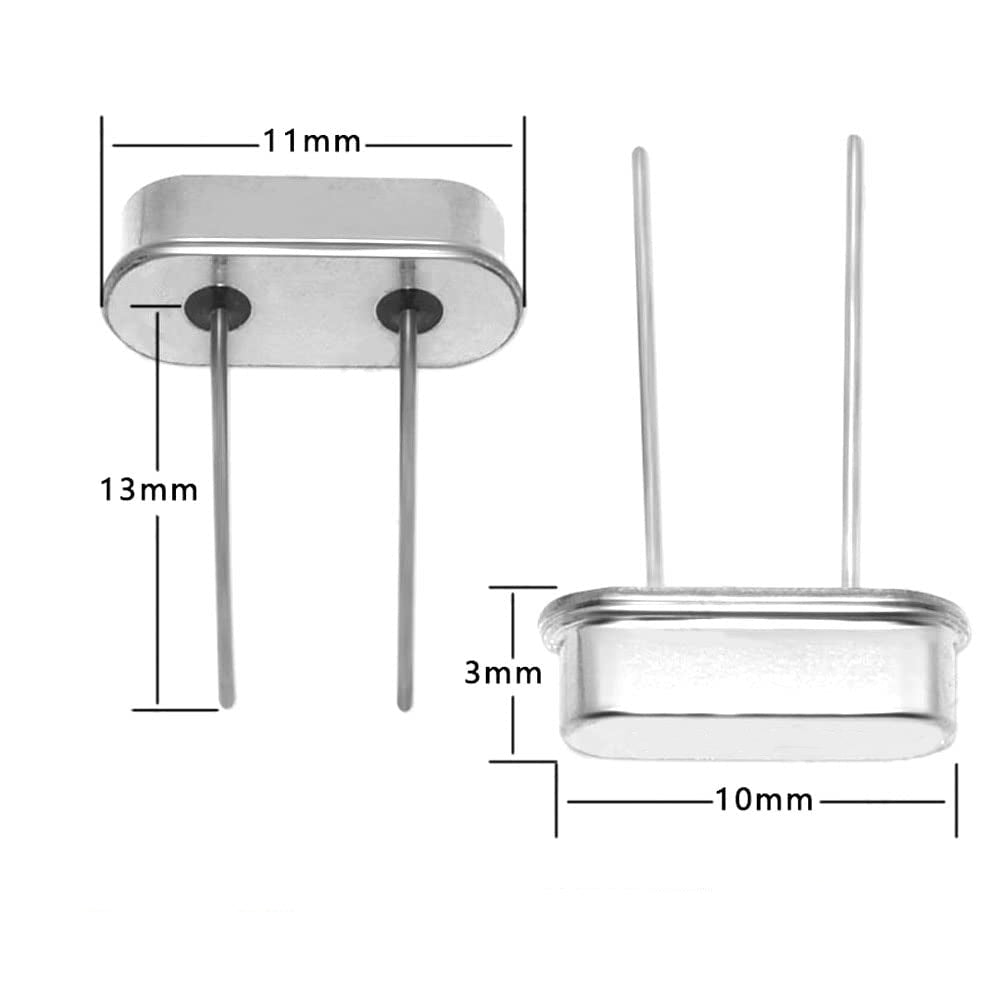

Physical Attributes

  • Width: 11 mm
  • Length: 10 mm
  • Height (Body): 3 mm
  • Lead Length: 13 mm
  • Weight : 2g

Package Includes

  • 1 x 26MHz 2-Pin DIP Crystal Oscillator
