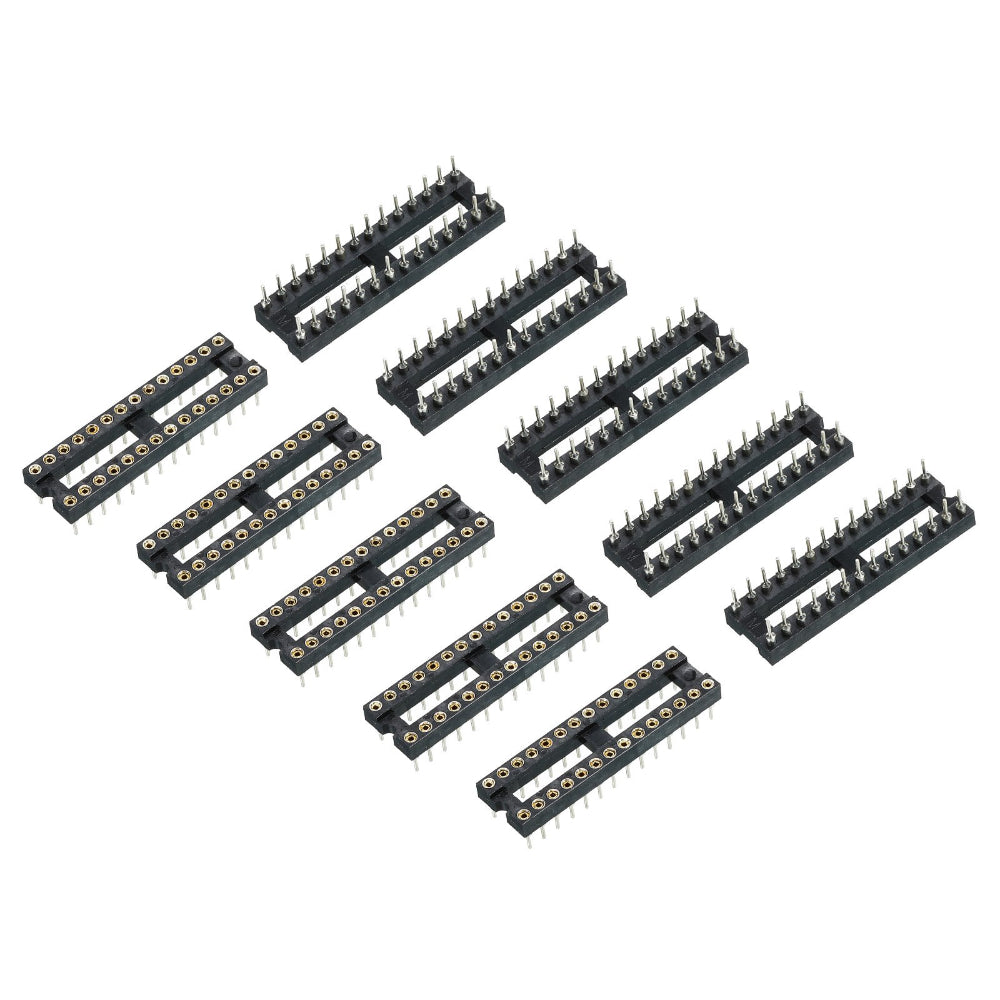

28 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 10 Pcs
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-37%
28 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 10 Pcs-1
28 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm -2
28 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm -3
28 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 10 Pcs-1
28 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm -2
28 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm -3

28 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 10 Pcs

Available:In Stock
  • Product SKU: BASE014_10
Wishlist
₹ 50 ₹ 80
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Sourced directly from Factory
  • Beware of Fakes & Refurbished
  • Original, High Quality
  • KitsGuru Warranty
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   -

Secure

Specification

Description

A 28-pin Dual In-line Package (DIP) IC base with a pitch width of 7.62 mm and pins spaced at 2.54 mm is a standardized component used for mounting integrated circuits (ICs) onto printed circuit boards (PCBs). The 28-pin DIP IC base securely holds and connects 28-pin ICs to a PCB. It facilitates easy insertion and removal of ICs, making it suitable for various applications including prototyping, testing, and production.

Features:

User-Friendly Design: Simplifies the process of mounting and replacing ICs, particularly beneficial during prototyping and troubleshooting.

Thermal Protection: Helps protect ICs from heat damage during soldering by providing a heat-resistant interface.

Reusability: Allows for multiple insertions and removals, making it a cost-effective solution for various projects.

Applications:

Prototyping and Development: Suitable for environments where ICs need to be frequently swapped for testing and development purposes.

Production Designs: Used in products where future IC replacement or upgrades may be required, facilitating easier maintenance.

Educational Kits: Commonly found in educational kits and breadboard setups due to their versatility and ease of use.

Technical Details

  • Pitch Width: 7.62 mm (0.3 inches)
  • Current Handling Capacity: 1A
  • Contact Material: Phosphor Bronze
  • Contact Plating: Tin
  • Operating Temperature Range: -25 to 85°C
  • Color: Black
  • Voltage Rating: 50V AC
  • Orientation: Vertical
  • Mounting Type: Through Hole
  • Frame Type: Open Frame
  • Termination Method: Solder
  • Depth: 5.1mm

Features

  • Pins: 28 Pin
  • Molded notch for proper orientation.
  • Easy to insert and remove ICs.
  • Maximum reliability
  • It has tapered entry for ease of insertion
  • Available in different sizes and shapes according to ic

Dimensions

Product Video

Documentation

Package Includes

  • 1 x 28 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 10 Pcs
