The 5V DC 28BYJ-48 Stepper Motor with a standard interface, when used directly pluggable. It is a small, inexpensive, and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system.

The 28BYJ-48 Stepper Motor has a reduction ratio of 64:1, so it offers a decent torque for its size at speeds of about 15 RPM. It is a unipolar stepper motor that has 5-wires. As stated before the pack contains a ULN2003 Stepper Motor Driver which is a Mini Stepper Motor Driver. The main purpose of ULN2003 is to amplify the control signals from the Arduino, so as to drive the 28BYJ-48 Stepper Motor.

If you will give the ULN2003 Stepper Motor Driver a certain pulse signal, it will drive the step motor to a certain angle. The control of the Stepper Motor movement angle is done by controlling the number of stepper motor driver pulses. The speed of the stepper motor rotation is also controllable by controlling the frequency of the pulses.

Features

  • Brand new and high-quality product.
  • Stepper motor with a standard interface, when used directly pluggable.
  • A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work.
  • Compact size stepper motor perfect for small robotics applications.

Technical Details

  • Rated voltage supply: +5V
  • No of phase: 4
  • Stride angle: 5.625°/64
  • Speed variation ratio: 1/64
  • Pull-in torque: 300 gf.cm
  • Friction torque: 600-1200 gf.cm
  • Self-positioning torque: >34.3mN.m
  • In-traction torque: >34.3mN.m (120Hz)
  • DC resistance: 50Ω±7% (25°C)
  • Insulated resistance: >10MΩ (500V)
  • Insulated power: 600VAC/1mA/1s
  • Frequency: 100Hz

Physical Attributes

  • PCB Length × Width × Height(mm) : 35 × 32 × 10
  • Weight (gm) : 45
>

Integration with Arduino

Product Video


Documentation

Customer Reviews

Based on 16 reviews
81%
(13)
13%
(2)
6%
(1)
0%
(0)
0%
(0)
r
rinki
Good thing I noticed before I started using it

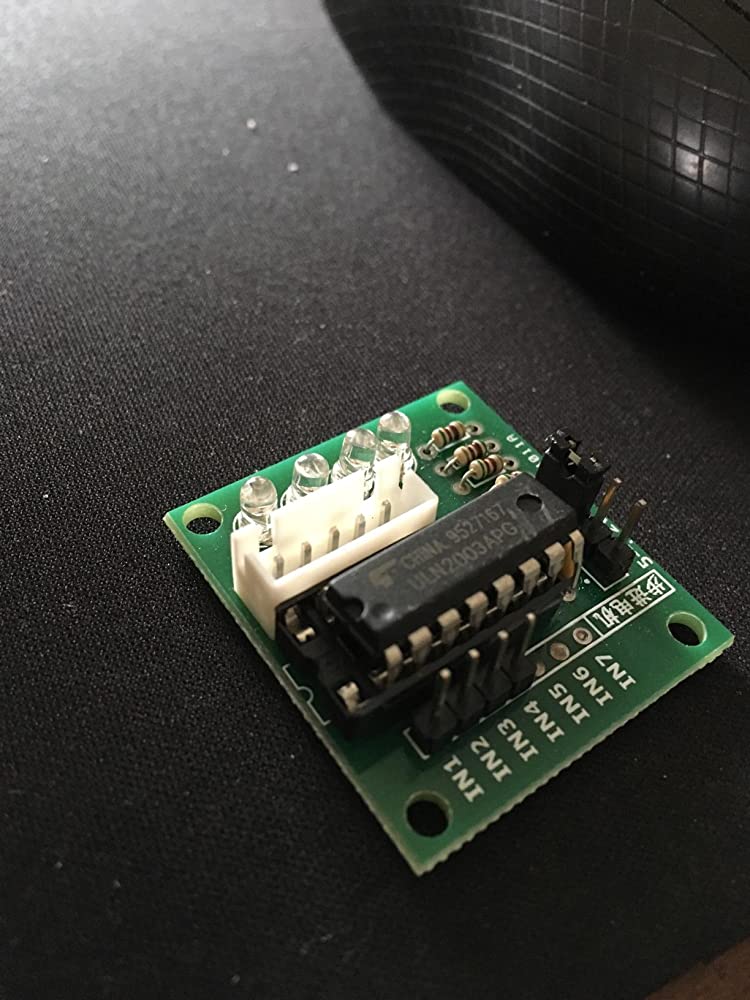

Received this package today and the first board that I pulled out if it’s package had a chip mis-aligned. Good thing I noticed before I started using it ! Otherwise, seems like it’s ok for the price.

d
deepak
Great, small stepper motors

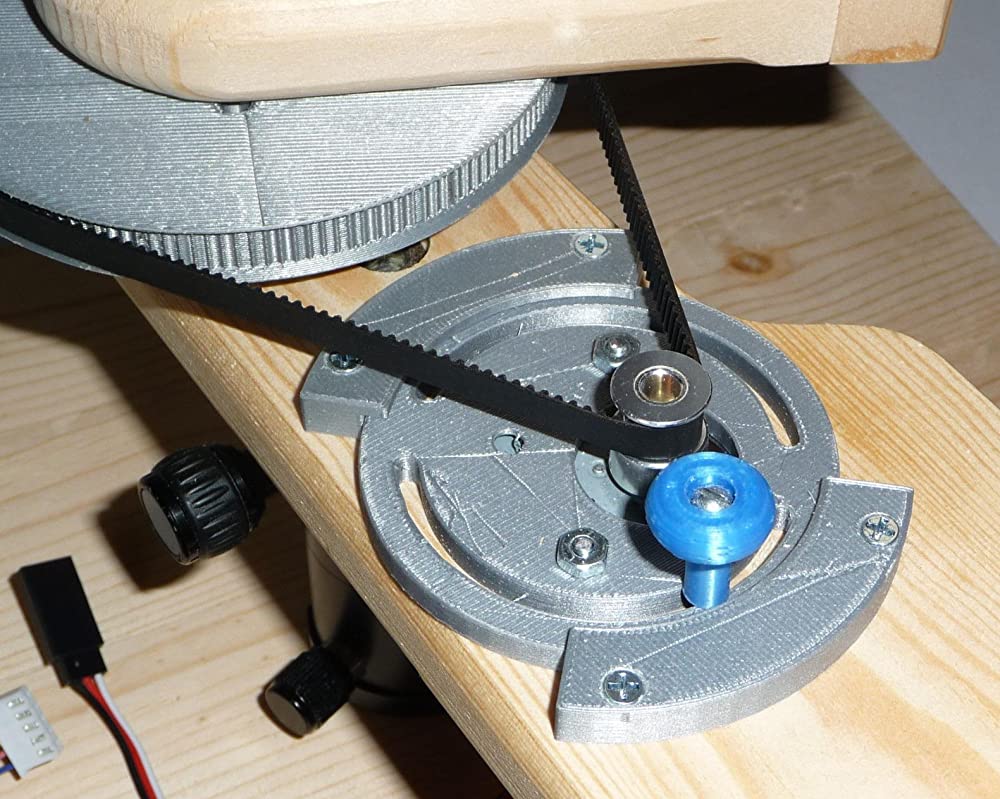

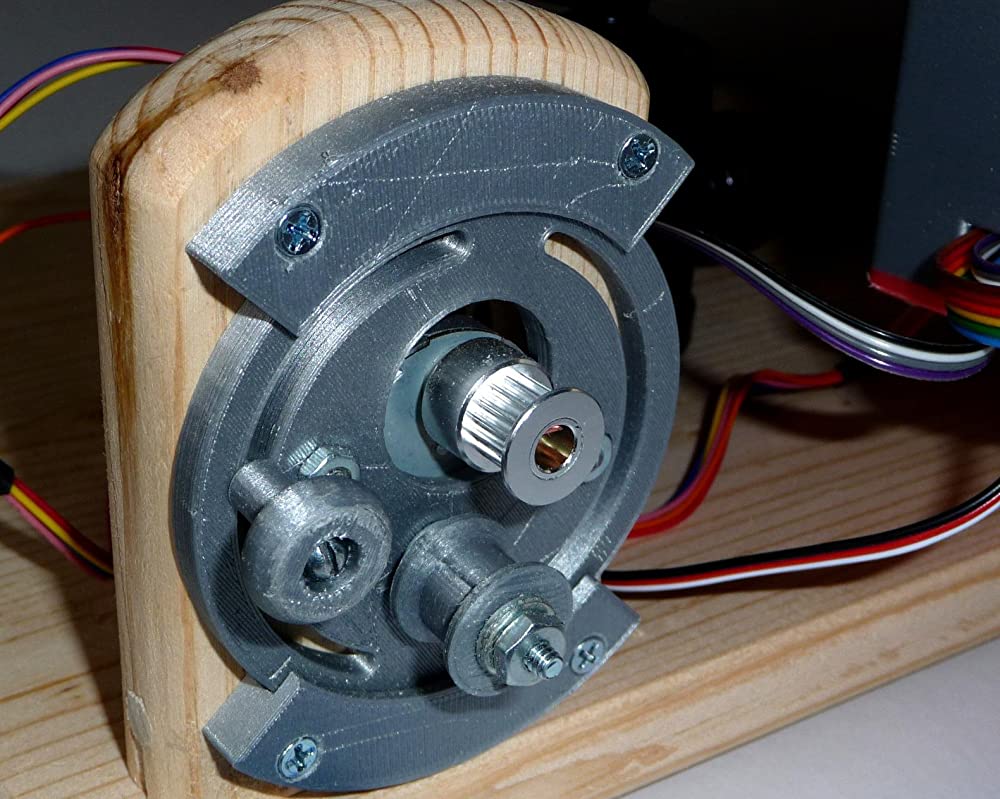

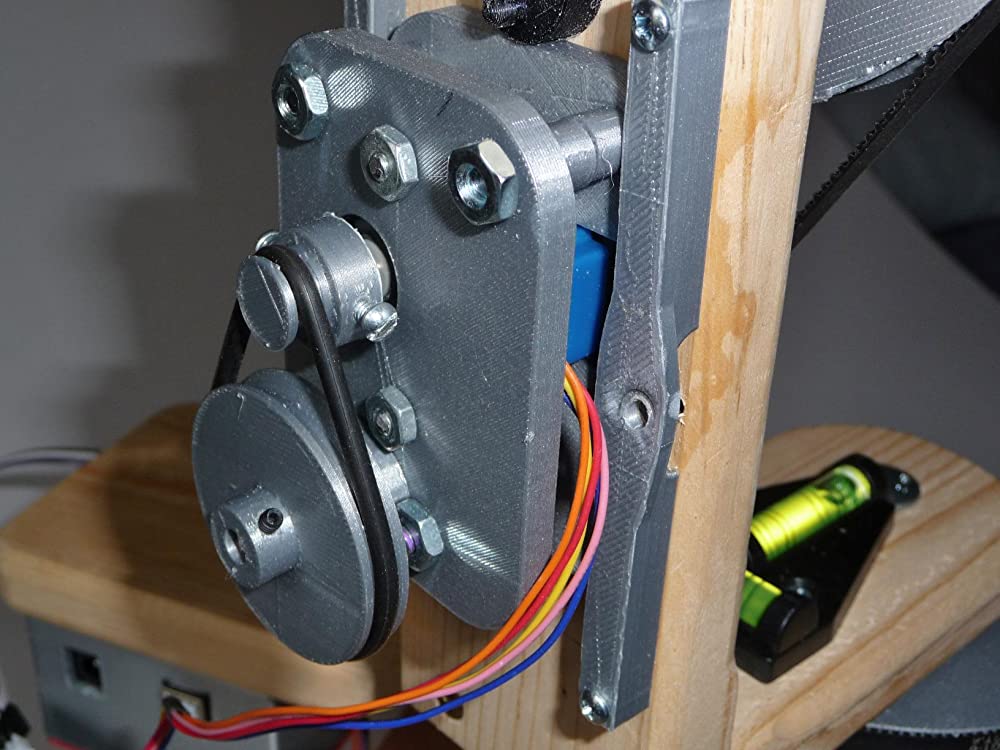

I used these stepper motors to drive a 3-axis automated camera track using an Arduino Uno controller and motor hat. Since the motor hat could directly control only two motors (without the provided driver boards), I used the Arduino analog pins and the provided driver board to control the third. The gearing plus driving the motors interleaved makes for very small steps. For one axis, I created a further reduction using a belt drive. I created eccentric mounts for two motors and a sliding mount for the third to allow tensioning of the GT2 drive belts.

v
vijay
Great

I used two of these to create a drawing robot and they worked perfectly.

s
suresh kumar
Quality product at great value.

I have already tested one unit with the Arduino Uno Stepper library. Everything functioned perfectly. The units are very well made and came in a nice box very neatly packaged.

d
dev
a+++ great deal

a+++ great deal

k
ketan
Good

Arrived on time and works as expected. Drive the motor at higher voltage for more torque. Good value.

r
rupesh
Cheap but still a good value

Cheap but work. Just what I expected, a slow, low powered motor.That is also what I wanted.

a
anil kumar
Good motors, great price

Good motors, great price. The gearing gives slow speed (about 15rpm maximum), but very high torque. I love that I can try these out in a variety of circuits and not worry too much if I burn one.

k
khemraj
As expected.

Stepper motors, and the control boards, just like the one included with Arduino.

l
laxman
Used them as test

Great motors. Excellent programming devices.
