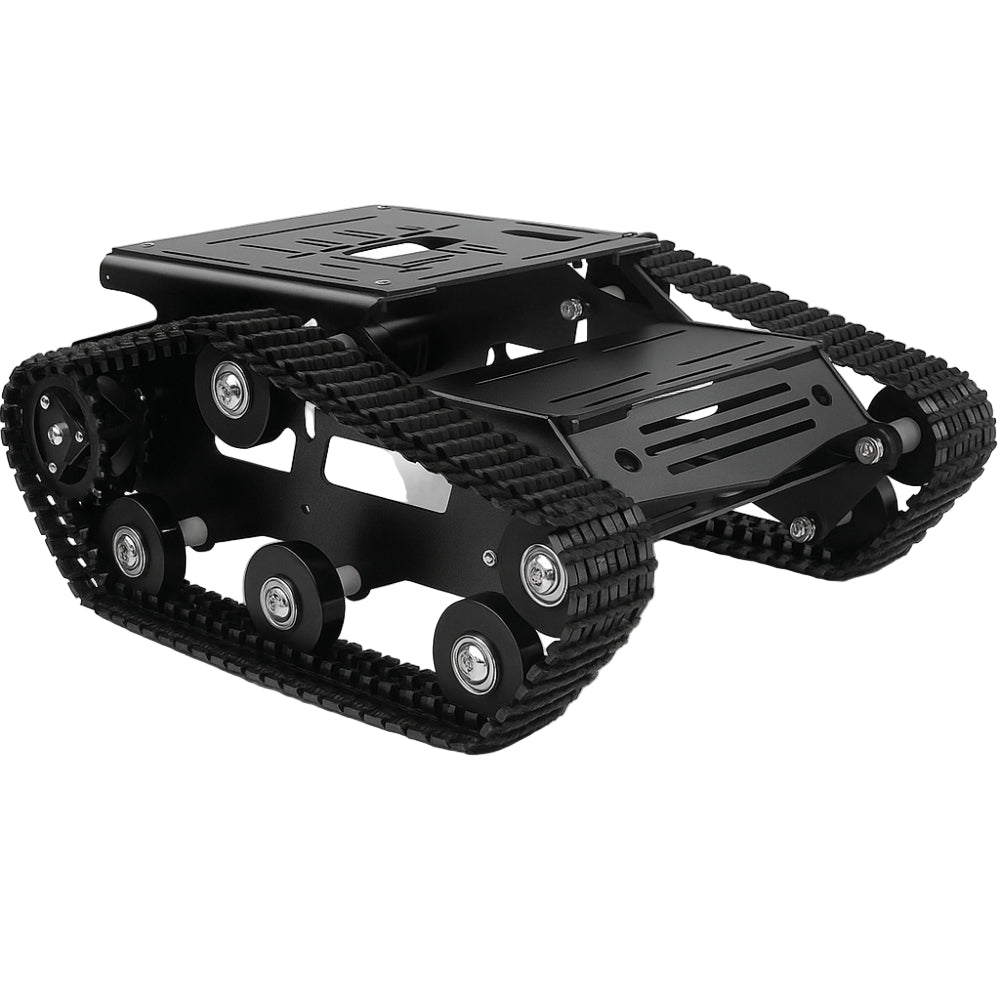

Black 2WD tank robot chassis metal crawler body

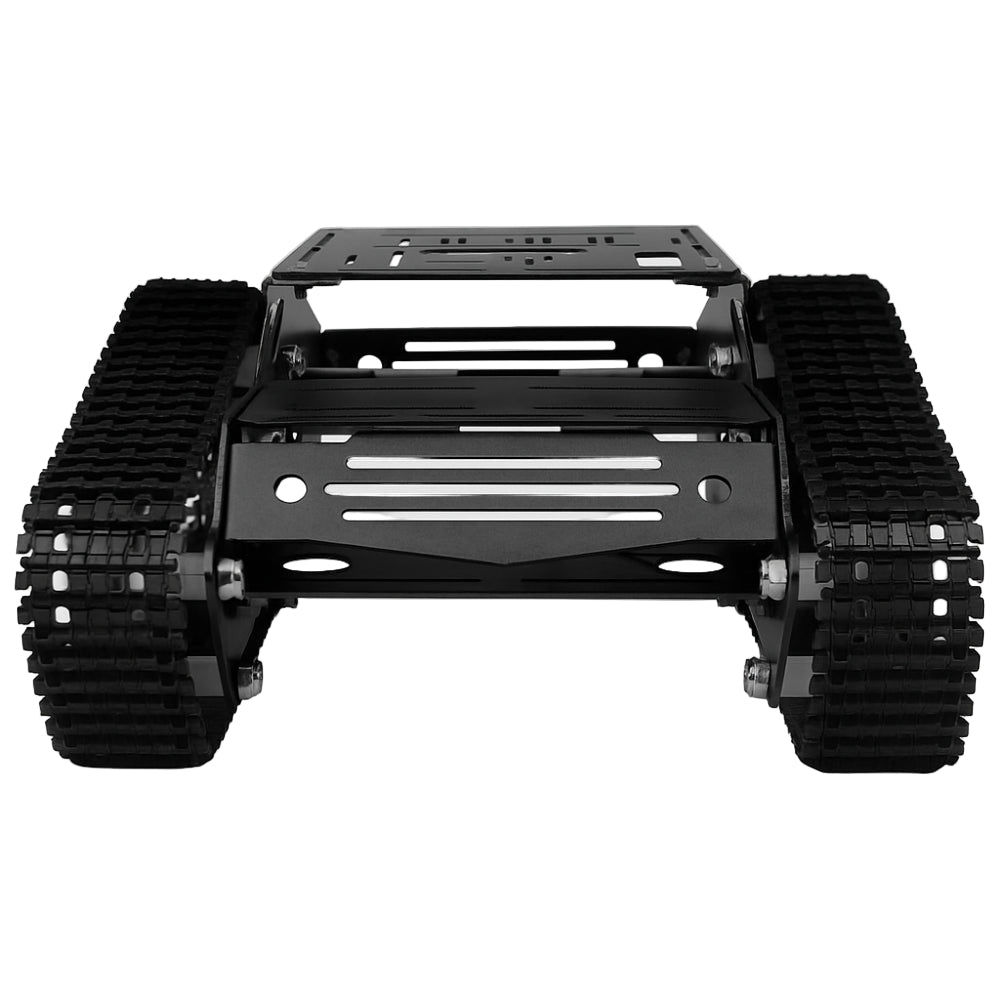

Side view of tracked smart car chassis in black

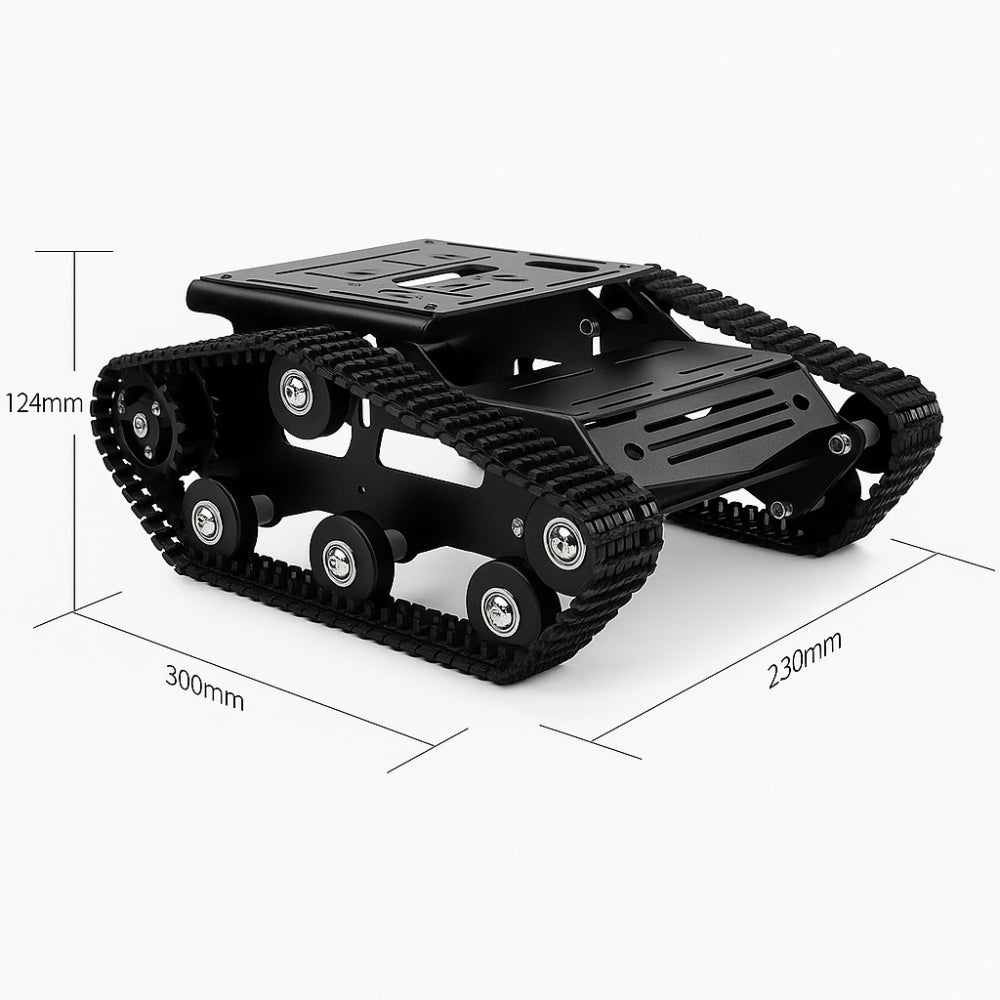

DIY assembly metal tank chassis for robotics

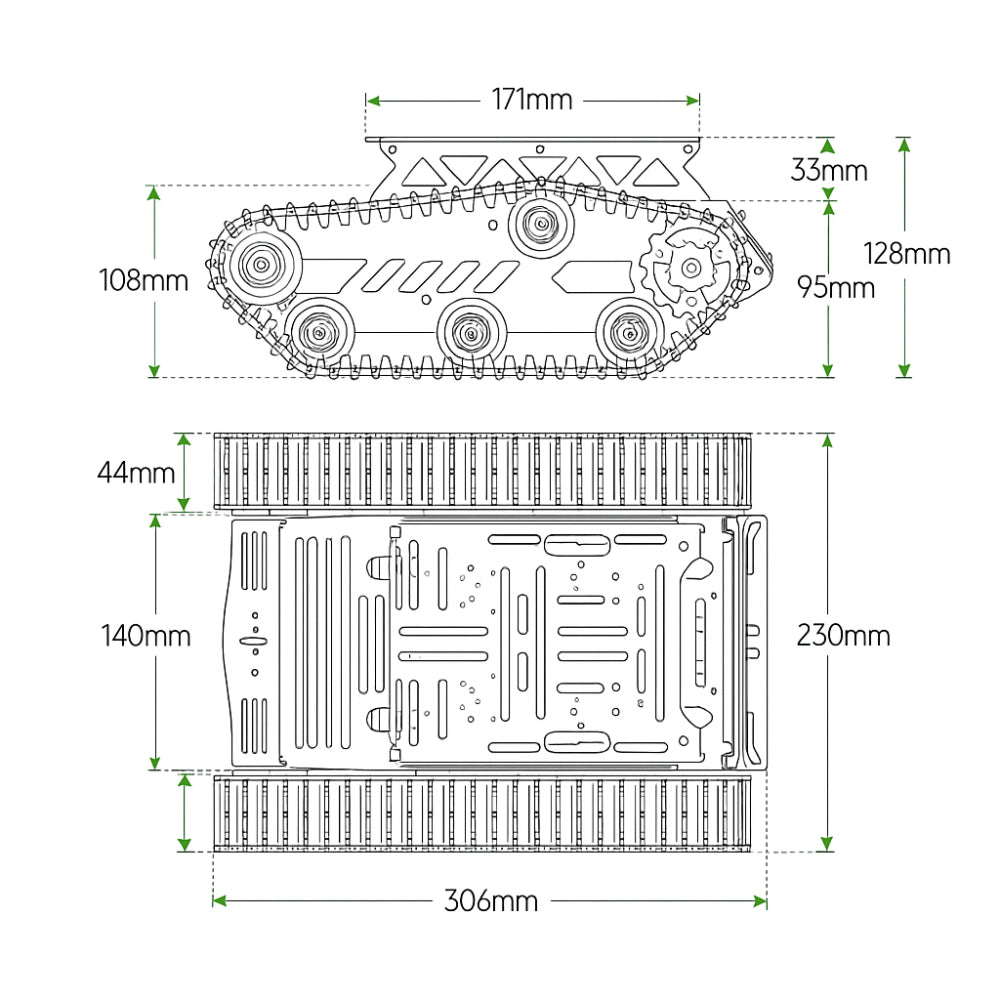

Top technical drawing of 2WD tank robot chassis

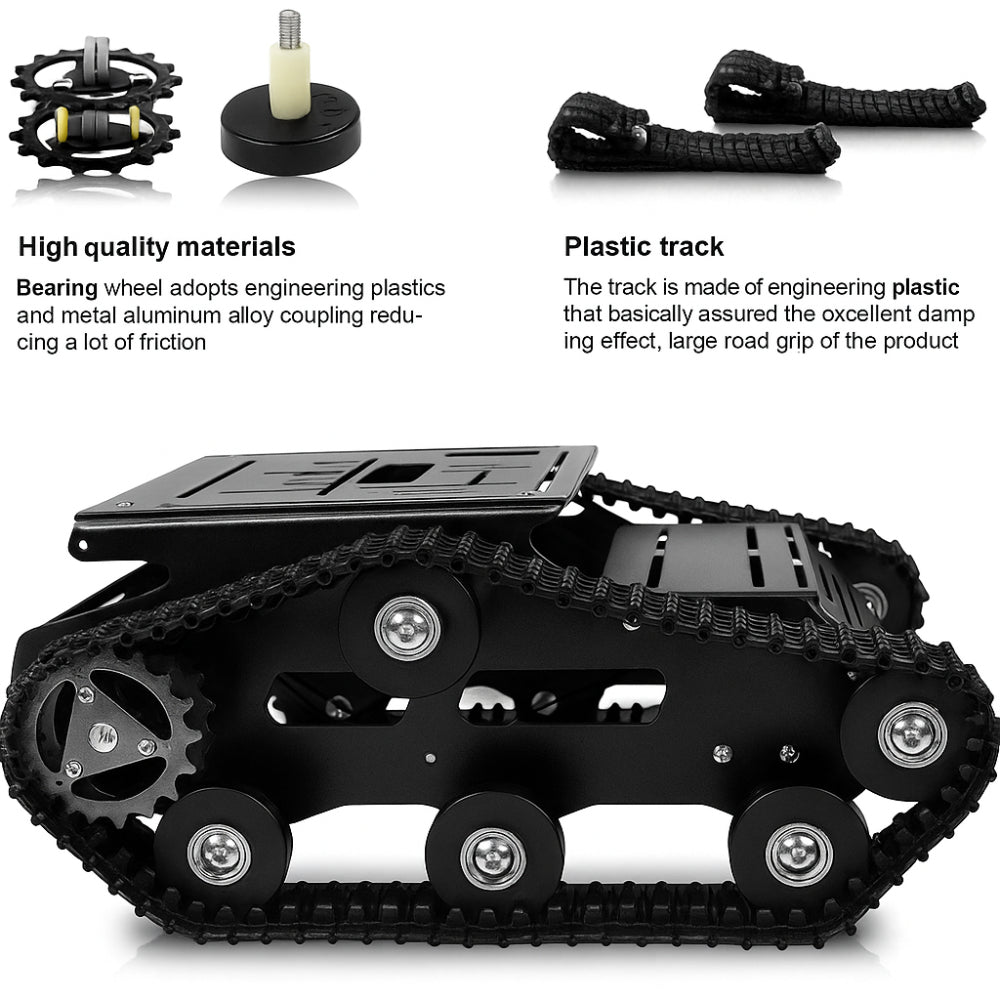

Crawler robot chassis with reinforced metal tracks

2WD Export Quality tank chassis smart car crawler robot Chassis Black Color DIY

Available:Out of Stock

Product SKU: LGRO015

Wishlist

₹ 8,613 ~~₹ 17,199~~

Pre-order

Specification

Description

2WD Export Quality Tank Chassis Smart Car Crawler Robot Chassis (Black) DIY

The 2WD Export Quality Tank Chassis Smart Car Crawler Robot Chassis (Black) is a premium tracked mobile platform designed for DIY robotics, R&D, and STEM education. Built from high-strength aluminium alloy with a matte black finish, it offers excellent rigidity, durability, and plenty of mounting space for controllers, sensors, batteries, and robotic arms.

Dual tracked belts with multiple road wheels provide stable all-terrain performance, while the low centre of gravity makes it ideal for obstacle-crossing, surveillance robots, and autonomous navigation projects. The chassis comes as a DIY mechanical kit, allowing you to fit your preferred DC gear motors, motor drivers, and control boards such as Arduino, Raspberry Pi, Jetson, ESP32, and more.

Technical Details

Drive Type: 2WD tracked tank chassis (dual belts)
Body Material: Aluminium alloy
Color: Black (matte finish)
Overall Length: ~306 mm
Overall Width (track edge to edge): ~230 mm
Chassis Plate Width: ~140 mm
Track Height (from ground): ~44 mm
Side View Height: ~108 mm (ground to top plate)
Upper Deck Length: ~171 mm
Recommended Motors: 2 × DC gear motors (37/25-type, user selectable)
Controller Compatibility: Arduino, Raspberry Pi, Jetson Nano, STM32, ESP32, etc.

Features

Export-quality metal tank chassis with robust construction
Dual rubber tracks for smooth, stable all-terrain motion
Large upper and lower mounting plates with multiple slots and holes
Supports custom motor, driver, and battery configurations
Ideal for obstacle-crossing, crawler robots, and tracked UGVs
DIY kit format – perfect for learning mechanical assembly
Suitable for student projects, lab prototypes, and competitions

Applications

Autonomous tracked robots and UGV platforms
Surveillance and inspection robots for indoor/outdoor use
Obstacle-avoidance, path-planning, and SLAM research
STEM education, robotics clubs, and engineering labs
Robo-race and robotics competition base platform
DIY robotics, maker projects, and rapid prototyping

Physical Attributes

Chassis Type: 2WD metal tank crawler
Material: Aluminium alloy with rubber tracks
Color: Black
Approx. Dimensions: 306 mm (L) × 230 mm (W) × 108 mm (H)
Track Width: ~44 mm each side
Assembly: DIY screw-together kit

Package Includes

2 × Side Plates (with mounting holes)
1 × Bottom Plate (square with slots)
2 × Top/Support Plates (rectangular)
2 × Front/Back Plates (slotted)
2 × DC Geared Motors
2 × 6-Pin Wire Connectors for Motor
2 × Rubber Track Belts
10 × Bearings
4 × Metal Sprocket Gears
10 × Black Bearing Wheels
6 × Brass Standoffs
2 × Couplings
10 × Long Nut Bolts
2 × 10mm LEDs
2 × 10mm LED Holders with Plastic Back Cover
4 × Allen Keys (Different Types)
1 × Nut & Bolt Bag
11 × Cylindrical Plastic Spacers (Standoffs)
1 × Battery Holder
Note: Motor driver, controller board, and battery are not included and must be purchased separately.
