3.3V/5V MB102 Breadboard Power Supply Module
- Product SKU: KG123
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
Versatile Power Supply for Breadboard: 3.3V and 5V Power Supply Module MB102
Section 1: Flexible Voltage Options
Experience flexibility in voltage options with the 3.3V and 5V Power Supply Module MB102. This module is designed to provide both 3.3V and 5V power outputs, allowing you to power your breadboard projects with different voltage requirements. Whether you're working with low-power components or higher voltage devices, this power supply module offers the versatility you need to power your breadboard circuits with ease.Dual Power Outputs
Benefit from the dual power outputs of the MB102 Power Supply Module. It provides a 3.3V power output for low-voltage components and a 5V power output for higher voltage devices. This dual output capability ensures compatibility with a wide range of electronic components, allowing you to power various circuits on your breadboard without the need for additional power sources.
Selectable Voltage Options
Enjoy the convenience of selectable voltage options with the MB102 Power Supply Module. It features a voltage selection switch that allows you to choose between 3.3V and 5V output, depending on your project requirements. This selectable voltage feature enables you to adapt to different voltage needs and power your breadboard circuits with precision.
Section 2: Easy Integration and Versatile Applications
Breadboard CompatibilityThe 3.3V and 5V Power Supply Module MB102 is designed specifically for breadboard compatibility. It features a compact form factor and connection points that align perfectly with standard breadboards. This ensures easy integration and secure placement, allowing you to power your breadboard projects conveniently.
Wide Range of Applications
Unlock a wide range of applications with the 3.3V and 5V Power Supply Module MB102. Its versatility makes it suitable for various breadboard projects and systems. Whether you're involved in prototyping, DIY electronics, or educational experiments, this power supply module provides the necessary voltage options for your circuits. Experience the convenience and flexibility of versatile power supply in your breadboard projects.
Section 3: Reliable Performance and Safety
Stable and Consistent OperationRely on the 3.3V and 5V Power Supply Module MB102 for stable and consistent power delivery. Crafted with high-quality components and designed for reliable operation, this module ensures stable voltage outputs, allowing you to power your circuits with confidence. Its stability ensures reliable performance, minimizing the risk of voltage fluctuations or power disruptions.
Built-in Protection Features
The MB102 Power Supply Module incorporates built-in protection features to safeguard your circuits and the module itself. It includes protection mechanisms such as overcurrent protection and short circuit protection. These features help prevent damage to your components and the power supply module in case of current surges or short circuits, enhancing safety and ensuring reliable operation.
Pinout Diagram
Pin Description
- LEFT Jumper : 5V, OFF (0V), 3.3V Selection
- RIGHT Jumper : 5V, OFF (0V), 3.3V Selection
- 4-Berg Header : GND
- 2-Berg Header : 3.3V
- 2-Berg Header : 5V
Technical Details
- Input Voltage (V) : 6.5 to 12
- Output Voltage(V) : 3.3/5
- Maximum Output Current(mA) : <700
Physical Attributes
- Length × Width × Height(mm) : 53 × 32 × 13
- Weight (gm) : 12
Additional Details
- Breadboard power supply module, compatible with 5V, 3.3V.
- Apply to MB102 breadboard
- Fluctuation two road independent control can switch over to 0 V, 3.3 V, 5 V
- On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
Product Video
Documentation
Package Includes
- 1 x 3.3V/5V MB102 Breadboard Power Supply Module
Customer Reviews

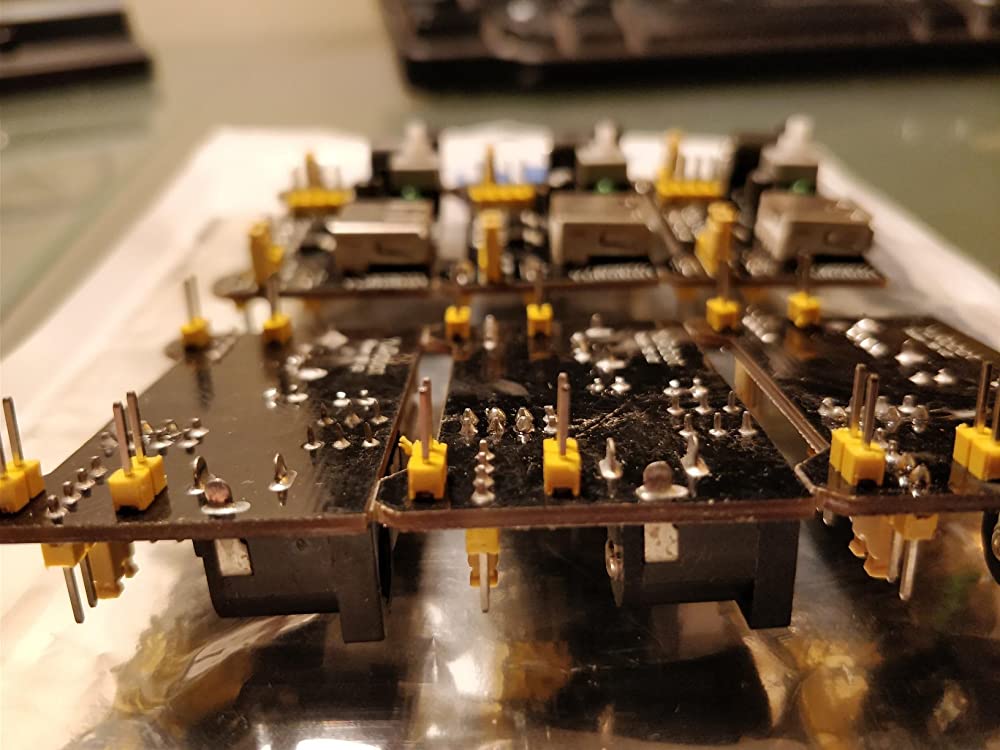

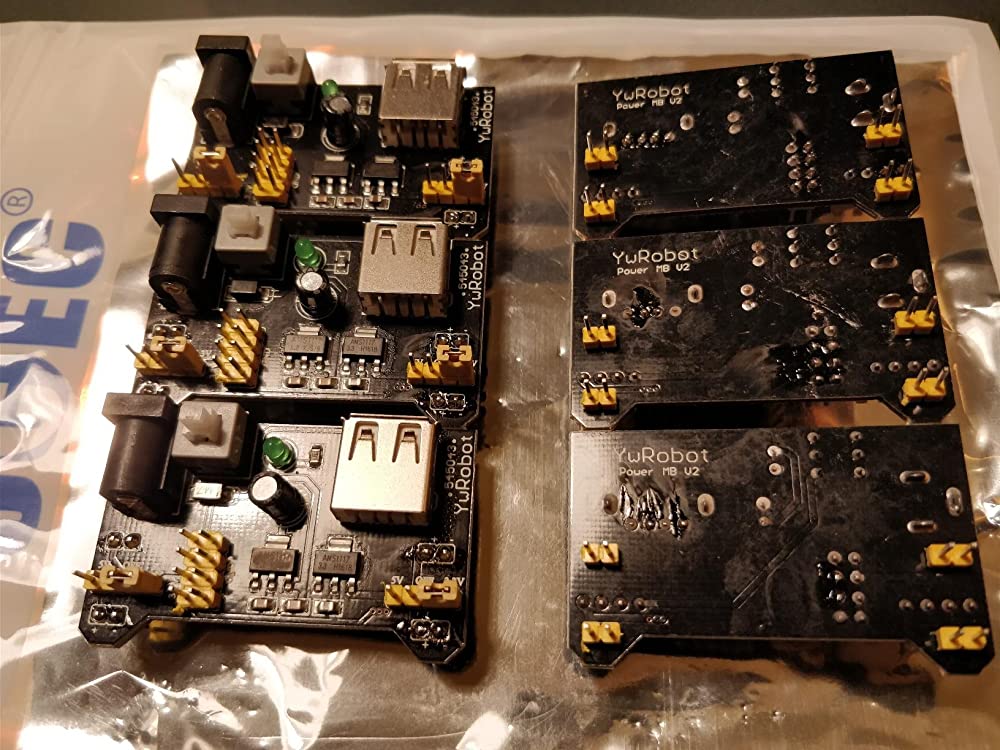

Working great so far. Measured output of 5.01 and 3.34 volts under load at 12.63v input. Saw some reviews mention bent pins, out of spec outputs, or missing solder, but found none of that. Boards came slightly attached but snapped apart easily and without damage. Best deal out there as far as I'm concerned.

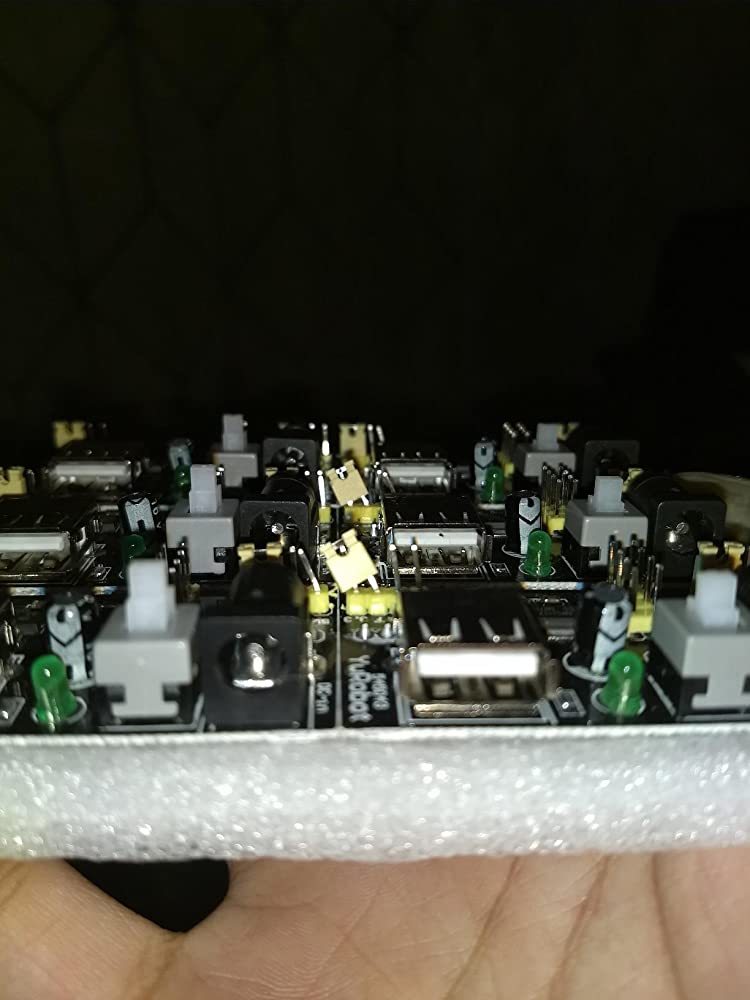

Appreciated the fast follow-up, all boards work. In the end, can't say there's anything to complain about. I do recommend more durable packaging for future folks, but I'm looking forward to working with these boards.
Very nice for small electronic projectsSeller is coopritiveI am very happy to buy this product again for my future projects
Great deal
Great. Item as described
They all worked when power was applied, no problem.
Didn't get a chance to use it yet,getting all Parts together and I'll start the project soon but what I see its a cool device and should do fine.
Great price, gave my projects a consistent power supply and dual power outputs.
Everything works fine so far, it was delivered on time and in good condition.

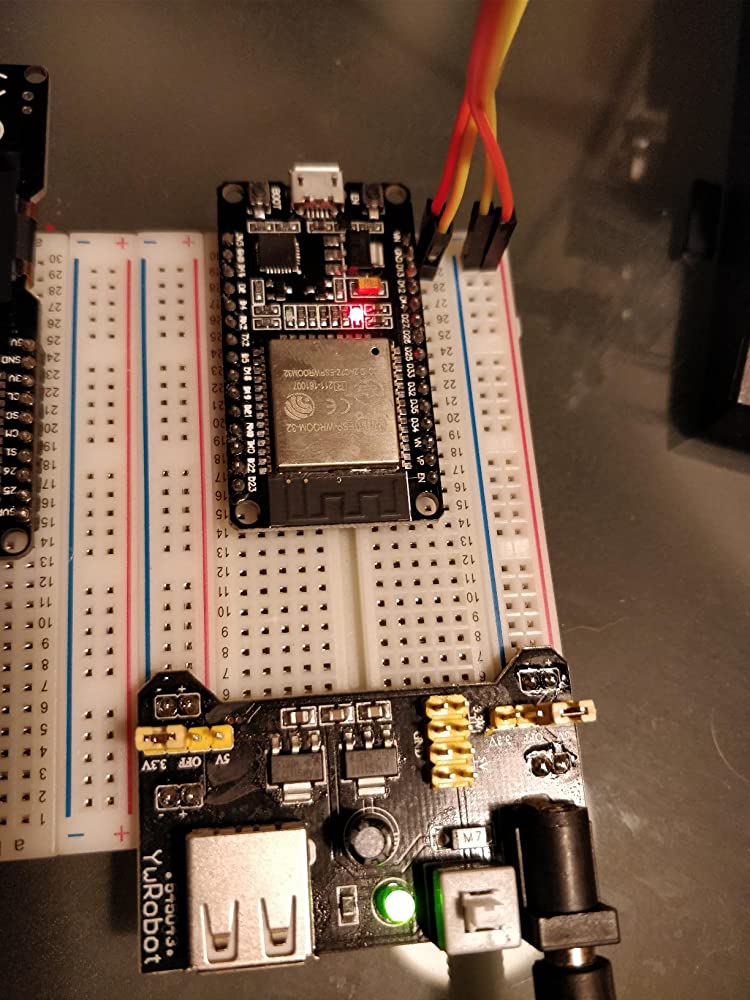

Plugged right into my breadboards and worked as stated. I used a 9V power supply to produce a 3.3V output.
