40MHz 2-Pin DIP Crystal Oscillator

Available:In Stock

Product SKU: CRYST015

Wishlist

₹ 10 ~~₹ 15~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
Frequency: 40MHz
2-pin DIP package
±30ppm tolerance
Through-hole mounting
Great for RF & MCU circuits

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

Shipping Details

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

Warehouse Details 36G-147C

Specification

Description

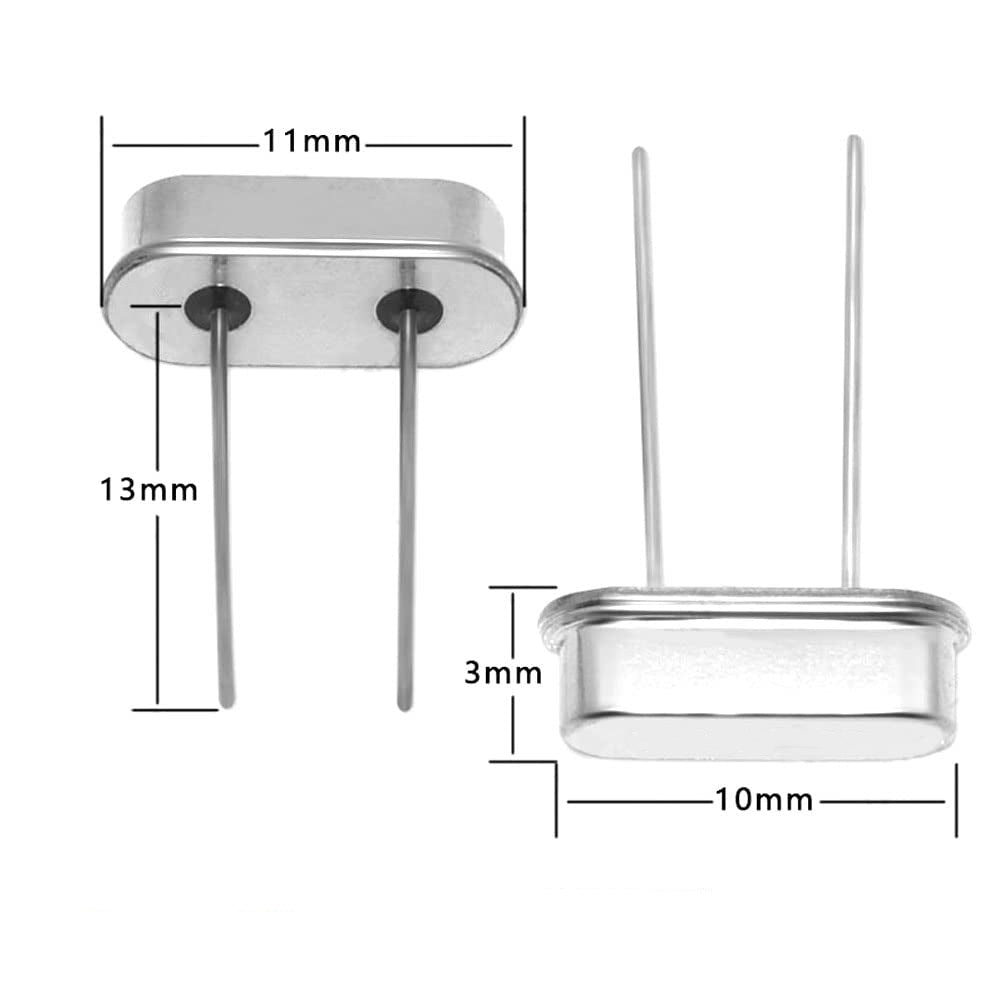

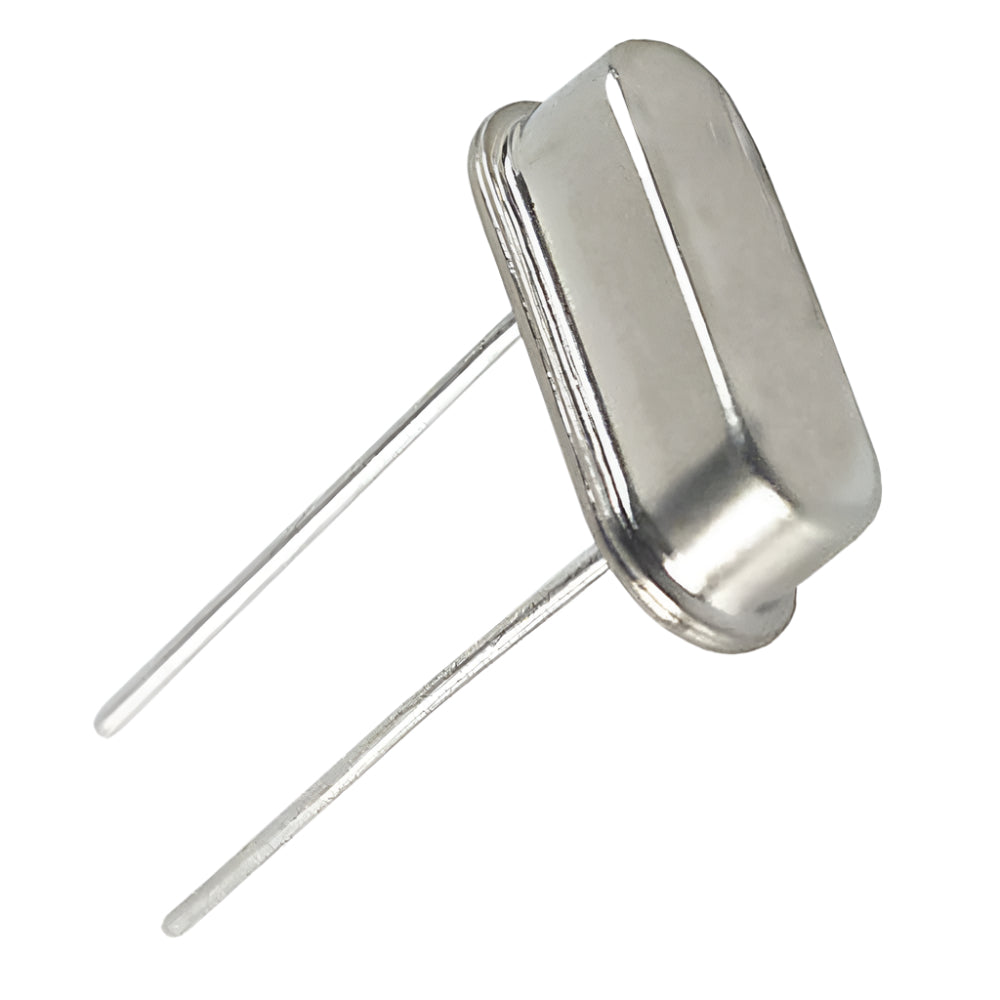

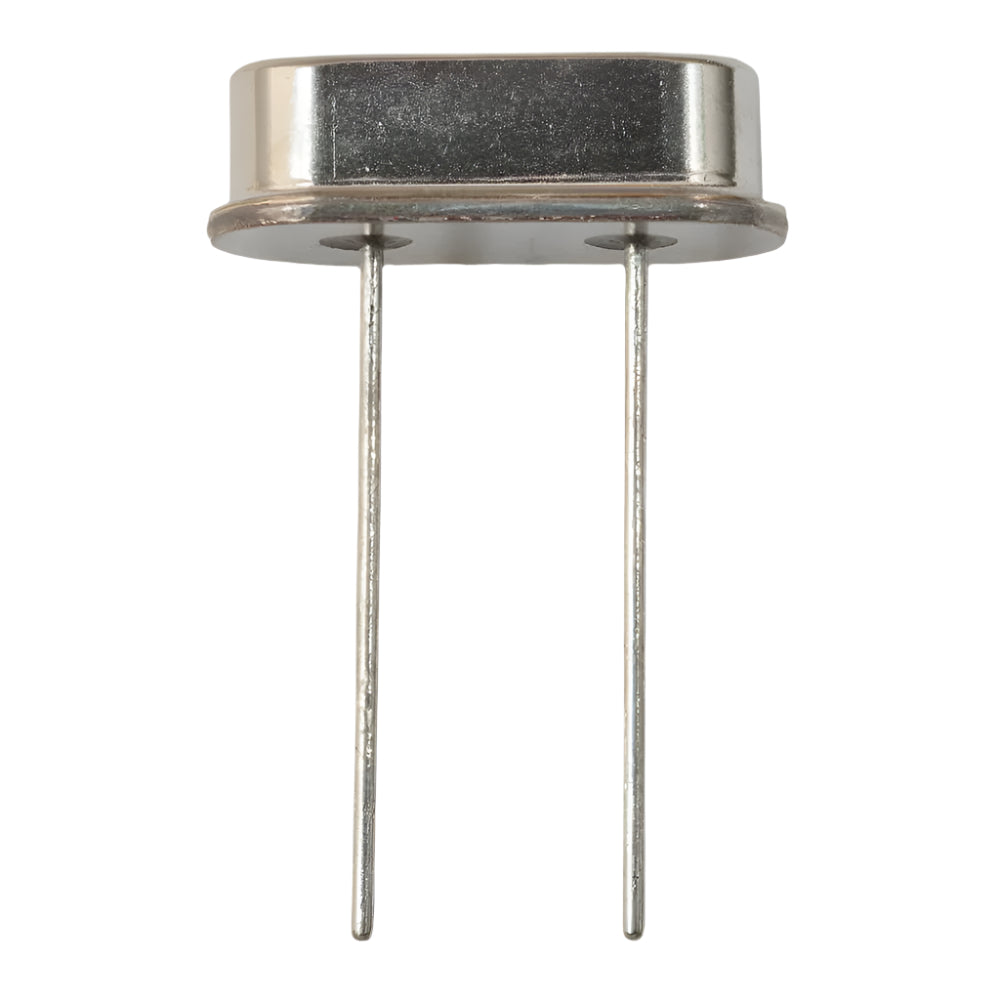

40MHz 2-Pin DIP Crystal Oscillator

The 40.000MHz Crystal 2 Pin THD is a high-precision quartz crystal oscillator designed to provide an accurate and stable frequency reference at 40.000 MHz. With its 2-pin THD (Through-Hole Device) configuration, this crystal is easy to mount on a printed circuit board (PCB), offering secure integration and reliable performance in various electronic applications. The 40.000 MHz frequency is commonly chosen for its suitability in high-speed communication systems, microcontroller circuits, and precise timing applications.

This crystal features excellent frequency stability, ensuring minimal drift over time and temperature fluctuations. The 40.000MHz crystal is ideal for applications requiring precise frequency generation, clocking, and synchronization, including digital electronics, RF systems, and signal processing. It is commonly used in RF communication equipment, data transmission systems, and frequency synthesizers, where a stable and reliable oscillator is essential.

Technical Details

Product Name: Crystal Oscillator
Frequency: 40MHz
Frequency Tolerance: ±30 ppm
Mounting Type: DIP
No. of Pins: 2 Pin
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +85°C

Features

Frequency: 40.000 MHz (Nominal Frequency)
Pins: 2 Pin THD (Through-Hole Design) for easy integration with PCB
High Stability: Minimal frequency drift over temperature changes for reliable performance
Precision: Highly accurate frequency output for precise timing and synchronization
Compact Form Factor: Space-saving design for high-density circuit layouts
Low Power Consumption: Efficient operation, ideal for battery-powered applications
Durability: Reliable in various environmental conditions for long-term performance

Applications :

Microcontroller Clocking: Provides a precise clock signal for microcontrollers, microprocessors, and digital ICs, ensuring stable system operation and timing.
Communication Systems: Widely used in radios, transmitters, receivers, and other wireless communication devices for accurate frequency generation and signal processing.
Data Communication: Ideal for timing and synchronization in data transmission systems, ensuring reliable and stable communication between devices.
Frequency Synthesis: Used in RF (radio frequency) applications, frequency synthesizers, and oscillators to generate stable and precise frequencies for various RF equipment.
Testing Equipment: Provides reliable frequency references for test equipment such as signal generators, oscilloscopes, and frequency analyzers.
