Specification

Description

The TP4056 1A Li-Ion Lithium Battery Charging Module – Micro B USB is a 3.7V lithium battery charger module that has an onboard Micro USB interface. With Micro-USB onboard connector, you can directly connect to the computer USB port for battery charging. If USB is not available you can use an external source voltage at IN+/IN- pads, great for DIY projects. It is small in size and lightweight.TP4056 Other features include the current monitor, under-voltage lockout, automatic recharge, and two status pins to indicate charge termination and the presence of an input voltage.

Note: This breakout board does not have overcurrent protection. Connect Ampere meter in series with 5V input end. The charging current is best to be 0.37 times the battery capacity, Charging wire can’t be too thin or too long while interfacing. Make sure the board has good contact with the battery. Chip at work about 60 degrees fever is normal. Input reverse connection has no effect on the chip. Rather the output (battery’s) reverse connection will burn out the chip.

Technical Details

  • Input voltage : 4.5V ~ 5.5V.
  • Input Interface: Micro USB port.
  • Charging method: linear charge.
  • A full charge voltage: 4.2V.
  • Power: 4.2 w.
  • Charging accuracy: 1.5%.
  • Operating Temperature: -10 to +85ºC
  • Charging indicator: LED indicators for charging and full charging.

Features

  • Charging indicator: LED indicators for charging and full charging.
  • Charge Current: 1A (default), modify the onboard resistor to adjust the charging current according to the table below.
  • Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy.
  • Fully machinery automated processing, all patch parts manufacturing.
  • The charging current can be adjusted by just changing the circuit board’s fixed resistors. It can change the output to 100mA-1000mA, very conveniently.

Physical Attributes

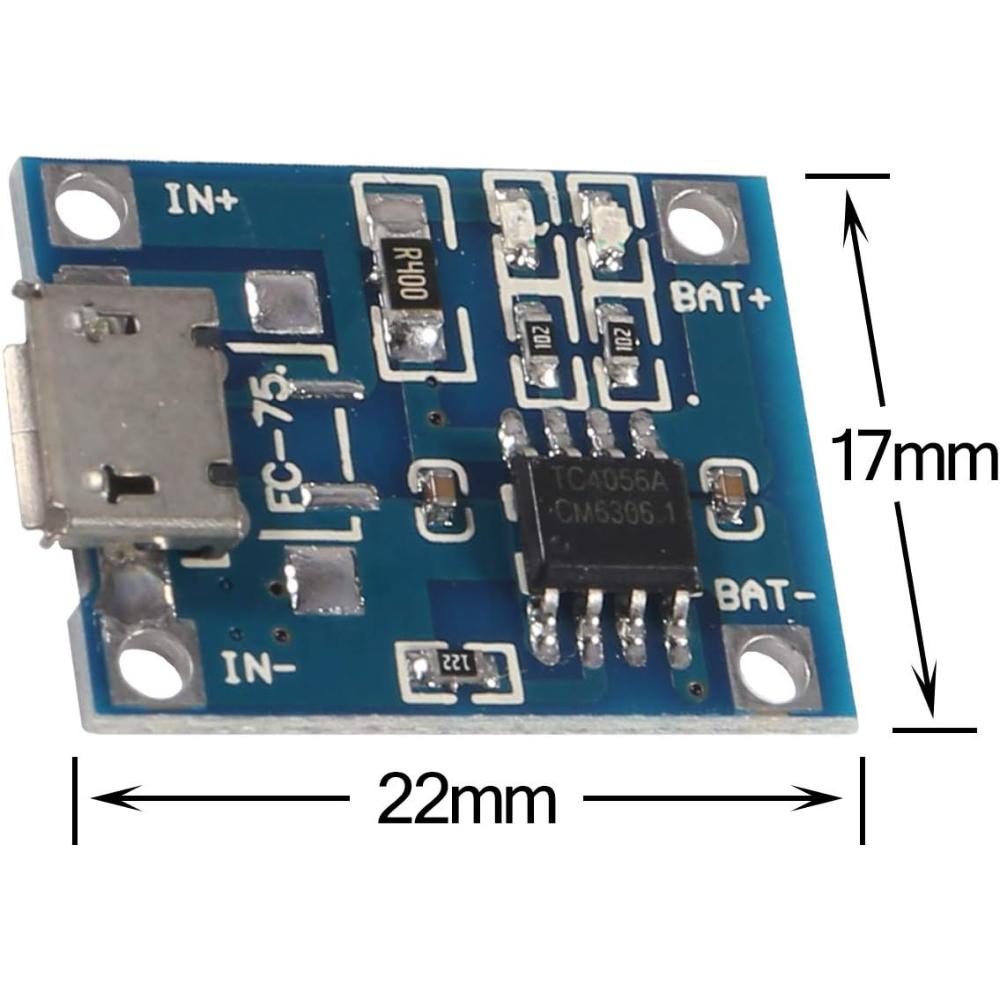

  • Length * Width * Height  (mm) : 24 * 18 * 4 mm
  • Weight (gm) : 4

    Product Video

    Documentation

    Package Includes

    • 1 x 5V 1A TP4056 Lithium Battery Charging Board Charger Module Li-ion LED
