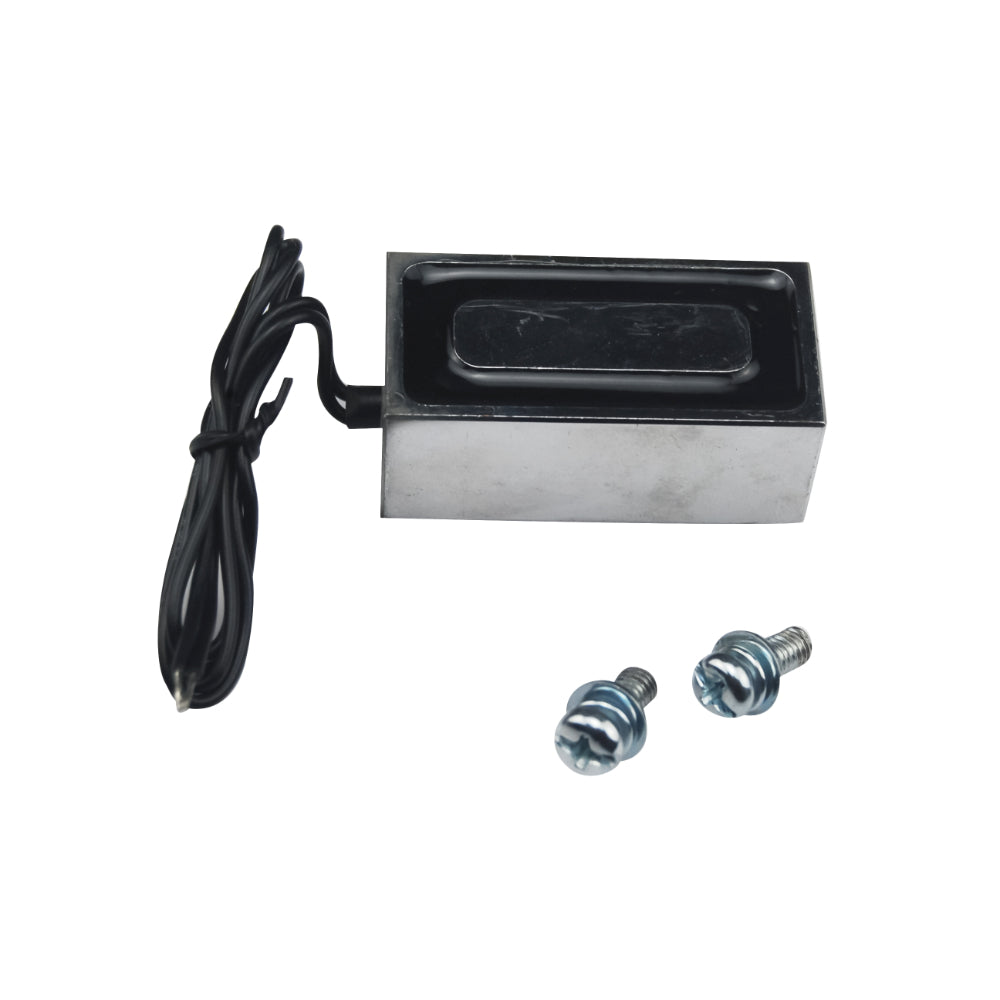

60 x 30 x 25mm DC 24V 40kg 5W Thick Rectangular Industrial strong Electromagnet with 5mm Mounting Hole
- Product SKU: LGSO048
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Specification
Description
60×30×25 mm 24V Thick Rectangular Industrial Electromagnet solenoid lock
This 60×30×25 mm rectangular electromagnet solenoid lock delivers a powerful 40 kg holding force on a 24V DC supply with 20mm stroke solenoid, consuming only 5W. Because an electromagnet is a device that becomes magnetic only when energized, you get strong, controllable magnetic holding exactly when you need it — perfect for heavy-duty industrial tasks. Its sturdy metal build ensures long-lasting durability, while the compact design and 2×M6 mounting holes spaced 30 mm apart make installation straightforward and secure.Features
High Holding Force: Supports up to 40 kg for heavy-duty use.
Energy Efficient: Low 5 W power consumption for reliable operation.
Durable Structure: Robust metal body suitable for industrial conditions.
Flexible Installation: Includes 300 mm wire for versatile wiring layouts.
Secure Mounting: 2×M6 screw holes ensure firm attachment.
Applications
Automation Systems: Ideal for machines requiring strong magnetic holding.
Security Systems: Useful in magnetic locking and access control.
Material Handling: Suitable for conveyors, lifting, and storage automation.
Robotics: Ensures reliable actuation, gripping, or positioning tasks.
Advantages
Strong Magnetic Performance: High 40 kg capacity supports demanding loads.
Efficient Power Use: Only 5 W needed for consistent holding.
Industrial Durability: Metal housing built for harsh conditions.
Easy Fitment: Compact size allows integration even in tight spaces.
Wide Usage: Versatile across industries and applications.
Disadvantages
24V Supply Required: Needs a stable regulated input.
Current Load: Draws ~0.2 A — check power capacity in low-power systems.
Technical Details
- Rated Voltage: 24V DC
- Holding Force: 40 Kg
- Power Consumption: 5 W
- Length: 60 mm
- Width: 30 mm
- Height: 25 mm
- Wire Length: 300 mm
- Material: Metal
- Shape: Rectangular
- Current: 0.2 A

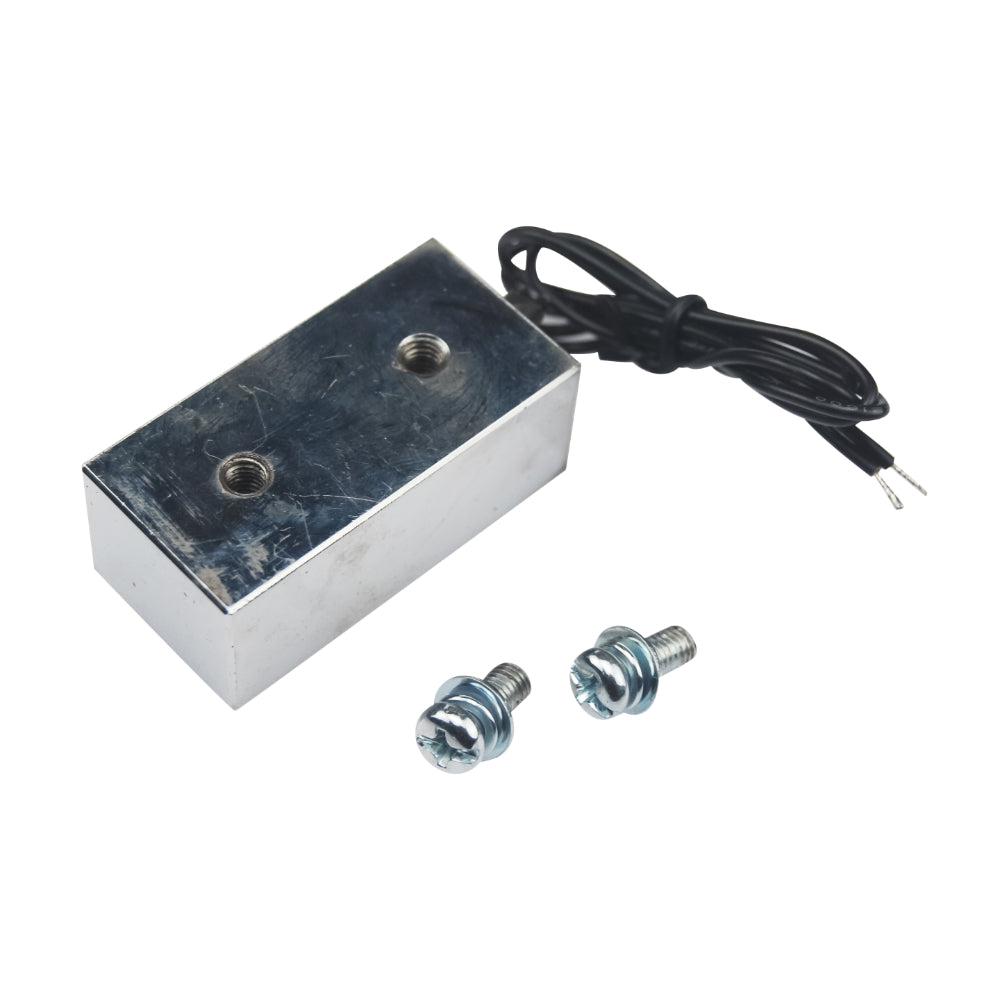

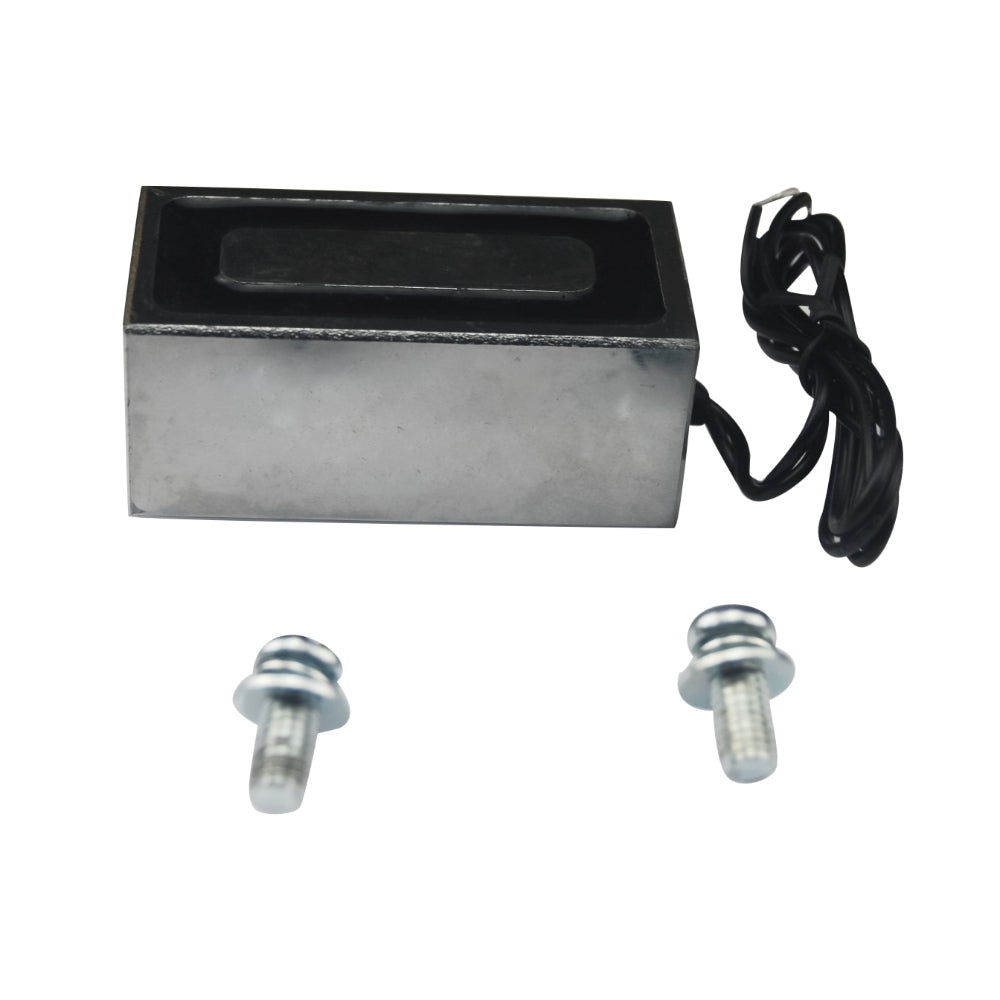

- Mounting: 2×M6 screw holes
- Hole Spacing: 30 mm
Dimensions
Physical Attributes
- Length: 60 mm
- Width: 30 mm
- Height: 25 mm
- Material: Metal
- Wire Length: 300 mm
- Shape: Rectangular
- Weight (gm): 268
Package Includes
- 1 × 60×30×25 mm DC 24V 40 Kg 5 W Thick Rectangular Industrial Electromagnet with 5 mm Mounting Hole
