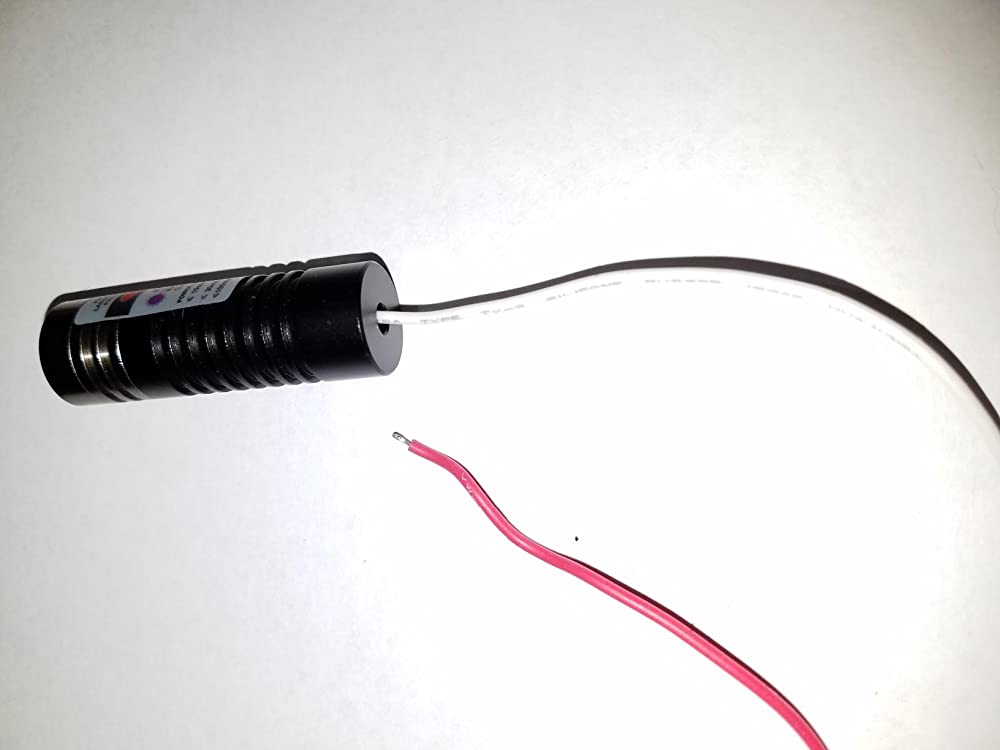

SYD1230 650nm 12mm 5mw Point Laser Module – Red
![650nm, 5mW Red Straight Line Laser Module]()
![650nm 5mw Red Focus]()
![LASER Module DC 5V 5mW]()
![650nm, 5mW Red Straight Line Laser Module]()
![650nm 5mw Red Focus]()
![LASER Module DC 5V 5mW]()
It is suitable for 3V-5V 5mW standard, with a 6mm outside diameter. It can be used to connect diode tubes for multiple uses.
This Laser diode module is very efficient and useful for your electronic projects. For example, with this product, you can make a laser radiation sensor and with the use of an Arduino development board, you can create your laser harp. Simply connect power to the red and black wires and you will be lasing in no time.
NOTE: It does not emit the RED-Line or Point since it is a Single RED Cross-LINE module.
Please use the DC power supply 3~6V.
Careful! This laser module has high output power, please wear goggles when testing or using as it can be hazardous to your vision.
The laser beam must not be directed toward the eyes of a person or an animal in any way.
The red cord is an anode, the black cord is a cathode. Line-cross pattern Design of the head shown in the Image may differ from the actual product but it doesn’t affect the functionality of the product.
![ESP32 38Pin Development Board WiFi+Bluetooth Ultra]()
![ESP32 38Pin Development Board WiFi+Bluetooth Ultra_back]()
-25%
SYD1230 650nm 12mm 5mw Point Laser Module – Red
Available:In Stock
- Product SKU: KG108
₹ 149
₹ 199
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
SYD1230 650nm 12mm 5mw Point Laser Module – Red
This is a SYD1230 12mm 5mw Red CROSS LINES laser module. Easy to install, Durable, and portable. laser emission head For Ciclop Scanner 3D printer Components Points Spot Size Adjustable.It is suitable for 3V-5V 5mW standard, with a 6mm outside diameter. It can be used to connect diode tubes for multiple uses.
This Laser diode module is very efficient and useful for your electronic projects. For example, with this product, you can make a laser radiation sensor and with the use of an Arduino development board, you can create your laser harp. Simply connect power to the red and black wires and you will be lasing in no time.
NOTE: It does not emit the RED-Line or Point since it is a Single RED Cross-LINE module.
Please use the DC power supply 3~6V.
Careful! This laser module has high output power, please wear goggles when testing or using as it can be hazardous to your vision.
The laser beam must not be directed toward the eyes of a person or an animal in any way.
The red cord is an anode, the black cord is a cathode. Line-cross pattern Design of the head shown in the Image may differ from the actual product but it doesn’t affect the functionality of the product.
Technical Details : 650nm, 5mW Point Laser Module
- Item Type: Laser Module
- Voltage: 2.8-5.2V
- Input Current: 25mA
- Wavelength: 650nm
- Output: Red Cross
Features
- Output: Dot, line, cross beam shapes
- Wavelength: Red 650nm (typical)
- Focus: Adjustable for applications
- Input Voltage: 3V-5V compatible
- Durable: Robust housing
- Compact: Lightweight and small
- Safety: Built-in or instructional
Applications :
- Alignment Tools: Used in construction, woodworking, and metalworking for precise alignment.
- Positioning Systems: Ideal for machines requiring accurate positioning and guidance.
- DIY Electronics Projects: Perfect for hobbyists working on laser-based projects.
- Education and Demonstration: Useful for teaching optics or physics concepts.
- Laser Pointers: Can be integrated into handheld laser pointers.
- Barcode Scanners: Applied in devices requiring red laser beams for scanning.
Physical Attributes : 650nm, 5mW Point Laser Module
- Cable Length (mm) : 130
- Length × Dia (mm): 35× 12 (Body Diameter)
- Weight (gm) : 14
Package Includes
- 1 x SYD1230 650nm 12mm 5mw Point Laser Module – Red
