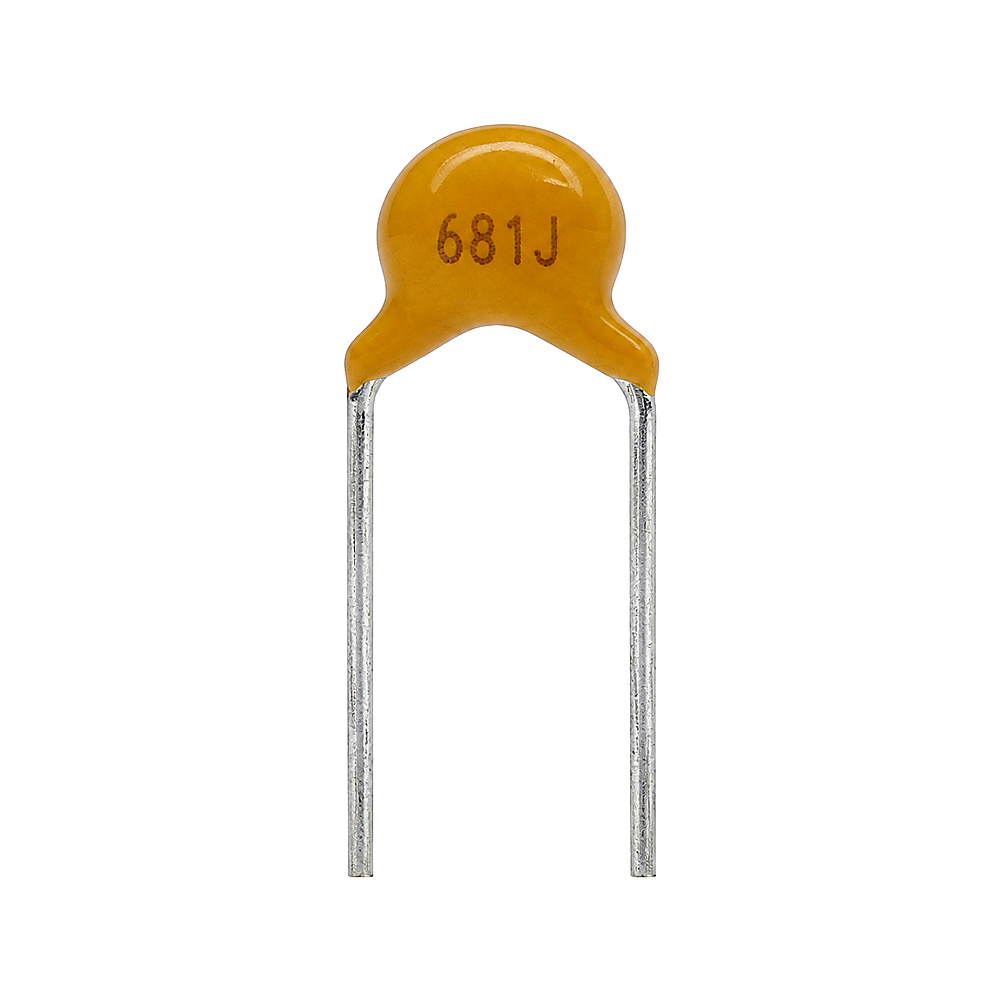

CAPAC351 capacitor front view

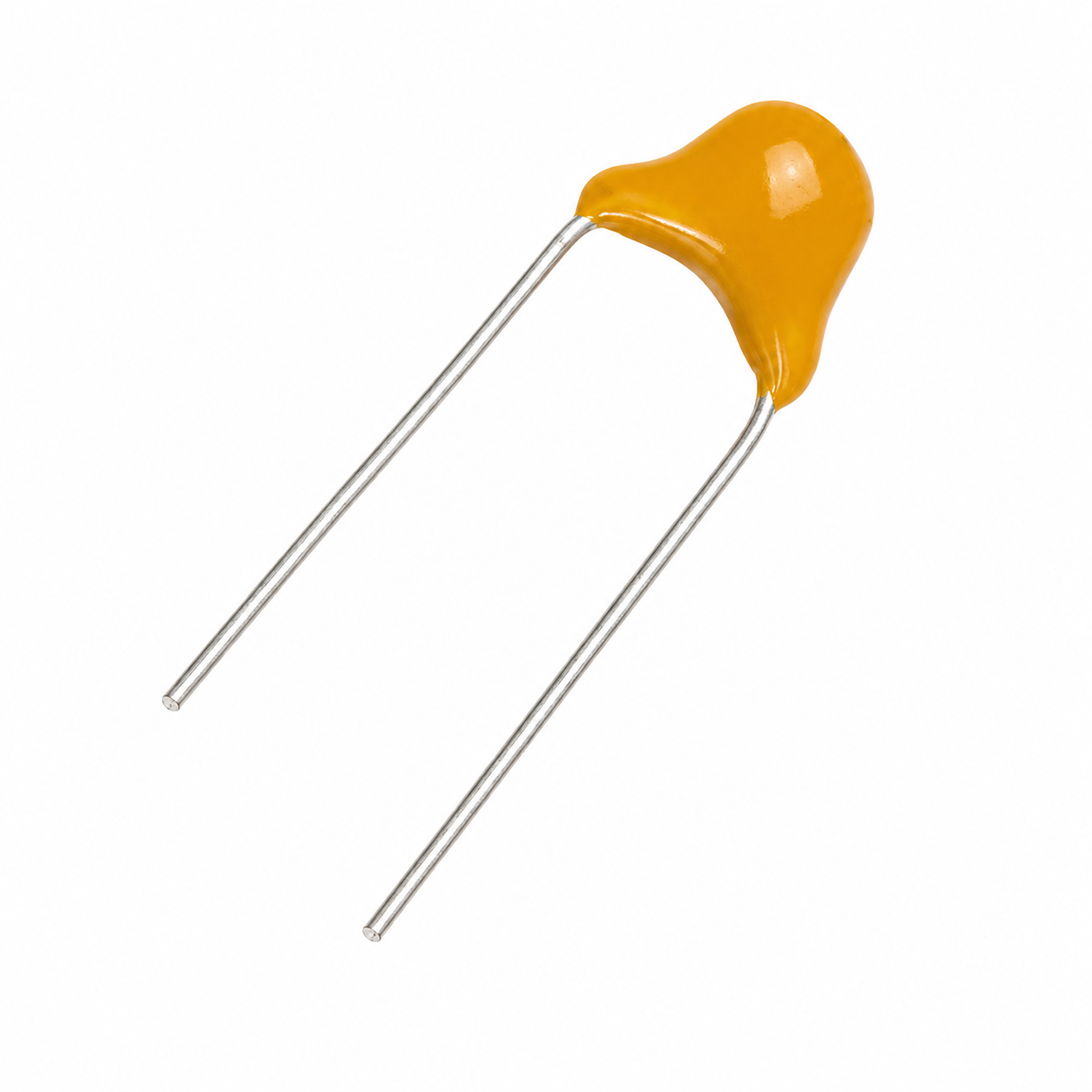

CAPAC351 capacitor back view
CAPAC351 681J 50V ±5% Ceramic Capacitor Radial 5.08mm Pin Pitch
CAPAC351 capacitor front view
CAPAC351 capacitor back view

681J 50V ±5% Monolithic Capacitor Radial 5.08mm Pin Pitch

Available:In Stock
  • Product SKU: CAPAC351
Wishlist
₹ 6 ₹ 9
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • 680pF capacitance value
  • Rated for 50V operation
  • ±5% capacitance tolerance
  • 5.08mm radial lead pitch
  • Compact monolithic ceramic design
  • Suitable for electronic circuits
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
How Fast We Ship
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

🏠 Warehouse Details:
23 F - 144 R
Secure

Specification

Description

681J 50V ±5% Monolithic Capacitor Radial 5.08mm Pin Pitch

The 681J Monolithic Ceramic Capacitor is a precision capacitor with a value of 680pF. The J tolerance code indicates ±5%, making it suitable for circuits that need a more accurate capacitance value than standard tolerance capacitors.

This 50V radial lead capacitor is useful in oscillator, signal shaping, RF, timing, and filtering circuits. Its compact monolithic ceramic construction and 5.08mm pin pitch allow reliable through-hole PCB installation.

Technical Details

  • Product Type: Monolithic Ceramic Capacitor
  • Capacitor Code: 681J
  • Capacitance: 680pF
  • Equivalent Value: 0.68nF
  • Voltage Rating: 50V
  • Tolerance: ±5%
  • Pin Pitch: 5.08mm
  • Lead Type: Radial Lead
  • Mounting Type: Through-Hole
  • Polarity: Non-Polar

Features

  • Precision 680pF value
  • ±5% tolerance grade
  • 50V working voltage
  • Suitable for oscillator circuits
  • Compact monolithic type
  • Non-polar ceramic design
  • Easy radial mounting

Applications

  • Oscillator circuits
  • RF circuits
  • Signal shaping networks
  • Timing circuits
  • Filter circuits
  • Communication electronics
  • Precision circuit repair

Physical Attributes

  • Body Type: Monolithic Ceramic
  • Lead Type: Radial Leads
  • Pitch: 5.08mm
  • Mounting Style: Through-Hole

Package Includes

  • 1 x 681J 50V ±5% Monolithic Capacitor Radial 5.08mm Pin Pitch
