8 Bit WS2812 RGB LED Circular Development Board
![8 Bit WS2812 RGB LED]()
![8 Bit WS2812 RGB LED Circular]()
![8 Bit WS2812 RGB LED Circular_1]()
![8 Bit WS2812 RGB LED]()
![8 Bit WS2812 RGB LED Circular]()
![8 Bit WS2812 RGB LED Circular_1]()
This RGB LED ring module operates on a DC 4V to 7V supply, with 5V DC commonly used for stable operation. The board supports 800Kbps data transmission speed and can be cascaded from one module to another using the DI-DO connection. With full-color RGB output, consistent light performance, and compact size, it is useful for projects requiring bright, programmable, and space-saving LED lighting.
-25%
8 Bit WS2812 RGB LED Circular Development Board
Available:In Stock
- Product SKU: KG1377
₹ 59
₹ 79
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
8 Bit WS2812 5050 RGB LED Built-in Full Color Driving Lights Circular Development Board

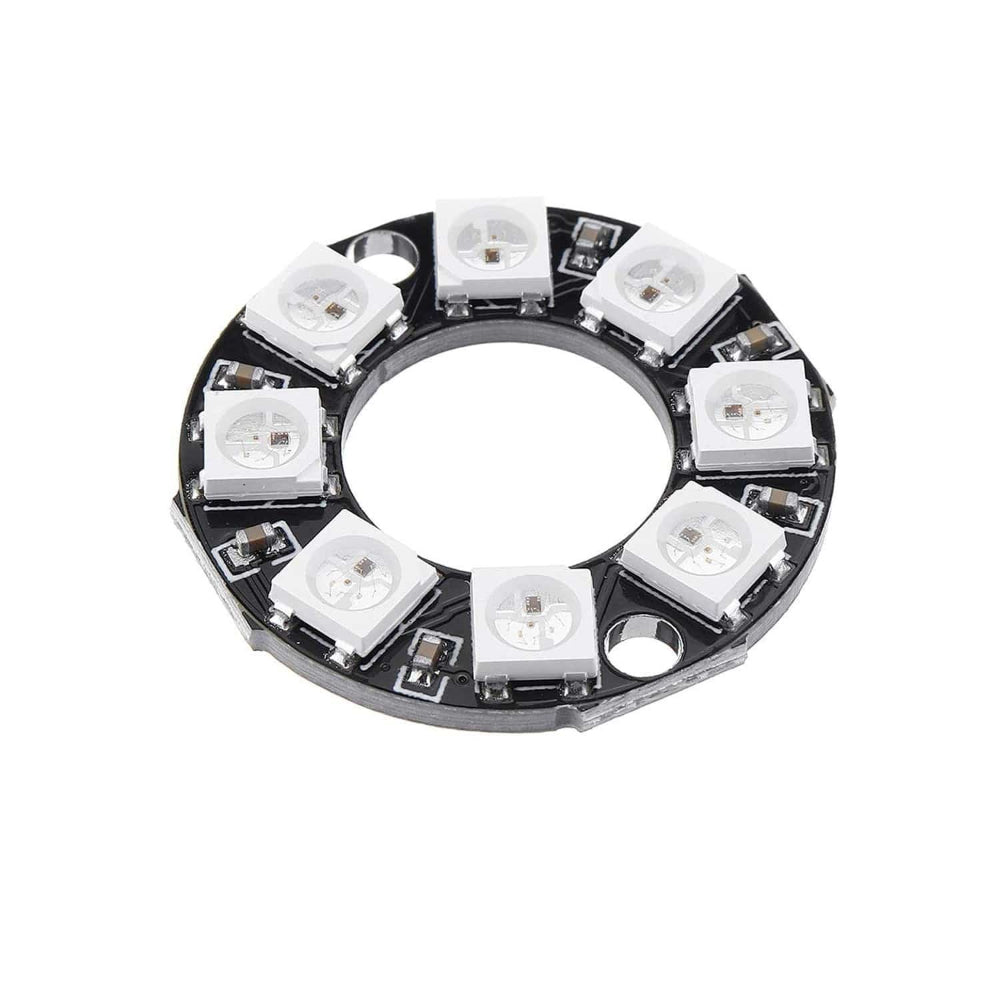

The 8 Bit WS2812 5050 RGB LED Built-in Full Color Driving Lights Circular Development Board is a compact circular RGB lighting module designed with 8 addressable 5050 RGB LEDs arranged on a black ring-shaped PCB. Each LED has an integrated WS2812 driver IC, allowing individual LED control through a simple single-wire communication interface. It is suitable for colorful lighting effects, animation displays, DIY electronics, Arduino projects, and decorative LED applications.This RGB LED ring module operates on a DC 4V to 7V supply, with 5V DC commonly used for stable operation. The board supports 800Kbps data transmission speed and can be cascaded from one module to another using the DI-DO connection. With full-color RGB output, consistent light performance, and compact size, it is useful for projects requiring bright, programmable, and space-saving LED lighting.
Features
- 8 addressable RGB LEDs
- Built-in WS2812 driver IC
- Single-wire communication interface
- Full-color RGB light output
- Supports DI-DO cascade connection
- 800Kbps data transmission speed
- 256 brightness levels per color
- Highly consistent LED color output
- Compact circular PCB design
- No external current limiting resistor required
- Built-in signal reshaping circuit
- Suitable for Arduino and microcontroller projects
Technical Details
- Item Type: RGB LED Ring Development Board
- LED Type: WS2812 5050 RGB LED
- Number of LEDs: 8
- LED Driver IC: WS2812
- Operating Voltage: DC 4V to 7V
- Recommended Voltage: 5V DC
- Communication Interface: Single-wire communication
- Data Transmission Speed: 800Kbps
- Color Output: Full-color RGB
- Brightness Levels: 256 levels per color
- Cascade Connection: Supported through DI-DO
- PCB Shape: Circular / Ring type
Applications
- Arduino RGB lighting projects
- Decorative LED lighting
- DIY electronics projects
- Color animation displays
- Robot lighting effects
- Wearable lighting projects
- Model decoration lighting
- Indoor LED decoration
- Full-color visual indicators
- Prototype display lighting
Physical Attributes
- Board Shape: Round / Circular
- PCB Color: Black
- Outer Diameter: 30 mm
- LED Package: 5050

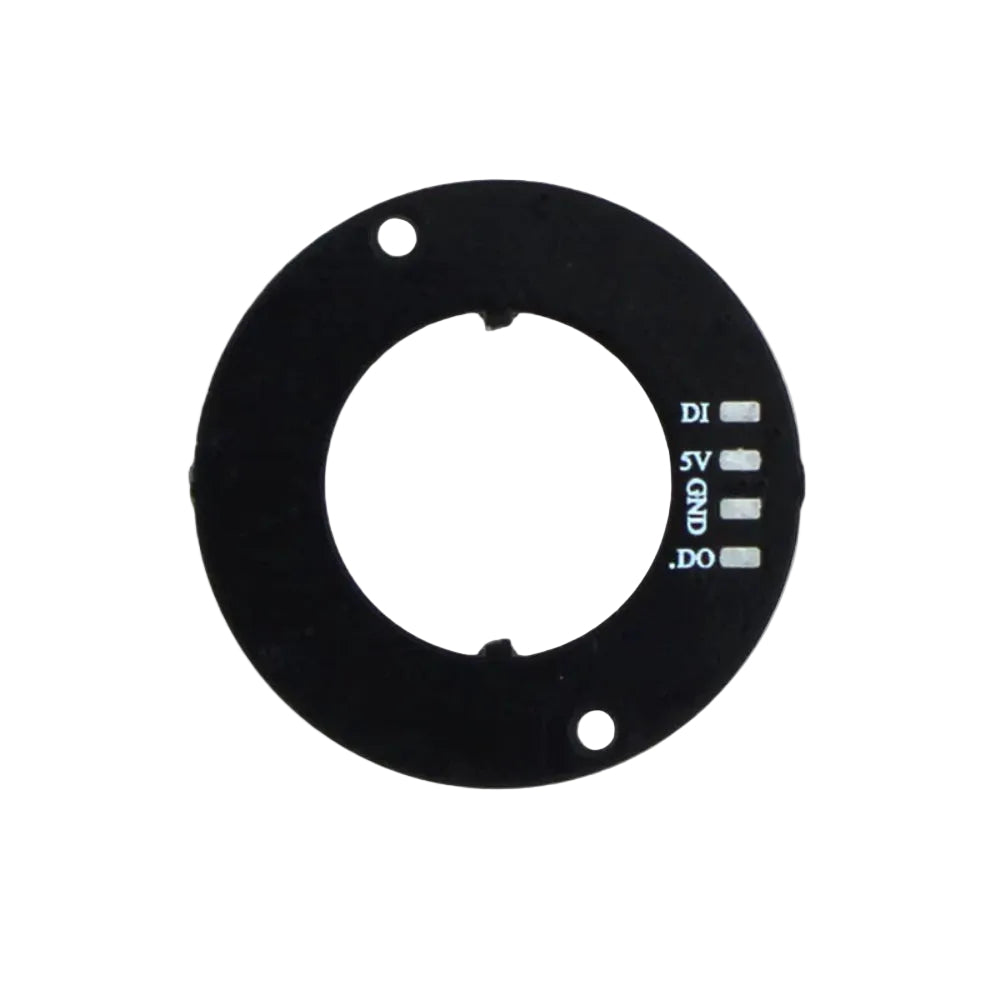

- Connection Type: Input and output cascade pins
- Mounting Style: Development board module
Package Includes
- 1 × 8Bit RGB Lamp Ring Development Board
