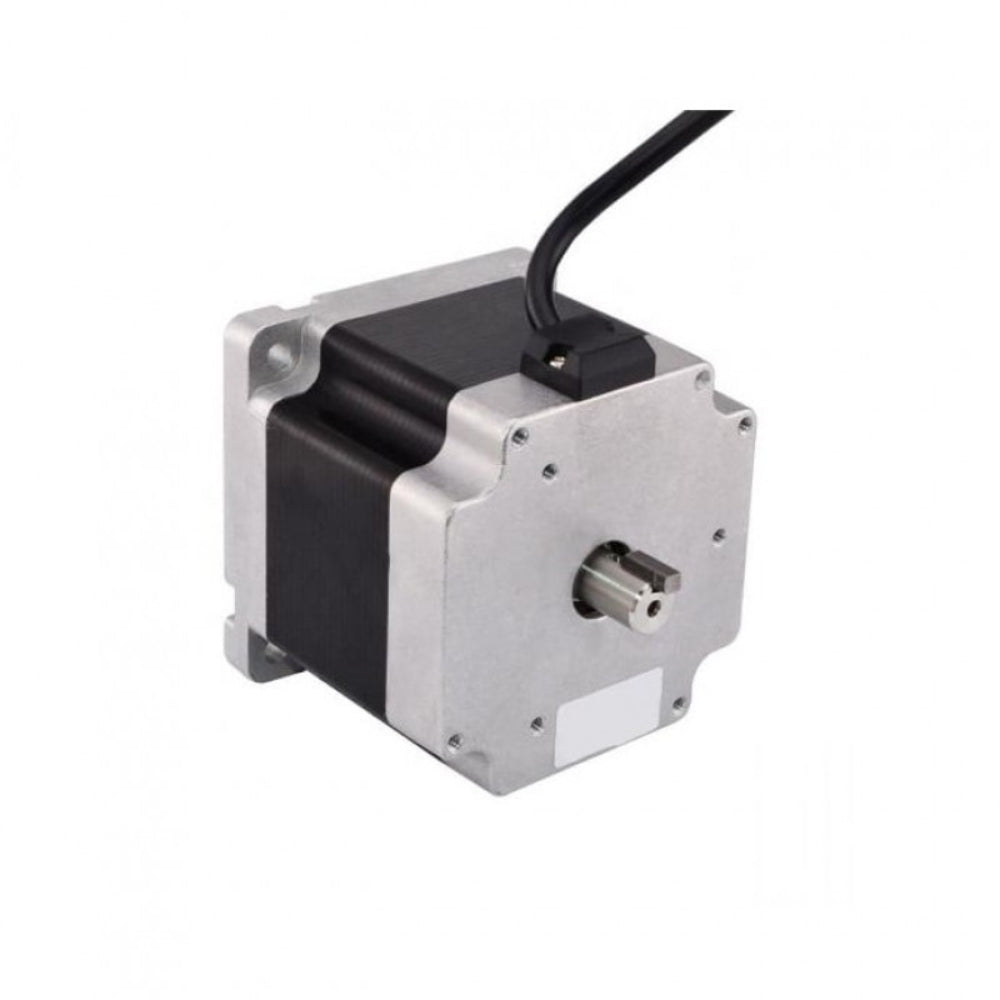

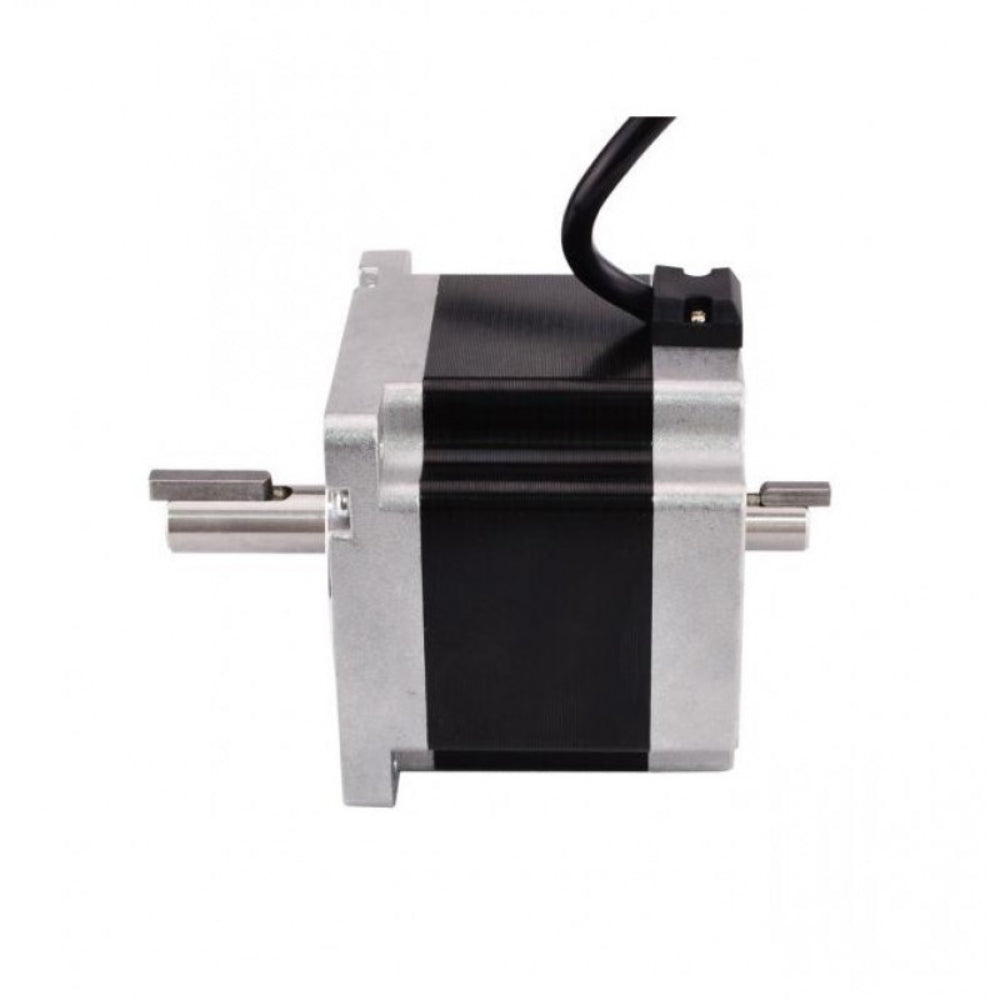

86HS68 NEMA34 34 kgcm Industrial Grade hybrid Stepper Motor
Available:In Stock
- Product SKU: LGSTM016
₹ 3,499
₹ 4,499
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
Features
- The input pulse decides the rotation angle of the motor.
- High accuracy of around 3 to 5% a step.
- It provides good starting, stopping, and reversing.
- Control of this motor is less costly because of the exclusion of complex control circuitry.
- The speed is proportional to the frequency of the input pulses.
Technical Details
- Item Type: NEMA 34 Stepper Motor
- Shaft Type : Keyway Type
- Holding Torque (kg-cm) : 34
- Step Angle (Degree): 1.8
- Model No.: 86HS68-5904-08J
- Supply Current (A) : 5.9
- Inductance: 1.7
- Resistance (Ohm): 0.28
- No. of Leads: 4
- Load Torque(N-CM): 3.4
- Rotor Inertia (gm-cm2): 1000
- Detent Torque (g-cm): 800
- Shaft diameter (mm): 14
- Shaft Length (mm): 32
- Motor Body Length (mm): 67
Package Includes
- 1 x 86HS68-5904-08J NEMA34 34 kgcm Stepper Motor – Keyway Type Shaft
