90 Degrees KSD9700 Metal Temperature Control Switch 250V 5A Normally Closed
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great

90 Degrees KSD9700 Metal Temperature Control Switch 250V 5A Normally Closed

Available:In Stock
  • Product SKU: SWITC079
Wishlist
₹ 49 ₹ 89
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • Model: KSD9700
  • Type: Thermal Protector
  • Temp: 90°C (±3°C)
  • Reset: Auto Reset
  • Contact: Normally Close (NC)
  • Voltage: 250V AC
  • Current: 5A
  • Material: Stainless Steel
  • Wire: High-temp resistant
  • Insulation: ≥100MΩ
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   36G-149G

Secure

Specification

Description

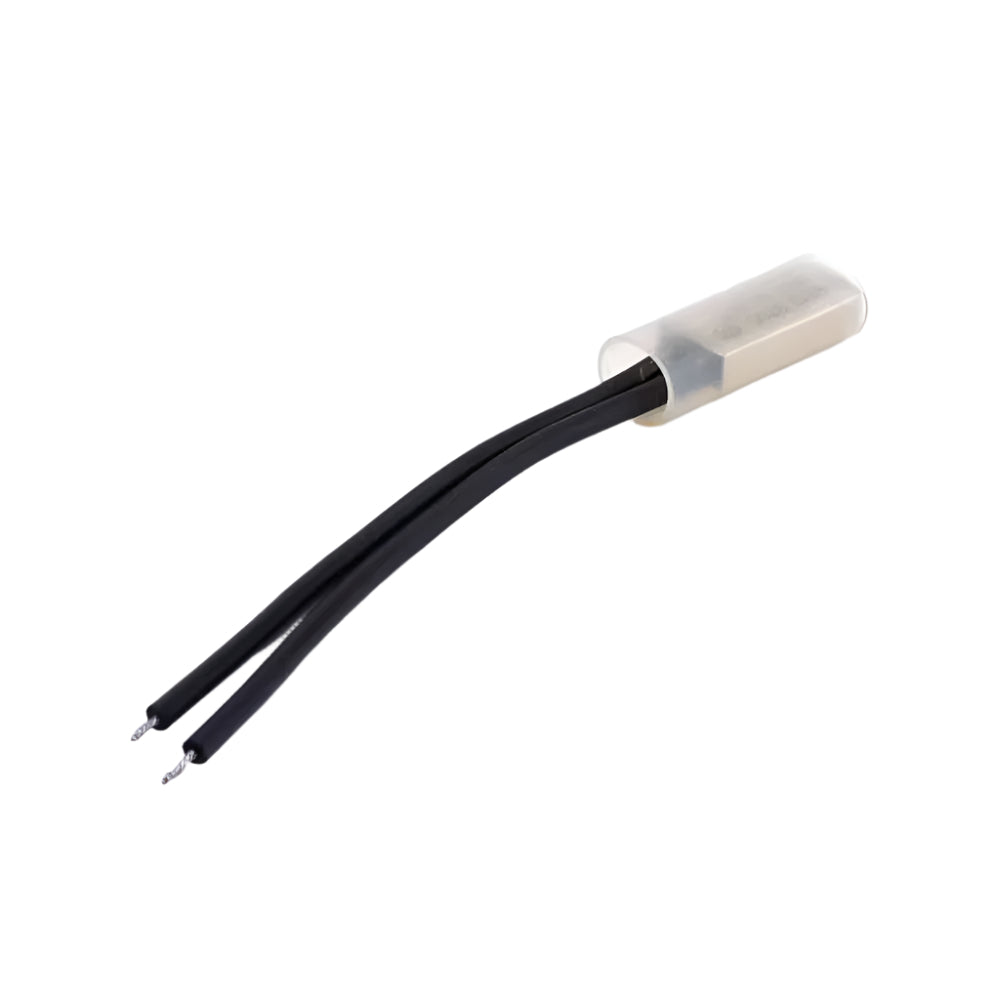

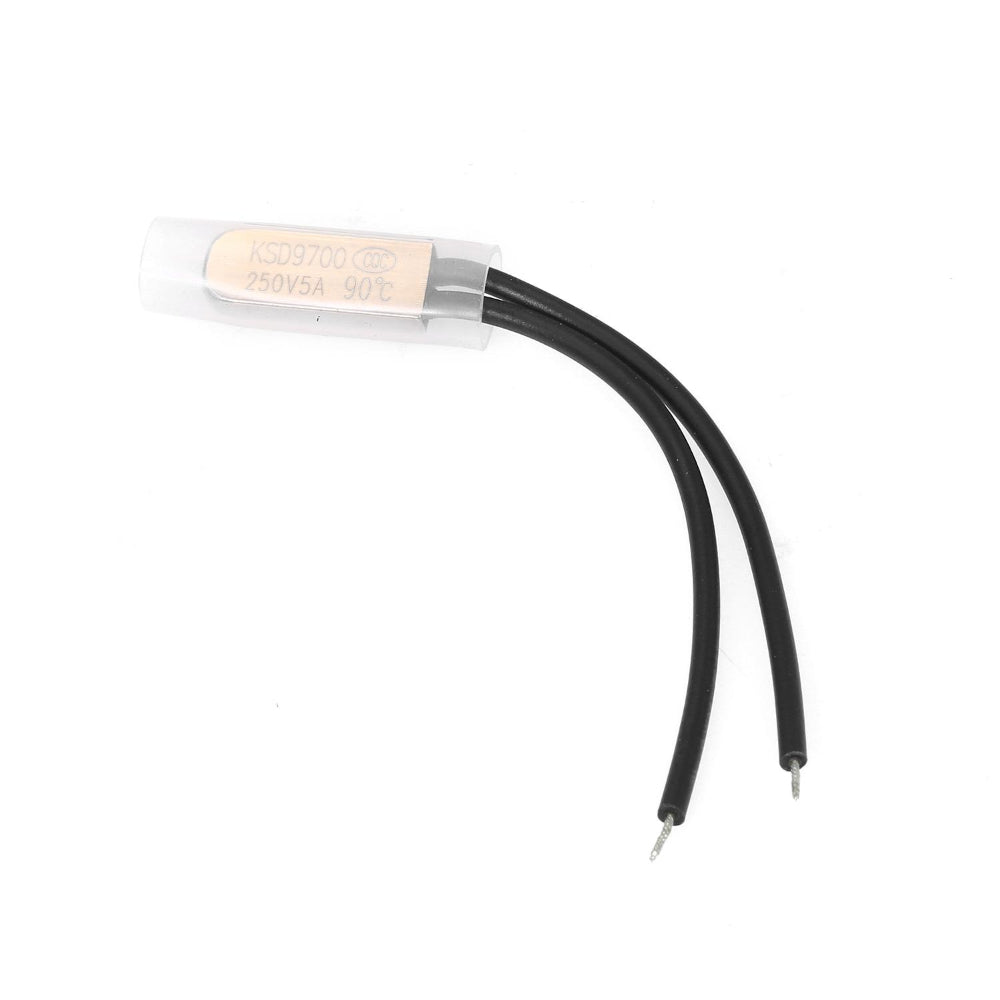

90 Degrees KSD9700 Metal Temperature Control Switch 250V 5A Normally Closed

The 90°C Thermal Protector Metal Temperature Control Switch (KSD9700) is a high-performance temperature-sensitive device designed to prevent electrical systems from overheating. It features a Normally Closed (NC) contact, which remains closed under normal conditions and opens when the temperature exceeds 90°C, breaking the circuit to protect the system. The switch is constructed with durable stainless steel, ensuring excellent heat conduction and long-lasting performance. With a rated voltage of 250V AC and a current capacity of 5A, it is suitable for various applications, including electric motors, transformers, battery packs, and industrial equipment that require temperature-based safety mechanisms.

Equipped with an auto-reset function, the KSD9700 automatically returns to its original state once the temperature drops below the threshold, providing continuous protection without the need for manual resetting. Its fast response time, high insulation resistance, and robust design make it a reliable choice for protecting temperature-sensitive electrical systems. Whether in HVAC systems, appliances, or other industrial equipment, this thermal protector ensures reliable and efficient operation by preventing overheating and ensuring safety.

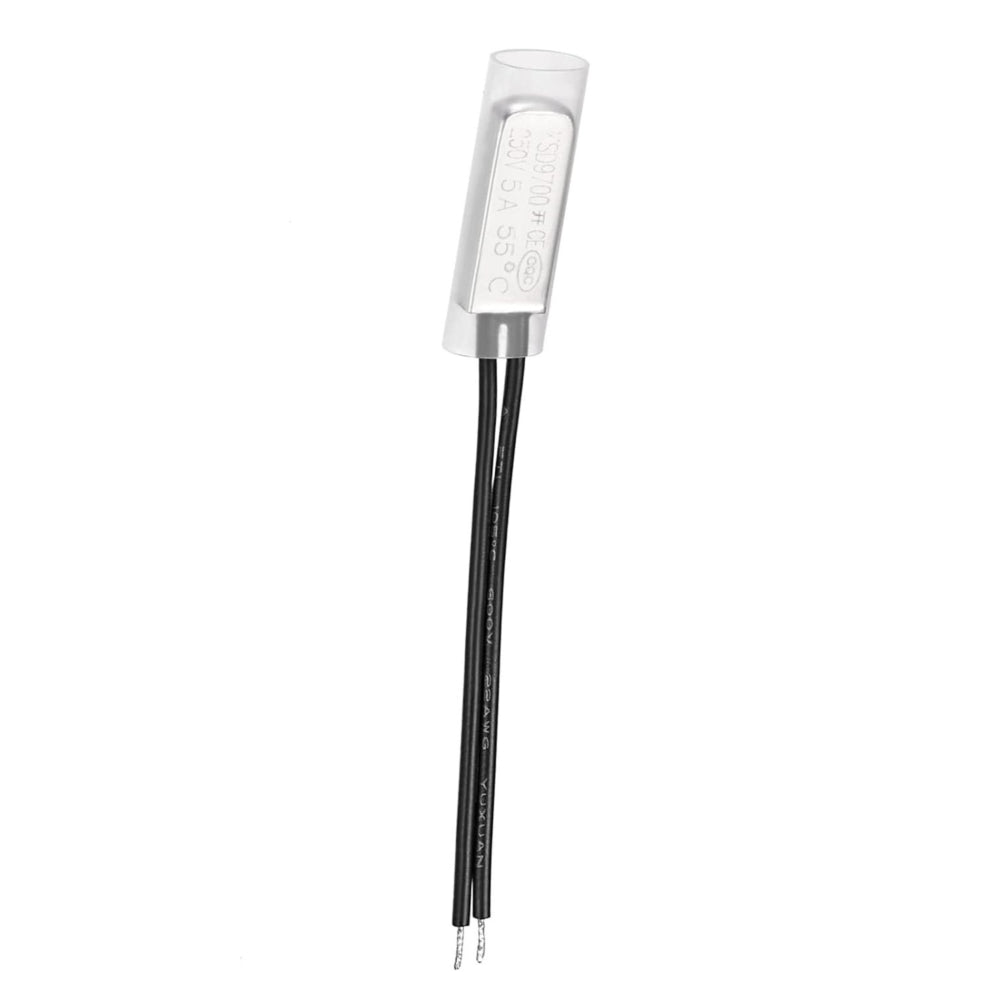

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.

Technical Details

  • Model: KSD9700
  • Type: Thermal Protector / Temperature Control Switch
  • Operating Temperature: 90°C (±3°C)
  • Reset Type: Auto Reset
  • Contact Type: Normally Closed (NC) – Open at 90°C
  • Rated Voltage: 250V AC
  • Rated Current: 5A
  • Housing Material: Metal (Stainless Steel)
  • Wire Leads: High-temperature resistant wires
  • Insulation Resistance: ≥100MΩ
  • Dielectric Strength: ≥1500V AC/min
  • Response Speed: Fast heat response
  • Lifespan: ≥100,000 cycles
  • Head Dimensions (mm): 19 x 7.4 x 3.6
  • Wire Length (mm): 70
  • Weight: 3g

Features

  • Temperature Activation: Opens at 90°C to prevent overheating.
  • Normally Closed (NC): Opens at 90°C.
  • Voltage & Current: 250V AC, 5A rating.
  • Metal Casing: Durable for heat conduction.
  • Compact Design: Ideal for tight spaces.
  • Automatic Reset: Resets when temperature normalizes.
  • Long Lifespan: ≥100,000 cycles.
  • Versatile Applications: For motors, transformers, and appliances.
  • High Sensitivity: Quick temperature control.
  • Reliable Protection: Prevents overheating damage.

Applications :

  • Overheat protection in transformers and electrical components
  • Temperature regulation in motors and batteries
  • Safety feature in household and industrial appliances
  • HVAC systems for temperature monitoring
  • Automotive applications for engine temperature control

Physical Attributes

  • Head Dimensions(mm): 19 x 7.4 x 3.6
  • Wire Length(mm):70
  • Weight: 3g

Package Includes

  • 1 x 90 Degrees KSD9700 Metal Temperature Control Switch 250V 5A Normally Closed
