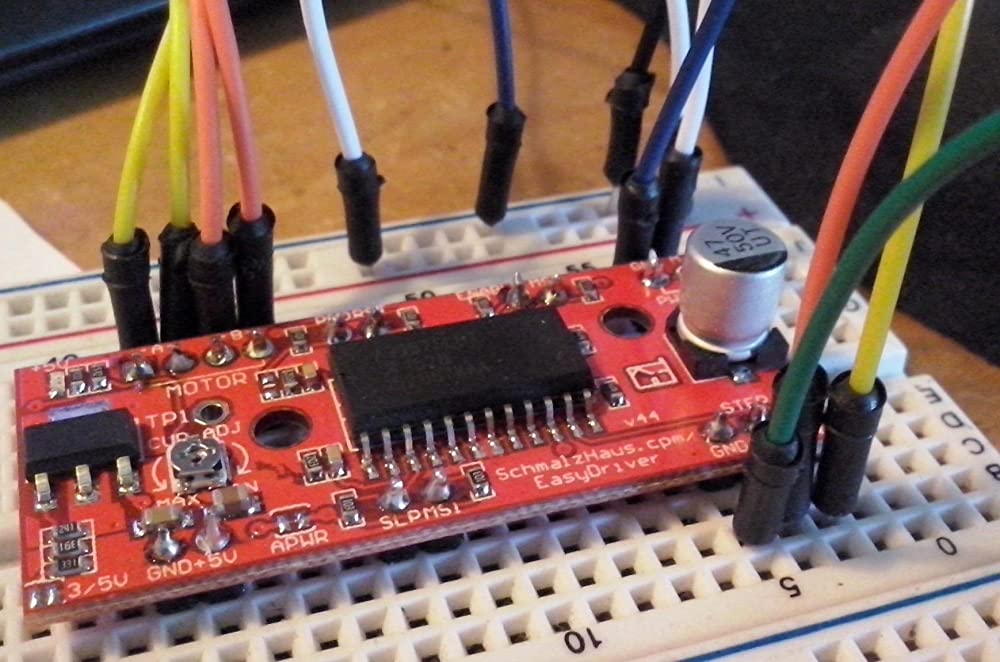

This A3967 Stepper Motor Driver For Arduino is the latest version of EasyDriver v44 co-designed with Brian Schmalz. It provides greater flexibility and control over your stepper motor compared to the older versions. It is compatible with 4, 6, and 8 wire stepper motors of any voltage. It is a simple to use stepper motor driver, compatible with most microcontrollers that can output a digital 0 to 5V pulse (0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver).

The A3967 Stepper Motor Driver module requires a 7V to 30V power supply for a motor. The module has an onboard voltage regulator for the digital interface that can be set to 5V or 3.3V. It connects a 4-wire stepper motor and a microcontroller and you’ve got precision motor control! EasyDriver drives bi-polar motors and motors wired as bi-polar. i.e. 4, 6, or 8 wire stepper motors. The microstep select (MS1 and MS2) pins of the A3967 are broken out allowing adjustments to the micro-stepping resolution. The sleep and enable pins are also broken out for further control.

  • A3967 microstepping driver
  • Compatible with 4, 6, and 8 wire stepper motors of any voltage
  • Power supply range from 7V to 30V. The higher the voltage, the higher the torque at high speeds
  • Connect a 4-wire stepper motor and a microcontroller and you've got precision motor control!

Note: Do not connect or disconnect a motor while the driver is energized. This will cause permanent damage to the A3967 IC.

Technical Details

  • Input Supply Voltage (VDC) : 7 to 30
  • Logic Input (V) : 3.3 ~ 5

Physical Attributes

  • Length × Width (mm) : 48 × 20
  • Weight (gm) : 4

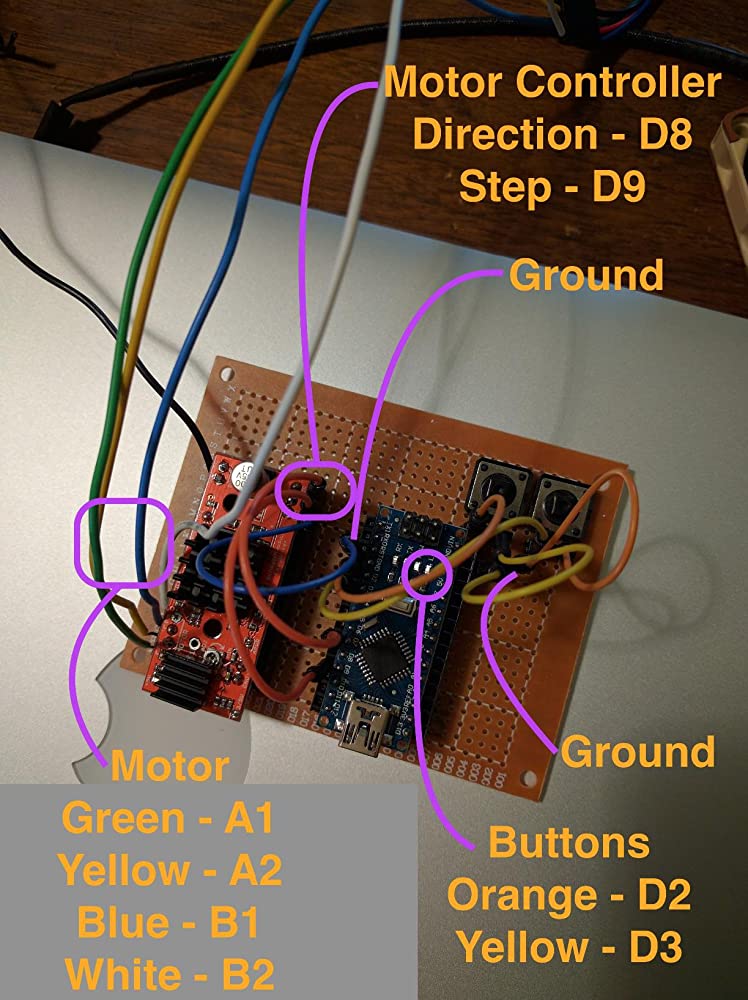

Integration with Arduino


Sample Code


Additional Details

  • Adjustable current control from 150mA/phase to 750mA/phase.
  • A3967 microstepping driver.
  • MS1 and MS2 pins broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth).
  • Compatible with 4, 6, and 8 wire stepper motors of any voltage.
