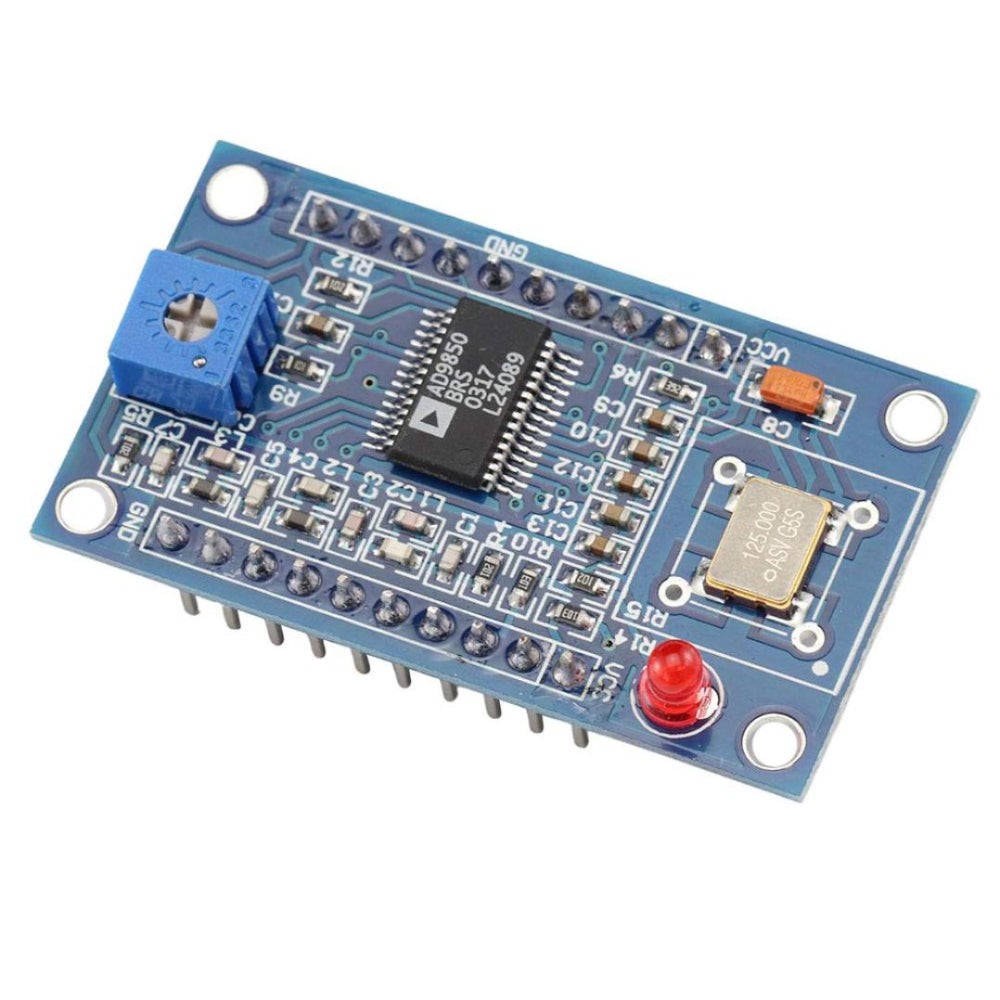

AD9850 DDS Signal Generator Module can be used to generate a Square Wave of 0-1MHz. AD9850 to: 0-40MHz AD9851: 0-70MHz. Its comparator reference input voltage generated by the variable resistor to adjust the resistance can be a different duty cycle square wave AD9850 to the module using 125MHz active crystal, the AD9851 module 30MHZ the active crystal.

The Signal Generator Module has a small compact size of approx. 4.5 x 2.6 x 1.7 cm. The module can output sine wave, square wave, two sine waves, and two square-wave output. Frequency harmonics in the 20-30MHz, waveform will be less and less clean. 70MHz low-pass filter, waveform SN than better Generate DA benchmark the pin (PIN12) leads; convenient to adjust the application to do the amplitude of the output waveform.

When the frequency after 20-30Mhz, Harmonic is getting bigger and bigger; The waveform will become increasingly unclean. The 70-MHz low-pass filter makes the SN ratio of the waveform better. The comparator reference input voltage is generated by the variable resistor, adjust the resistance can be different duty cycle square wave.


  • 2 sine wave and 2 square wave output.
  • AD9850: 0-40MHz.
  • After the 20-30MHz frequency harmonics increase, the waveform will be less and less clean.
  • Low-pass filter with 70MHz, so the waveform is better than SN.
  • Parallel and serial data input we can select via a jumper.
  • DA produced the benchmark pin (PIN12) leads for easy adjustment to do the magnitude of the output waveform Application.
  • Comparator reference input voltage generated by the variable resistor; using resistor we can adjust the duty cycle of a square wave.

Technical Details

  • Input Supply Voltage (VDC) : 6
  • Operating Voltage (VDC) : 53.3 ~ 5/li>
  • Output Frequency Range : 0 – 40MHz
  • Digital Output Continuous Current (A) : 0.005
  • DAC Output Current (A) : 0.03
  • Storage condition (℃) : -40 to 80
  • Operating Temperature Range (°C) : -40 to 85

Physical Attributes

  • Length × Width × Height(mm) : 50 × 30 × 20
  • Weight (gm) : 4

Integration with Arduino

Sample Code


  • Signal Generation related work.
  • Oscilloscope based function generator

    Product Video


    Package Includes

    • 1 x AD9850 DDS Signal Generator Module

    Customer Reviews

    Based on 16 reviews
    mohd sarfraj
    Very stable

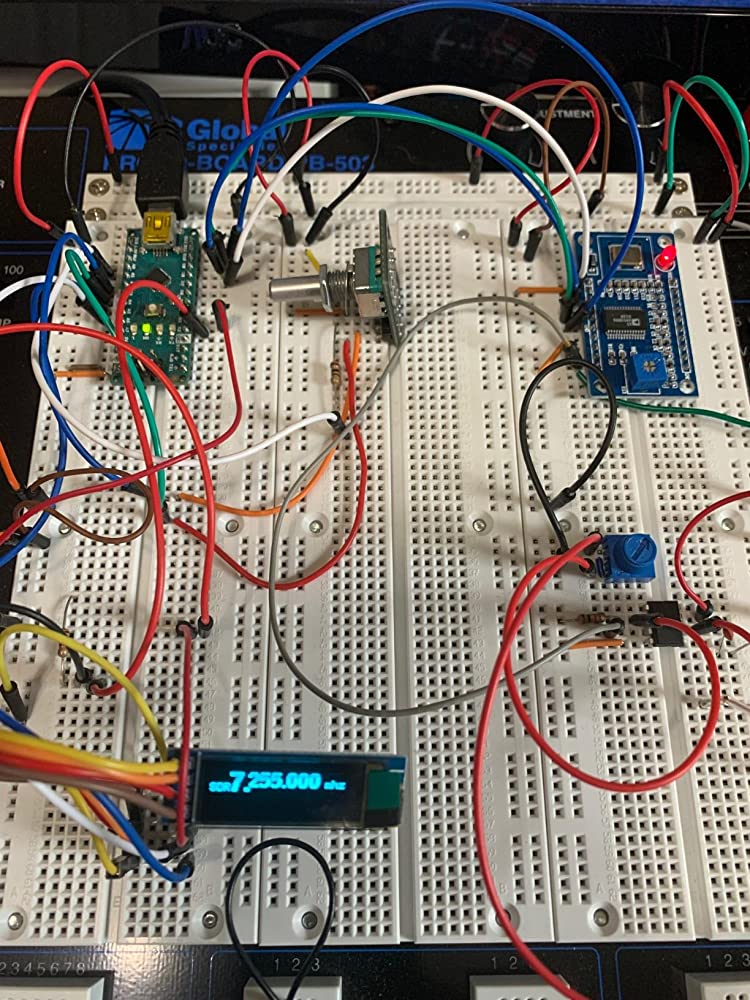

    This worked perfect for an external VFO project of mine driven by an Arduino Nano. No drift.
