Specification

Description

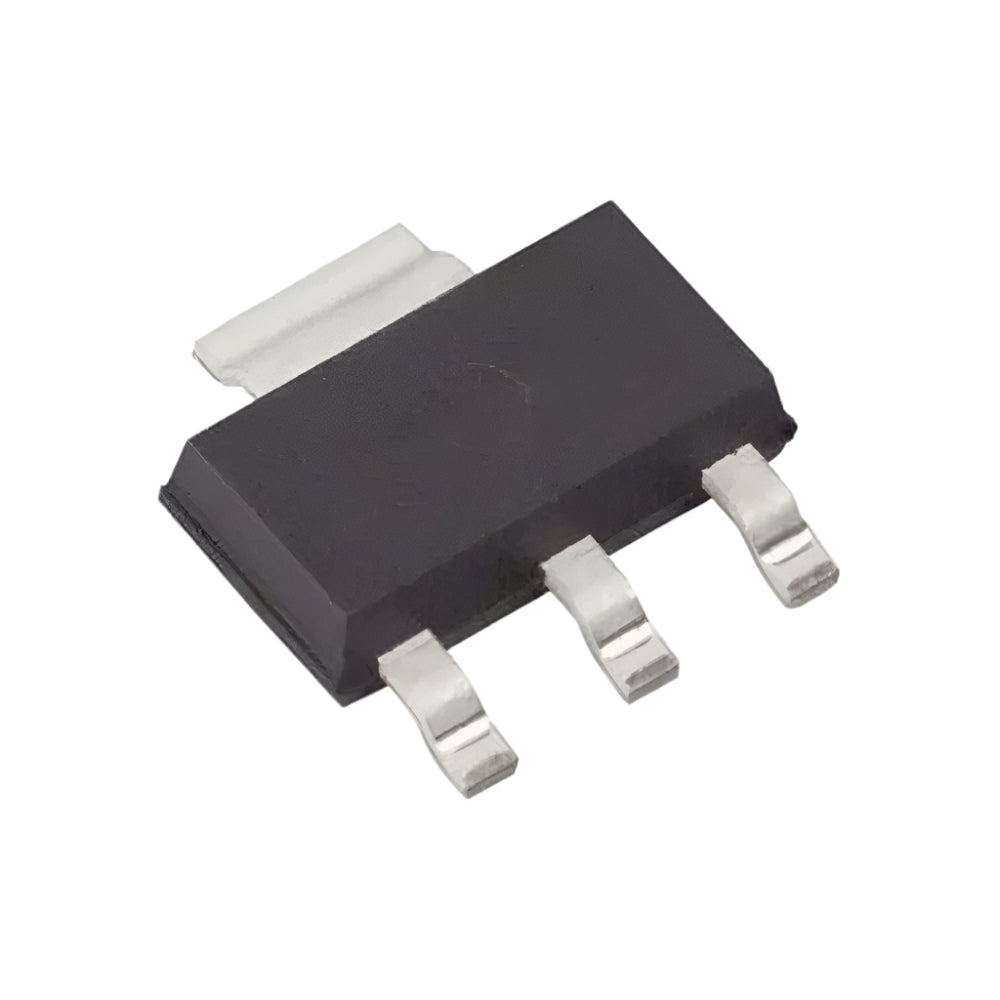

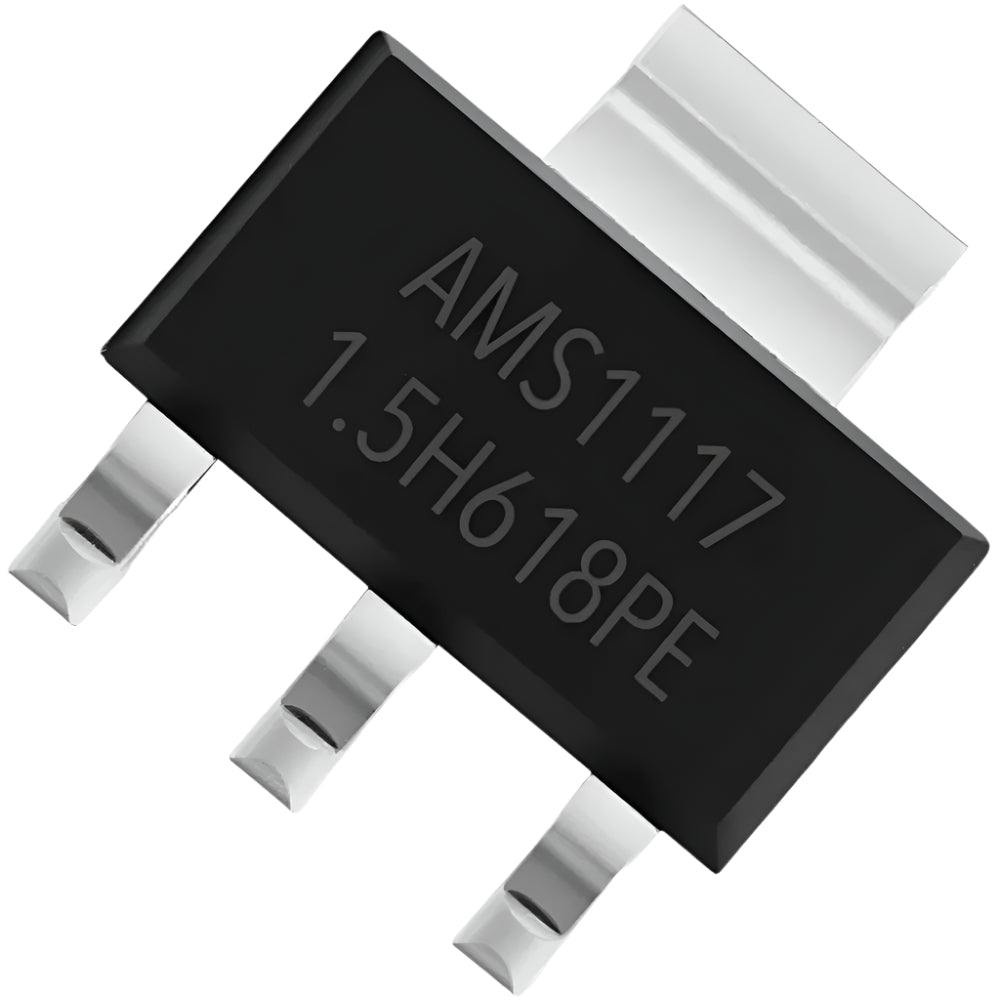

AMS1117 1.5V Voltage Regulator IC SMD SOT-223 Package

The AMS1117 1.5V is a low dropout voltage regulator designed for reliable and efficient voltage regulation in a compact SMD SOT-223 package. It provides a fixed 1.5V output with up to 1A of output current, making it ideal for powering low-voltage digital circuits, microcontrollers, and embedded systems. With excellent thermal performance and easy surface-mount installation, the AMS1117 ensures stable operation across various electronic applications.

Note:
Product Images are shown for illustrative purposes only and may differ from the actual product.

Technical Details

  • Model: AMS1117-1.5
  • Type: Linear Voltage Regulator
  • Output Voltage: 1.5V (Fixed)
  • Input Voltage Range: 2.6V to 15V
  • Output Current: Up to 1A
  • Dropout Voltage: Typically 1.1V at 800mA
  • Quiescent Current: Typically 5mA
  • Package Type: SOT-223 (Surface Mount Device)
  • Line Regulation: 0.2% (typical)
  • Load Regulation: 0.4% (typical)
  • Operating Temperature: 0°C to +125°C

Features

  • Fixed 1.5V output for low-voltage applications
  • Supports up to 1A output current
  • Low dropout voltage for efficient performance
  • Compact SOT-223 surface mount package
  • Thermal overload protection
  • Short-circuit current limiting
  • Stable and reliable voltage regulation
  • Easy integration in power supply circuits
  • Ideal for microcontroller and digital logic power supply

Applications :

  • Power supply for low-voltage microcontrollers
  • Embedded systems and development boards
  • Battery-powered electronic devices
  • Consumer electronics and DIY projects
  • FPGA and CPLD core voltage regulation

Physical Attributes

  • Weight (g): 2
  • Length: 2.92mm
  • Width: 1.3mm
  • Height: 1.1mm

Package Includes

  • 1 x AMS1117 1.5V Voltage Regulator IC SMD SOT-223 Package
