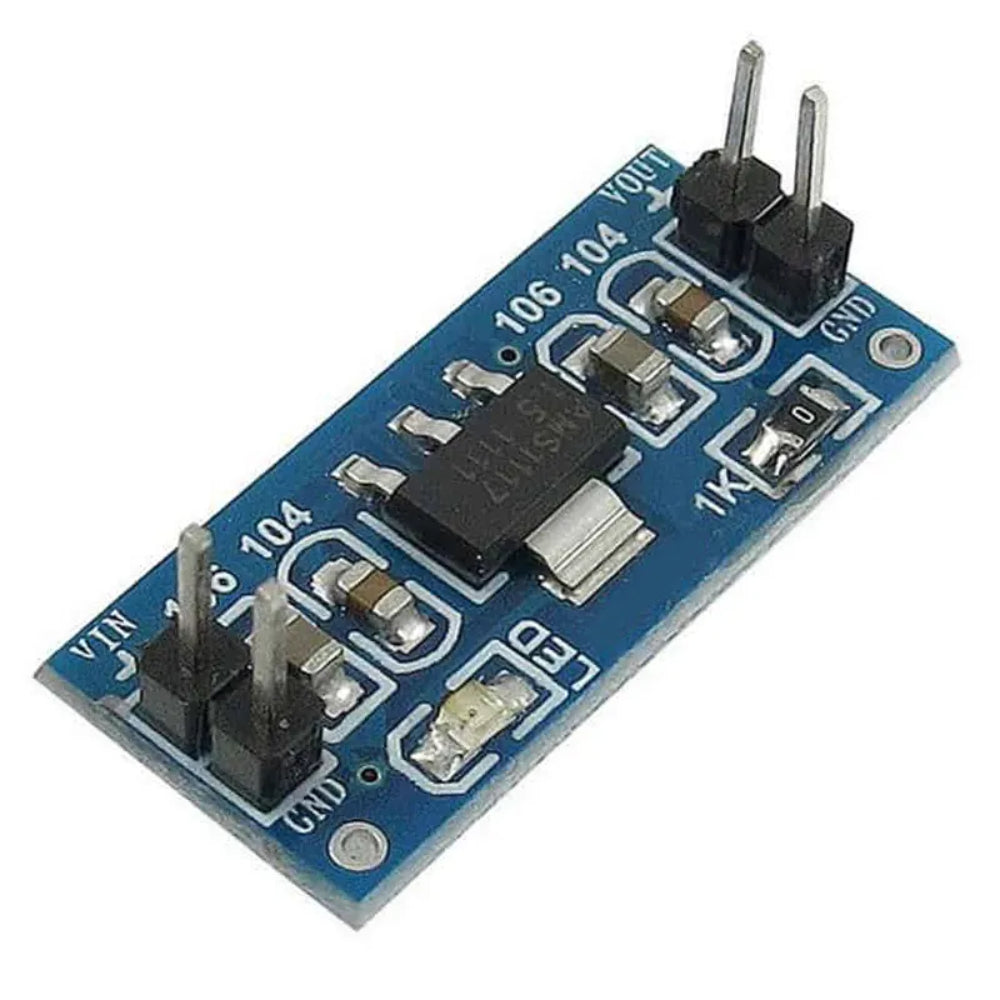

AMS1117 5v Step-Down Power Supply voltage regulator Module

Name: AMS1117 5v Step-Down Power Supply voltage regulator Module
Availability: InStock
Rating: 4.88 (8 reviews)

Available:In Stock

Product SKU: KG016

Wishlist

₹ 23 ~~₹ 29~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 999

Highlights

Original, High Quality
KitsGuru Warranty

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

Shipping Details

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

Warehouse Details 11E-129

Order within

Specification

Description

Dependable Power for Electronics: AMS1117 5V Circuit

Section 1: "Reliable Power Solution for Your Electronics AMS1117 5V Circuit"

Searching for a reliable power solution for your electronics? Look no further than our AMS1117 5V Circuit. This high-quality product is designed to efficiently convert higher voltages to a stable 5V output, providing a dependable power source for your electronic devices and projects.

With the AMS1117 voltage regulator, you can ensure that your sensitive components receive a consistent and regulated power supply. It effectively handles voltage fluctuations and spikes, safeguarding your electronics from potential damage. Whether you're working on DIY projects, robotics, or digital circuits, this Step-Down Voltage Regulator ams1117 circuit is an indispensable tool to keep your devices running smoothly and reliably.

Section 2: "AMS1117 5V Circuit Versatile Compatibility for Various Applications"

The AMS1117 5V Circuit offers versatile compatibility, making it suitable for a wide range of applications. It accepts a wide input voltage range, allowing you to power it from various sources, including batteries, AC-DC adapters, or power banks. This flexibility makes it an ideal choice for both portable and fixed electronic projects.

Compatible with various electronic components and microcontrollers, the ams1117 5v circuit circuitensures stable power delivery. From sensor modules and display screens to microcontrollers and development boards, this regulator provides a reliable and regulated 5V output, enabling optimal performance and longevity of your electronic devices.

Section 3: "Compact Design with Efficient Heat Dissipation"

When it comes to integrating a voltage regulator into your projects, space is often a concern. The AMS1117 5V Circuit addresses this challenge with its compact design and efficient heat dissipation capabilities. Its small form factor allows for easy integration even in projects with limited space.

Despite its compact size, this Voltage Regulator ams1117 5v circuit doesn't compromise on performance. It features high efficiency and low dropout voltage, minimizing power wastage and heat generation. The built-in thermal dissipation mechanism ensures that your regulator operates within a safe temperature range, enhancing its reliability and longevity.

NOTE: Do not exceed absolute maximum input voltage (12.5V) or output current. Exceeding maximum specifications can result in permanent damage to this module or any connected devices. The jumper connector is not soldered.

Technical Details of AMS1117 5V Circuit:

IC Chip :AMS1117
Input Voltage (V) :6.5 to 12
Output Voltage(V) :5
Max. Output Current (A) :0.8

Physical Attributes

Length * Width * Height (mm) :25 *11 *2
Weight (gm) : 5

Additional Details

Onboard AMS1117 chip.
Onboard power indicator to indicate power is turned on: Red LED.
Output voltage interface, connection to facilitate the experimental.
Small Compact Size, 4Pin Type, Breadboard Friendly.
2P single row pin input and output for easy connection
Dual-panel design, the layout is nice

Product Video

Documentation

a- Datasheet

Package Includes

1 x AMS1117 5V Step-Down Power Supply Module

AMS1117 5V Step-Down Power Supply Module

Arrived on time and worked as expected.

Arrived on time and worked as expected.

These work great for stepping down 5v to 3

These work great for stepping down 5v to 3.3v for devices like the ESP8266. I only have one complaint, but it's not anything to knock off a star: if you're soldering one of these devices onto a prototype board, make sure you have enough space for the rest of your components. I'm using a 2cmx8cm board, and there's almost not room on each side for 1 row of holes. However, if you offset it on the board, you can free up a lot of space.These would work best on a breadboard. There are smaller versions of this regulator, but this definitely does the job.
