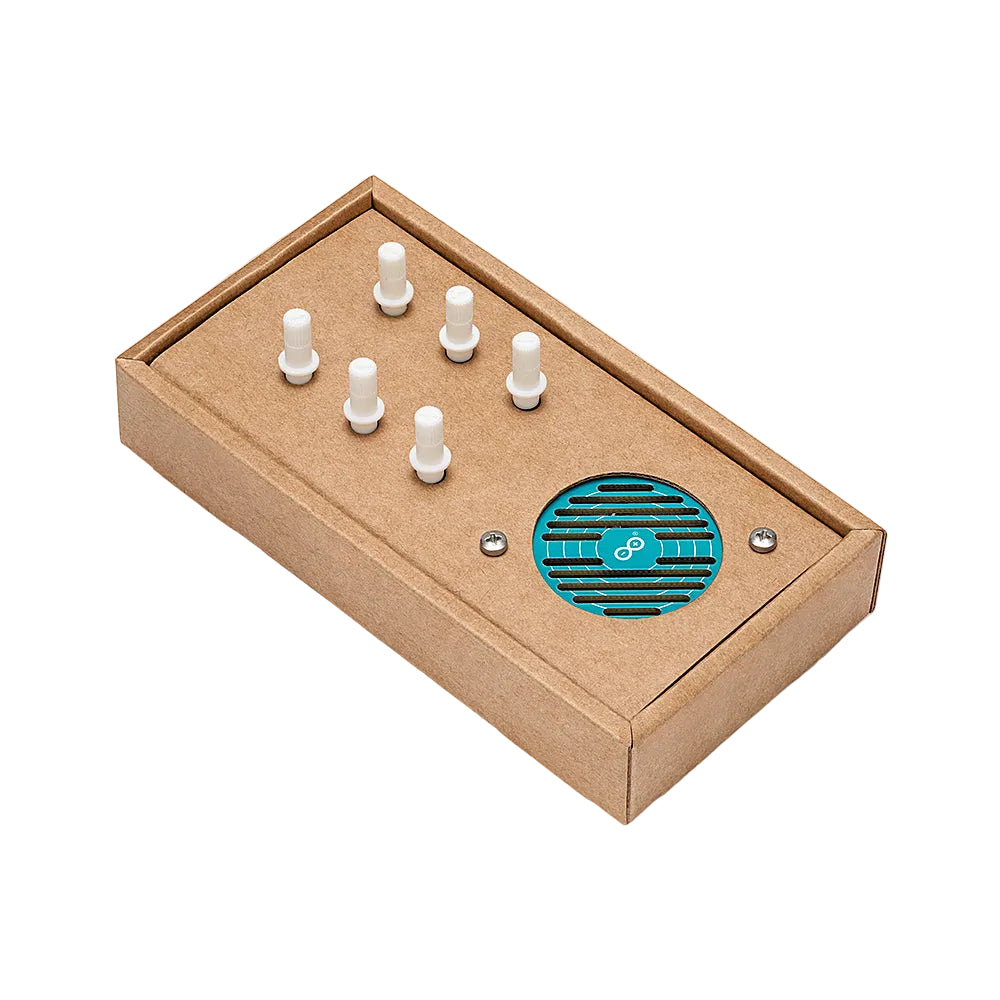

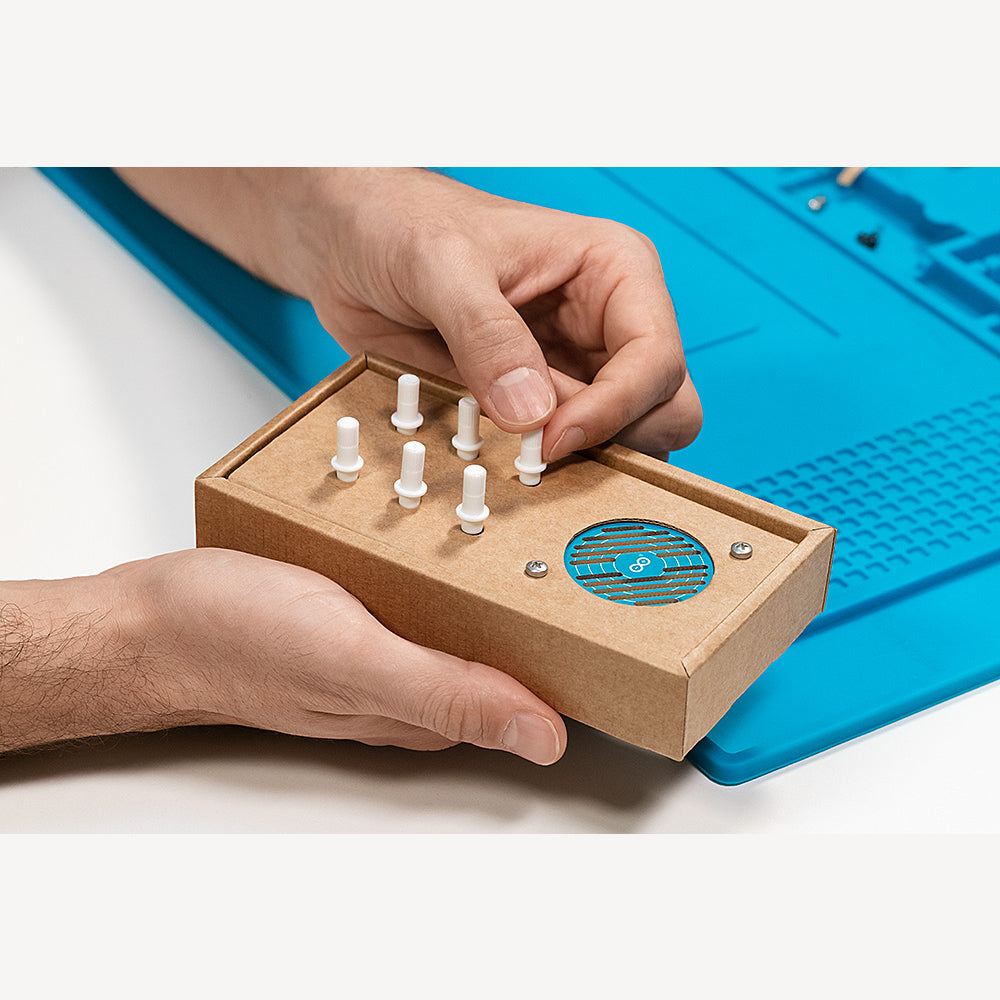

Once assembled, the kit goes beyond a standard development board. Using the included Audio Synthesizer Shield, the packaging itself transforms into a musical synthesizer, allowing you to experiment with sound generation and interactive music projects.
The kit includes access to a dedicated learning platform featuring step-by-step instructions, video tutorials, a 3D interactive viewer, and guidance on programming your newly built Arduino board.
![(Discontinued) Arduino UNO R4 Minima]()
![(Discontinued) Arduino UNO R4 Minima]()
-18%
Official Arduino make your Uno Kit
Available:In Stock
- Product SKU: AKX00037
₹ 4,999
₹ 6,099
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
Official Arduino Make Your UNO Kit – Learn Soldering & Build a Synth (AKX00037)

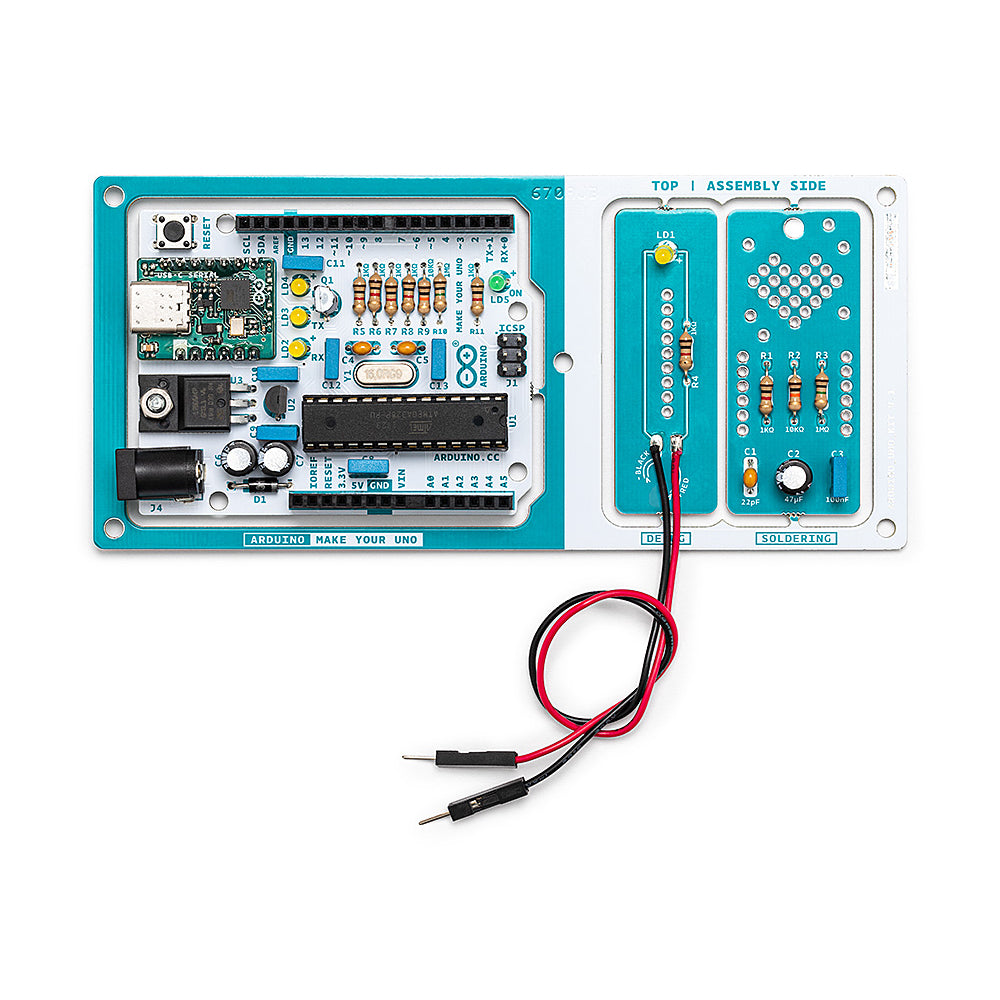

The Official Arduino Make Your UNO Kit is a unique educational kit that lets you build your own Official Arduino UNO from scratch while learning the fundamentals of electronics and soldering. By manually assembling every component, users gain hands-on experience and a deeper understanding of how Arduino hardware works.Once assembled, the kit goes beyond a standard development board. Using the included Audio Synthesizer Shield, the packaging itself transforms into a musical synthesizer, allowing you to experiment with sound generation and interactive music projects.
The kit includes access to a dedicated learning platform featuring step-by-step instructions, video tutorials, a 3D interactive viewer, and guidance on programming your newly built Arduino board.
Features
- Build your own Official Arduino UNO from individual components

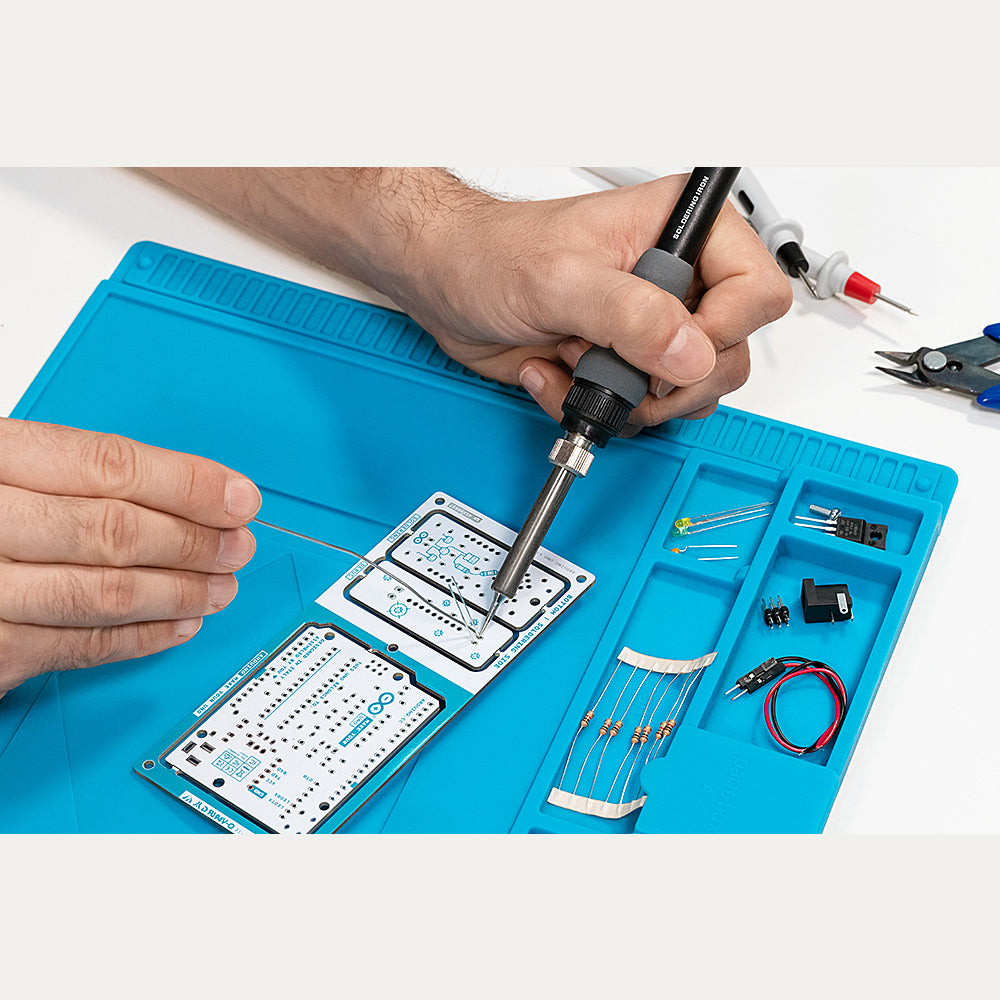

- Learn soldering with a guided, hands-on approach
- Includes an Audio Synthesizer shield for music projects
- Comprehensive instruction manual and online learning platform
- Step-by-step videos and 3D interactive assembly guide
- Compatible with standard Official Arduino shields
- Ideal for students, educators, makers, and hobbyists
Kit Includes – Arduino Make Your UNO

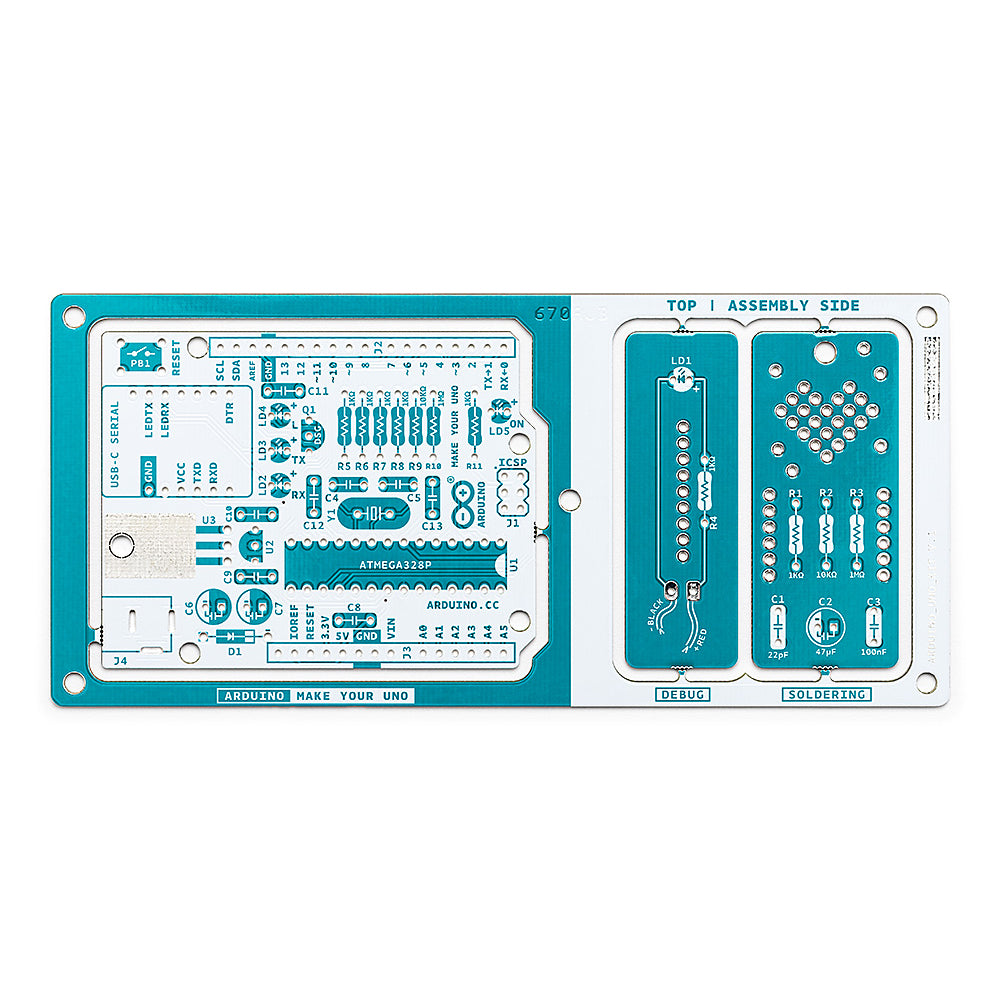

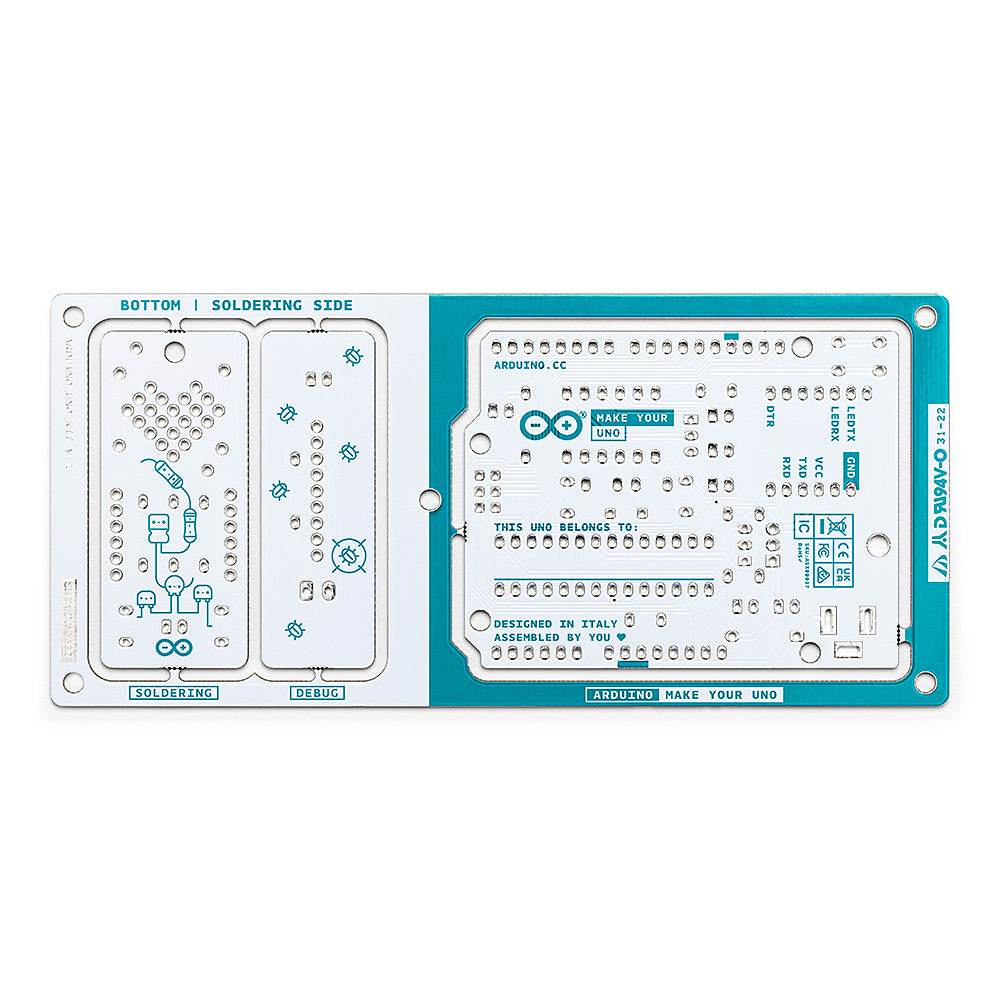

- 1 × Make Your UNO PCB
- 1 × USB Type-C Serial Adapter Board
- 1 × ATmega328P Microcontroller
- 1 × Socket for ATmega328P
- 1 × 16 MHz Crystal
- 7 × Resistors (1 kΩ)
- 2 × Resistors (10 kΩ)
- 2 × Resistors (1 MΩ)
- 1 × Diode (1N4007)
- 4 × Yellow LEDs
- 1 × Green LED
- 1 × Push Button
- 1 × MOSFET
- 1 × LDO Regulator (3.3 V)
- 1 × LDO Regulator (5 V)
- 3 × Ceramic Capacitors (22 pF)
- 3 × Electrolytic Capacitors (47 µF)
- 7 × Polyester Capacitors (100 nF)
- 2 × I/O Connectors
- 1 × 6-Pin Connector Header
- 1 × Barrel Jack Connector

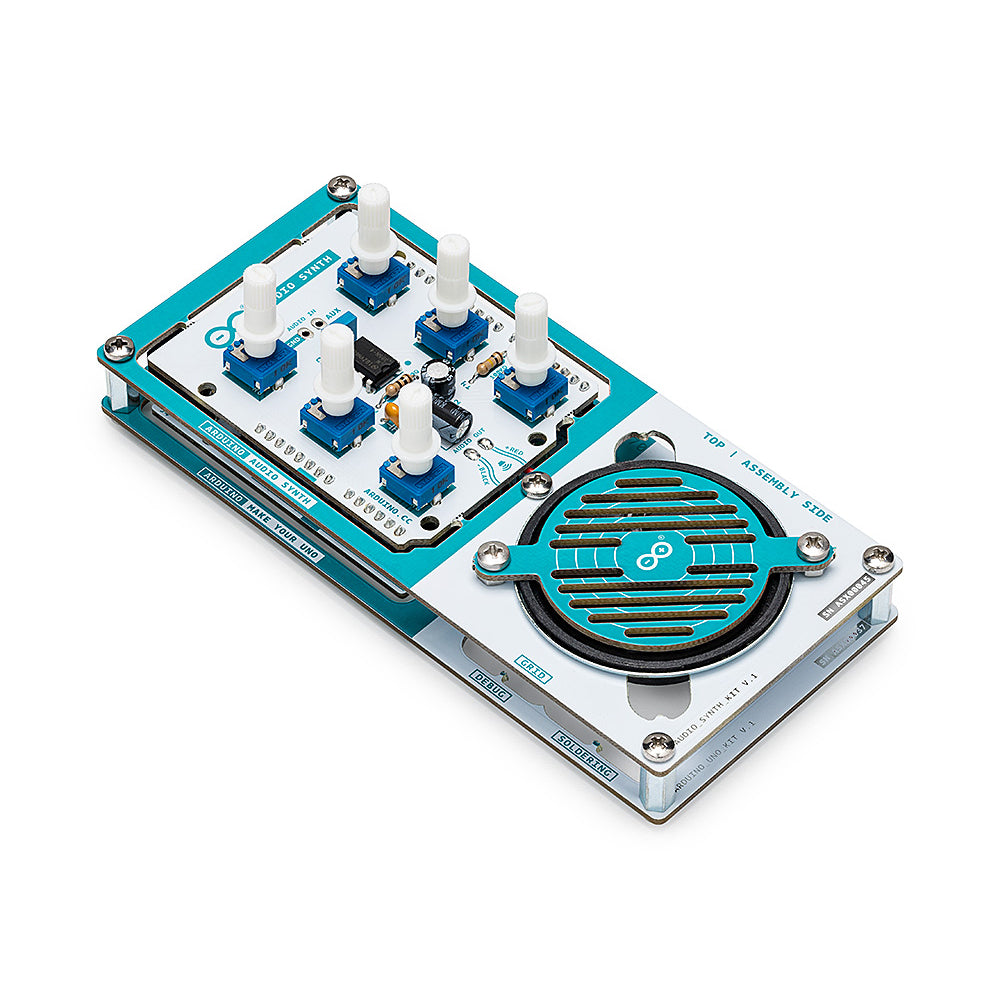

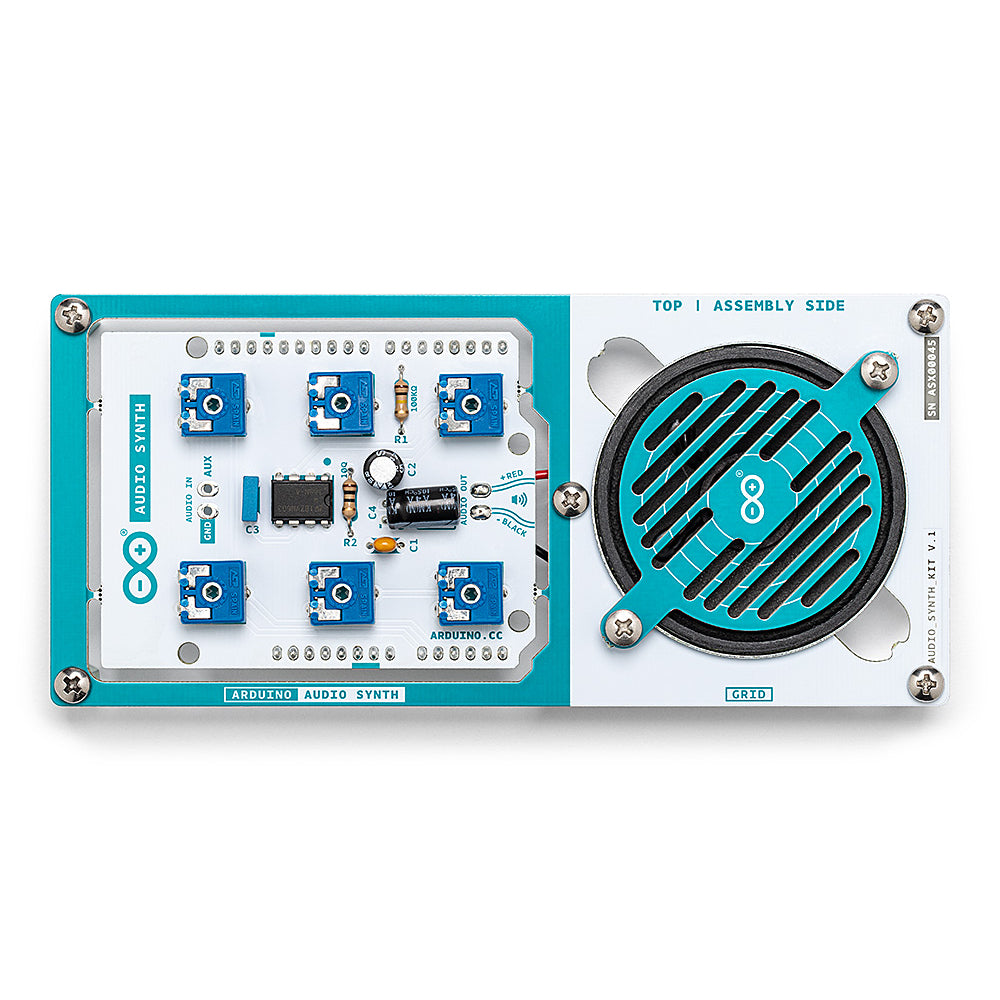

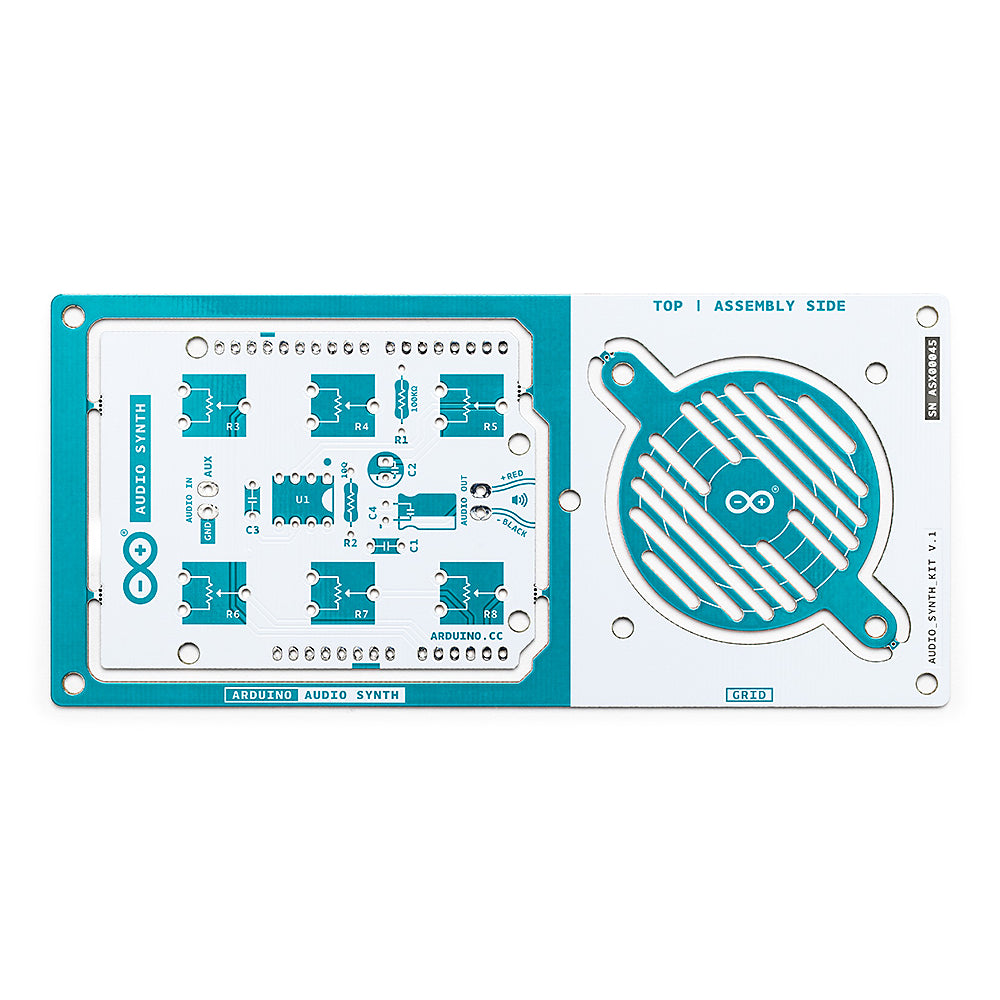

Kit Includes – Audio Synthesizer Shield
- 1 × Audio Synth PCB
- 1 × Audio Amplifier (LM386)
- 1 × Resistor (100 kΩ)
- 1 × Resistor (10 Ω)
- 1 × Ceramic Capacitor (47 nF)
- 1 × Electrolytic Capacitor (47 µF)
- 1 × Electrolytic Capacitor (220 µF)
- 1 × Polyester Capacitor (100 nF)
- 4 × Connector Pin Headers
- 6 × 10 kΩ Potentiometers with Plastic Knobs
Spare Parts Included
- 2 × Electrolytic Capacitors (47 µF)
- 2 × Polyester Capacitors (100 nF)
- 2 × Ceramic Capacitors (22 pF)
- 1 × Push Button
- 1 × Yellow LED
- 1 × Green LED
Mechanical Parts
- 5 × Spacers (12 mm)
- 11 × Spacers (6 mm)
- 5 × Screw Nuts
- 2 × Screws (12 mm)
Specifications
- Item Type: Educational Kit
- Model: Arduino Make Your UNO Kit
- Model Number: AKX00037
- Processor: ATmega328P
- Crystal Frequency: 16 MHz
- Connector Header: 6 Pins
- Brand: Official Arduino
- Compatibility: Standard Arduino Shields
Physical Attributes
- Construction Type: Through-hole components (manual soldering)
- Dimensions : 155 × 82 × 32 mm (complete kit including components & packaging)
- Weight: 209g (complete kit including components & packaging)
Package Includes

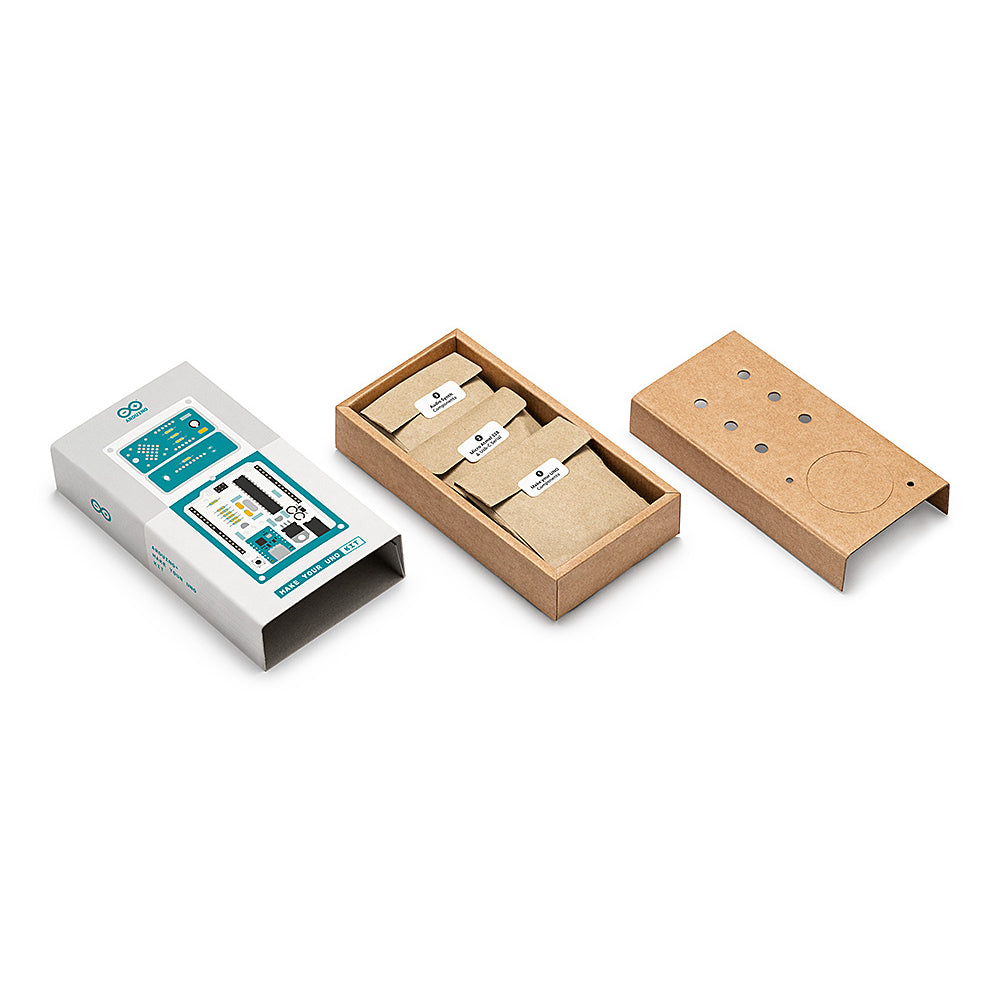

- 1 × Official Arduino Make Your UNO Kit (AKX00037)
