Arduino Mega 2560 Board Without USB Cable
- Product SKU: KG028
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
- Order within
Specification
Description
The Arduino Mega 2560 board is a microcontroller board based on the ATmega2560 microcontroller. It is one of the most powerful and feature-rich boards in the Arduino family and is commonly used for projects that require more I/O pins, memory, and processing capabilities than the standard Arduino Uno.Key features of the Arduino Mega 2560 board include:
ATmega2560 Microcontroller:
This is the heart of the Arduino Mega 2560 board. It's an 8-bit microcontroller with 256KB of Flash memory, 8KB of SRAM, and 4KB of EEPROM.54 Digital I/O Pins:
The Mega 2560 provides a large number of digital I/O pins, which can be used for various purposes, such as reading sensors, controlling motors, and interfacing with other digital devices.16 Analog Inputs:
These pins can be used to read analog signals, such as the output from sensors or potentiometers.Multiple Communication Interfaces:
The board has several communication interfaces, including UART (Serial), SPI, and I2C, allowing it to communicate with other devices such as sensors, displays, and other microcontrollers.USB Connection:
The Mega 2560 can be connected to a computer via USB, enabling programming and serial communication with the board.Power Jack:
The board can be powered using an external power supply through a power jack.ICSP Header:
This header allows for in-circuit serial programming of the microcontroller.Reset Button:
The board includes a reset button to restart the microcontroller.The Arduino Mega 2560 board is particularly suitable for projects that require a large number of I/O pins or need more memory and processing power. It is often used in complex robotics projects, 3D printers, home automation systems, and more.
To get started with the Arduino Mega 2560 board, you will need to download and install the Arduino IDE (Integrated Development Environment) on your computer. Connect the Mega 2560 to your computer using a USB cable, select the correct board and port in the Arduino IDE, and you can start writing and uploading sketches (programs) to the board.
Features:
- Bootloader – to allow downloading of ‘sketches’ via USB without having to go through other external writers.
- Powered from USB or via external PSU (not supplied). The device will automatically switch between power inputs.
- Heavy gold plate construction.
- Compatible with most shields designed for the Arduino Uno
- Arduino is open-source hardware, software, and content platform with a worldwide community of over 30 million active users.
Technical Details
- Analog I/O Pins: 16
- USB Cable is not included with the model
- Architecture: AVR
- Clock Speed: 16 MHz
- Color: Blue
- Digital I/O Pins : 54 digital input/output terminals (14 of which have programmable PWM outputs)
- Flash Memory: 256 KB
- Input Voltage(Recommended) : 7-12
- Microcontroller: ATmega2560
- Operating Voltage (VDC): 6 ~ 12
- PWM Output Pins: 14
Physical Attributes
- Length × Width × Height(mm) : 110 x 53 x 13
- Weight (gm) : 35
Product Video
Useful Links
Package Includes
- 1 x Arduino Mega 2560 Board Without USB Cable
Customer Reviews

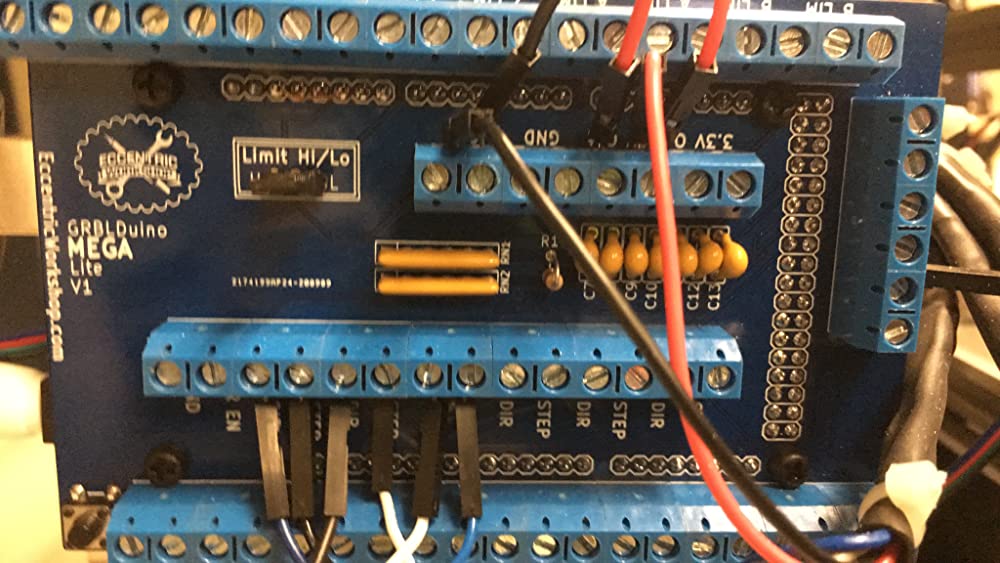

Flashed firmware to work as a grbl controller, as expected it is working properly as far as I can see. This is for a desktop cnc upgrade on the current controller
Working great.
This little Arduino is perfect for many projects! I love to use this, and the quality is really good for the price.
Worked perfectly haven't had any issues uploading programs or using this for my school project
I Use these for my projects were I need to control outputs from all pins (Yes you can transmit on Analog In Pins as well). Works with the Arduino IDE .
Great product. Works out of the box and lots of open source Arduino code is available.
What else is there to say, it works, its good quality. I dont think they need to add the cable tho, I have to many of these already!
I have to hand it out to the Arduino team. They did a good job providing support for this item. Loved the hardware and the support Elegoo provided with projects and instructions. I had great time building projects.
It works as it should be and I am very happy with buying it at this price.
GREAT PRODUCT
