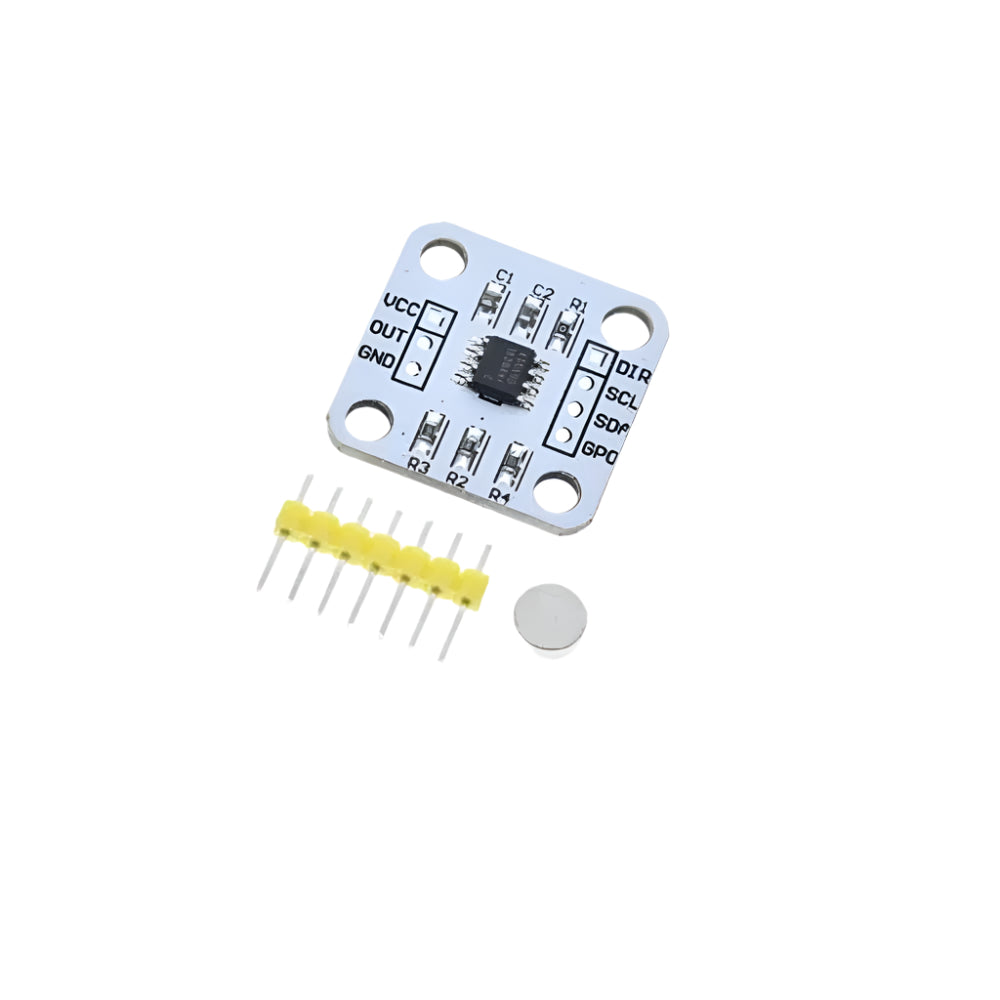

AS5600 Magnetic Encoder 12bit High-Precision Magnetic Induction Angle Measurement Sensor Module

AS5600 Magnetic Encoder Induction Angle Sensor recognizes changes in the magnetic field as information about the rotational position transforms those changes into electrical signals, and outputs those signals. The Hall element is a magnetic sensor that outputs a voltage proportional to the strength of the magnetic field by utilizing the Hall effect phenomenon.

Technical Details

Model: AS5600
Operating Temperature Range: -40°C to 125°C
Power Supply: 3.3V DC
Length: 23mm
Width: 23mm
Height: 3mm

Features

12-bit DAC output resolution
Non-contact magnetic induction angle measurement module
High precision with multiple output modes: IIC, PWM, and voltage

Applications:

Robotics: Precise position and motion control
Industrial Automation: Accurate angle measurement for automated systems
Motor Control: Feedback for brushless and stepper motors
Automotive Systems: Steering and throttle position sensing

Pins

VCC: 3.3V
GND: Power ground
Out: PWM / Analog voltage output
DIR: Direction of rotation (GND = increases clockwise value, VCC = clockwise, values decrease)
SCL: IIC communication clock line
SDA: IIC data communication line
GPO: Mode selection (internal traction field = mobk programming)
