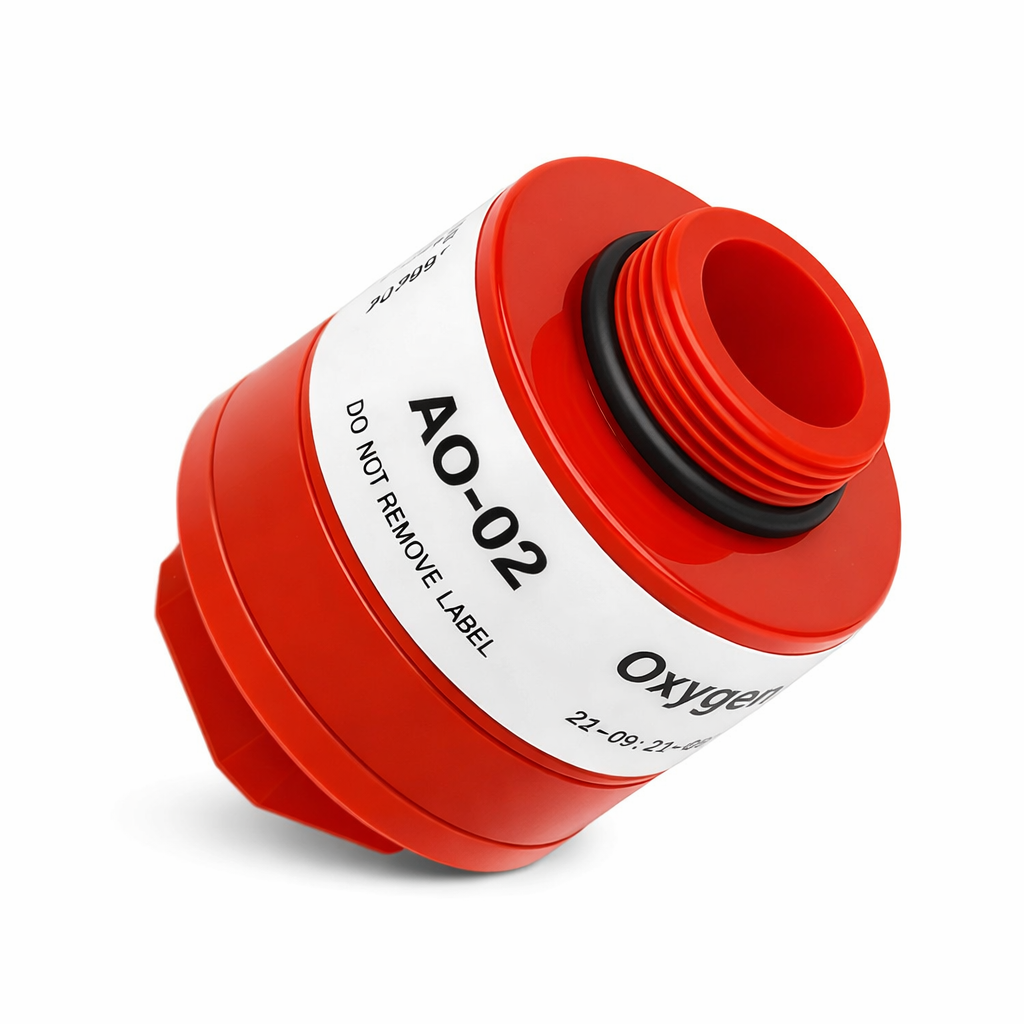

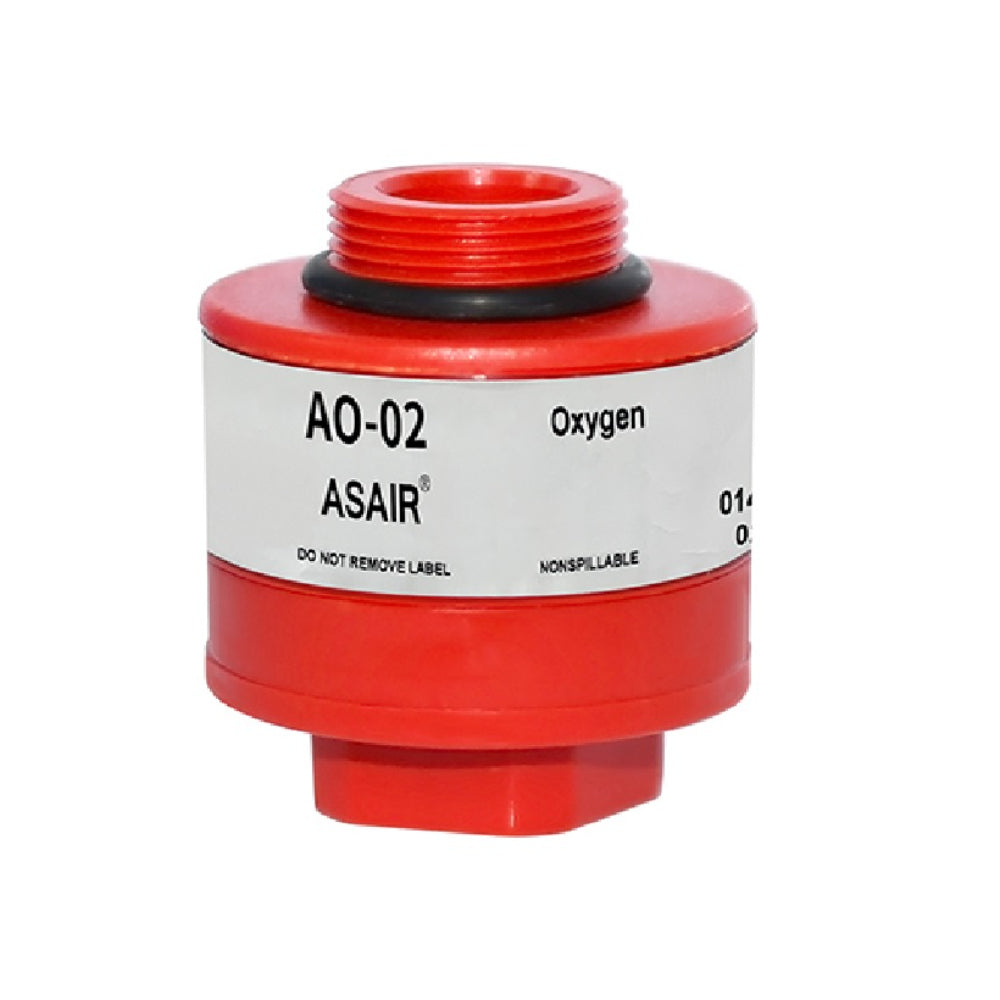

ASAIR AO-02 Electrochemical Oxygen (O₂) Sensor

The AO-02 Oxygen Sensor is a high-quality electrochemical oxygen concentration sensor designed for fast, accurate, and reliable O₂ measurement. It features a molded body design with optimized structure and temperature compensation, delivering excellent performance at a cost-effective price point.

With a linear output from 0% to 100% O₂ and no external power supply required, the AO-02 provides quick response, strong anti-interference capability, and long-term stability—making it suitable for both industrial and environmental oxygen monitoring applications.

Features

  • Electrochemical oxygen sensing technology
  • Linear output from 0% to 100% oxygen
  • No external power supply required
  • Fast response time with high accuracy
  • Built-in temperature compensation
  • Stable, reliable, and durable performance
  • Anti-interference design
  • Cost-effective oxygen sensing solution

Measurement Specifications

  • Operating Principle: Partial pressure electrochemical
  • Measurement Range: 0 – 100 Vol.% O₂
  • Output Signal: 9 – 13 mV in air
  • Response Time (T90): < 5 seconds
  • Response Time (T99.5): < 40 seconds
  • Baseline Offset: < 20 µV
  • Linearity: Linear across 0 – 100 Vol.% O₂

Electrical Specifications

  • Temperature Compensation: < 2% O₂ equivalent (0 – 40 °C)
  • External Load Resistor: ≥ 10 kΩ

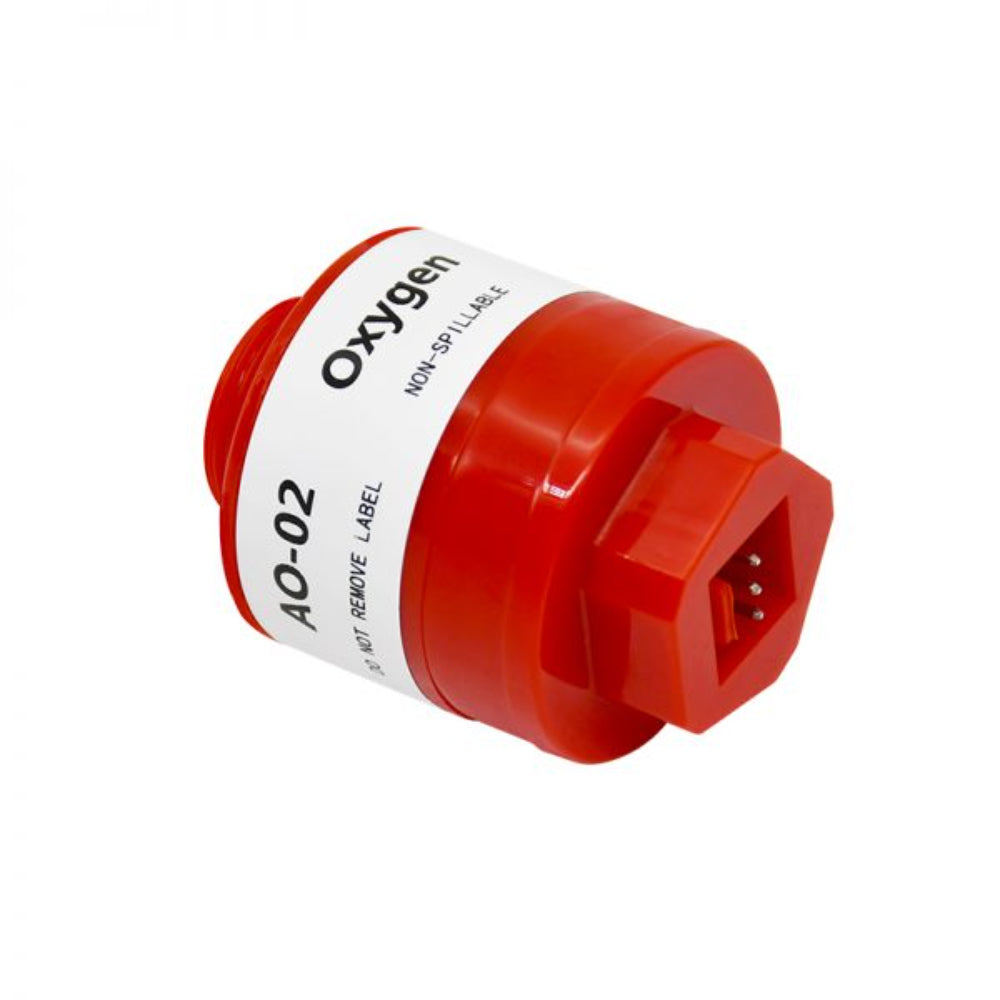

  • Connector: 3-Pin Molex Header (MOLEX 22-29-2031)
  • Recommended Mating Housing: MOLEX 22-01-2035
  • Crimp Terminals: MOLEX 08-45-0110

Environmental Specifications

  • Operating Temperature Range: 0 °C to +50 °C
  • Operating Pressure Range: 0.5 – 2.0 Bar
  • Differential Pressure Range: 0 – 500 mBar
  • Operating Humidity Range: 0 – 99% RH (non-condensing)

Applications

  • Oxygen concentration detection systems
  • Vehicle exhaust gas monitoring
  • Environmental exhaust gas detection
  • Industrial and laboratory oxygen analyzers
  • General O₂ sensing and monitoring applications

Package Includes

  • 1 × ASAIR AO-02 Electrochemical Oxygen Sensor
