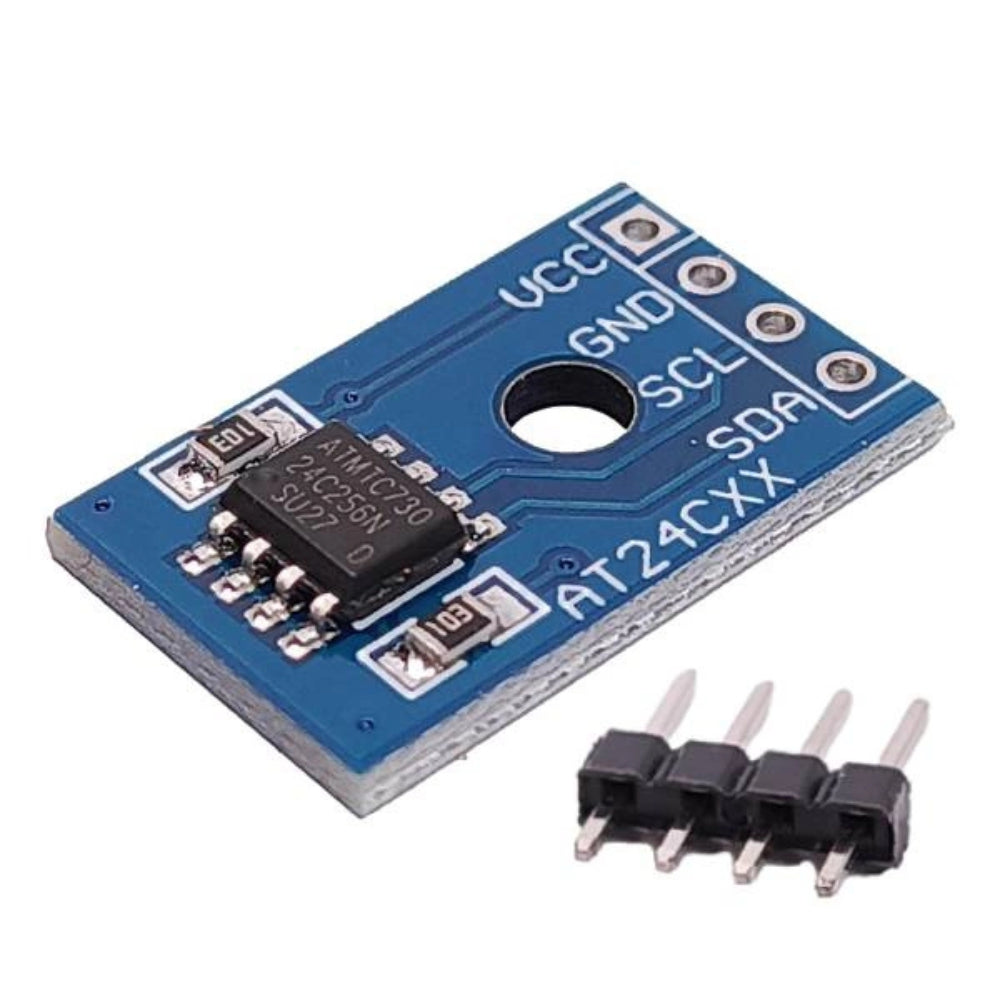

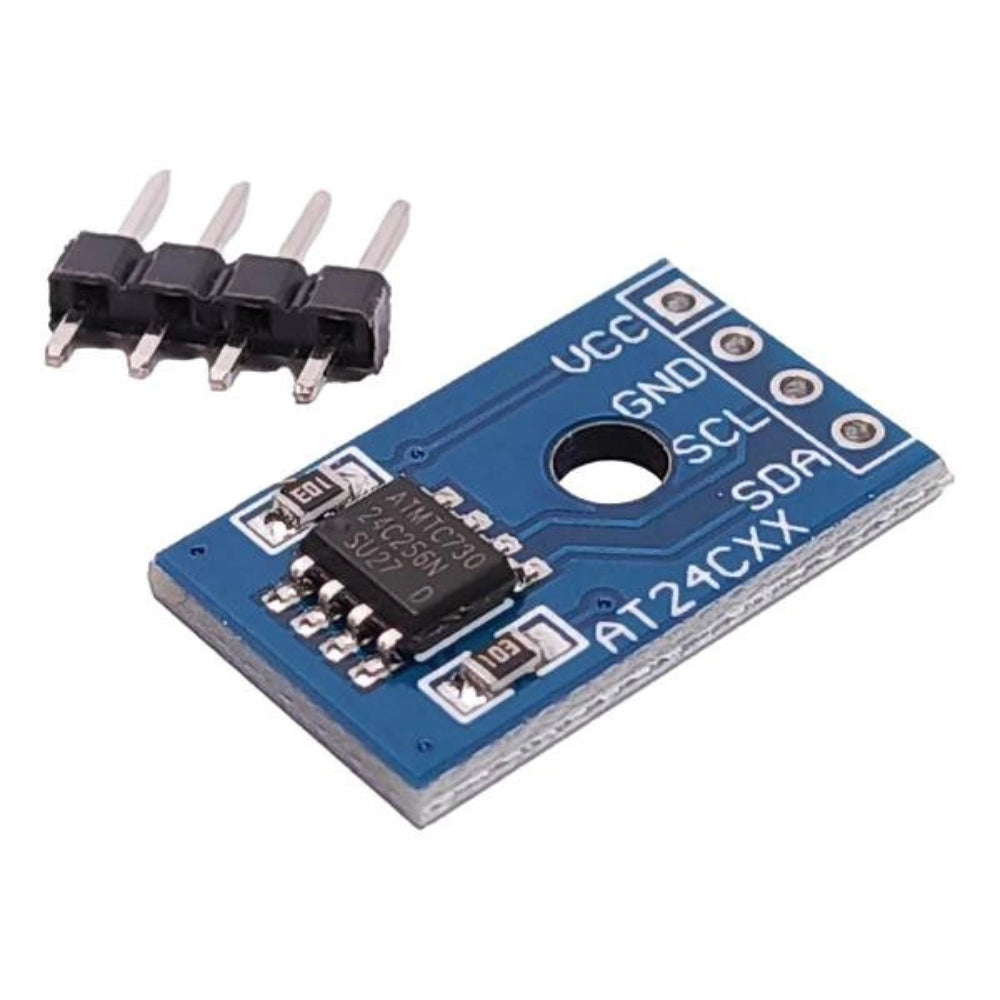

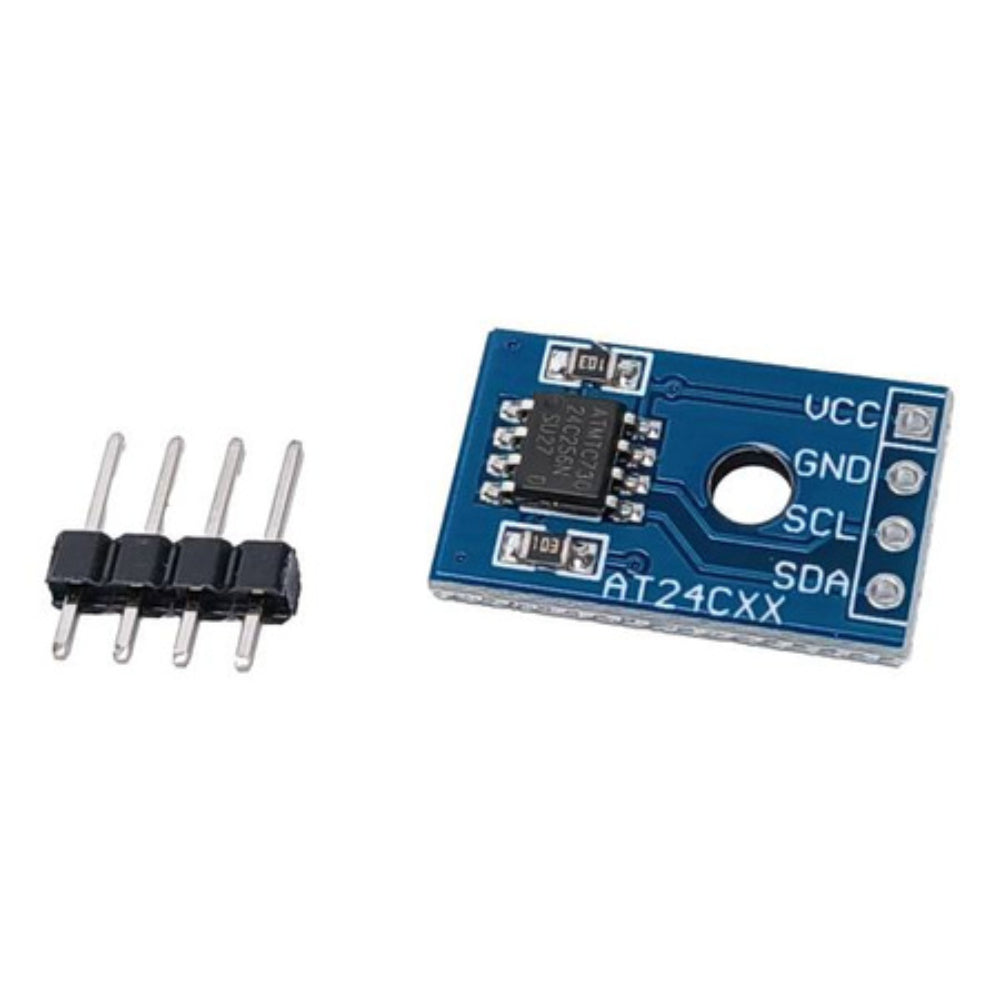

AT24C02 Module I2C IIC Interface EEPROM Memory Module

The AT24C02 Module I2C IIC Interface EEPROM Memory Module is a compact non-volatile memory board designed for reliable serial data storage in microcontroller-based projects. It is based on the AT24C02 EEPROM IC and provides 2K bit memory capacity, making it suitable for storing small data such as configuration values, calibration data, device IDs, and project settings.

This EEPROM memory module uses the I2C / IIC communication interface, allowing easy connection with Arduino, STM32, Raspberry Pi, and other development boards. It supports byte-level and page write operations, offers low power consumption, and retains stored data even when power is removed, making it useful for embedded data storage applications.

Features

  • Based on AT24C02 EEPROM IC
  • 2K bit non-volatile memory
  • I2C / IIC serial communication interface
  • Supports byte write operation
  • Supports page write operation
  • Low power consumption
  • Compact breakout board design
  • Suitable for embedded data storage
  • Stores data without power
  • Easy microcontroller interface

Technical Details

  • Item Type: EEPROM Memory Module
  • Memory IC: AT24C02
  • Memory Capacity: 2K bit
  • Memory Organization: 256 × 8 bit
  • Memory Type: Non-volatile EEPROM
  • Operating Voltage: 2.7V to 5.5V DC
  • Interface Type: I2C / IIC
  • Clock Frequency: Up to 400KHz
  • Write Cycle Time: 5ms typical
  • Data Retention: 100 years typical
  • Endurance: 1 million write cycles

Interfaces

  • VCC: Power supply input 2.7V to 5.5V
  • GND: Ground connection
  • SCL: I2C clock line
  • SDA: I2C data line
  • WP: Write protect control
  • A0: Address select bit 0
  • A1: Address select bit 1
  • A2: Address select bit 2

Applications

  • Arduino data storage projects
  • Embedded configuration storage
  • Calibration data storage
  • Device ID storage
  • Small data logging applications
  • Microcontroller memory expansion
  • Industrial control projects
  • DIY electronics projects

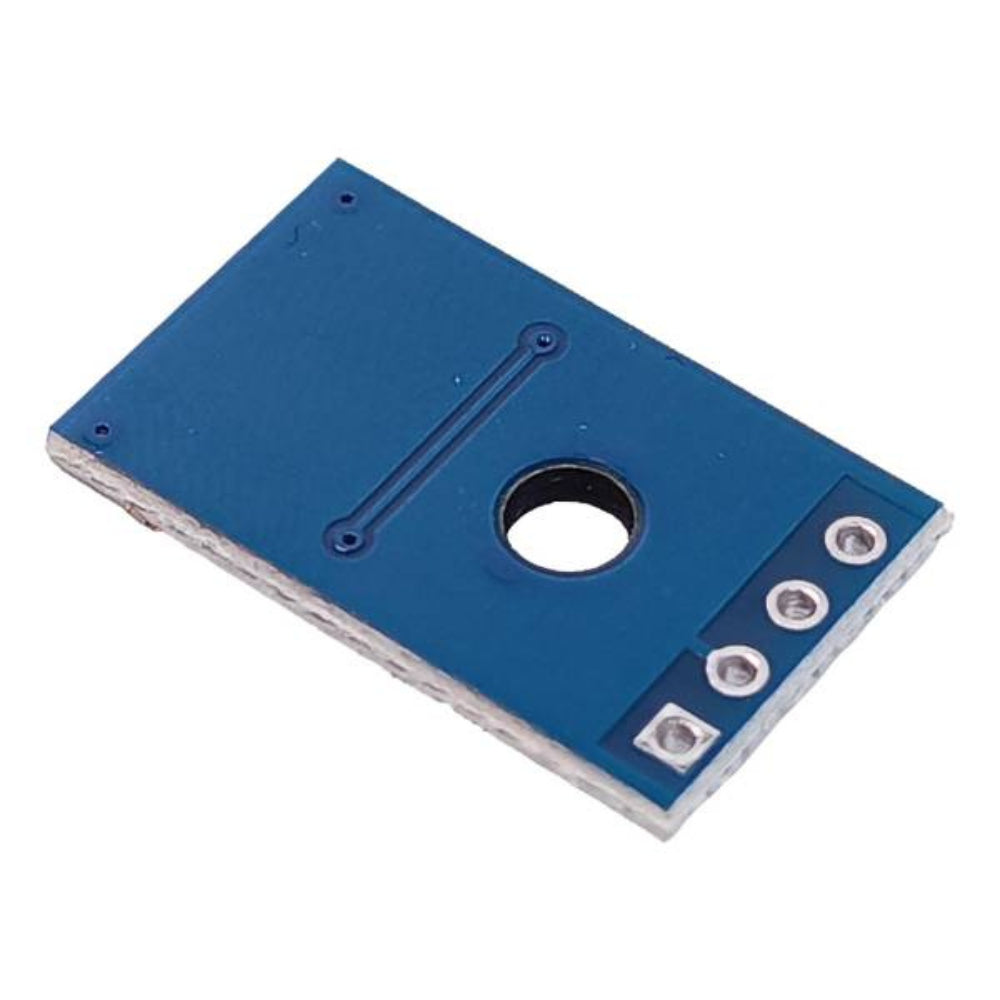

Physical Attributes

  • Board Type: Compact breakout module
  • Connection Type: Pin header interface
  • Mounting Style: PCB module
  • Design: Small and lightweight
  • PCB Board Size: 19 × 11 mm
  • Weight: 2g

Package Includes

  • 1 × AT24C02 Module I2C IIC Interface EEPROM Memory Module with header
