This I2C EEPROM memory module communicates through the I2C / IIC serial interface, allowing simple connection with Arduino, STM32, ESP boards, Raspberry Pi, and other compatible controller platforms. It supports standard EEPROM read and write operations, has low power consumption, and is useful for projects where reliable external memory storage is required in a small board format.
-28%
AT24C08 Module I2C IIC Interface EEPROM Memory Module
Available:In Stock
- Product SKU: KG1372
₹ 49
₹ 69
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description

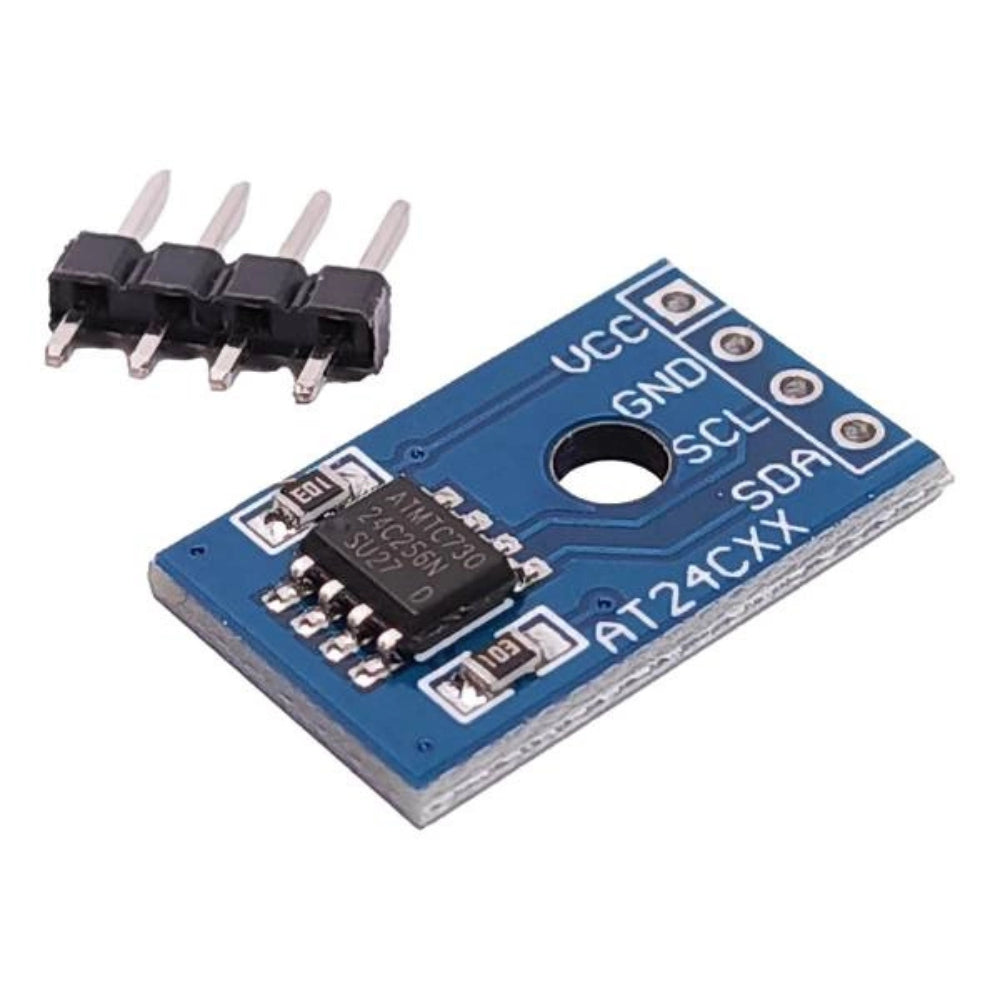

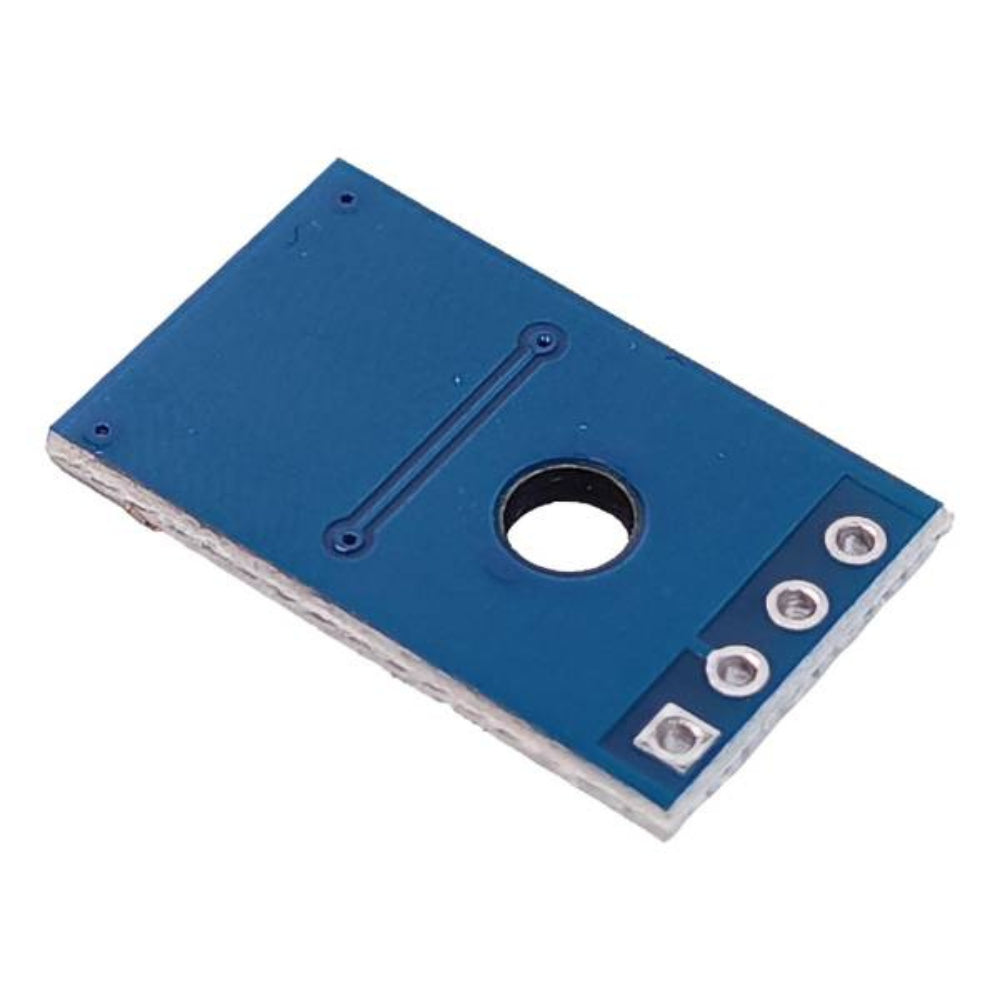

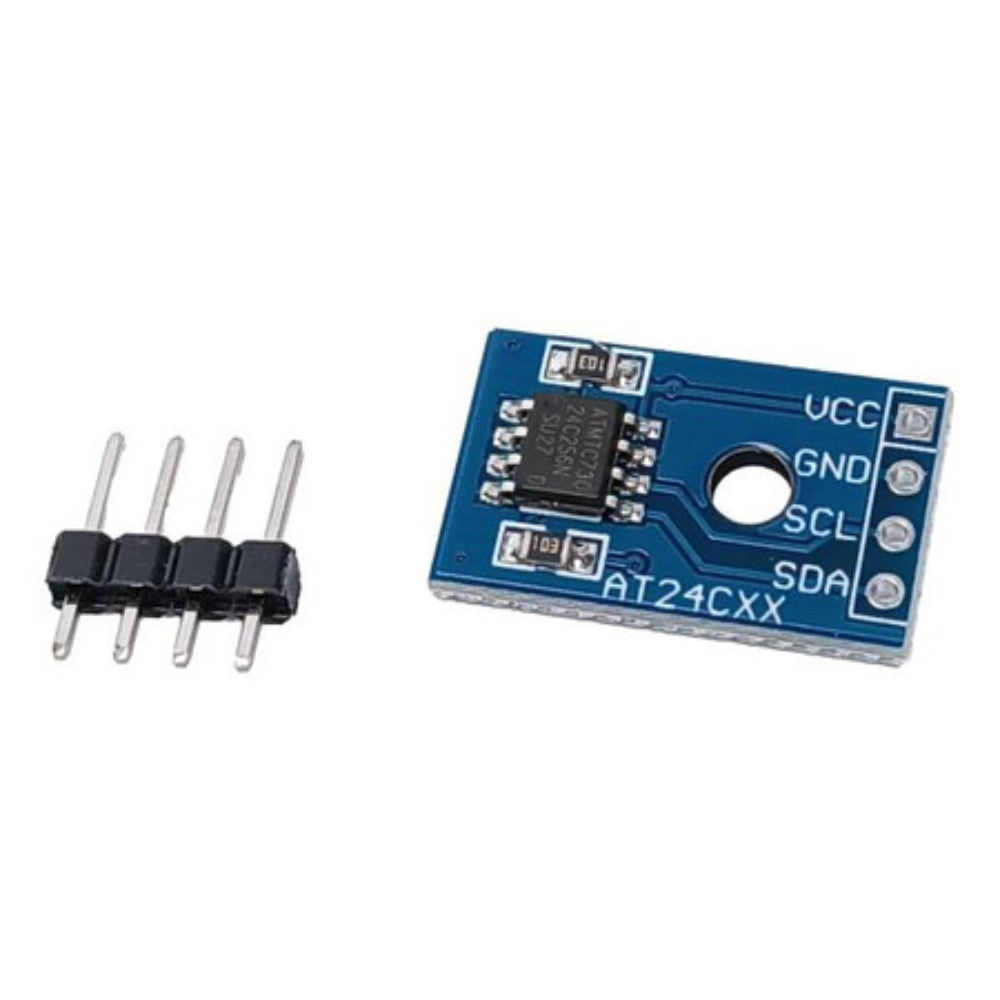

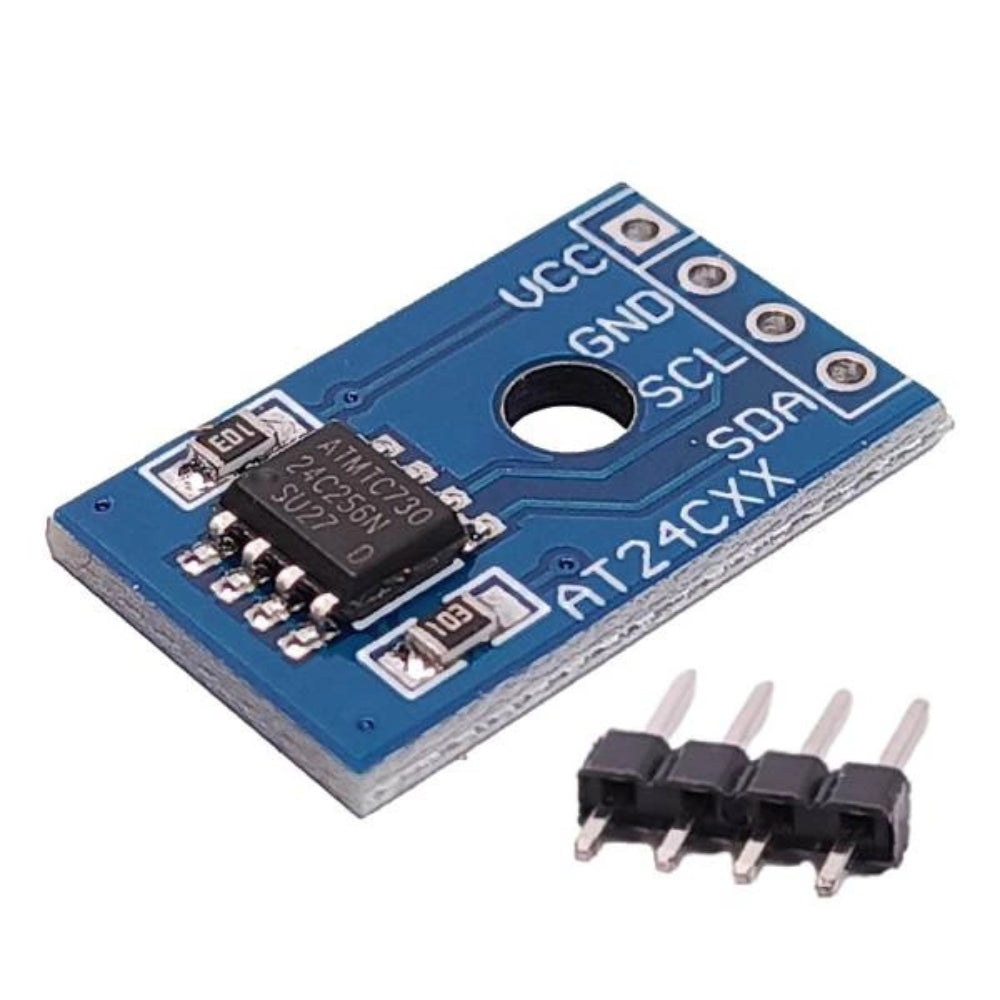

AT24C08 Module I2C IIC Interface EEPROM Memory Module
The AT24C08 Module I2C IIC Interface EEPROM Memory Module is a compact non-volatile memory module designed for storing small but important data in embedded electronics and microcontroller-based projects. It uses the AT24C08 EEPROM IC and provides 8K bit memory capacity, making it suitable for saving configuration values, calibration data, user settings, device identification details, and other records that need to remain stored even after power is turned off.This I2C EEPROM memory module communicates through the I2C / IIC serial interface, allowing simple connection with Arduino, STM32, ESP boards, Raspberry Pi, and other compatible controller platforms. It supports standard EEPROM read and write operations, has low power consumption, and is useful for projects where reliable external memory storage is required in a small board format.
Features
- Based on AT24C08 EEPROM IC
- 8K bit non-volatile memory
- I2C / IIC serial communication interface
- Retains stored data without power
- Suitable for configuration data storage
- Supports byte write operation
- Supports page write operation
- Low power operation
- Compact PCB breakout board
- Easy to connect with microcontrollers
- Useful for repeated read/write applications
Technical Details
- Item Type: EEPROM Memory Module
- Memory IC: AT24C08
- Memory Capacity: 8K bit
- Memory Organization: 1024 × 8 bit
- Memory Type: Non-volatile EEPROM
- Operating Voltage: 2.7V to 5.5V DC
- Interface Type: I2C / IIC
- Clock Frequency: Up to 400KHz
- Write Cycle Time: 5ms typical
- Data Retention: 100 years typical
- Endurance: 1 million write cycles typical
Interfaces
- VCC: Power supply input 2.7V to 5.5V
- GND: Ground connection
- SCL: I2C clock line
- SDA: I2C data line
- WP: Write protect control pin
- A0: Address select bit 0
- A1: Address select bit 1
- A2: Address select bit 2
Applications
- Microcontroller parameter storage
- Arduino EEPROM memory projects
- Sensor calibration data storage
- Device configuration memory
- Small event data logging
- Product ID and serial data storage
- Embedded system memory expansion
- DIY electronics and learning projects
Physical Attributes
- Board Type: EEPROM breakout module
- Connection Type: Pin header interface
- PCB Board Size: 19 × 11 mm
- Design: Compact and lightweight
- Weight: 2g
Package Includes
- 1 × AT24C08 Module I2C IIC Interface EEPROM Memory Module
